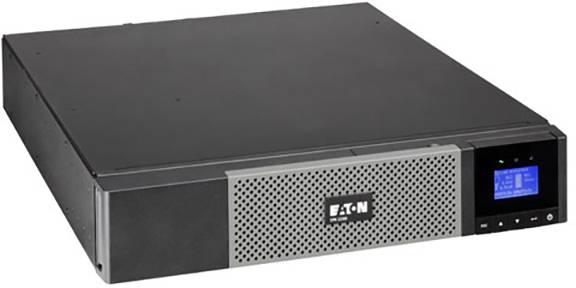

Eaton 5PX1500IRTN 19" UPS 1500 VA
EAN:
Part number:
Item no:
Highlights & Details
Eaton 5PX 1500i RT2U Netpack - 1500 /1350 (VA/Watt) UPS
- All models are suitable for tower and rack mounting, as standard with a complete 19" mounting kit
- Autonomy time for all 5PX models can be extended with max. 4 EBM battery modules
- All 5PX models with power factor 0.9 can be loaded
Technical specifications
- Product type
19" UPS
- Nominal power
1500 VA
- No. of outputs
8 x
- with surge protection
8
- of which battery-buffered
8
- Output
IEC C14 plug
- Features
Alarm
USB port
LCD
Serial port
Network interface card
Relay card
- Bridging time normal load
15 min
- Bridging time, max load
6 min
- Surge protection for
Mains outlets
- Type
5PX1500IRTN
- Width
441.2 mm
- Height
86.2 mm
- Depth
522 mm
- Weight
27.6 kg
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2362690 Eaton 5PX1500IRTN 19" UPS 1500 VA
Description
Eaton 5PX 1500-3000VA - Power failure and surge protection with voltage control AND sine output - UPS (ENHANCED LINE INTERACTIVE) VI-SS-313 according to EN 62040 - Application area: Compact high-performance protection for servers, storage systems and network equipment, rack controllers, PLC, hubs, Switches, local networks, departmental servers, WAN,
This text is machine translated.
This text is machine translated.
Features
- Energy measurement per output group possible
- Consumer connection via 8 x IEC320 cold device plug (of which 2 x 2 power share)
- Communication slot for optional MS SNMP or MS relay card.
Scope of delivery
- IEC connection cable
System requirements
- Windows XP, Windows Vista and Windows 7, 8 & 63
