Buy econ connect 28AWG25GR Ribbon cable Contact spacing: 1.27 mm 25 x 0.08 mm² Grey 30.50 m | Conrad Electronic | Conrad Electronic » All parts of success

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

A transparent, wavy plastic pipe with red edges, possibly for liquid or air transportation.

A transparent, wavy plastic pipe with red edges, possibly for liquid or air transportation.

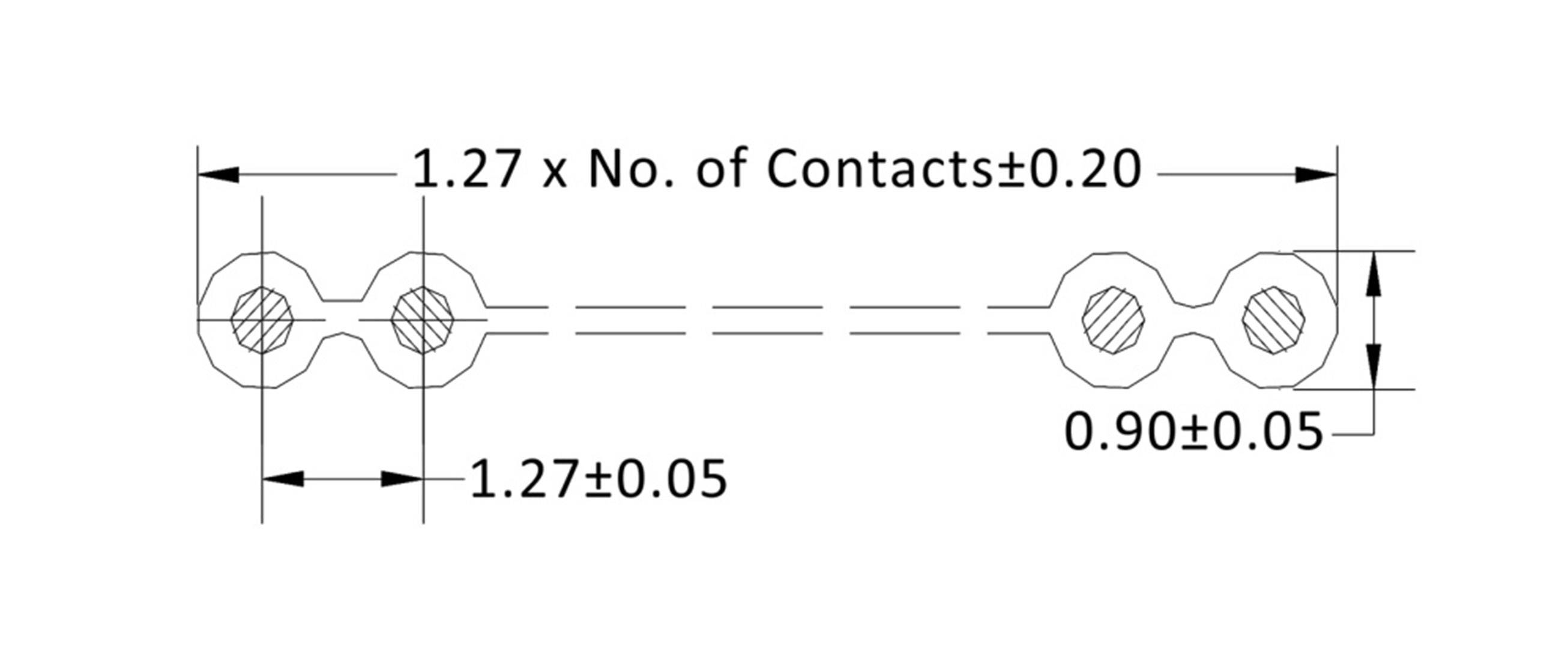

Technical Drawing with Dimensions: Width 1.27 times number of contacts plus/minus 0.20; Spacing 1.27 plus/minus 0.05; Height 0.90 plus/minus 0.05.

1/2

Image similar

econ connect

Product type

Ribbon cable

CS

1.27 mm

No. of leads

25 x

Cross section (each core)

0.08 mm²

Content

30.50 m

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 12 Nov

10 Set(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Set(s)

Total (1 m = € 1.41)

€ 42.99

incl. VAT

Only 10 Set(s) available

14-day return policy included

Report legal concerns

Technical specifications

Product type: Ribbon cable

CS: 1.27 mm

No. of leads: 25 x

Cross section (each core): 0.08 mm²

Cross section: 25 x 0.08 mm²

Height: 0.90 mm

Factory colour: Grey

Content: 30.50 m

Nominal voltage: 300 V

Packaged: Yes

: 28

Sold per metre: No

Insulation material: Polyvinyl chloride

Core layout: 7 x 0.125 mm

Max. temperature range (fixed installation): +105 °C

Manufacturer part #: 28AWG25GR

Type: 28AWG25GR

Max. length sold by the metre: 30.5 m
