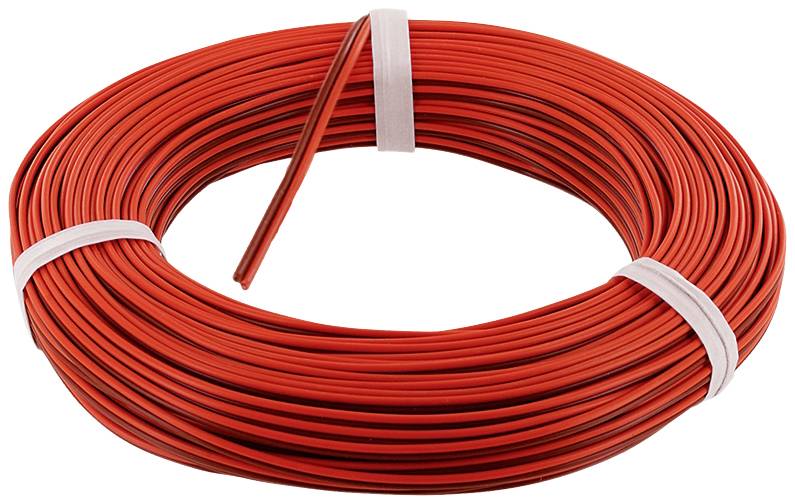

econ connect ZKL075RTBR20 Strand 2 x 0.75 mm² Red, Brown 20 m
EAN:
Part number:
Item no:
Product type
Strand
No. of leads
2 x
Cross section (each core)
0.75 mm²
Cable features
Flat
Flexible
Cross section
2 x 0.75 mm²
Datasheet (PDF)
Number
Total (1 m = € 1.93)
€ 38.65
plus VAT.
Technical specifications
- Product type
Strand
- No. of leads
2 x
- Cross section (each core)
0.75 mm²
- Cross section
2 x 0.75 mm²
- Cable features
Flat
Flexible
- Width
4.6 mm
- Height
2.3 mm
- Factory colour
Red
Brown
- Content
20 m
- Nominal voltage
500 V
- Sold per metre
No
- Halogen-free
No
- Manufacturer part #
ZKL075RTBR20
- Insulation material
PVC
- Core layout
2 x 24 x 0,2 mm
- Material (details)
Copper
- Min. temperature range (flexible installation)
-5 °C
- Max. temperature range (flexible installation)
85 °C
- Min. temperature range (fixed installation)
-40 °C
- Max. temperature range (fixed installation)
85 °C
- Max. length sold by the metre
20 m
- Type
ZKL0,75/20RTBR
