Name: Eurolite DPX-620 DMX dimmer 6-channel
Brand: Eurolite
SKU: 593270
Availability: InStock

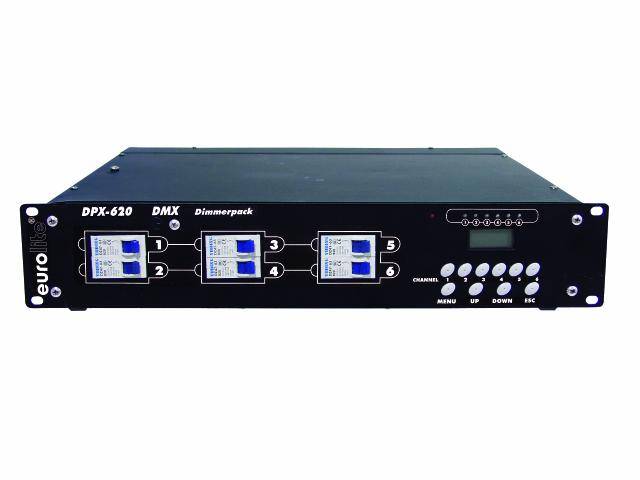

Black DMX dimmer pack 'euro' DPX-620 with six blue toggle switches and ten buttons for controlling lighting channels.

A black DMX dimmer pack with the inscription 'DMX-620 DMX', showing a control panel with connections and indicator lights.

A black DMX lighting controller with multiple faders and connections, suitable for stage use.

Rear view of a black audio amplifier with multiple connections and controls.

An electrical switchboard module with green-white switches and cable connections.

1/5

EAN:

Part number:

Item no:

Dispatches on Mon 2 Nov

23 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 459.00 / piece)

€ 459.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Eurolite DPX-620 DMX dimmer pack

Digital 6-Channel Dimmer Pack

Technical specifications

Power supply: number 230-380 V AC, 50 Hz
Max. Total power: 27600 W
Max current: 120 A.
Number of control channels: 6
Max. Nominal power/channel: 4600 W
Max. Nominal current/channel: 20 A
Integrated programs: 12
Output Sockets: via terminal block
Circuit breaker: 6 x C20A
Dimensions (wxdxh): 420 x 482 x 95 mm
Rack installation with 2 HE
Minimum mounting depth: 500 mm
Weight: 8 kg.

Product type: DMX dimmer

No. of channels: 6-channel

Weight: 8.8 kg

Width: 540 mm

Height: 200 mm

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 593270 Eurolite DPX-620 DMX dimmer 6-channel

Circuit diagramm

Circuit diagramm 593270 Eurolite DPX-620 DMX dimmer 6-channel

Description

Digital 6-Channel Dimmer Pack · Universal light amplifier for professional use · Can be used in single-phase and three-phase · 6 x 20 A · Both DMX control and analogue control available · The DMX start address can be set on the unit · Several DPX-620 can be synchronised using DMX · Lamp preheating can be set · All modes are displayed both by LEDs and the display · With Circuit breaker per channel · Channel outputs on rear of device via terminals
