Eurolite freeDMX AP DMX controller

DMX Wireless Receiver with Antenna and Power Cable. Black Casing, Connection Sockets for DMX IN/OUT. Adapter with EU Plug.
App interface for light control with a colour wheel in the centre, surrounded by symbols for light functions. A settings menu on the right.
A user interface for controlling light systems with circularly arranged symbols for different functions, including 'Settings', 'Focus' and 'Rotation', along with eight numbered buttons.
Menu for controlling light effects: A circle with symbols for brightness, colour, position, effect and audio, each highlighted in pink.
'Control panel of a lighting control software with options such as tilt, pan and speed. Switchable menus on the right-hand side.'
'DMX IN' and 'DMX OUT' sockets on a device with an antenna, for wireless control of lighting systems.
1/6
EAN:
Part number:
Item no:
Dispatches on Mon 2 Nov
50 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 204.99 / piece)
€ 220.00
-7 %
€ 204.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

EUROLITE FREE DMX AP WI-FI INTERFACE

  • Wireless lighting control from your smartphone or tablet
  • Receives the control signals via the network and transmits them to the DMX line via cable
  • Easy WiFi setup
  • Administration via web brower
  • Works with LED Command (Android) and FreeStyler version 3.37 or later (Windows PC)
  • 3-pin XLR connectors for DMX IN/DMX OUT

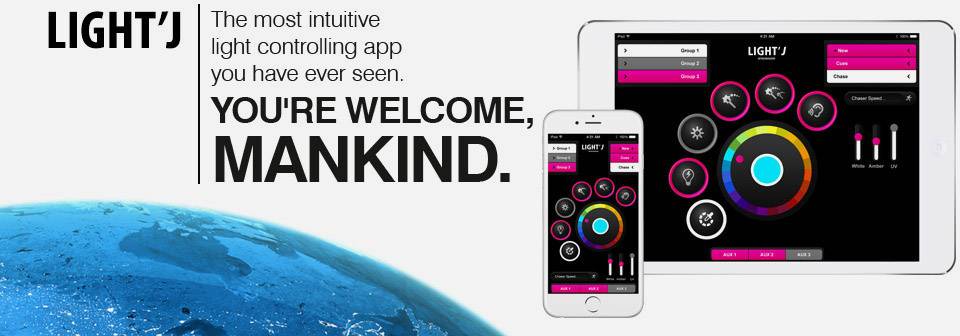

  • 'Light'J' App for intuitive light control. Claim: 'You're welcome, mankind.' Displayed on smartphone and tablet, planet in the background.

Technical specifications

  • Power supply: 12 V DC, 500 mA via included PSU
  • Wi-Fi standard: IEEE 802.11g/b/n
  • Frequency range: 2.4 GHz range (ISM), 11 channels
  • Coverage: 30 m (in buildings), 60 m (in the open air)
  • Antenna: 2 dBi
  • DMX512 output: 1 universe (512 channels)
  • DMX connectors: 3-pin XLR mounting socket, 3-pin XLR mounting plug, Neutrik
  • Dimensions (w/o antenna): L 112 x W 88 x H 40 mm
  • Weight: 350 g
Product type

DMX controller

Weight

350 g

Width

88 mm

Height

40 mm

Length

112 mm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1411144 Eurolite freeDMX AP DMX controller

Description

DMX interface with integrated W-LAN module for controlling DMX devices.

This text is machine translated.

Features

  • WLAN DMX interface - for Steinigke Light'J
  • WLAN DMX interface for wireless lighting control from your iPad or iPhone
  • Receives the control signals via the network and transmits them to the DMX line via cable
  • Control your DMX fixtures more flexible than ever with the Steinigke Light'J app
  • Light'J is available for free from the app store and is optimized for iPad with iOS 9.0 or later
  • Light'J currently supports iPhone, iPad and iPod touch - Android is under development
  • The app's online fixture library is continuously updated and includes all major EUROLITE and FUTURELIGHT fixtures
  • Fixtures from other manufacturers can be integrated manually as of version 1.1.0 (iOS) and controlled conveniently with the app's control elements
  • Configuration via integrated webserver
  • Access point and infrastructure mode
  • WLAN standard IEEE802.11b/g/n
  • 3-pin XLR connectors for DMX IN/DMX OUT
  • Status LEDs
  • Powered via included PSU

Scope of delivery

  • Mains adapter.
