Eurolite QuickDMX Wireless receiver
EAN:
Part number:
Item no:
Number
Total (€ 58.82 / piece)
€ 58.82
plus VAT.
14-day return policy included
Technical specifications
- Power supply 5 V DC
- Pin assignment: Inside + outside -
- Protection class: IP20
- Battery type: 1x lithium-ion 3.7 V, 450 mAh, 1.665 Wh
- Battery: Operating time up to 20 hours
- DMX output 3-pin XLR (W)
- Control: QuickDMX; plug and play
- Carrier frequency 2.4 GHz
- Modulation: GFSK
- Parallel operation: Max. 6 transmitter
- Range: Up to 400m
- Product type
Wireless receiver
- Weight
140 g
- Width
18 mm
- Height
18 mm
- Length
95 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3125237 Eurolite QuickDMX Wireless receiver
Description

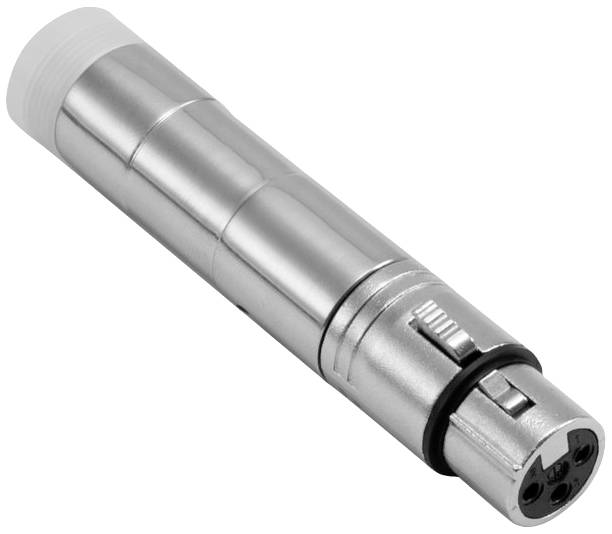

Battery operated DMX radio receiver 2.4 GHz Compact 3-pin XLR adapter (female) with integrated antenna. With Wireless DMX there is no need for complex cabling between DMX controller and DMX-controlled devices in light systems. By GFSK-modulation with 78 channels interference-free operation also along with other QuickDMX-transceivers and other wireless devices in the 2.4-GHz band (e.g. WLAN and Bluetooth).
This text is machine translated.
This text is machine translated.
Features
- 32-bit ARM processor for delay-free transmission
- Group mode
- Multi-colored LED-function display
- Operation time up to 20h
- Can be controlled via QuickDMX; plug and play
- Range up to 400m
- Wireless, flexible and versatile

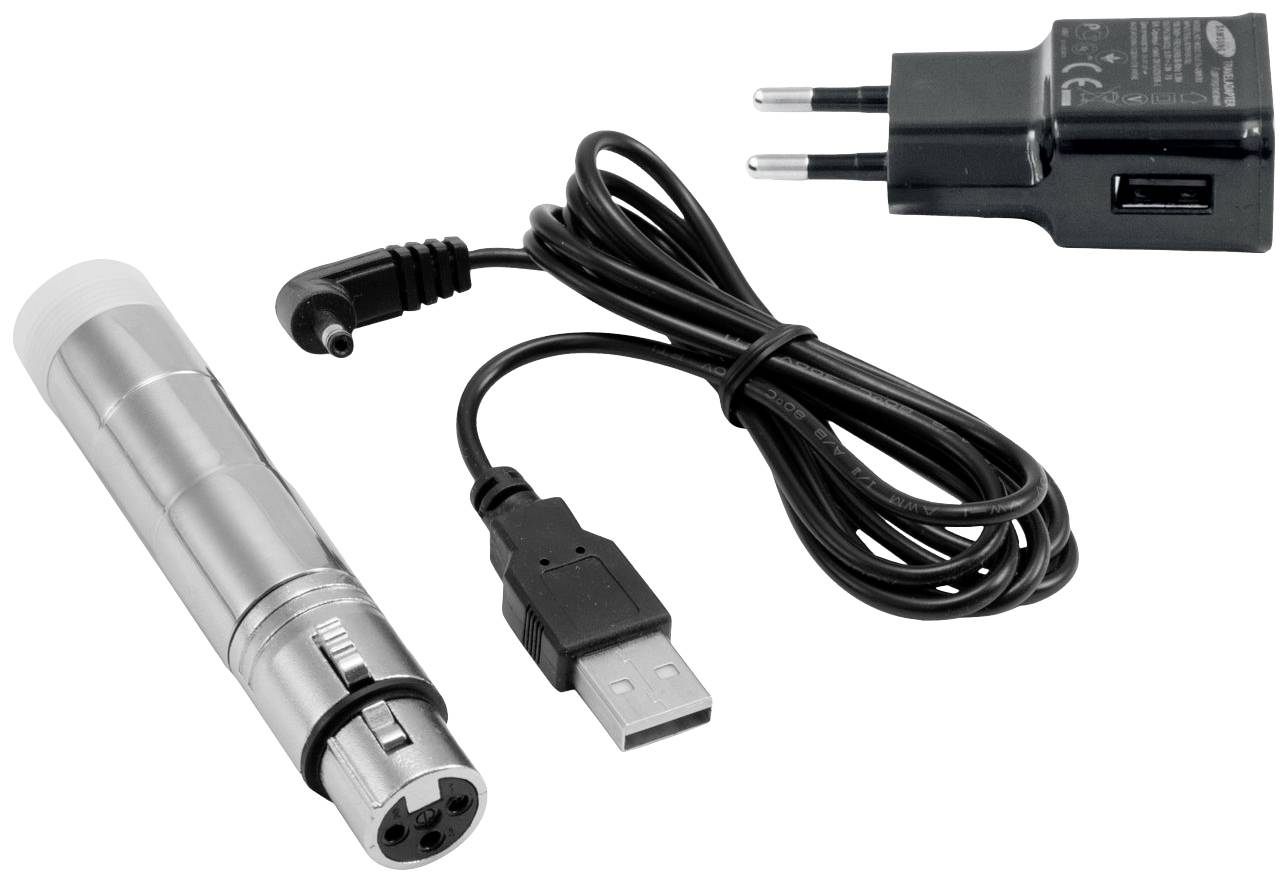

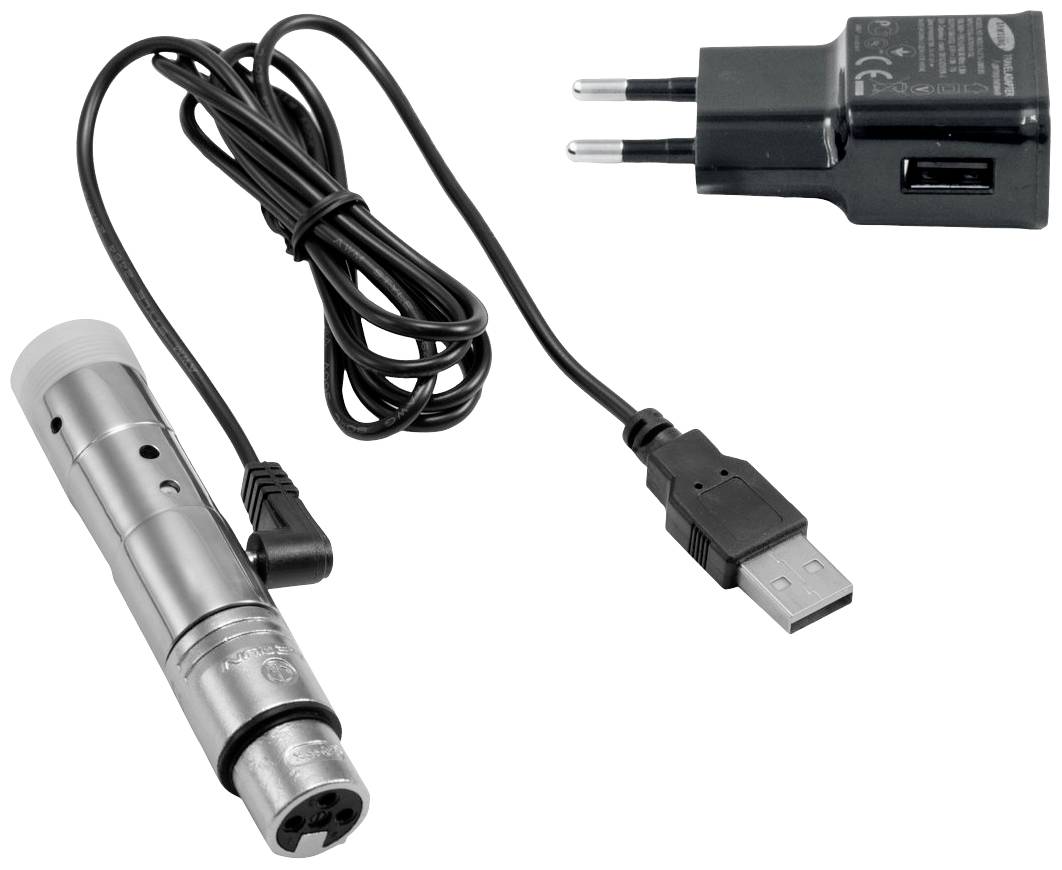

Scope of delivery
- Device
- External mains adapter
- USB cable
- User manual
