Name: Eurolite DMX Split 6X DMX splitter 6-channel 19" rack mount
Brand: Eurolite
SKU: 593284
Availability: BackOrder

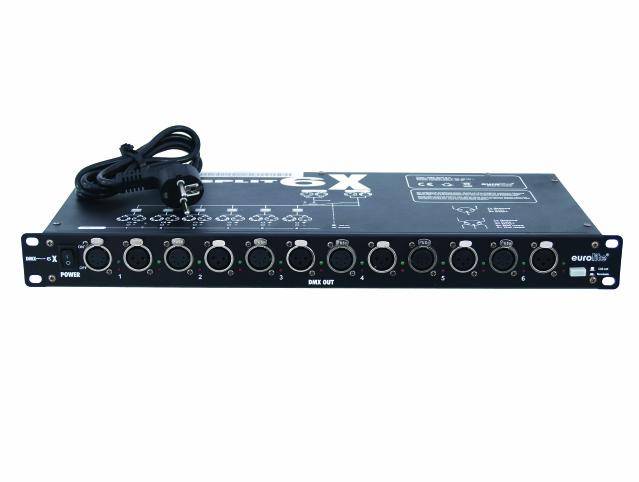

'DMX 6X' DMX Splitter Device with multiple XLR connections for DMX signals. Black enclosure, rack-compatible, used for lighting control.

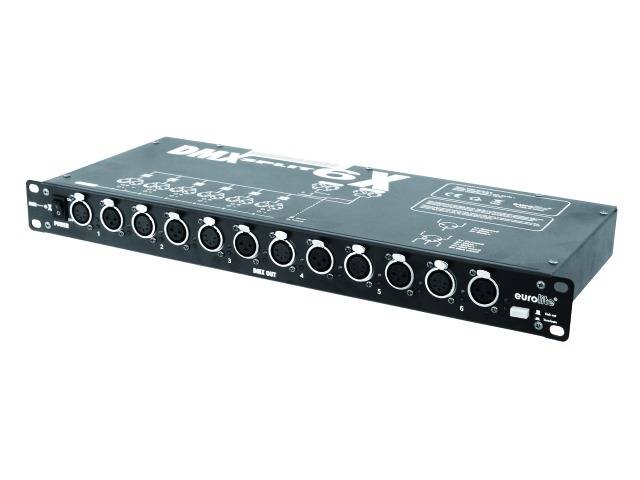

A black DMX splitter with multiple XLR connectors, used for controlling lighting equipment. It is labelled 'DMX Split 6X'.

Black audio rack device with multiple connections. Text 'MATRIX 6' on the top surface. An audio cable is connected on the left.

A 16-channel audio stage snake with XLR connections in a robust metal enclosure, suitable for use in professional audio setups.

1/4

EAN:

Part number:

Item no:

Dispatches on Wed 18 Nov

50 Piece(s)

Show alternatives

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 149.99 / piece)

€ 149.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Eurolite DMX split 6x splitter

6 times the DMX Splitter to rack mounting

Technical specifications

Power supply: 230 V AC, 50 Hz
Total connection value: 35 W
DMX512 output: 3-pin or 5-pin XLR connector
Dimensions (L x W x H): 483 x 200 x 50 mm
Weighs 3.5 kg.

Product type: DMX splitter

No. of channels: 6-channel

Features: 19" rack mount

Weight: 3.6 kg

Width: 515 mm

Height: 110 mm

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 593284 Eurolite DMX Split 6X DMX splitter 6-channel 19" rack mount

Description

6 times the DMX Splitter to rack mounting · DMX distributor for the allocation of a DMX input signal on 6 DMX outputs · Input and outputs galvanically separated · Connectors XLR 3-pin and 5-pin · Each DMX output with independent driver and Data LED · Input and outputs with internal 500-mA-fuse · Rack mounting

This text is machine translated.
