Name: Feed-through terminal block PT 6-TWIN BU 3211485 Phoenix Contact
Brand: Phoenix Contact
SKU: 589595
Availability: InStock

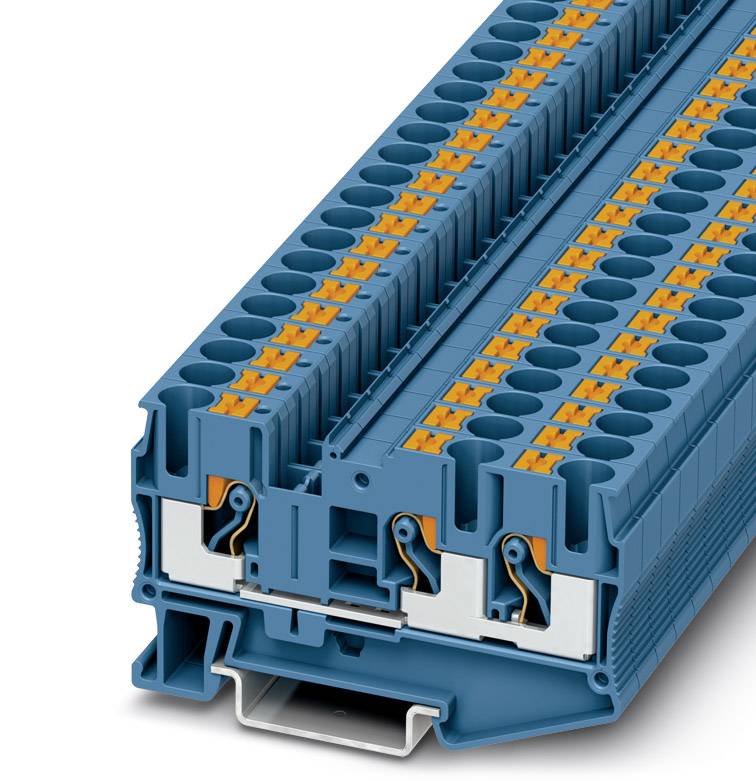

Multi-storey electrical terminal block made of blue plastic with orange connecting elements, used in electrical junction box construction.

Image similar

Packaging type

Piece

Product type

Continuity

Connection

Quick-connect

Cross section (flexible) (max.)

6 mm²

Cross section (inflexible) (max.)

10 mm²

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Thu 12 Nov

708 Set(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 50 pc(s))

Set(s)

Total (€ 2.60 / piece)

€ 205.00

-37 %

€ 129.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Packaging type: Piece

Product type: Continuity

Features: + push-in spring bracket

Connection: Quick-connect

Cross section (flexible) (min.): 0.5 mm²

Cross section (flexible) (max.): 6 mm²

Cross section (inflexible) (min.): 0.5 mm²

Cross section (inflexible) (max.): 10 mm²

AWG (min.): 20

AWG max.: 10

Clamp width: 8.2 mm

No. of rows: 1

Number of pins: 3

Factory colour: Blue

Nominal current: 41 A

Nominal current - rounded value: 41 A

Nominal voltage: 1000 V

Min. stripping length: 10 mm

Stripping length (max.): 12 mm

Manufacturer part #: 3211485

Content: 50 pc(s)

Industrial packaging: Yes

Type: PT 6-TWIN BU

Dim: (L x W x H) 74.2 x 8.2 x 42.2 mm

Width: 8.2 mm

Height: 42.2 mm

Length: 74.2 mm

Flammability rating: V0

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 589595 Feed-through terminal block PT 6-TWIN BU 3211485 Phoenix Contact

User & Safety Instructions

User & Safety Instructions 589595 Feed-through terminal block PT 6-TWIN BU 3211485 Phoenix Contact

Description

Feed-through terminal block, Connection method: Push-in connection, Cross section: 0.5 mm² - 10 mm², AWG: 20 - 8, Width: 8.2 mm, Height: 42.2 mm, Color: gray, Mounting type: NS 35/7,5, NS 35/15

Description

Feed-through terminal block, Connection method: Push-in connection, Cross section: 0.5 mm² - 10 mm², AWG: 20 - 8, Width: 8.2 mm, Height: 42.2 mm, Color: gray, Mounting type: NS 35/7,5, NS 35/15
