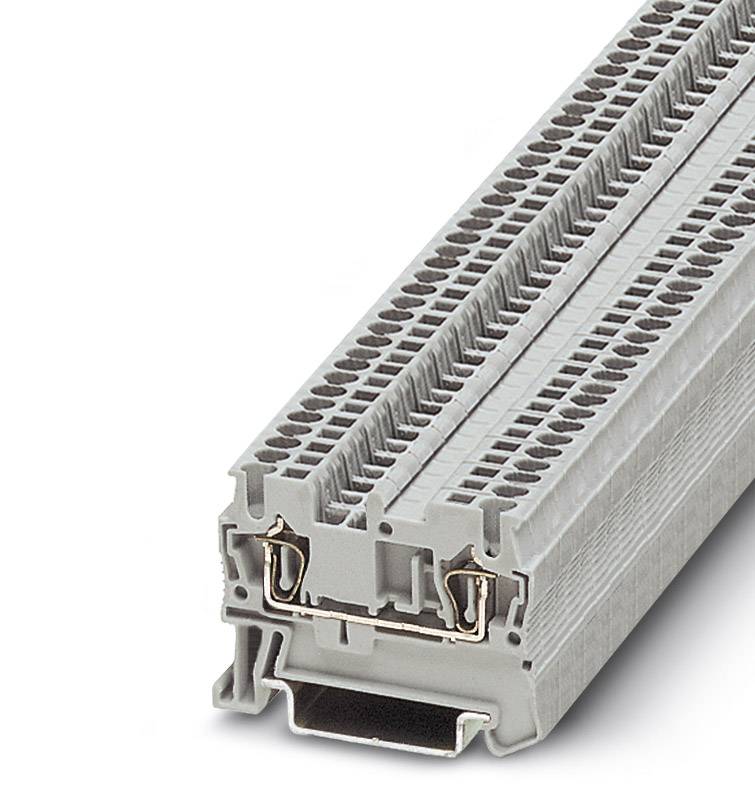

Image similar
Feed-through terminal block ST 1,5 GN 3037041 Phoenix Contact
Packaging type
Piece
Product type
Continuity
Connection
Pull spring
Cross section (flexible) (max.)
1.5 mm²
Cross section (inflexible) (max.)
1.5 mm²
Datasheet (PDF)
EAN:
Part number:
Item no:
Total (€ 1.04 / piece)
€ 51.99
incl. VAT
14-day return policy included
Technical specifications
- Packaging type
Piece
- Product type
Continuity
- Connection
Pull spring
- Cross section (flexible) (min.)
0.08 mm²
- Cross section (flexible) (max.)
1.5 mm²
- Cross section (inflexible) (min.)
0.08 mm²
- Cross section (inflexible) (max.)
1.5 mm²
- AWG (min.)
28
- AWG max.
16
- Clamp width
4.2 mm
- No. of rows
1
- Number of pins
2
- Factory colour
Green
- Nominal current
17.5 A
- Nominal current - rounded value
17.5 A
- Nominal voltage
500 V
- Min. stripping length
8 mm
- Stripping length (max.)
10 mm
- Manufacturer part #
3037041
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
ST 1,5 GN
- Dim
(L x W x H) 48.5 x 4.2 x 36.5 mm
- Width
4.2 mm
- Height
36.5 mm
- Length
48.5 mm
- Connector colour
Green
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 719531 Feed-through terminal block ST 1,5 GN 3037041 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 719531 Feed-through terminal block ST 1,5 GN 3037041 Phoenix Contact
Description
Feed-through terminal block, Connection method: Spring-cage connection, Cross section: 0.08 mm² - 1.5 mm², AWG: 28 - 16, Width: 4.2 mm, Color: green, Mounting type: NS 35/7,5, NS 35/15
