Name: Feed-through terminal block UKKB 10-PV 3003567 Phoenix Contact
Brand: Phoenix Contact
SKU: 719895
Availability: InStock

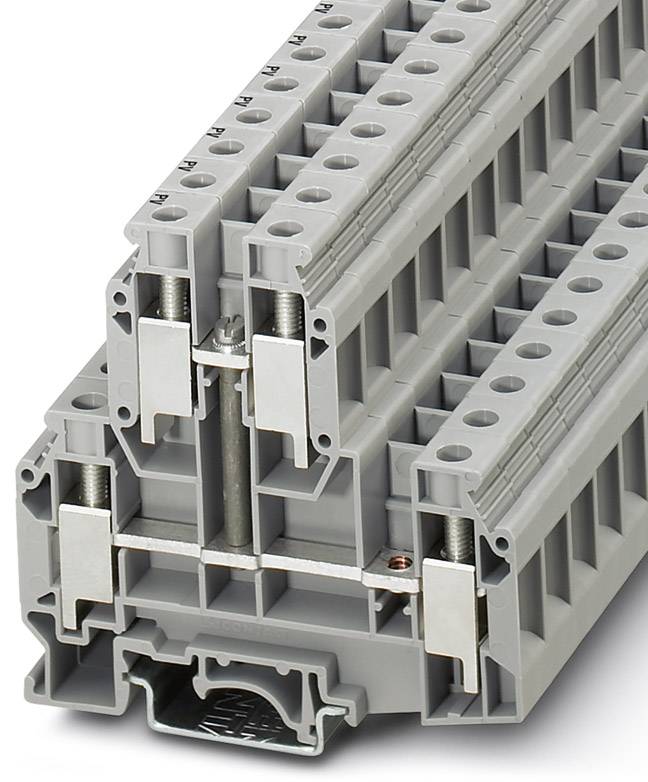

Grey multi-level terminal block. It shows holes for cables and metal parts for secure connection mounting.

Image similar

Packaging type

Piece

Product type

Serial continuity

Connection

Screws

Cross section (flexible) (max.)

10 mm²

Cross section (inflexible) (max.)

16 mm²

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Thu 12 Nov

212 Set(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 50 pc(s))

Set(s)

Total (€ 22.78 / piece)

€ 1,139.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Feed-through terminal block UKKB 10-PV

UKKB 10-PV

Technical specifications

Packaging type: Piece

Product type: Serial continuity

Features: with screw connection

Connection: Screws

Cross section (flexible) (min.): 0.5 mm²

Cross section (flexible) (max.): 10 mm²

Cross section (inflexible) (min.): 0.5 mm²

Cross section (inflexible) (max.): 16 mm²

AWG (min.): 20

AWG max.: 6

Clamp width: 10.2 mm

No. of rows: 2

Number of pins: 4

Factory colour: Grey

Nominal current: 57 A

Nominal current - rounded value: 57 A

Nominal voltage: 500 V

Stripping length (max.): 11 mm

Manufacturer part #: 3003567

Content: 50 pc(s)

Industrial packaging: Yes

Type: UKKB 10-PV

Dim: (L x W x H) 77.5 x 10.2 x 73 mm

Width: 10.2 mm

Height: 73 mm

Length: 77.5 mm

Flammability rating: V0

Insulation material: PA

Insulation: PA

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 719895 Feed-through terminal block UKKB 10-PV 3003567 Phoenix Contact

User & Safety Instructions

User & Safety Instructions 719895 Feed-through terminal block UKKB 10-PV 3003567 Phoenix Contact

Description

Feed-through terminal block, Cross section: 0.5 mm² - 16 mm², AWG: 20 - 6, Connection type: Screw connection, Width: 10.2 mm, Color: gray, Mounting type: NS 35/7,5, NS 35/15, NS 32

Description

Feed-through terminal block, Cross section: 0.5 mm² - 16 mm², AWG: 20 - 6, Connection type: Screw connection, Width: 10.2 mm, Color: gray, Mounting type: NS 35/7,5, NS 35/15, NS 32
