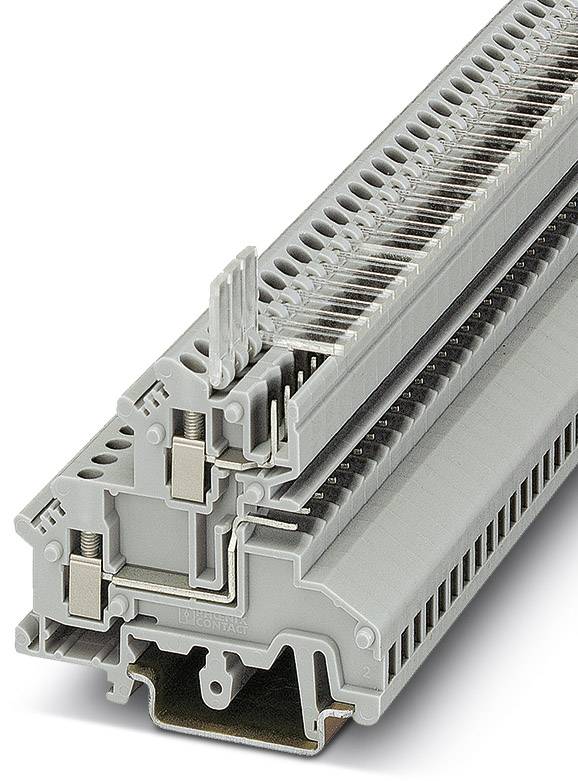

Feed-through terminal block UKK 3-MSTBVH-5,08 2770846 Phoenix Contact
Packaging type
Piece
Product type
Dual port terminal
Connection
Screws
Plug & Clip
Cross section (flexible) (max.)
2.5 mm²
Cross section (inflexible) (max.)
4 mm²
Datasheet (PDF)
EAN:
Part number:
Item no:
Total (€ 3.40 / piece)
€ 169.99
incl. VAT
14-day return policy included
Technical specifications
- Packaging type
Piece
- Product type
Dual port terminal
- Features
with screw connection
- Connection
Screws
Plug & Clip
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- Cross section (inflexible) (max.)
4 mm²
- AWG (min.)
24
- AWG max.
12
- Clamp width
5.08 mm
- No. of rows
2
- Number of pins
4
- Factory colour
Grey
- Nominal current
12 A
- Nominal current - rounded value
12 A
- Nominal voltage
250 V
- Stripping length (max.)
8 mm
- Manufacturer part #
2770846
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
UKK 3-MSTBVH-5,08
- Width
5.08 mm
- Flammability rating
V2
- Insulation material
PA
- Insulation
PA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 587606 Feed-through terminal block UKK 3-MSTBVH-5,08 2770846 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 587606 Feed-through terminal block UKK 3-MSTBVH-5,08 2770846 Phoenix Contact
Description
Feed-through terminal block, Nominal current: 12 A, Nominal voltage: 250 V, Cross section: 0.2 mm² - 4 mm², AWG: 24 - 12, Mounting type: NS 35/7,5, NS 35/15, NS 32, Pitch: 5.08 mm, Width: 5.08, Color: gray
