Name: Finder 18.5D.8.230.0000 Motion detector 360 ° White IP40
Brand: Finder
SKU: 2473826
Availability: BackOrder

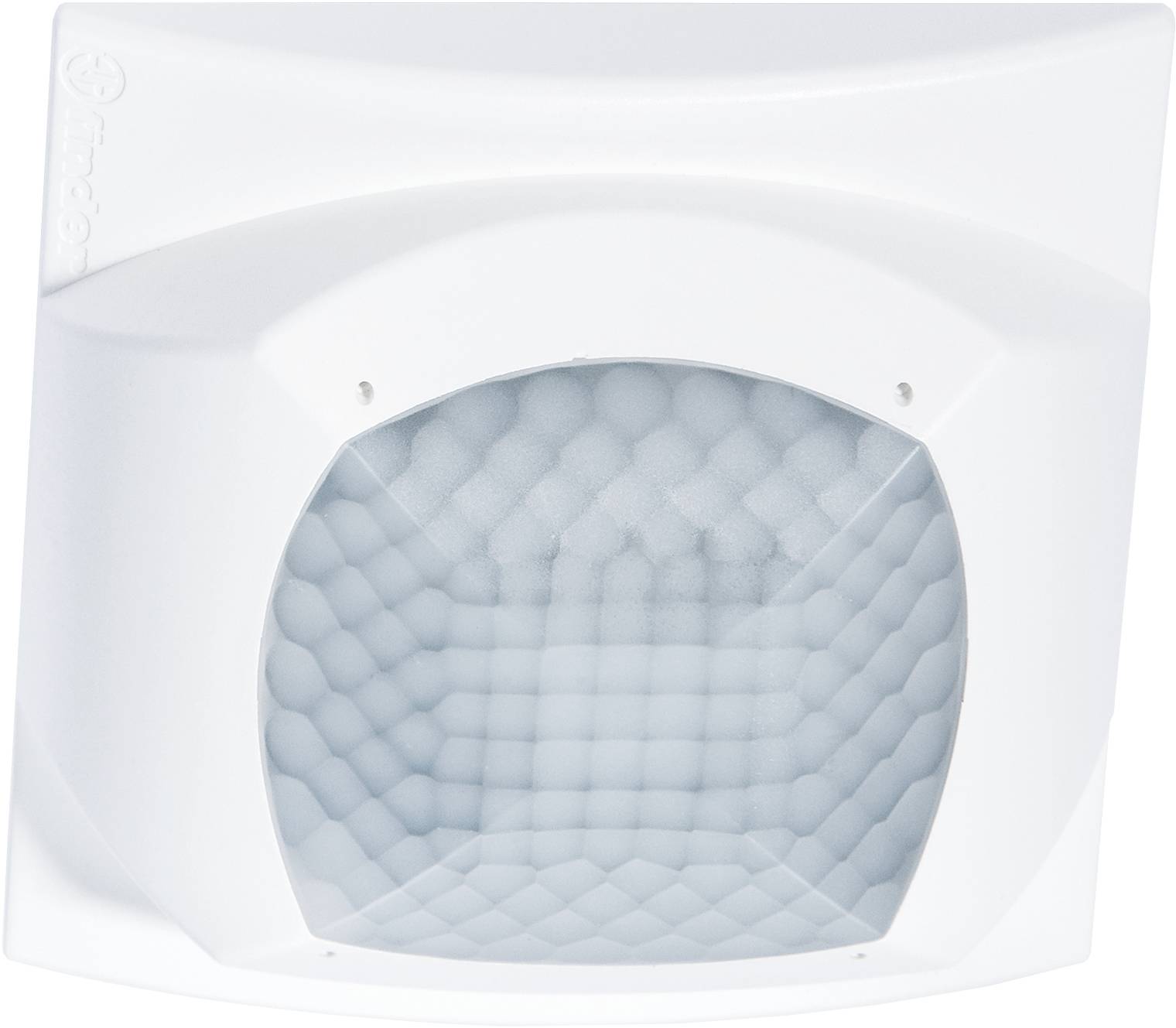

Motion sensor in a white housing with a textured sensor area. Device detects movements for security and lighting control systems.

Image similar

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 169.99 / piece)

€ 169.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Control current 7 mA
Connection type: Plug-in terminal
Halogen-free: Yes
Low-creep/back-field monitoring: Yes
Installation depth: 31.6 mm
Installation diameter 60 mm
Suitable for: Wall mounting; ceiling mounting
Optimum mounting height: 3 m.
Frequency: 50 Hz - 60 Hz
Staircase monitoring: Yes
Material quality: Thermoplastic
Max. Range to one side: 4 m.
Detection area Diameter on floor: 8 m.
Adjustable response sensitivity: Yes
Suitable for C load: Yes
With signal unit: Yes
Adjustable response brightness: Yes
Sensor type: Passive infrared

Product type: Motion detector

Detection angle: 360°

: 4 m

Operating voltage: 230 V AC

Voltage (max.): 230 V AC

Twilight settings: 10 lx - 500 lx

Time settings: 10 s - 35 min

Factory colour: White

Similar RAL: 9010

: IP40

Operating temperature: -10 °C - 50 °C

Type: Plastic, matt

Length: 66.7 mm

Width: 84 mm

Height: 84 mm

(Ø): 60 mm

Dim: (Ø x H) 60 mm x 84 mm

Voltage (min.): 110 V AC

: Flush mounted (plaster)

: White

: Movement sensor

: TRUE

: 71.6 mm

: Push-in clamp

: Untreated

: AC

: 36.5 mm

: 50-60 MHz

: FALSE

: 60 mm

: Thermoplastic

: 100 A

: Plastic

: 9010

: 110-230 V

: IP20

: FALSE

: Matt

: FALSE

: FALSE

: FALSE

: FALSE

: TRUE

: FALSE

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2473826 Finder 18.5D.8.230.0000 Motion detector 360 ° White IP40

Description

Motion and presence detectors with DALI interface, for installation in suspended ceilings, in installation boxes and for surface mounting. Suitable for direct control of up to 8 DALI ballasts via broadcast command. Detection range at 3 meters Height: Movement 8 x 8 meters, presence 4 x 4 meters. Ambient light brightness threshold: 10 to 800 lx. Off delay: 10 s to 35 minutes. Connection type: Push-in terminals. Ambient temperature -10 to + 50 °C. Light management functions: 1. COMFORT - daylight-dependant constant light regulation, 2. SIMPLE - on/off control with warning, 3. SAFE - on/off control with warning + residual level. Accessories for different mounting types are included in the packaging as accessories. Supply voltage 110 to 230 V AC(50/60 Hz)

This text is machine translated.
