Name: Fluke FLK-FEV500/CCS2 PRO Charging station analyzer 10 A No. of ports 1 2 kW
Brand: Fluke
SKU: 3731571
Price: 10709 EUR
Availability: BackOrder

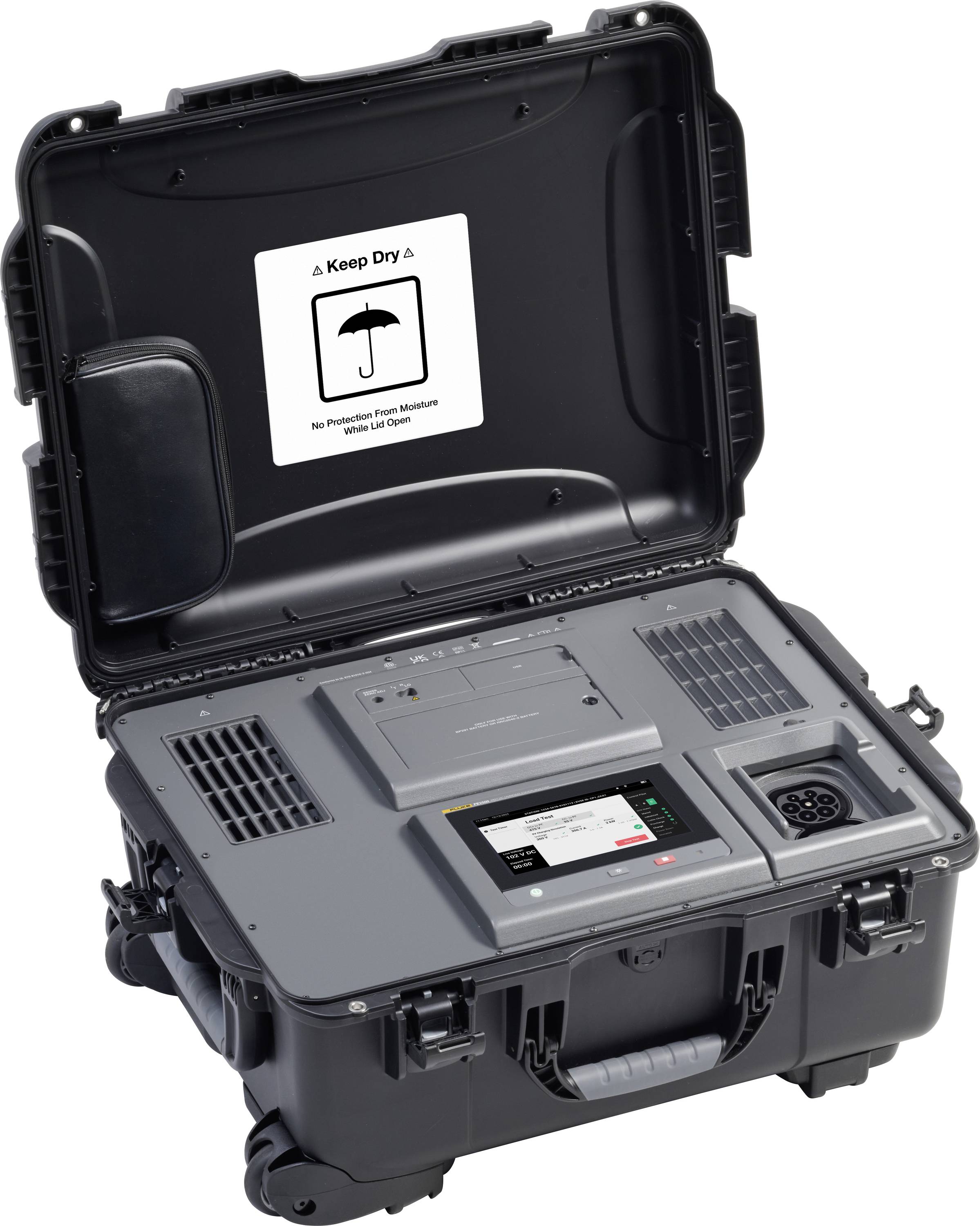

'Portable electronic equipment in an open rugged case, displaying various controls and a screen, with a 'Keep Dry' warning label inside.'

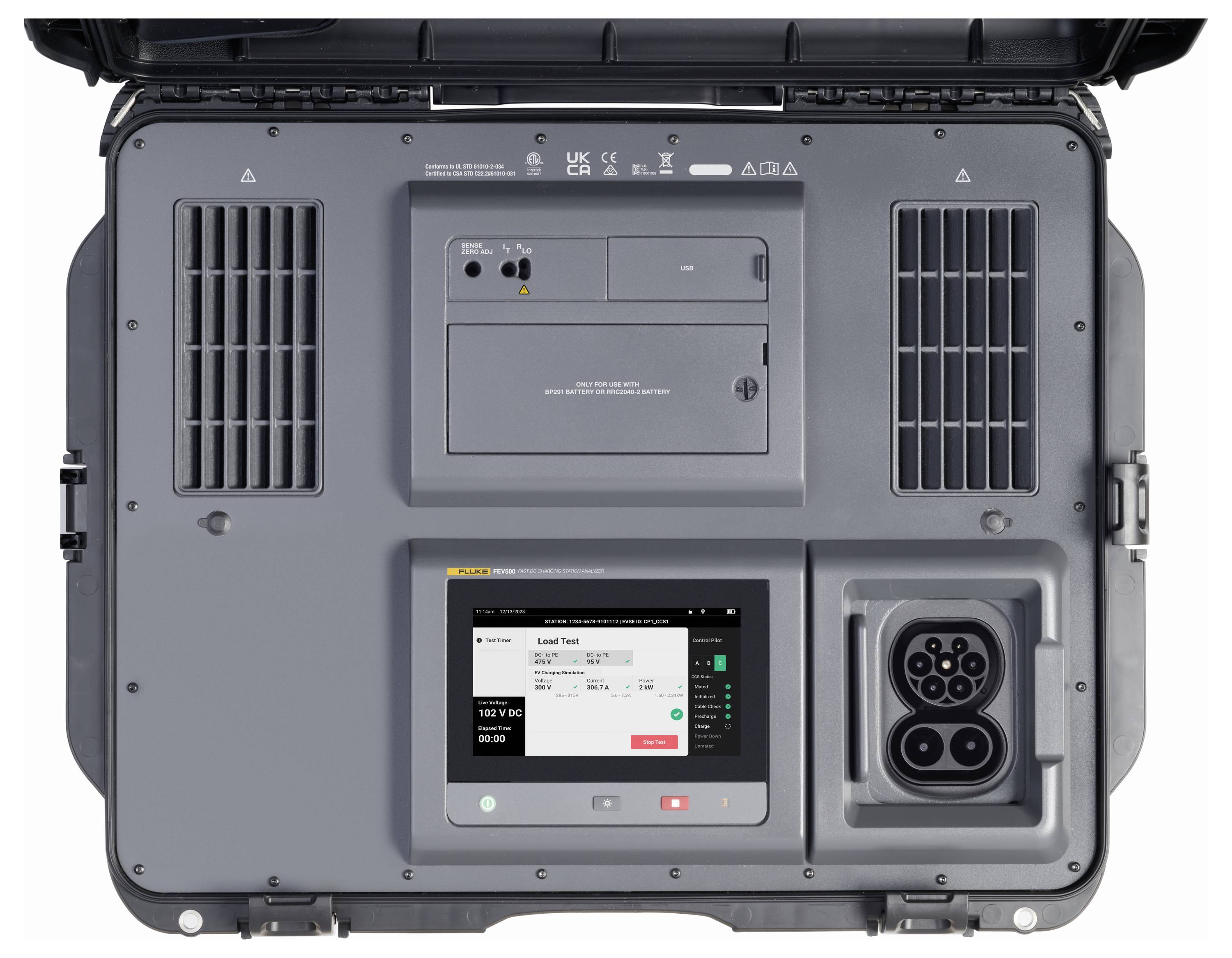

A power equipment interface with a digital screen, connectors, and control panel displaying 'Load Test.'

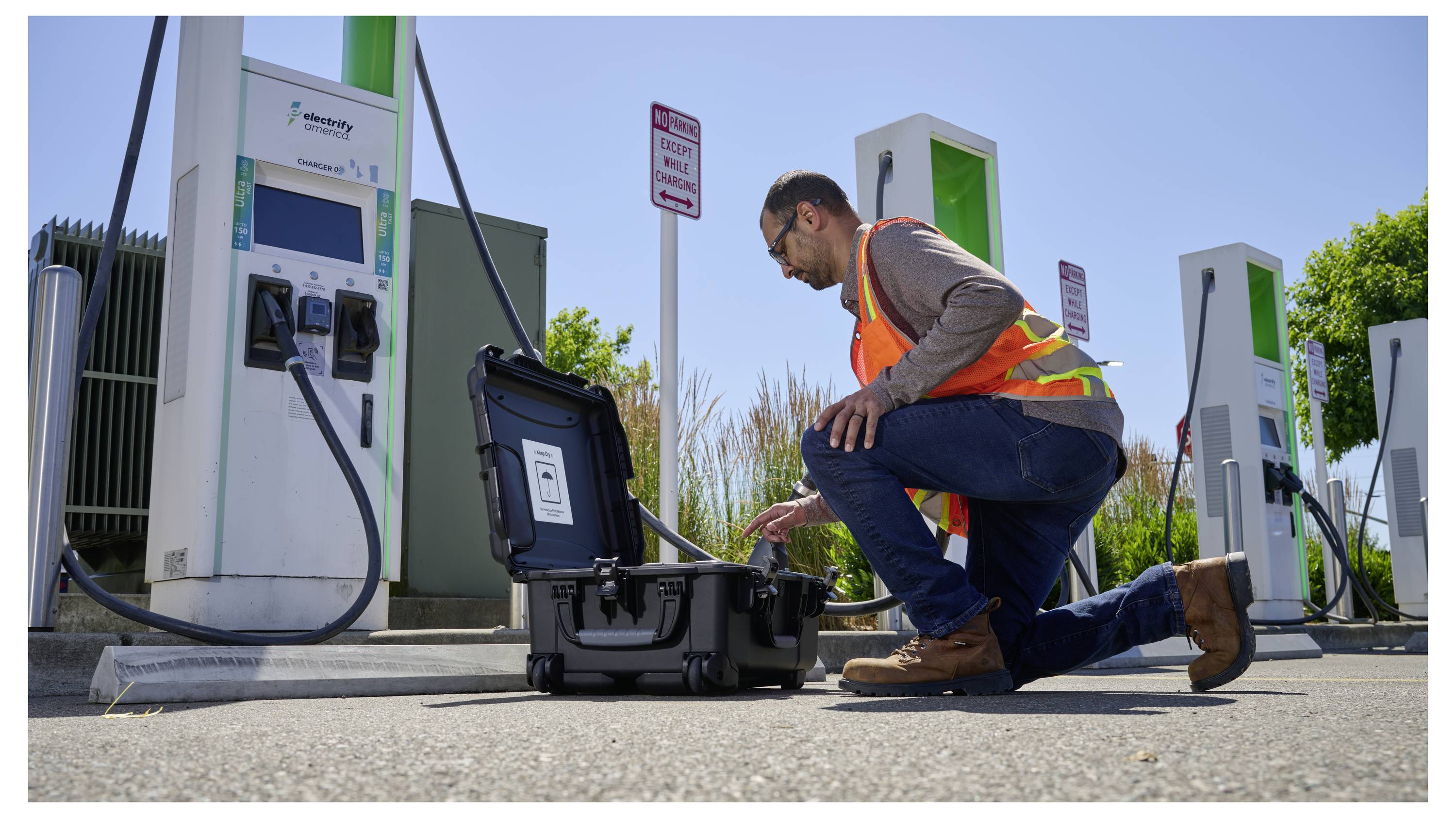

A technician in a safety vest kneels beside an electric vehicle charging station, examining a black equipment case, with two charging units in the background.

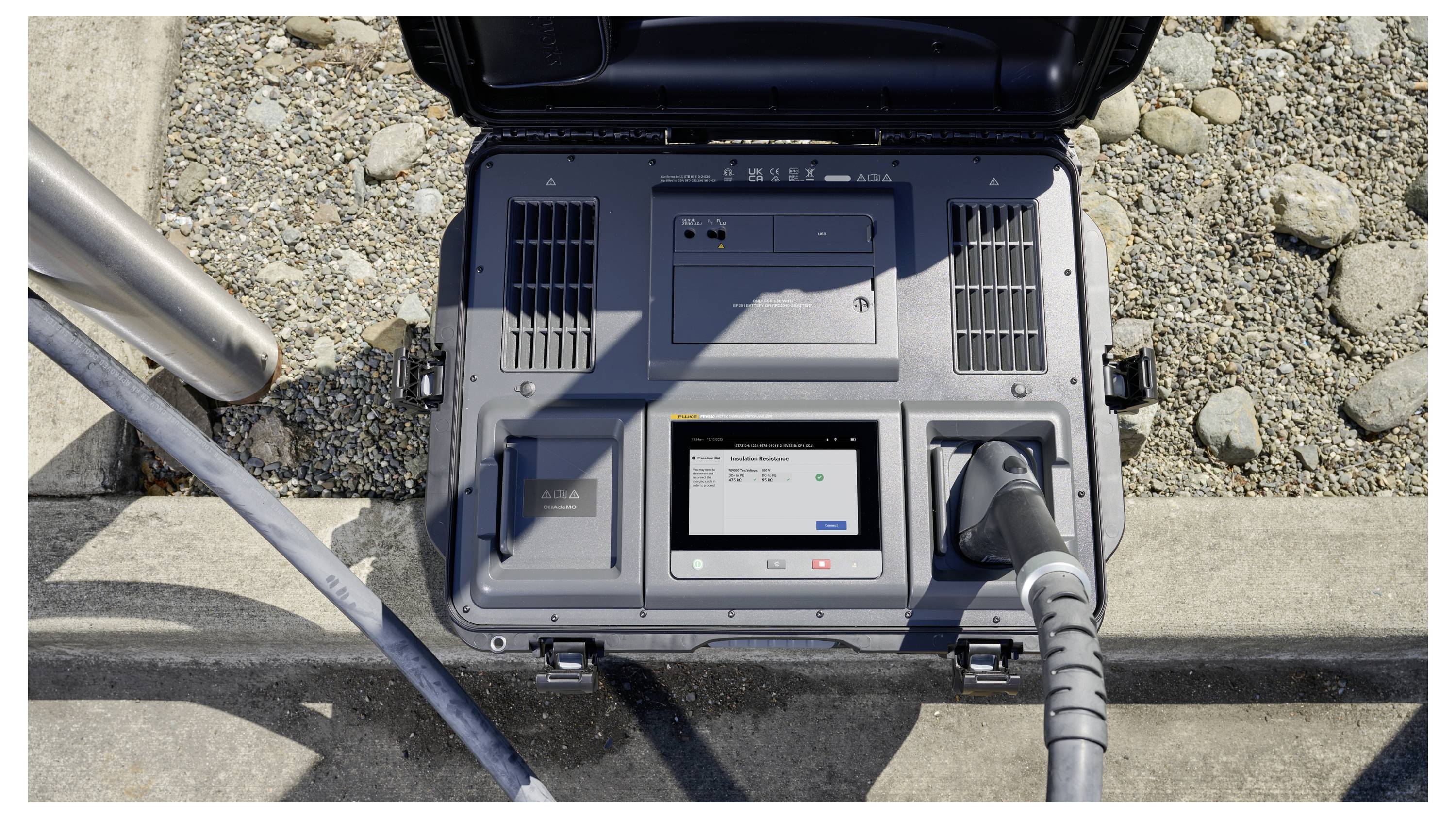

A portable electric charging station with a connected cable and digital display showing charging status, positioned on a rocky ground.

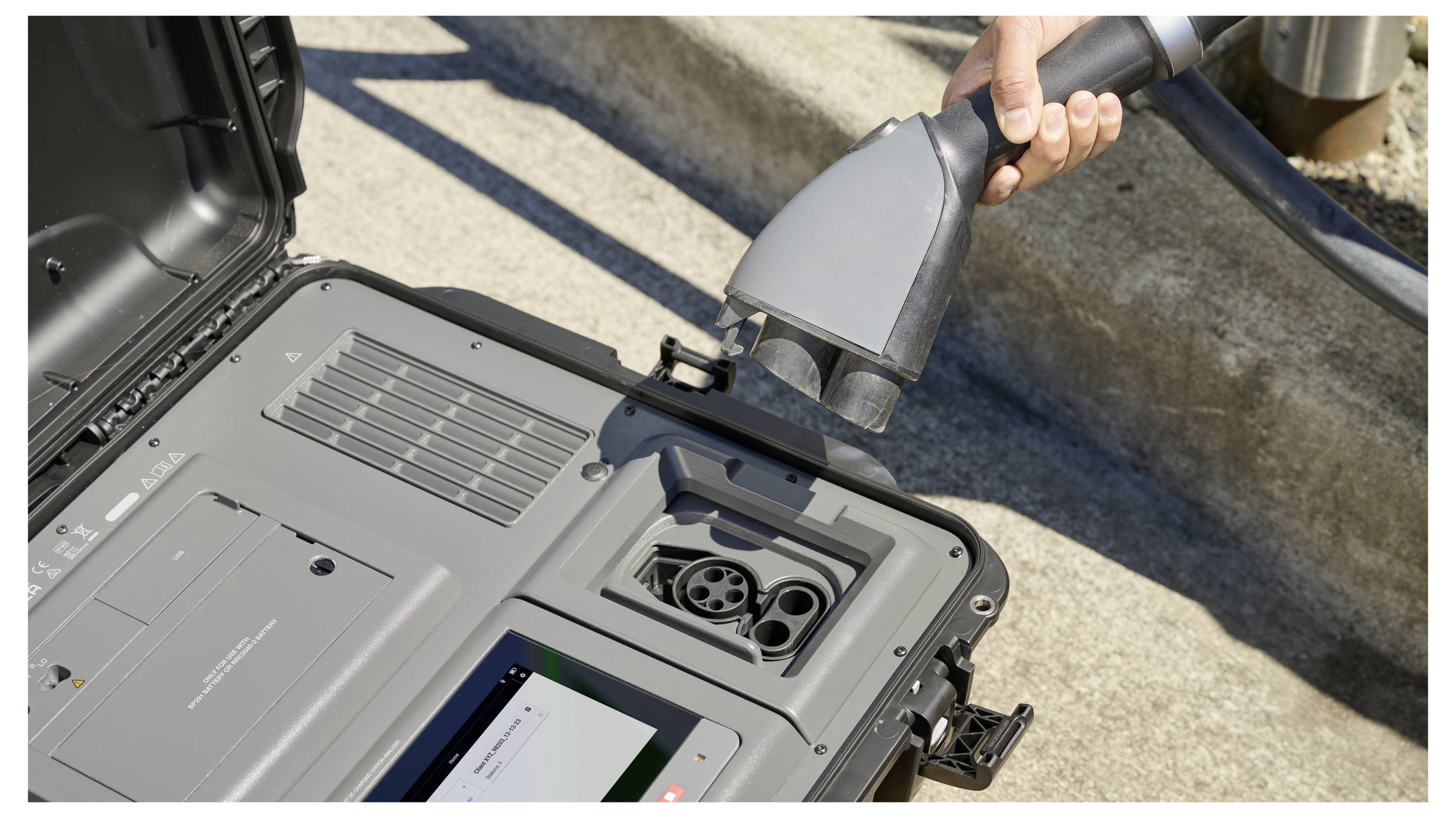

A person holds an electric vehicle charging connector near a portable charging station, showcasing its plug and outlet design.

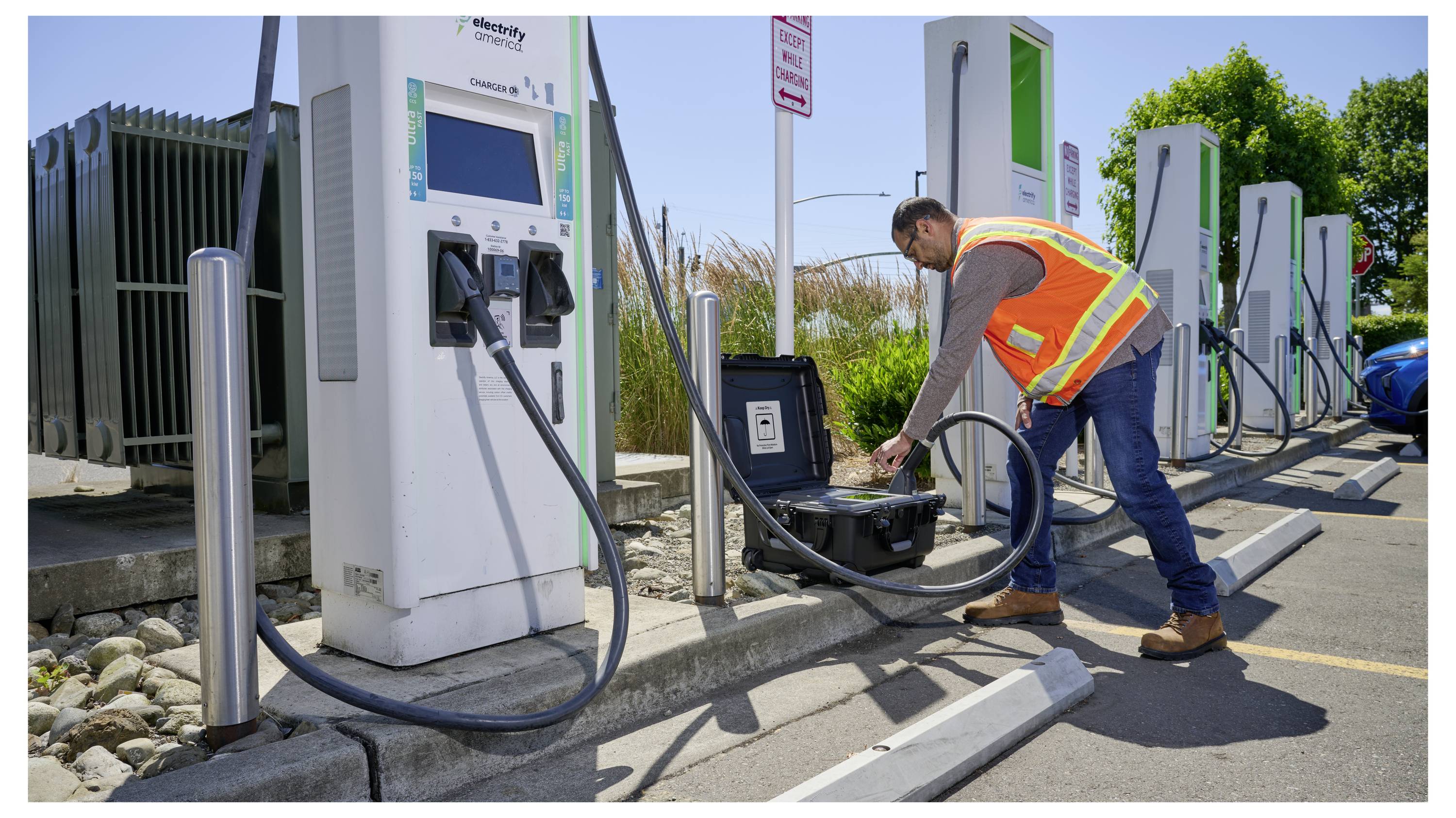

A worker in a safety vest connects a cable to an electric vehicle charging station outdoors, with cars and trees in the background.

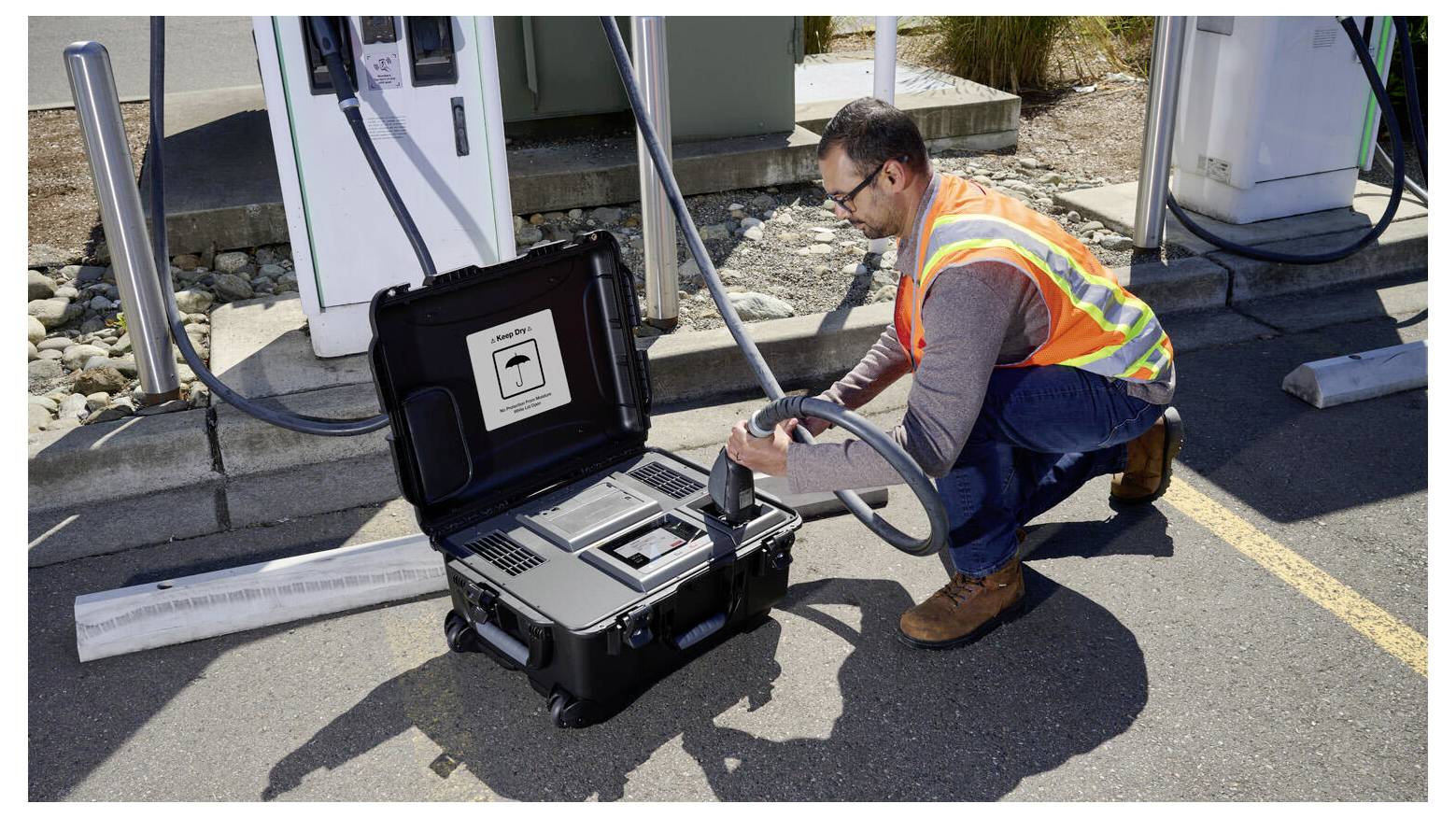

A person wearing a safety vest is inspecting or operating equipment in a portable case at a charging station, suggesting maintenance work.

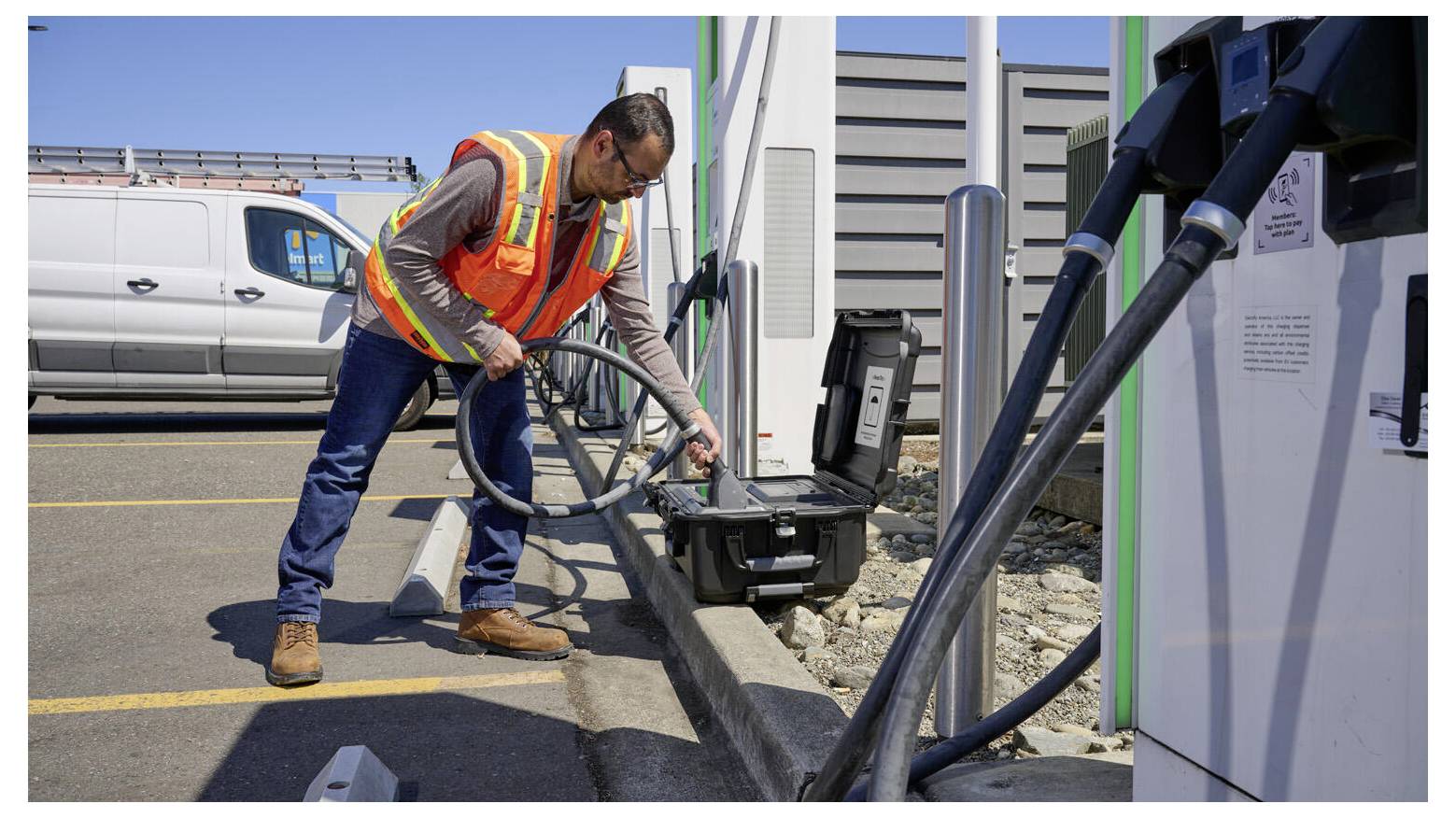

A worker in a safety vest plugs a charging cable into an electric vehicle at a charging station in a parking lot under clear skies.

1/8

Datasheet (PDF)

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 10,709.00 / piece)

€ 10,709.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

FLK-FEV500/CCS2 Pro, analyzer for DC fast charging station, CCS2 with TRUTEST SOFTWARE

Comprehensive testing: Performance and safety testing in
A device.
Electro-vehicle simulation, no external equipment
Required: Simulates the charging of electric vehicles
During the test, so no additional
Load groups, electric vehicles or multi-function tester
are required. Checks the functionality and
Power of the charging station by simulating a load (kW),
In order to imitate real charging processes.
Autotest function: Perform pre-configured test sequences
With automatic execution and clear success/
Failed results. It is not necessary
To use other devices or test leads anew
configure.
User-friendly user interface: Intuitive touch-screen,
Visible in bright sunlight with guided sequences and
For easy operation and interpretation of results.
CCS Connectivity: Supports CCS connectors for comprehensive
Compatibility. Available in CCS1 or CCS2 models.
Portable and robust: Rugged design, Ideal for the
Outdoor use, with removable battery, no power socket
Required:
Automatic data management: Monitors and saves
Individual EVSE and connection point IDs for one
Optimized plant management.
TruTest™ software: Facilitates documentation and
Report results.

Technical specifications

Display: 7" capacitive touchscreen (1024x600).
Li-Ion RRC2040-2, 10.8 V, 6.8 Ah, 73.44 Wh
Communication: Supports Power line communication (PLC)

Product type: Charging station analyzer

Charging current: 10 A

No. of ports: 1

Charging capacity: 2 kW

Nominal voltage: 1000 V DC

Type: Portable analyzer for DC-quick charging stations in sturdy casing

: IP54

Certification marks: IEC 61010-1
IEC 61010-2-034
IEC 61557-2/4/8
IEC 61851-1
IEC 60529
IEC 61326-1
ISO 15118
DIN SPEC 70121
CE

Factory colour: Black
Grey

Length: 650 mm

Width: 508 mm

Height: 300 mm

Weight: 26 kg

Nominal current: 10 A

Max. temperature: 50 °C

Min. temperature: -20 °C

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3731571 Fluke FLK-FEV500/CCS2 PRO Charging station analyzer 10 A No. of ports 1 2 kW

User & Safety Instructions

User & Safety Instructions 3731571 Fluke FLK-FEV500/CCS2 PRO Charging station analyzer 10 A No. of ports 1 2 kW

Description

The Fluke FEV500 optimizes testing of DC rapid charging stations for electric vehicles by combining safety, performance and interoperability diagnostics in a portable device. With a touch-screen controlled workflow and no vehicle required, technicians can quickly verify communication and loading capabilities on CCS-compatible stations. The FEV500, designed for outdoor use, performs critical safety tests without having to open the station. This saves time and reduces risks. Built-in TruTest™ software (included in this kit) automates documentation for compliance and maintenance. The FEV500 is rugged, accurate and intuitive, enabling technicians to keep fast-charging networks in reliable and future-proof condition.
