Fluke FLK-FEV500-CCS2/FPC Charging station analyzer Type 2 Mode 4 10 A No. of ports 1 2 kW
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 10,847.90 / piece)
€ 10,847.90
plus VAT.
14-day return policy included
Highlights & Details
FLK-FEV500/CCS2 WITH 1 YEAR PREMIUM CARE STANDARD
- Comprehensive testing: Performance and safety testing in
- A device.
- Electro-vehicle simulation, no external equipment
- Required: Simulates the charging of electric vehicles
- During the test, so no additional
- Load groups, electric vehicles or multi-function tester
- are required. Checks the functionality and
- Power of the charging station by simulating a load (kW),
- In order to imitate real charging processes.
- Autotest function: Perform pre-configured test sequences
- With automatic execution and clear success/
- Failed results. It is not necessary
- To use other devices or test leads anew
- configure.

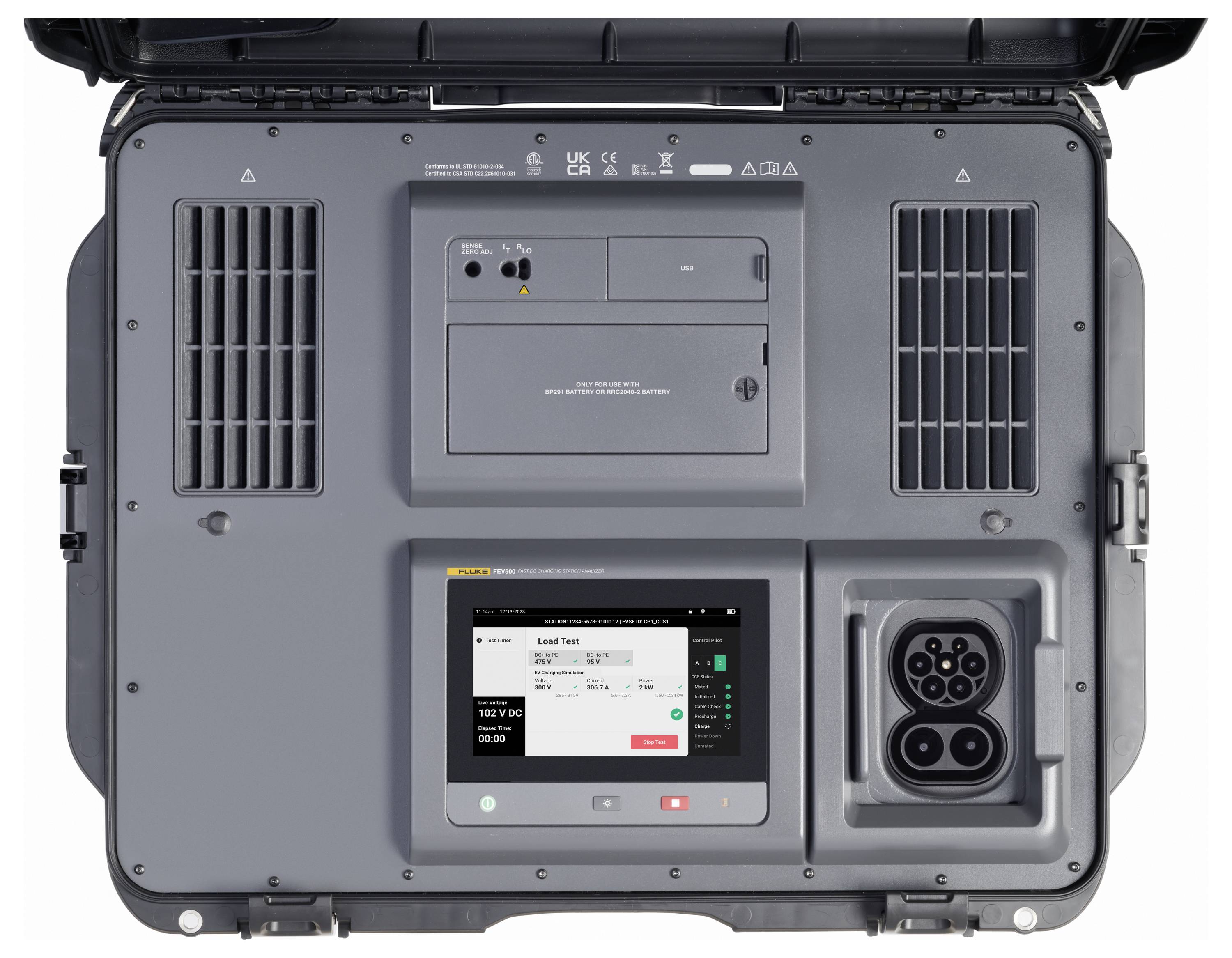

- User-friendly user interface: Intuitive touch-screen,
- Visible in bright sunlight with guided sequences and
- For easy operation and interpretation of results.

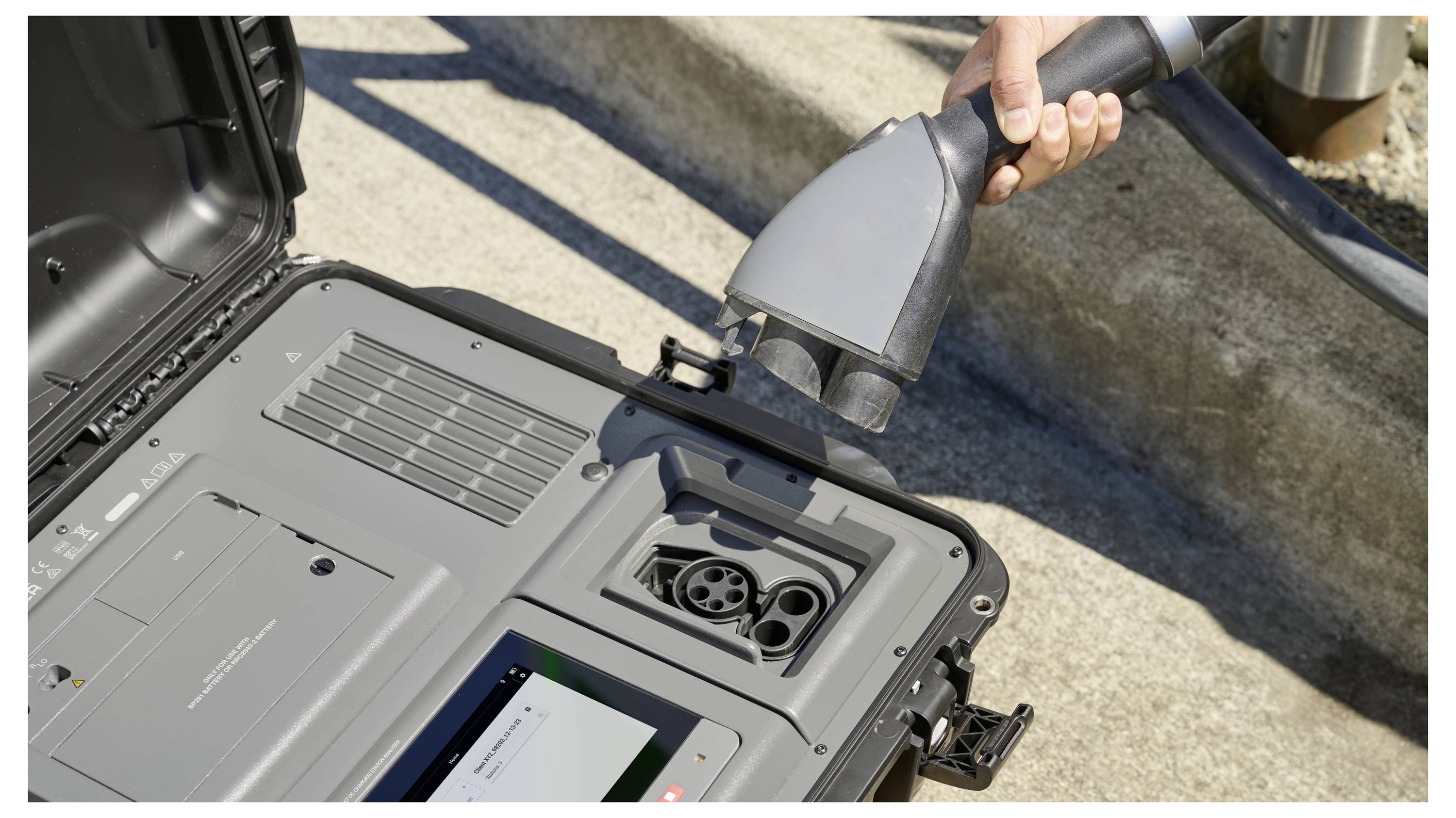

- CCS Connectivity: Supports CCS connectors for comprehensive
- Compatibility. Available in CCS1 or CCS2 models.
- Portable and robust: Rugged design, Ideal for the
- Outdoor use, with removable battery, no power socket
- Required:
- Automatic data management: Monitors and saves
- Individual EVSE and connection point IDs for one
- Optimized plant management.
- TruTest™ software: Facilitates documentation and
- Report results.
- 1 year Premium Care Standard
Technical specifications
- Charging plugs CCS2
- 7" touchscreen (1024x600)
- Li-ion battery (10.8 V, 6.8 Ah)
- USB-C connections
- Product type
Charging station analyzer
- Charger connectors
Type 2
- Charging mode
Mode 4
- Charging current
10 A
- No. of ports
1
- Charging capacity
2 kW
- Nominal voltage
1000 V DC
- Type
Portable analyzer with integrated wheels and handle
IP54
- Certification marks
ISO 15118
DIN SPEC 70121
IEC 61010-1
IEC 61010-2-034
IEC 61557-2
IEC 61557-4
IEC 61557-8
IEC 61326-1
CE
- Factory colour
Grey
Black
- Length
508 mm
- Width
650 mm
- Height
300 mm
- Weight
26 kg
- Nominal current
10 A
- Max. temperature
50 °C
- Min. temperature
-20 °C
Documents & Downloads
Datasheet
Datasheet 3731572 Fluke FLK-FEV500-CCS2/FPC Charging station analyzer Type 2 Mode 4 10 A No. of ports 1 2 kW
Datasheet 3731572 Fluke FLK-FEV500-CCS2/FPC Charging station analyzer Type 2 Mode 4 10 A No. of ports 1 2 kW
User & Safety Instructions
User & Safety Instructions 3731572 Fluke FLK-FEV500-CCS2/FPC Charging station analyzer Type 2 Mode 4 10 A No. of ports 1 2 kW
Description

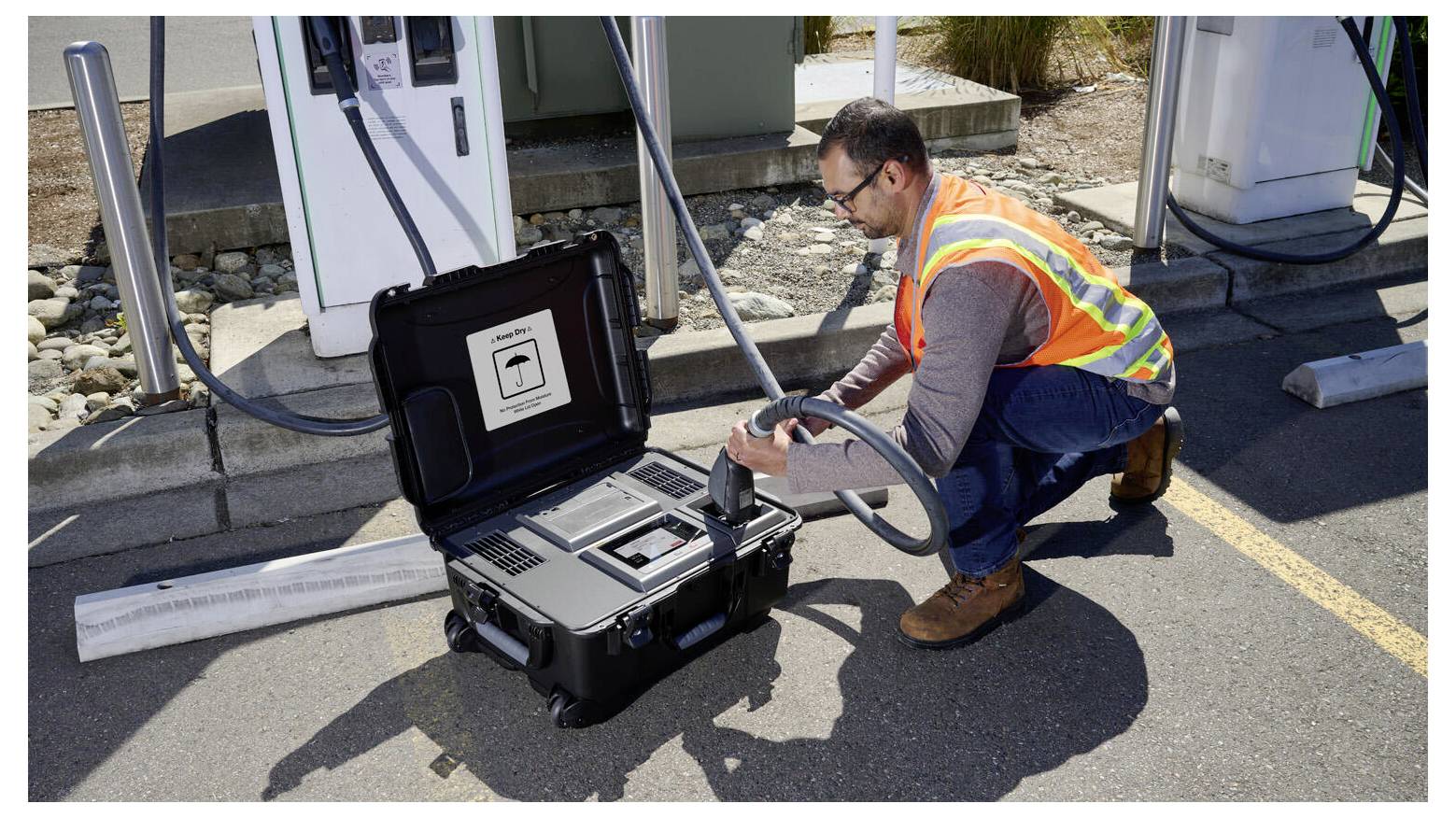

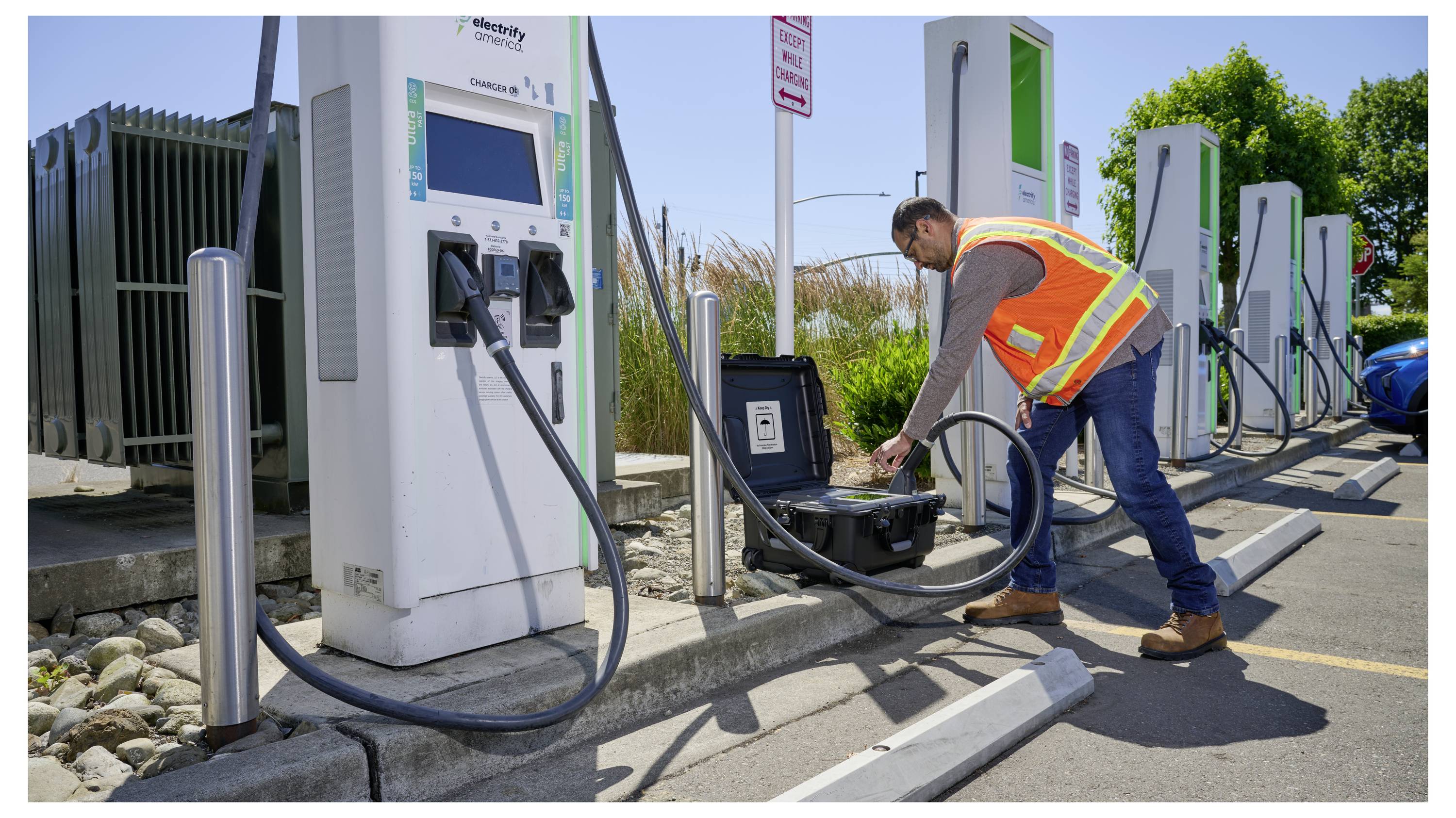

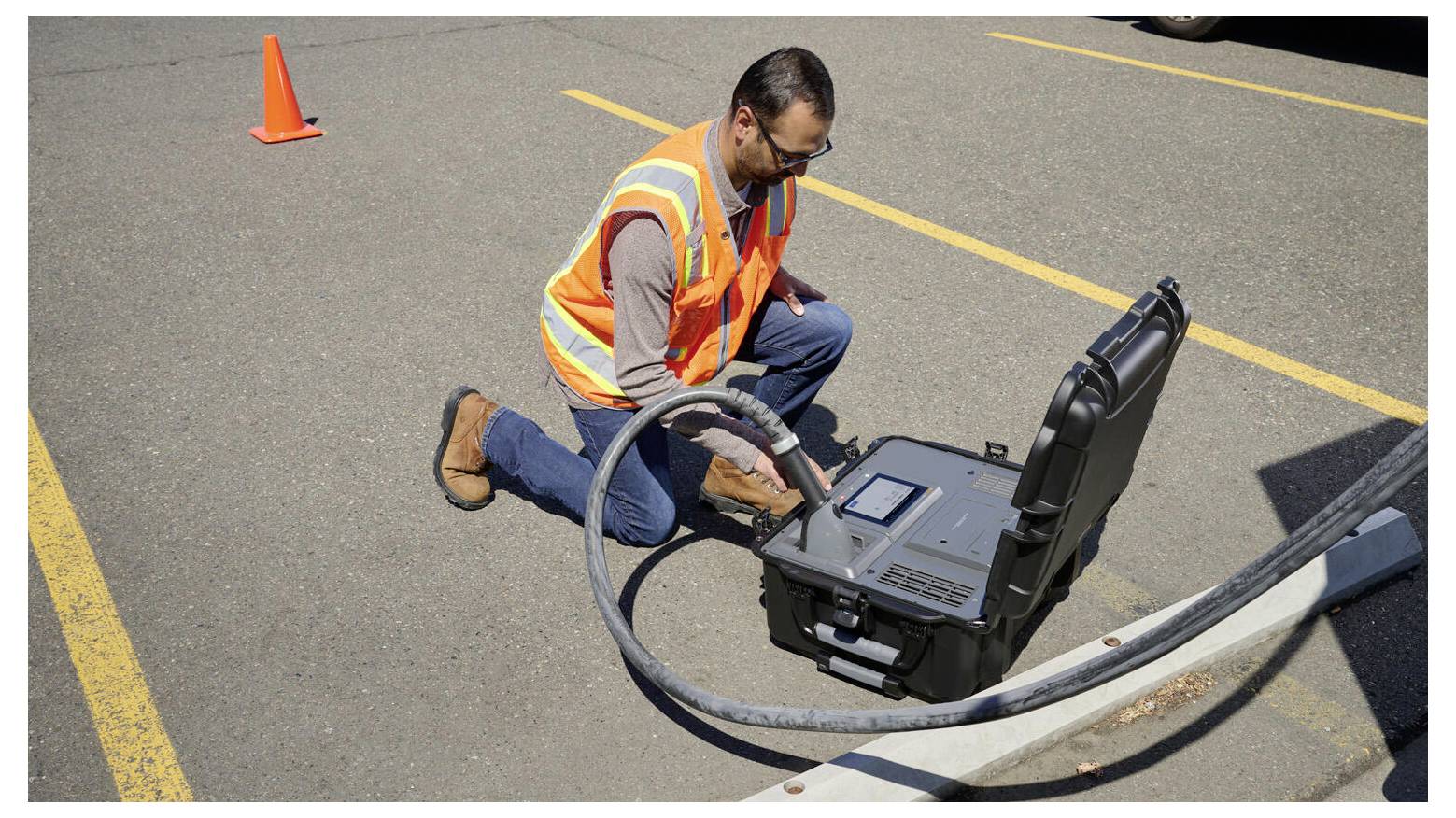

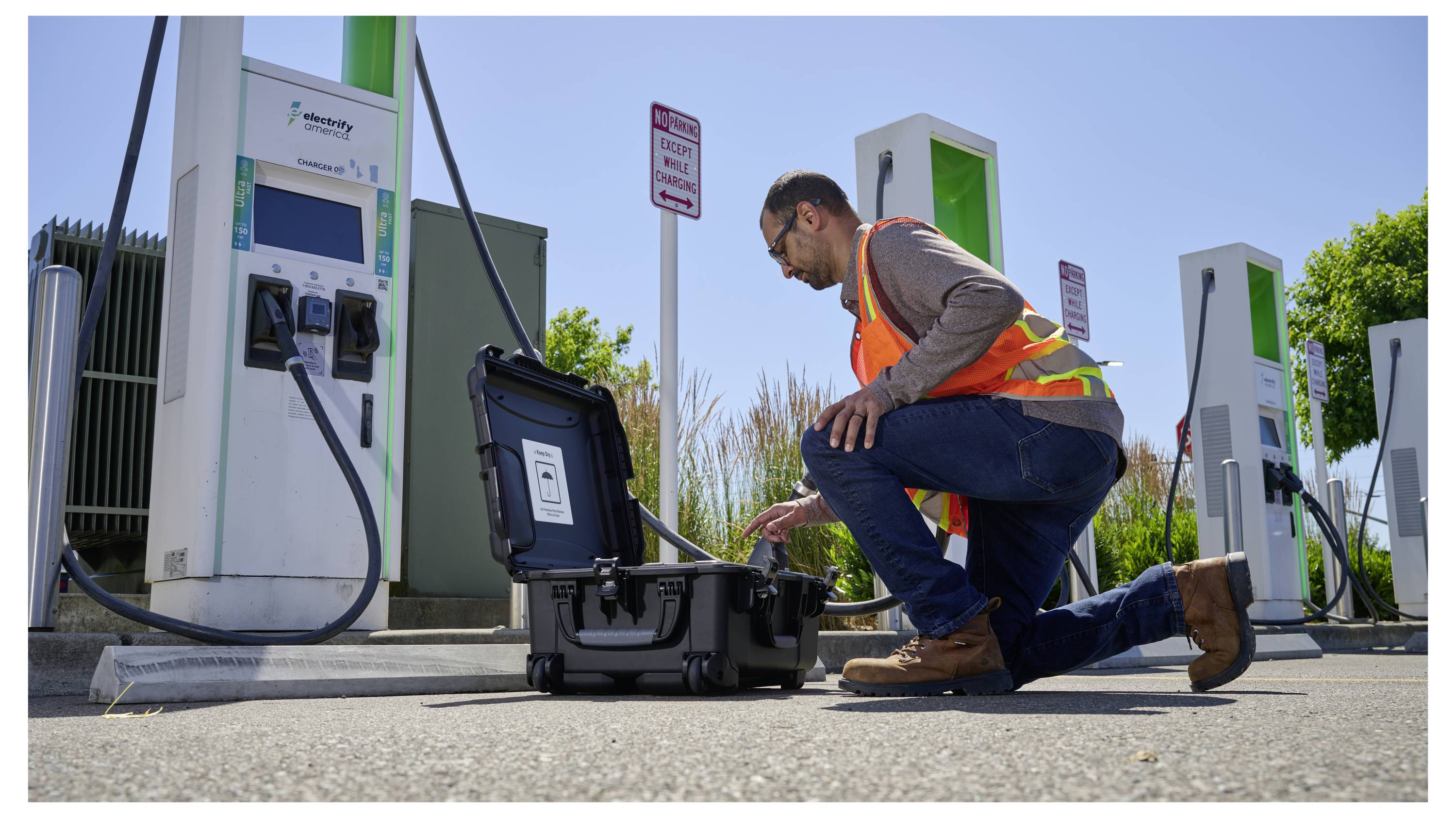

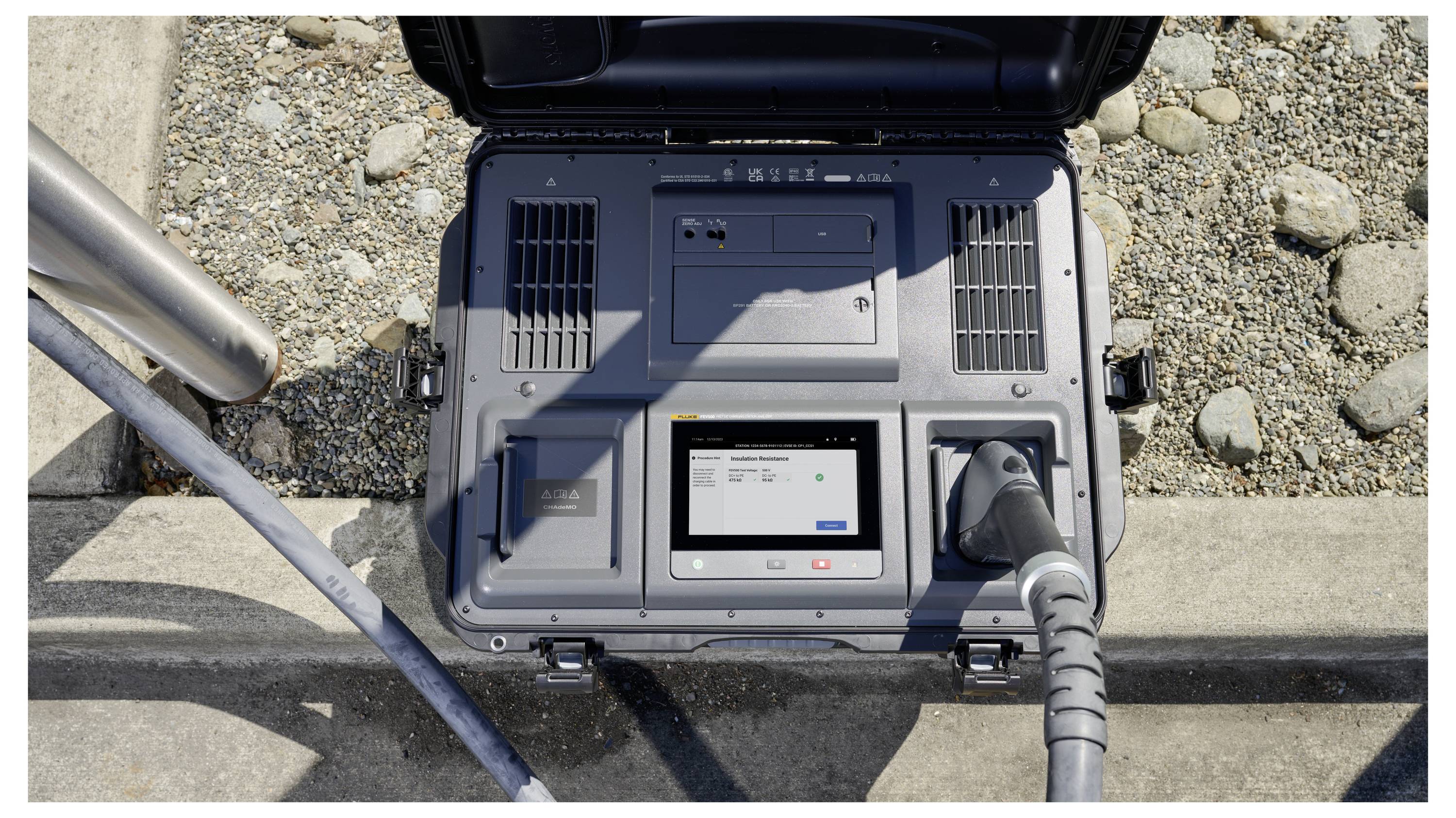

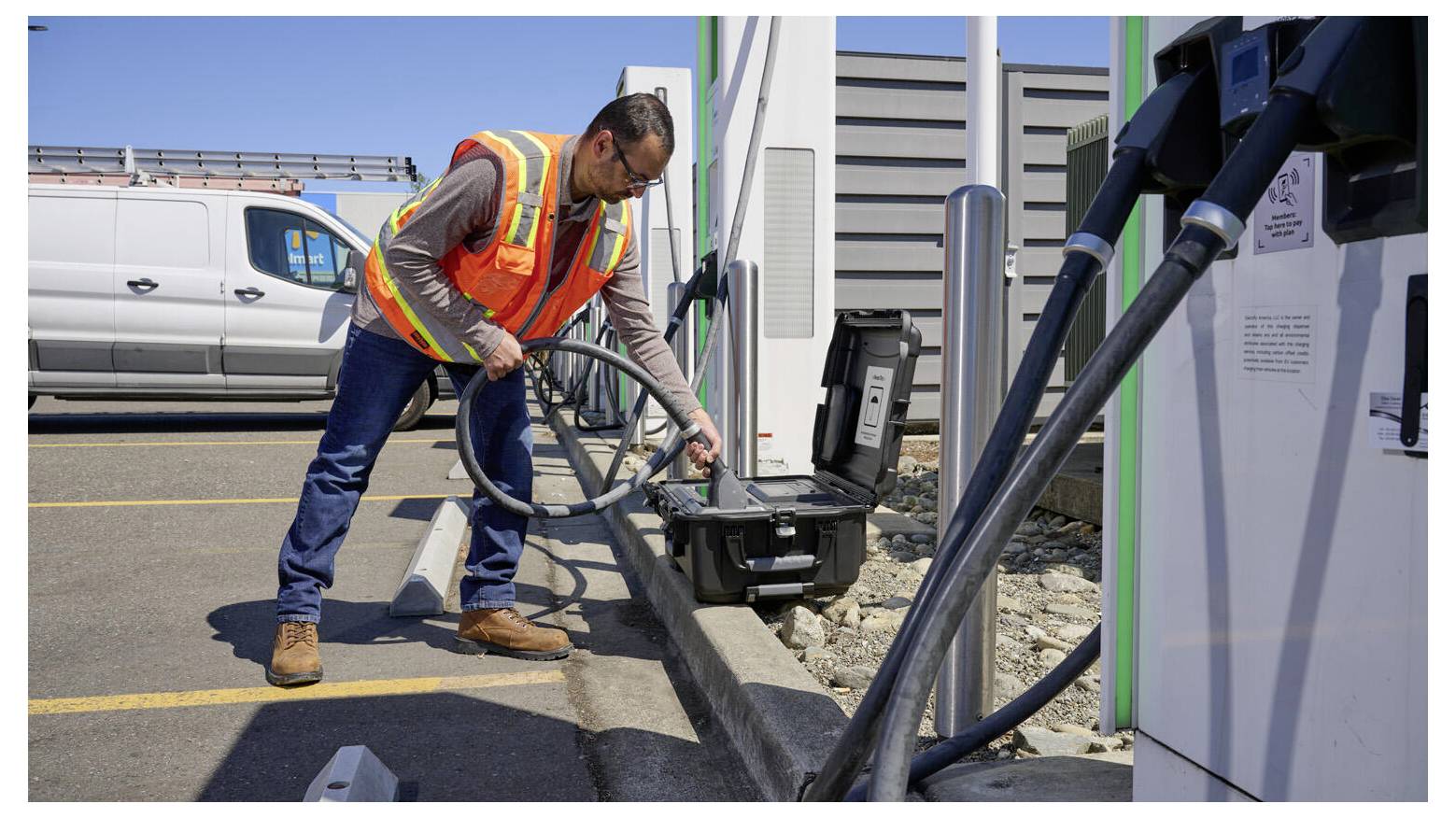

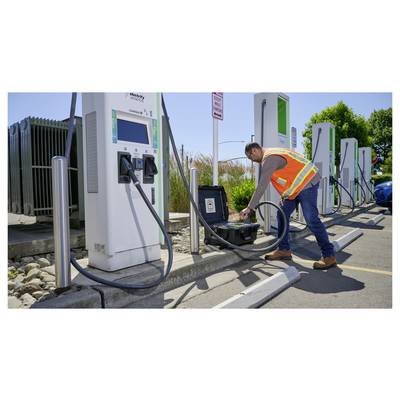

The Fluke FEV500 optimizes testing of DC rapid charging stations for electric vehicles by combining safety, performance and interoperability diagnostics in a portable device. With a touch-screen controlled workflow and no vehicle required, technicians can quickly verify communication and loading capabilities on CCS-compatible stations. The FEV500, designed for outdoor use, performs critical safety tests without having to open the station. This saves time and reduces risks. The FEV500 is rugged, accurate and intuitive, enabling technicians to keep fast-charging networks in reliable and future-proof condition. The Fluke Premium Care package offers you through your standard
SERVICE Protect against accidental damage, accelerate calibration, and annual equipment inspections.
This text is machine translated.
SERVICE Protect against accidental damage, accelerate calibration, and annual equipment inspections.
This text is machine translated.
Scope of delivery

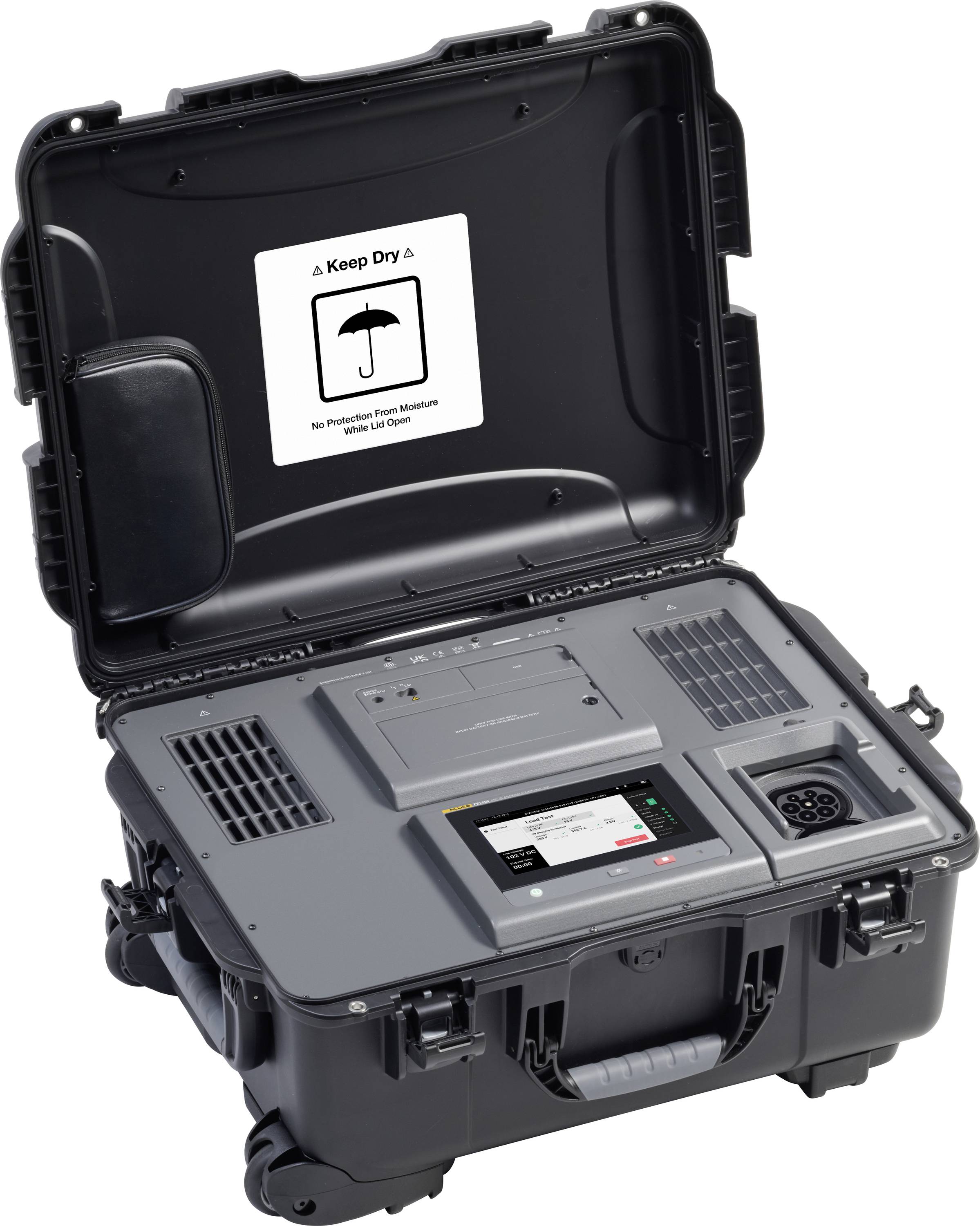

- FEV500 analyzer
- TP165X probe and test leads for remote control
- Lithium-ion rechargeable battery
- USB-C to USB A cable
- 1 year Fluke premium care
