Foscam D4Z fscd4z Wi-Fi IP CCTV camera 2304 x 1536 p
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 113.44 / piece)
€ 155.46
-27 %
€ 113.44
plus VAT.
Only 4 Piece(s) available
Highlights & Details
Wi-Fi IP-Rotatable/tilting camera;2304 x 1536 p;FoscamD4Z;fscd4z
- 2.4 GHz/5 GHz dual band WLAN network
- Intelligent detection & messages with push function
- Almost 360° viewing angle
- 4 MP (2304 x 1536) Full HD
Technical specifications
- CPU: MSC316DM
- Optical zoom
- Viewing angle: Horizontal: 32° - 100°; diagonal: 40° - 130°
- Resolution (max.) 4.0 MP (2304 x 1536)
- IR LED: 2 IR LEDS
- Image compression: H.264
- Micro SD card 64 GB pre-installed (max. 128 GB)
- PT: Pan/tilt angle: H=350°, V=85°
- Digital zoom 6 x
- POWER SUPPLY: DC 12V/2.0A
- Operating temperature: - 20 °C to 50 °C
- Product type
CCTV camera
- CCTV features
Saves footage on SD card
2-way communication
IR LEDs
ONVIF support
Optical zoom
Tamperproof
Pan-tilt-zoom
- Camera type
Rotatable/tilting camera
- Resolution (max.)
2304 x 1536 p
- Sensor size
9.4 mm (1/2.7")
- Sensor type
CMOS
Alexa
Google Home
Manufacturer-specific
- Focal length
2,8 - 12 mm
- Max. viewing angle hor.
100°
- App compatibility
Yes
- Transfer type
Wi-Fi
- Wi-Fi standard
IEEE802.11b
IEEE802.11g
IEEE802.11n
IEEE802.11ac
- Light sensitivity (+ IR)
0 lx
- IR range (max.)
20 m
- Type
microSD card (up to 128 GB)
- Width
108 mm
- Height
102 mm
- Depth
108 mm
- Dim
(W x H x D) 108 x 102 x 108 mm
- Weight
518 g
- F-numbers
F1.4 - 2.8
- Factory colour
Multicolour
IK10
IP66
- Signal standard
IP
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2303834 Foscam D4Z fscd4z Wi-Fi IP CCTV camera 2304 x 1536 p
User & Safety Instructions
User & Safety Instructions 2303834 Foscam D4Z fscd4z Wi-Fi IP CCTV camera 2304 x 1536 p
Description
The D4Z is a rotatable and swiveling Full HD weather-proof and vandal-proof network camera of the Foscam brand. This wireless camera is ideal for monitoring your business, office, warehouse or outdoor area.
The wireless dual-band WLAN of the surveillance camera works with both 2.4 GHz and 5 GHz and thus offers a maximum of flexibility and performance. The 5 GHz channel with less interference makes the network better suited for applications such as video streaming, because it is very sensitive to packet loss and delays, so that you can experience a smoother Full HD streaming.

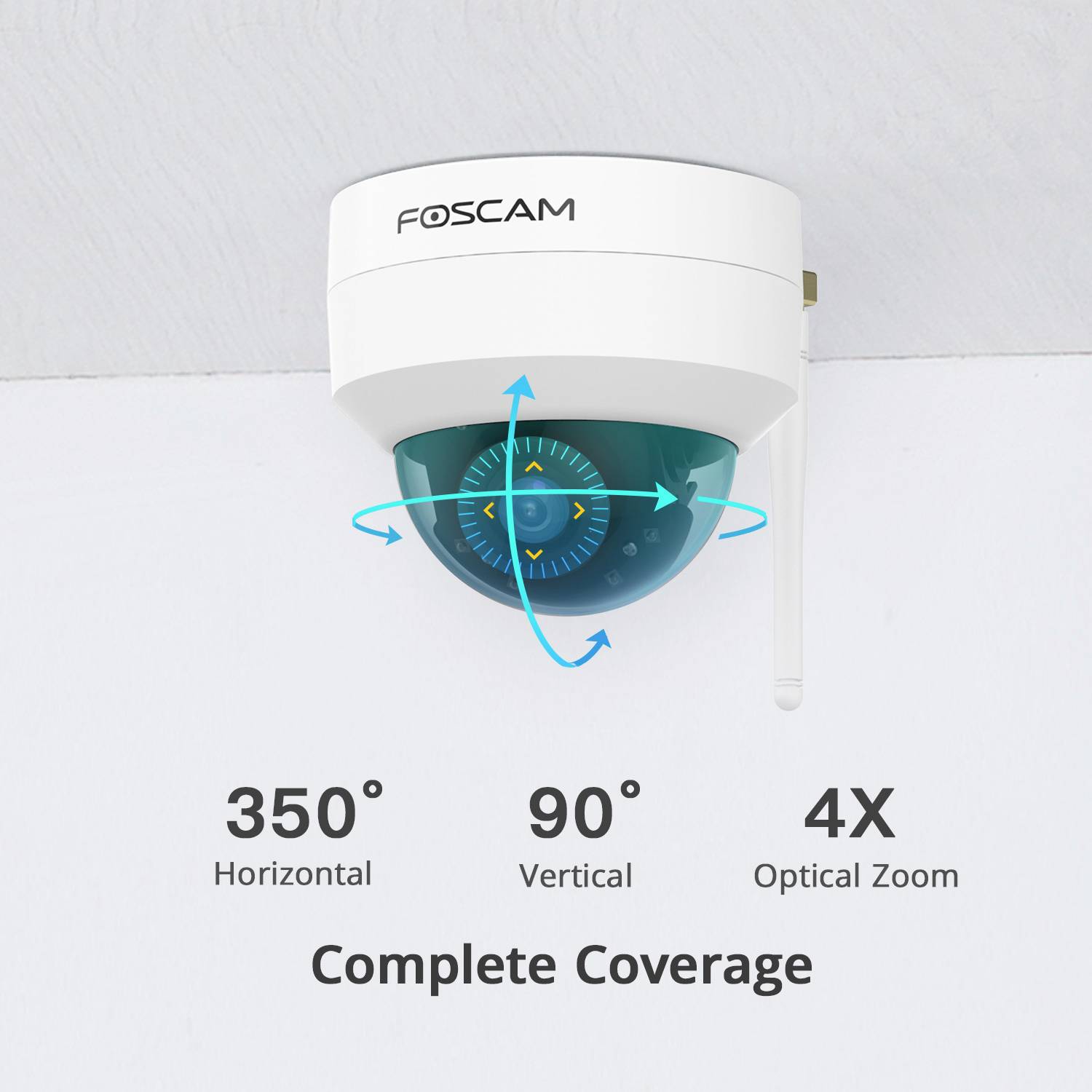

A horizontal rotation of 350° and a vertical rotation of 85° is possible, so that almost a 360° viewing angle is covered without blind zone. With 4x optical zoom with auto focus, every detail in the close range can be displayed perfectly and realistically.
This surveillance camera has a function for detecting people with advanced AI technology. This allows you to avoid most false alarms caused by light changes, fluttering curtains, flying birds or other movements by non-persons. This IP camera captures clearer and sharper images and videos and enables a night vision range of up to 20 m.
This WLAN surveillance camera supports Alexa & Google Assistant. You can see who's on your front door or in your garden on Amazon echo show or Google smart devices, and don't have to open Foscam app on your mobile phone.
This text is machine translated.
The wireless dual-band WLAN of the surveillance camera works with both 2.4 GHz and 5 GHz and thus offers a maximum of flexibility and performance. The 5 GHz channel with less interference makes the network better suited for applications such as video streaming, because it is very sensitive to packet loss and delays, so that you can experience a smoother Full HD streaming.
A horizontal rotation of 350° and a vertical rotation of 85° is possible, so that almost a 360° viewing angle is covered without blind zone. With 4x optical zoom with auto focus, every detail in the close range can be displayed perfectly and realistically.
This surveillance camera has a function for detecting people with advanced AI technology. This allows you to avoid most false alarms caused by light changes, fluttering curtains, flying birds or other movements by non-persons. This IP camera captures clearer and sharper images and videos and enables a night vision range of up to 20 m.
This WLAN surveillance camera supports Alexa & Google Assistant. You can see who's on your front door or in your garden on Amazon echo show or Google smart devices, and don't have to open Foscam app on your mobile phone.
This text is machine translated.
Features
- Infrared mode: Automatic or manual
- IR-CUT
- Picture adjustment: Hue, brightness, contrast, saturation and sharpness can be set
- Mirror, WDR, dual stream
- network protocol: IP, TCP, UDP, HTTP, HTTPS, SMTP, FTP, DHCP, RTSP, ONVIF
- P2P
- 2-way audio
- motion detection, human detection, sound detection
- alarm recording, schedule recording
- pre-installed 64 GB microSD memory card (supports SD cards up to 128 GB)
- E-mail/FTP alarm
- Snapshot
- DST
- Cloud, Foscam app
- push message
- supported Alexa, Google Assistant
- Operating system: Microsoft Windows XP, 7, 8, 10; Mac OS, iOS, Android
- Browser: Microsoft IE8 and later versions or compatible browsers; Google Chrome; Apple Safari.
- Watertight: IP66, vandal-proof: IK10.
Scope of delivery
- Foscam D4Z Dome Surveillance Camera:WLAN Antenna
- Power supply unit
- Network cable
- Quick guide
- Mounting plate
