Greisinger GMH5155 Pressure gauge Air pressure 0 - 1000 bar
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 509.00 / piece)
€ 509.00
incl. VAT
14-day return policy included
Highlights & Details

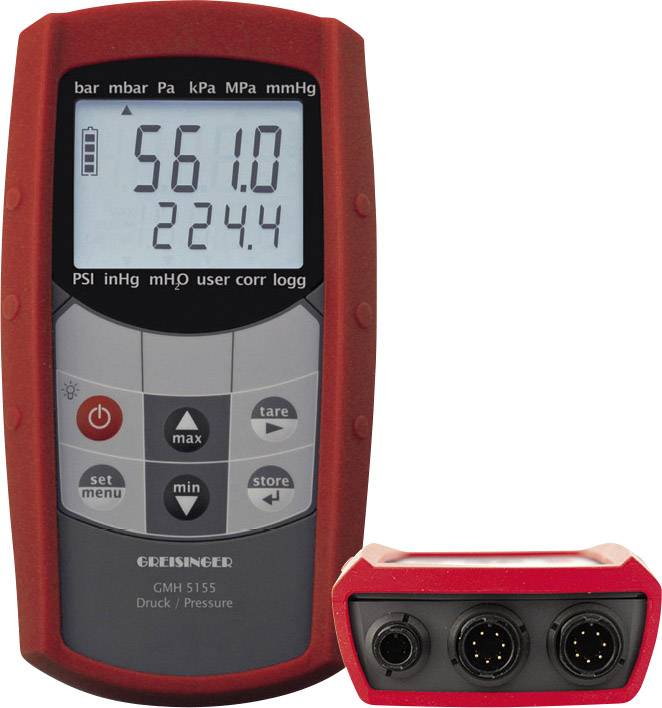

Greisinger waterproof handheld pressure meter GMH 5155
- 2 sensor connections
- Analogue output.
- Data Loggers
Technical specifications
- Sensor connections: 2
- Reusable sensors: GMSD/MSD sensors, available measuring ranges (Resolution) of -1,999… 2,500 mbar (0.001 mbar) up to 0 … 1000 bar (1 bar)
- Max. display range: -19999... +19999 digit
- Display units: * depending on the measuring range selection (depends on sensor): mbar, bar, Pa, kPa, MPa, mmHg, inHg, PSI, mH2O
- Measuring frequency: 4 measurements/s or 1000 measurements/s
- Average value filter: adjustable: 1... 120s
- Accuracy ± 0.1% FS ± 1 Digit
- Sensor connection: 1 x 7-pin. Bayonet connection
- Output: 4-pin. Bajo etan circuit for serial interface
- Display: 4½-digit 7-Segment, illuminated (white)
- Working conditions: -25 ... 50 °C, 0... 95% r.F. (Non-condensing)
- Storage temperature: -25 ... 70 °C
- Power supply 2 x AAA battery, battery life 500 h (without illumination, 4 measurements/s)
- Housing: Shock-resistant ABS, with mounting/hanger
- Protection class IP65/IP67
- Dimensions: 160 x 86 x 37 mm (H x W x D) including silicone protective sleeve (red)
- Data logger: Yes
- Analogue output: Yes
- Power supply (details)
2x AAA battery
- Product type
Pressure gauge
- Reading range
0 - 1000 bar
- Unit of measurement
Air pressure
- Pneumatic connection
External Sensor
- Reading range
-1.999 mbar up to 1000 bar
Manufacturer's standards (no certificate)
- Print resolution
1 bar
- Sensor
7-pin. Bayonet connection
IP65
IP67
- Dim
(W x H x D) 86 x 160 x 37 mm
- Weight
370 g
- Accuracy
0.1 %
- Reading range (max.)
1000 bar
- Reading range (min.)
0 bar
- Width
86 mm
- Height
160 mm
- Depth
37 mm
Documents & Downloads
Datasheet
Datasheet 1305339 Greisinger GMH5155 Pressure gauge Air pressure 0 - 1000 bar
User & Safety Instructions
User & Safety Instructions 1305339 Greisinger GMH5155 Pressure gauge Air pressure 0 - 1000 bar
Description
The hand-held meter for alternating sensors supports you in demanding pressure measurement tasks. Extremely robust plug connections, the silicon protective case, backlight and the waterproof construction also permit use in harsh industrial and field conditions.
This text is machine translated.
This text is machine translated.
Features
- Auto-Off-Function
- Battery status indicator
- Hold function
- Min-/Max-Wertspeicher.
- Tare function
- Peak detect (peak value memory)
- Offset/gradient correction
- Min./max. alarm
- Logger function
- Total function
- Real-time clock
Scope of delivery
- Batteries · Operating instructions · Protective cover.
- This text is machine translated.
