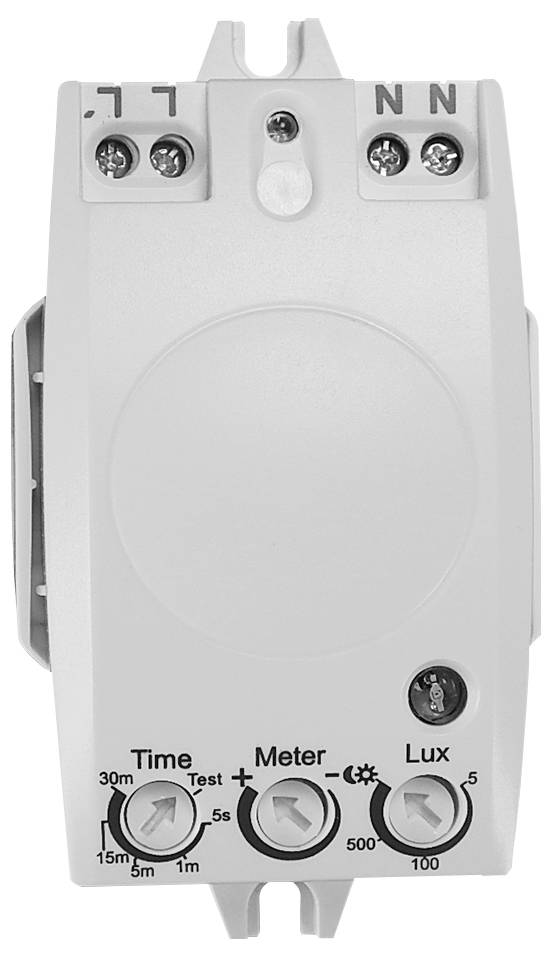

White electrical timer switch module with terminals labeled L and N, and three front dials for Time, Meter, and Lux settings.

White electrical timer switch module with terminals labeled L and N, and three front dials for Time, Meter, and Lux settings.

Grothe

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 61.99 / piece)

€ 63.99

€ 61.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

High Frequency Motion Detector

Detection angle 180 degrees
Detection 10 m
Adjustable timer and Heligkeit

Technical specifications

Frequency (Sensor) 5.8 GHz

Product type: HF motion detector

Detection angle: 180°

: 10 m

Used at: Indoors

Mounting type: Recess-mount

Operating voltage: 230 V

Contact type: Relay

Switching capacity (energy saving bulbs): max. 100 W

Switching capacity (light bulbs): max. 1000 W

Switching capacity (halogen bulbs): A maximum of 200 VA/200 W

Switching capacity (LED): max. 150 W

Switching capacity (light tubes): max. 150 W

Twilight settings: Approx. 5 lx

Time settings: 5 s - 30 Min.

Factory colour: White

: IP20

Type: Motion detector lamp installation

Width: 90 mm

Height: 55 mm

Dim: (W x H) 90 mm x 55 mm

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1560099 Grothe 94520 Recess-mount HF motion detector 180 ° Relay White IP20

Description

The McGuard family is now in 7 different model series, each one on its territory specialized and functional tuned to each other.
The devices combine the grothe reliability in the daily use with a high use installation-friendliness and ease of use.

This text is machine translated.

Features

High Frequency Motion Detector
Installation: Installation in lamps or housing
Response sensitivity can be set continuously.

Scope of delivery

Detector
User manual.

Description

The McGuard family is now in 7 different model series, each one on its territory specialized and functional tuned to each other.
The devices combine the grothe reliability in the daily use with a high use installation-friendliness and ease of use.

This text is machine translated.

Features

High Frequency Motion Detector
Installation: Installation in lamps or housing
Response sensitivity can be set continuously.

Scope of delivery

Detector
User manual.
