Name: Sygonix SY-7403854 Ceiling PIR motion detector 360 ° Relay White
Brand: Sygonix
SKU: 3701927
Availability: InStock

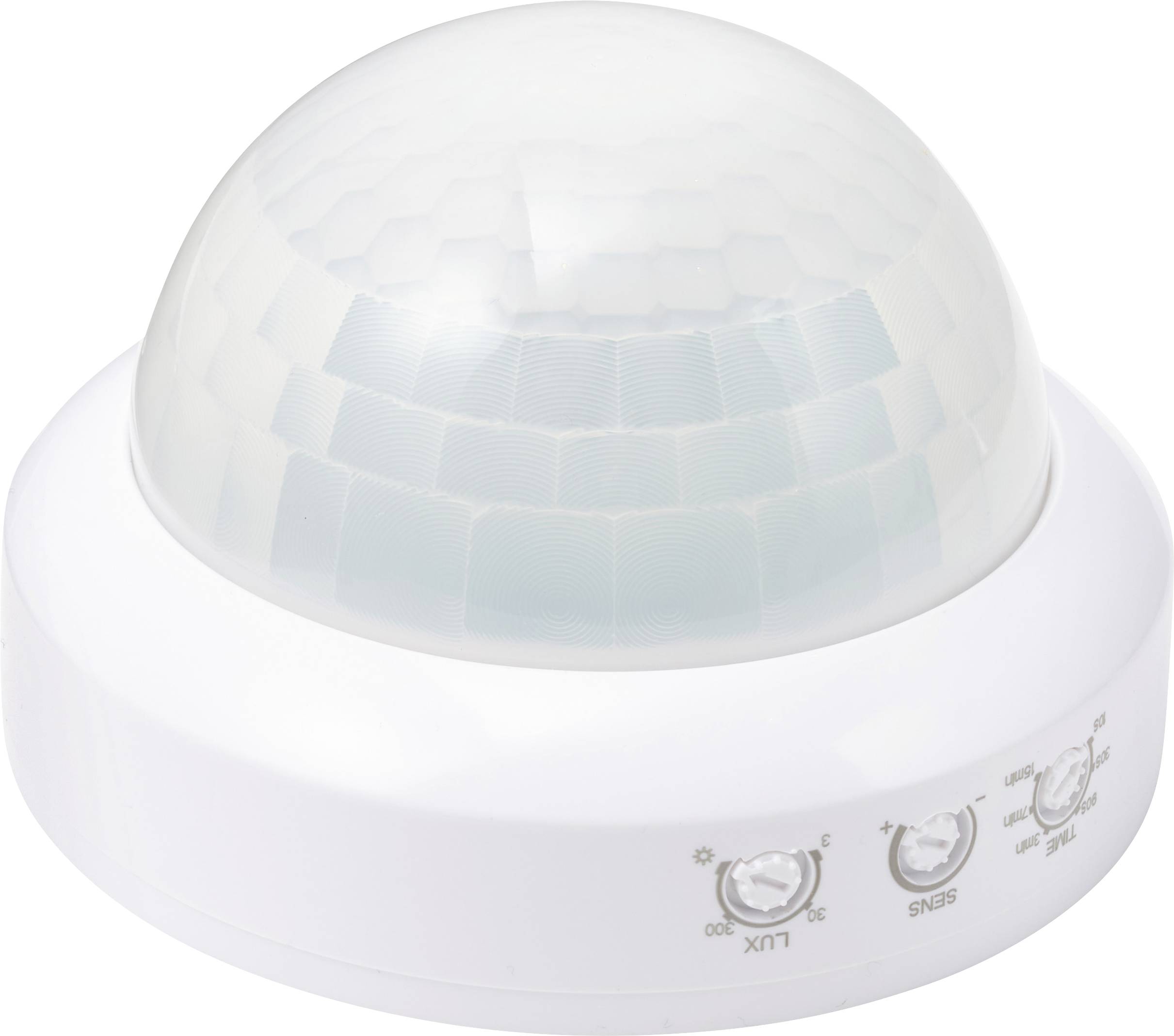

White ceiling-mounted dome motion sensor with adjustable dials for lux, time, and range settings.

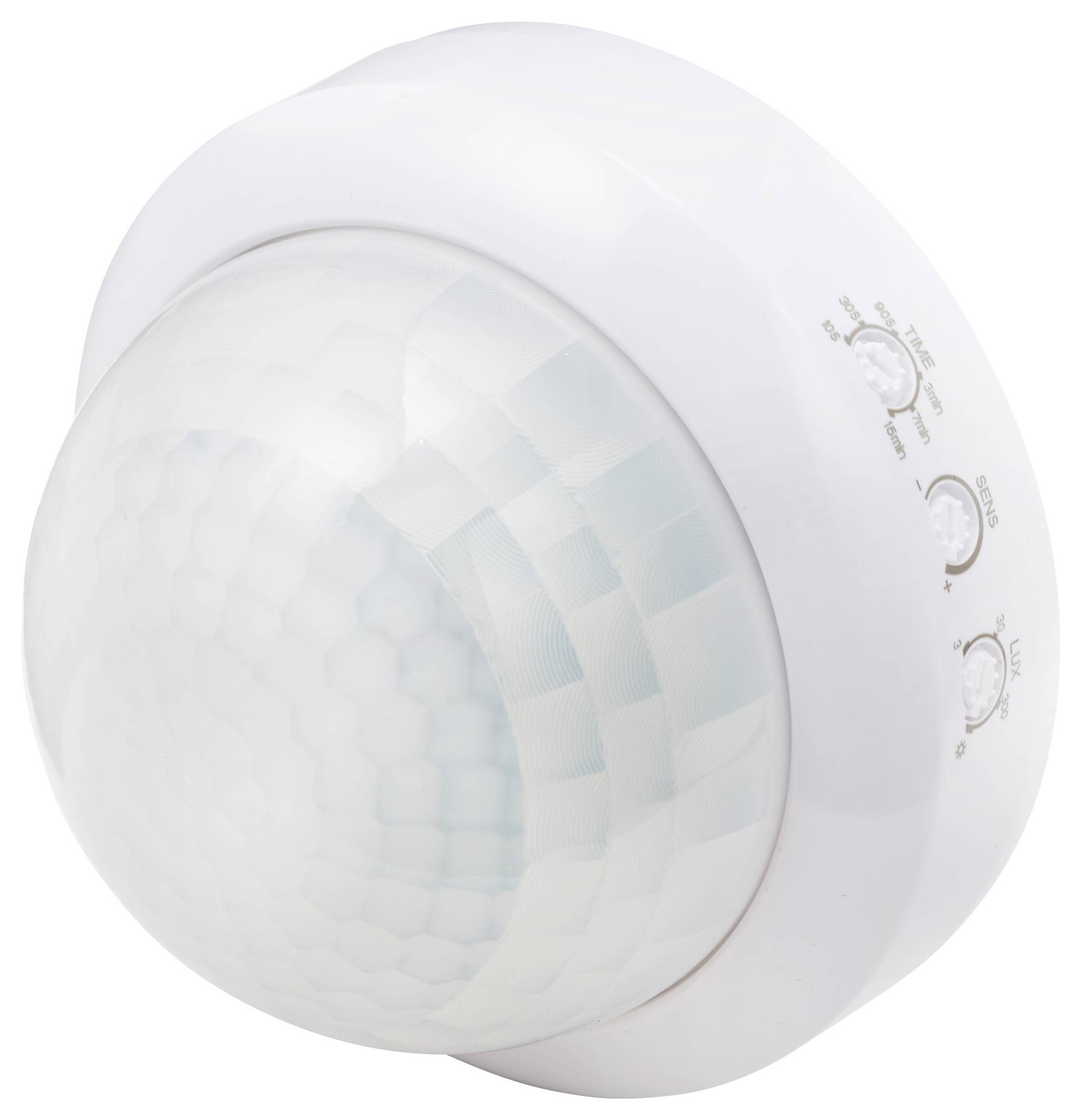

White ceiling motion sensor with domed Fresnel lens and three adjustment dials on the side.<br>

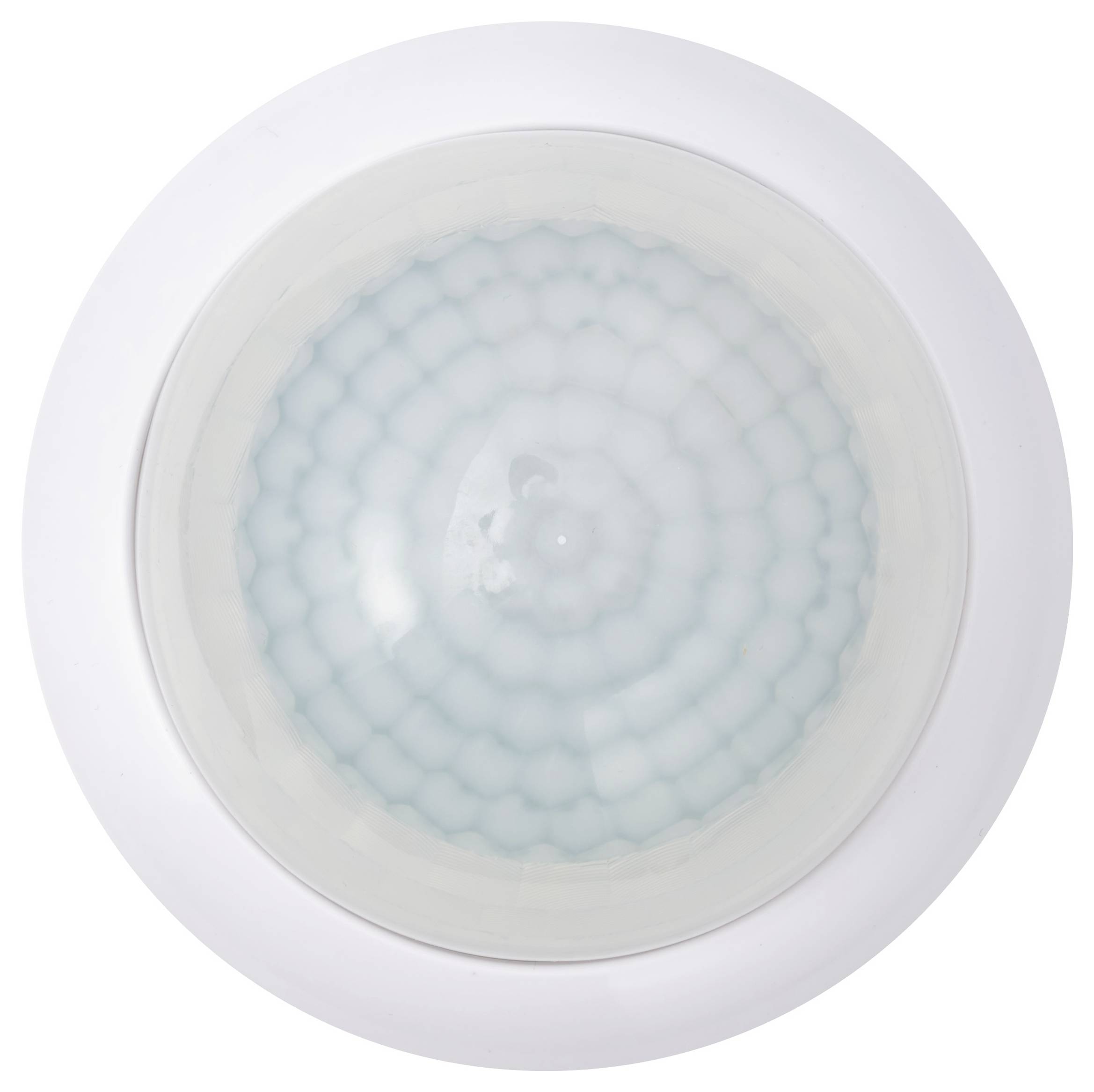

Top-down view of a round white light fixture with a frosted lens and blue honeycomb sensor or diffuser pattern inside.

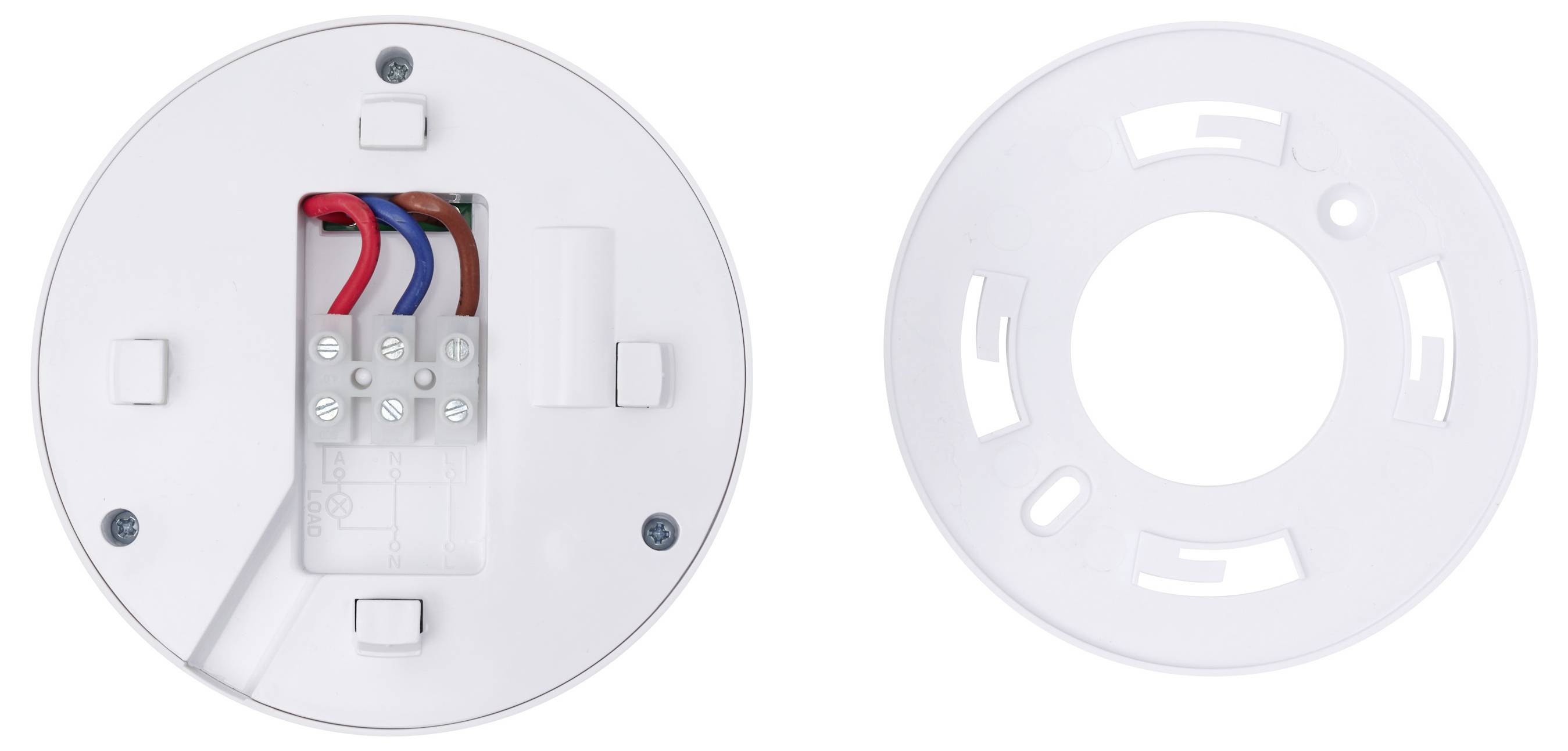

White circular ceiling-mounted electrical base with exposed red, blue, and brown wires, shown beside a matching cover plate.

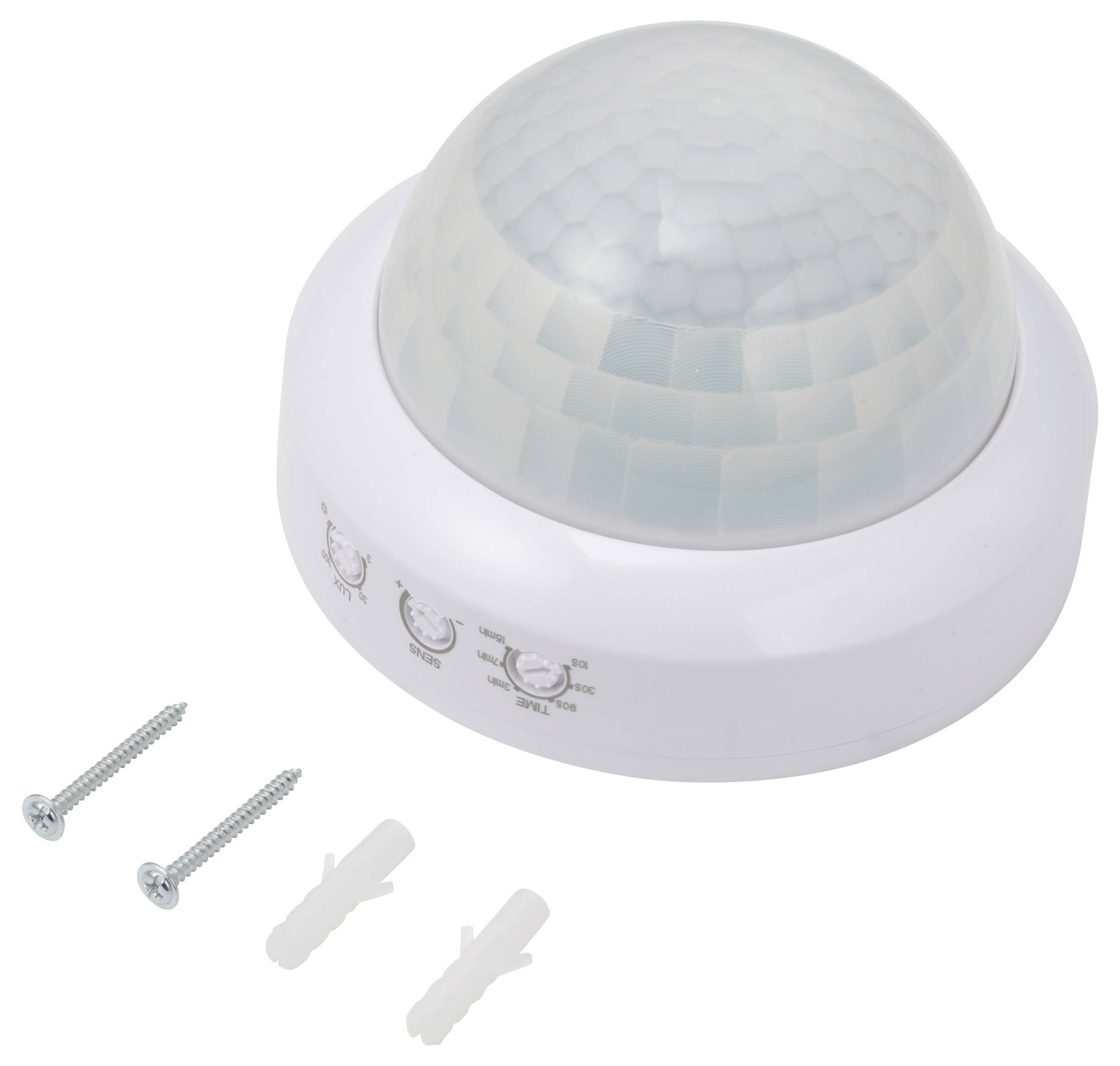

White ceiling-mounted motion sensor light with dome lens, shown with two screws and two wall anchors.

A man walks alone down a modern, brightly lit hallway with glossy floors and doors on both sides.

Diagram of a circular tent or roof structure with a central peak, 2.24 m tall and 40 m wide overall, showing layered radial sections.

1/7

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

516 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 13.99 / piece)

€ 13.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

IR motion detector 360° 40m surface mount IP20

Infrared motion sensor
Switches up to 2000W
Extra-long detection range up to 40 m diameter

Our service for you

Technical specifications

Product type: PIR motion detector

Detection angle: 360°

: 40 m

Used at: Indoors

Mounting type: Ceiling

Operating voltage: 230 V AC

Contact type: Relay

Switching capacity (energy saving bulbs): 1000 W

Switching capacity (light bulbs): 2000 W

Switching capacity (LED): 1000 W

Twilight settings: 3 - 2000 lx

Time settings: 10 s - 15 min

Factory colour: White

Height: 73 mm

(Ø): 115 mm

Dim: (Ø x H) 115 mm x 73 mm

Weight: 159 g

Plastic free packaging: Plastic-free packaging

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3701927 Sygonix SY-7403854 Ceiling PIR motion detector 360 ° Relay White

Warranty Terms

Warranty Terms 3701927 Sygonix SY-7403854 Ceiling PIR motion detector 360 ° Relay White

Description

This infrared motion detector for indoor surface ceiling mounting offers a reliable solution for automated lighting control. With its wide detection range, it is particularly suitable for large corridors, storage areas and offices in business areas, in order to switch lighting on demand and efficiently.

Large-area 360° detection

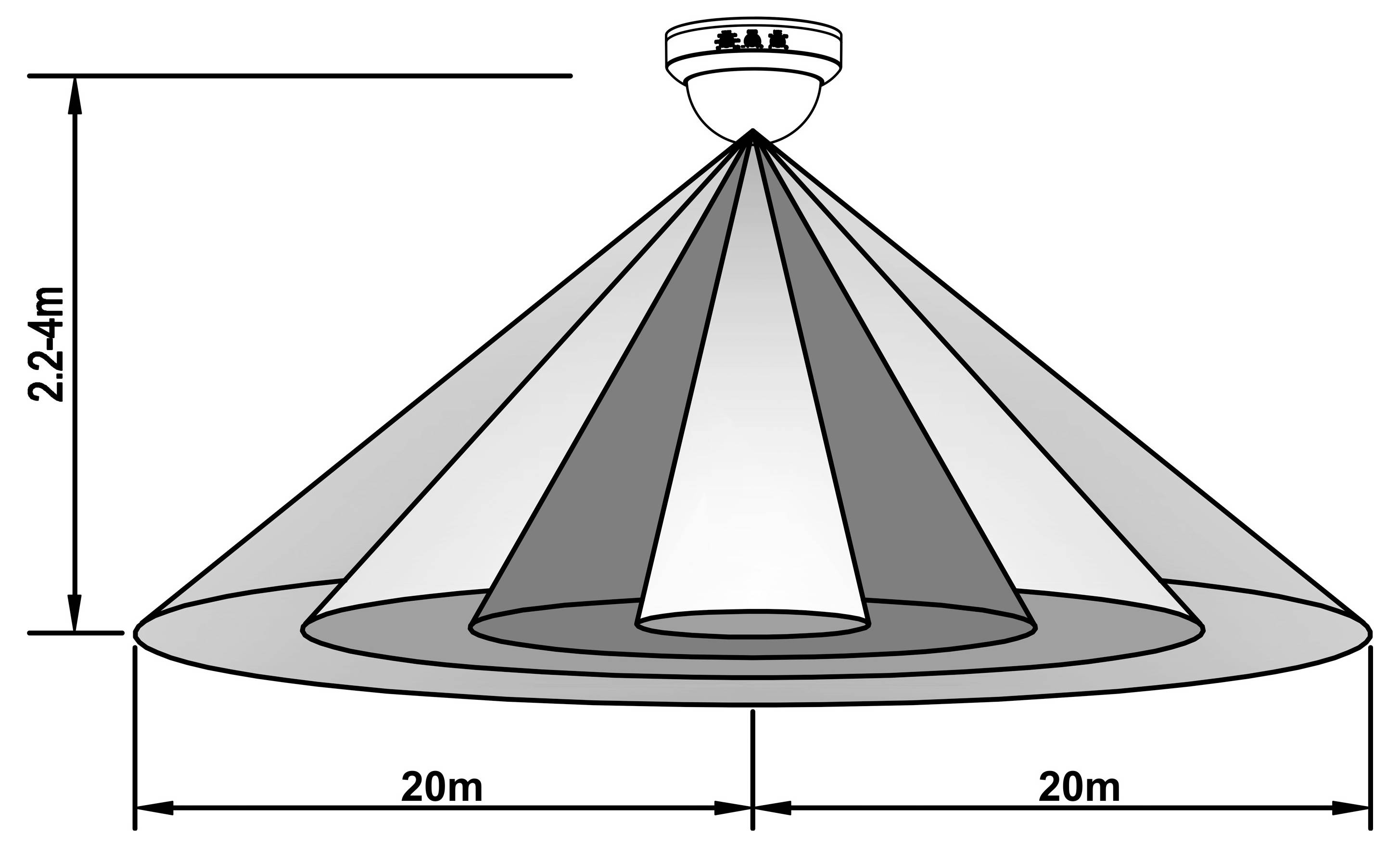

The sensor has a 360-degree detection angle and covers in the open a diameter of up to 40 meters. This enables the monitoring of large areas with only a few devices.

High switching capacity for various light bulbs
The integrated relay allows the connection of bulbs with a total power of up to 2000 W. Even modern LED-lamps and energy-saving bulbs with a power of up to 1000 W can be switched reliably.

This text is machine translated.
