Ground modular terminal block ST 4/ 1P-PE 3042722 Phoenix Contact

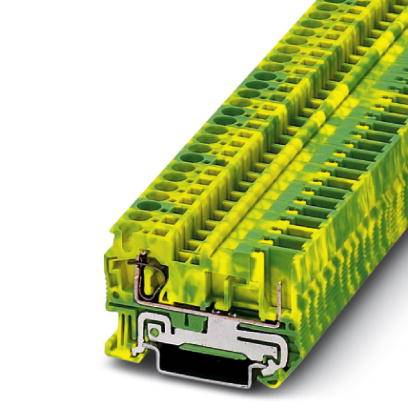

Yellow-green terminal block with metallic contacts. Used for electrical connections in industrial applications.
Packaging type
Piece
Product type
PG terminal
Connection
Pull spring
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
6 mm²
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Thu 12 Nov
1 Set(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number (Package size 50 pc(s))
Total (€ 4.40 / piece)
€ 219.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 1 Set(s) available
14-day return policy included
Report legal concerns

Highlights & Details

Ground modular terminal block ST 4/ 1P-PE

  • ST 4/ 1P-PE

Technical specifications

Packaging type

Piece

Product type

PG terminal

Connection

Pull spring

Cross section (flexible) (min.)

0.08 mm²

Cross section (flexible) (max.)

4 mm²

Cross section (inflexible) (min.)

0.08 mm²

Cross section (inflexible) (max.)

6 mm²

AWG (min.)

28

AWG max.

12

Clamp width

6.2 mm

No. of rows

1

Number of pins

2

Factory colour

Green

Yellow

Min. stripping length

8 mm

Stripping length (max.)

10 mm

Manufacturer part #

3042722

Content

50 pc(s)

Industrial packaging

Yes

Type

ST 4/ 1P-PE

Dim

(L x W x H) 55.8 x 6.2 x 36.5 mm

Width

6.2 mm

Height

36.5 mm

Length

55.8 mm

Contamination level

3

Flammability rating

V0

Insulation material

PA

Insulation

PA

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 565801 Ground modular terminal block ST 4/ 1P-PE 3042722 Phoenix Contact

User & Safety Instructions

User & Safety Instructions 565801 Ground modular terminal block ST 4/ 1P-PE 3042722 Phoenix Contact

Description

Ground modular terminal block, Connection method: Spring-cage/plug-in connection, Cross section: 0.08 mm² - 6 mm², AWG: 28 - 10, Width: 6.2 mm, Color: green-yellow, Mounting type: NS 35/7,5, NS 35/15
