Buy GW Instek GPT-9904 Insulation tester, Dielectric withstand tester 100 V, 250 V, 500 V, 1000 V 50 GΩ

An electrical testing device with a digital display shows an ascending line. Control elements and connectors are located in the bottom left.

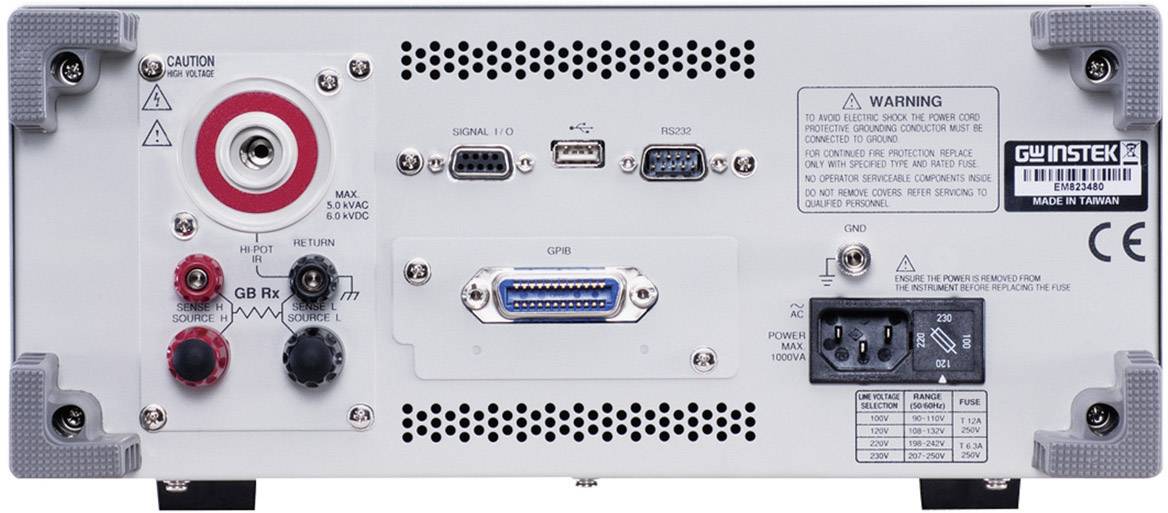

'Rear of an electronic device with connections and warning notices.'

1/2

Datasheet (PDF)

Dispatches on Wed, 30 Sep

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 5,192.44 / piece)

€ 5,192.44

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

Surge voltage tester GPT -9904

4 in 1 measuring functions
AC/DC-surge voltage test
Insulation Test
High-current-mass connection test

Technical specifications

Voltage setting: 2 V-steps
Signal form: sine
Max. Test power: 500 VA
Ramp function: 0.1 - 999.9 s
Timer for test time off/0.1 - 999.9 s
Test voltage insulation resistance: 50 - 1000 V/DC
High-current connection test: 3 - 32 A/AC
Display (details): dot matrix LCD, 240 x 64 pixels
Surge voltage: 0.1 - 5 kV/AC; 0.1 - 6 kV/DC
Data storage: 100
Setting the voltage insulation resistance: 50 V-steps
Measurement range - low resistance: 10 - 650.0 mΩ

Product type: Insulation tester

Test voltage: 100 V
250 V
500 V
1000 V

Reading type: Insulation resistance

: Manufacturer's standards (no certificate)

Interfaces: 1x USB
1x RS 232

Power supply (details): 100/120/220/230 V AC

Dim: (L x W x H) 46 x 33 x 15 cm

Weight: 15 kg

Display type: Digital (LCD)

Insulation resistance (max.): 50 GΩ

Voltage reading range (max.): 1000 V

Voltage reading range (min.): 50 V

Width: 33 cm

Height: 15 cm

Length: 46 cm

Documents & Downloads

Datasheet

Datasheet 556573 GW Instek GPT-9904 Insulation tester, Dielectric withstand tester 100 V, 250 V, 500 V, 1000 V 50 GΩ

User & Safety Instructions

User & Safety Instructions 556573 GW Instek GPT-9904 Insulation tester, Dielectric withstand tester 100 V, 250 V, 500 V, 1000 V 50 GΩ

Description

The surge voltage test device enables the testing of insulation and contact points with a specified voltage. The test power is 500 VA. In addition, an insulation resistance measurement up to 50 GΩ and a high-current connection test with up to 32A is possible.
