GW Instek Mains-powered 25 MHz (max) 1-channel Triangle, Sinus, Rectangle, Noise, Arbitrary

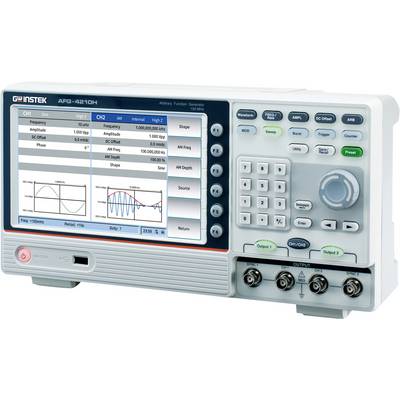

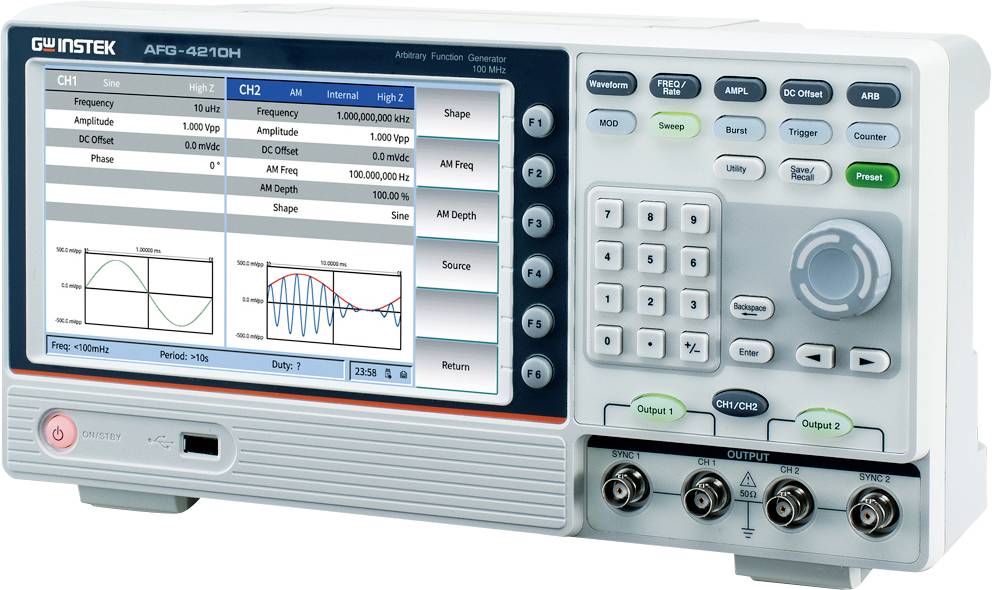

Function generator with display showing a rectangular and sine signal. Controls and connections are located on the right and bottom.

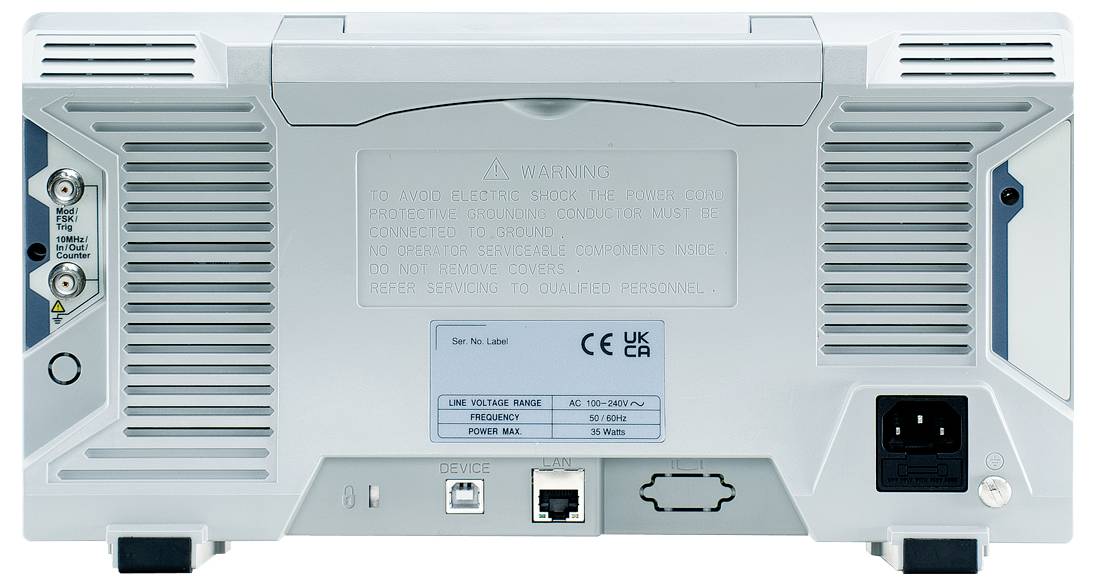

Back of an electrical device with connections and warning label. There are sockets for power cable and network cable.

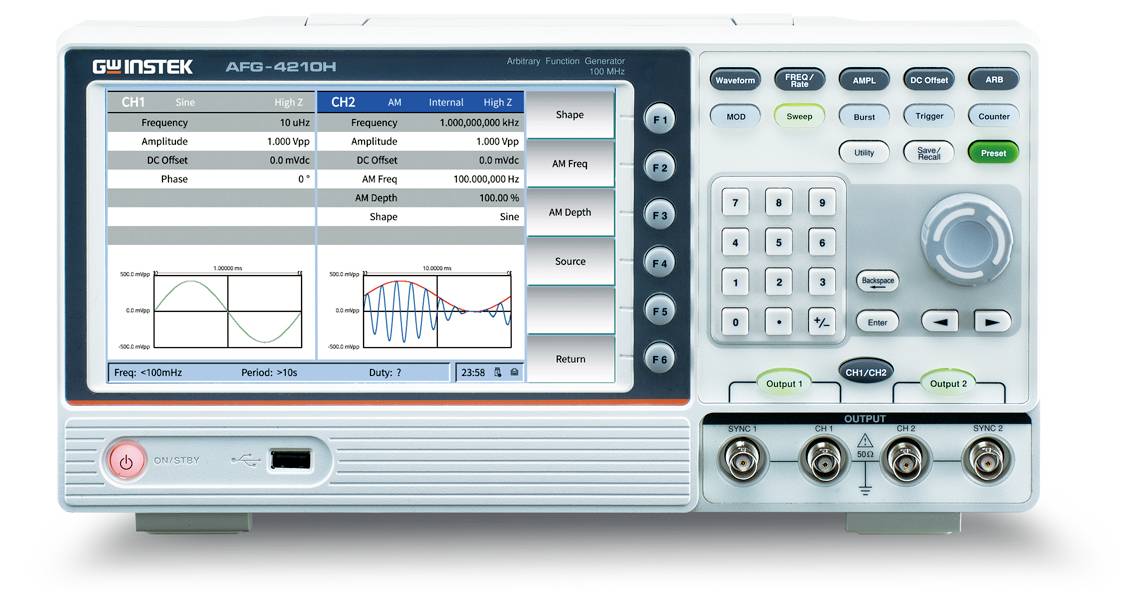

An arbitrary function generator with a digital display shows frequency and amplitude graphics. Buttons and connectors are visible.
1/3
Datasheet (PDF)
EAN:
Part number:
Item no:
Available soon
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 545.00 / piece)
€ 545.00
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

  • MODULATION: AM, DSB-AM, FM, PM, PWM, ASK, PSK, BPSK, QPSK, FSK, 3FSK, 4FSK, OSK, SUM
  • Integrated sine, square, triangle, ramp, pulse, Noise, harmonic and arbitrary waveform
  • Sampling rate 125 MSa/s
  • Waveform length: 2 to 16,000 points
  • Safety design EN61010-1
  • 10 kΩ input impedance
  • Communication interface: USB host, USB device
  • Maximum input voltage 2 Vpp
  • Output rise rate 20 Vpp
  • Memory length 16,000/per channel
  • Amplitude resolution 14 Bit
Product type

Mains-powered

Frequency range

25 MHz (max)

Signal output types

Triangle

Sinus

Rectangle

Noise

Arbitrary

Frequency range (sine)

25 MHz

Distortion factor (sine)

bis 0.1 %

Frequency range square wave

5 MHz

Display

LCD

Frequency range triangle

1 MHz

ARB frequency range

25 MHz

Manufacturer's standards (no certificate)

Internal modulation

2 MHz to 1 MHz

Trigger (synchronous)

TTL-compatible

Dim

(W x H) 340 mm x 177 mm

Weight

2.5 kg

No. of channels

1-channel

Max. frequency

25 MHz

Features

Modulation

Reading category

CAT II

Width

340 mm

Height

177 mm

Interfaces

USB host

Voltage supply

Mains

Type

03LLAF4125AS

Documents & Downloads

Datasheet

Datasheet 3386975 GW Instek Mains-powered 25 MHz (max) 1-channel Triangle, Sinus, Rectangle, Noise, Arbitrary

Datasheet 3386975 GW Instek Mains-powered 25 MHz (max) 1-channel Triangle, Sinus, Rectangle, Noise, Arbitrary

User & Safety Instructions

User & Safety Instructions 3386975 GW Instek Mains-powered 25 MHz (max) 1-channel Triangle, Sinus, Rectangle, Noise, Arbitrary

Information

Information 3386975 GW Instek Mains-powered 25 MHz (max) 1-channel Triangle, Sinus, Rectangle, Noise, Arbitrary

Description

Scope of delivery

  • 1 x USB cable, 1 x power cable
  • 1 x test cable, 1 x BNC to alligator clip cable
