Name: Hama TV wall mount 81,3 cm (32") - 165,1 cm (65") Tiltable, Swivelling
Brand: Hama
SKU: 3304419
Availability: InStock

Wall bracket for TV sets, tiltable and swivelling, made of metal, suitable for various screen sizes.

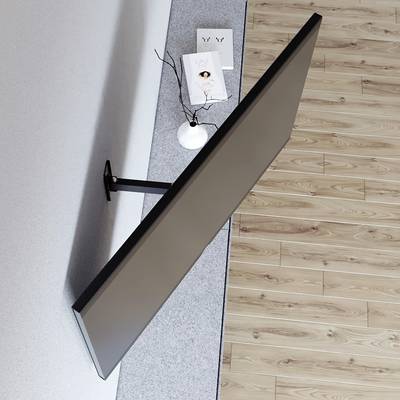

A wall-mounted, pivoting television viewed from above. Next to it on a table stands a vase with branches.

Wall-mounted television bracket. Shows tilting options of +/- 15 degrees. Background: Living room with sofa and table.

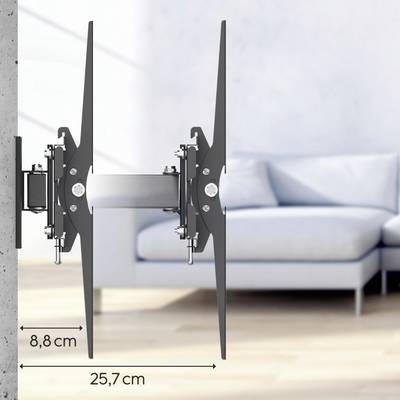

TV wall mount with rotating arms, mounted on a wall. Distance from the wall: 8.8 cm. Maximum extension: 25.7 cm. A sofa in the background.

Slim TV Wall Mount for 81-165 cm (32"-65") Televisions, VESA 100x100-400x400, Maximum Load Capacity 30 kg, Easy Installation.

Back of a monitor with marked VESA mounting points. A measuring tape shows dimensions from VESA 100x100 to 400x400 mm.

Swivel TV Wall Mount with Dimensions: 5.5 cm Depth, 14.5 cm Height. Suitable for Various TV Sizes.

1/7

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 5 Nov

11 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 48.99 / piece)

€ 48.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Hama TV wall mount

Holder type: Tiltable, Swivelling
Supports VESA standards up to
Suitable for displays sized (range): 81,3 cm (32") - 165,1 cm (65")
Load capacity (max.) 30 kg

Technical specifications

Product type: TV wall mount

Suitable for: 81,3 cm (32")
83,8 cm (33")
86,4 cm (34")
88,9 cm (35")
91,4 cm (36")
94,0 cm (37")
96,5 cm (38")
99,1 cm (39")
101,6 cm (40")
104,1 cm (41")
106,7 cm (42")
109,2 cm (43")
111,8 cm (44")
114,3 cm (45")
116,8 cm (46")
119,4 cm (47")
121,9 cm (48")
124,5 cm (49")
127,0 cm (50")
129,5 cm (51")
132,1 cm (52")
137,2 cm (54")
139,7 cm (55")
142,2 cm (56")
144,8 cm (57")
147,3 cm (58")
152,4 cm (60")
162,6 cm (64")
165,1 cm (65")
Show more

Suitable for: 81,3 cm (32") - 165,1 cm (65")

Holder type: Tiltable
Swivelling

Max. load capacity: 30 kg

: No

: 100 x 100 mm
100 x 150 mm
100 x 200 mm
200 x 100 mm
200 x 200 mm
200 x 300 mm
200 x 400 mm
300 x 100 mm
300 x 200 mm
300 x 300 mm
300 x 400 mm
400 x 200 mm
400 x 300 mm
400 x 400 mm
Show more

Rotation: 6°

Tilt range (bottom): 15°

Tilt range (top): 15°

Distance to wall (min.): 88 mm

Distance to wall (max.): 257 mm

Width: 200 mm

Height: 100 mm

Depth: 500 mm

Factory colour: Black

Weight: 2470 g

Dim: (W x H x D) 200 x 100 x 500 mm

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3304419 Hama TV wall mount 81,3 cm (32") - 165,1 cm (65") Tiltable, Swivelling

User & Safety Instructions

User & Safety Instructions 3304419 Hama TV wall mount 81,3 cm (32") - 165,1 cm (65") Tiltable, Swivelling

Features

Colour: Black, color tone: Black, number of joints: 2, design: TV, hole dimension Mounting: Up to M8, material: Sheet steel, max. Swivel range 130 °, max. Bearing load: 30 kg, inclination +/-: 15 / 15 °, rotation: 6 °, wall distance max.: 25.7 cm, wall distance min.: 8.8 cm, additional functions: Drilling template, cable manager, spirit level, external dimension width: 43 cm, external dimension height: 41.8 cm, mounting plate width: 5.5 cm, mounting plate length: 14.5 cm, screen size: 102 cm (40"), 104 cm (41"), 107 cm (42"), 109 cm (43"), 112 cm (44"), 114 cm (45"), 117 cm (46"), 119 cm (47"), 122 cm (48"), 123 cm (49"), 127 cm (50"), 129 cm (51"), 132 cm (52"), 137 cm (54"), 140 cm (55"), 142 cm (56"), 147 cm (58"), 152 cm (60"), 163 cm (64"), 165 cm (65"), 81 cm (32"), 84 cm (33"), 86 cm (34"), 89 cm (35"), 91 cm (36"), 94 cm (37"), 97 cm (38"), 99 cm (39"), VESA standard: 150 x 100, 100 x 100, 100 x 200, 200 x 100, 200 x 200, 200 x 300, 200 x 400, 300 x 100, 300 x 200, 300 x 300. 300 x 400, 400 x 165, 400 x 300, 400 x 400, VESA (from-to): 100x100 - 400x400, application area: Private, recommended screen size: 81 - 165 cm (65"- 65"), recommended screen size max.: 200 cm (32"), recommended screen size min.: 81 cm (32"), suitable for: TV, variant: tiltable/swivel

Scope of delivery

- 1 TV wall mount
- Mounting material including Fischer plugs
- 1 Spirit-level
- 1 drilling template
- 1 installation instructions

Description

Features

Colour: Black, color tone: Black, number of joints: 2, design: TV, hole dimension Mounting: Up to M8, material: Sheet steel, max. Swivel range 130 °, max. Bearing load: 30 kg, inclination +/-: 15 / 15 °, rotation: 6 °, wall distance max.: 25.7 cm, wall distance min.: 8.8 cm, additional functions: Drilling template, cable manager, spirit level, external dimension width: 43 cm, external dimension height: 41.8 cm, mounting plate width: 5.5 cm, mounting plate length: 14.5 cm, screen size: 102 cm (40"), 104 cm (41"), 107 cm (42"), 109 cm (43"), 112 cm (44"), 114 cm (45"), 117 cm (46"), 119 cm (47"), 122 cm (48"), 123 cm (49"), 127 cm (50"), 129 cm (51"), 132 cm (52"), 137 cm (54"), 140 cm (55"), 142 cm (56"), 147 cm (58"), 152 cm (60"), 163 cm (64"), 165 cm (65"), 81 cm (32"), 84 cm (33"), 86 cm (34"), 89 cm (35"), 91 cm (36"), 94 cm (37"), 97 cm (38"), 99 cm (39"), VESA standard: 150 x 100, 100 x 100, 100 x 200, 200 x 100, 200 x 200, 200 x 300, 200 x 400, 300 x 100, 300 x 200, 300 x 300. 300 x 400, 400 x 165, 400 x 300, 400 x 400, VESA (from-to): 100x100 - 400x400, application area: Private, recommended screen size: 81 - 165 cm (65"- 65"), recommended screen size max.: 200 cm (32"), recommended screen size min.: 81 cm (32"), suitable for: TV, variant: tiltable/swivel
