Name: Hama TV wall mount 94,0 cm (37") - 190,5 cm (75") Tiltable, Swivelling
Brand: Hama
SKU: 3304420
Availability: InStock

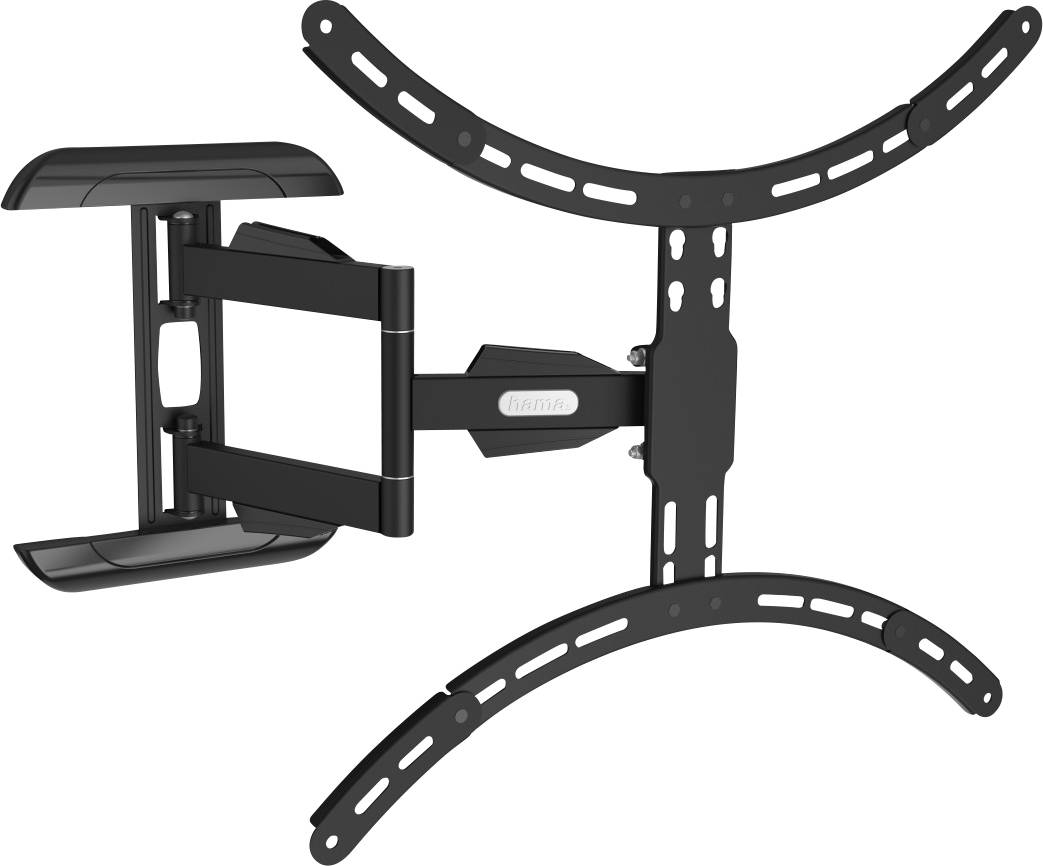

A black metal adjustable TV wall mount with curved arms and a pivoting arm for flexible television positioning.

A person is mounting a TV bracket on the wall. Accompanying text: 'Simple installation – You can do this by yourself'. Drill pictured.

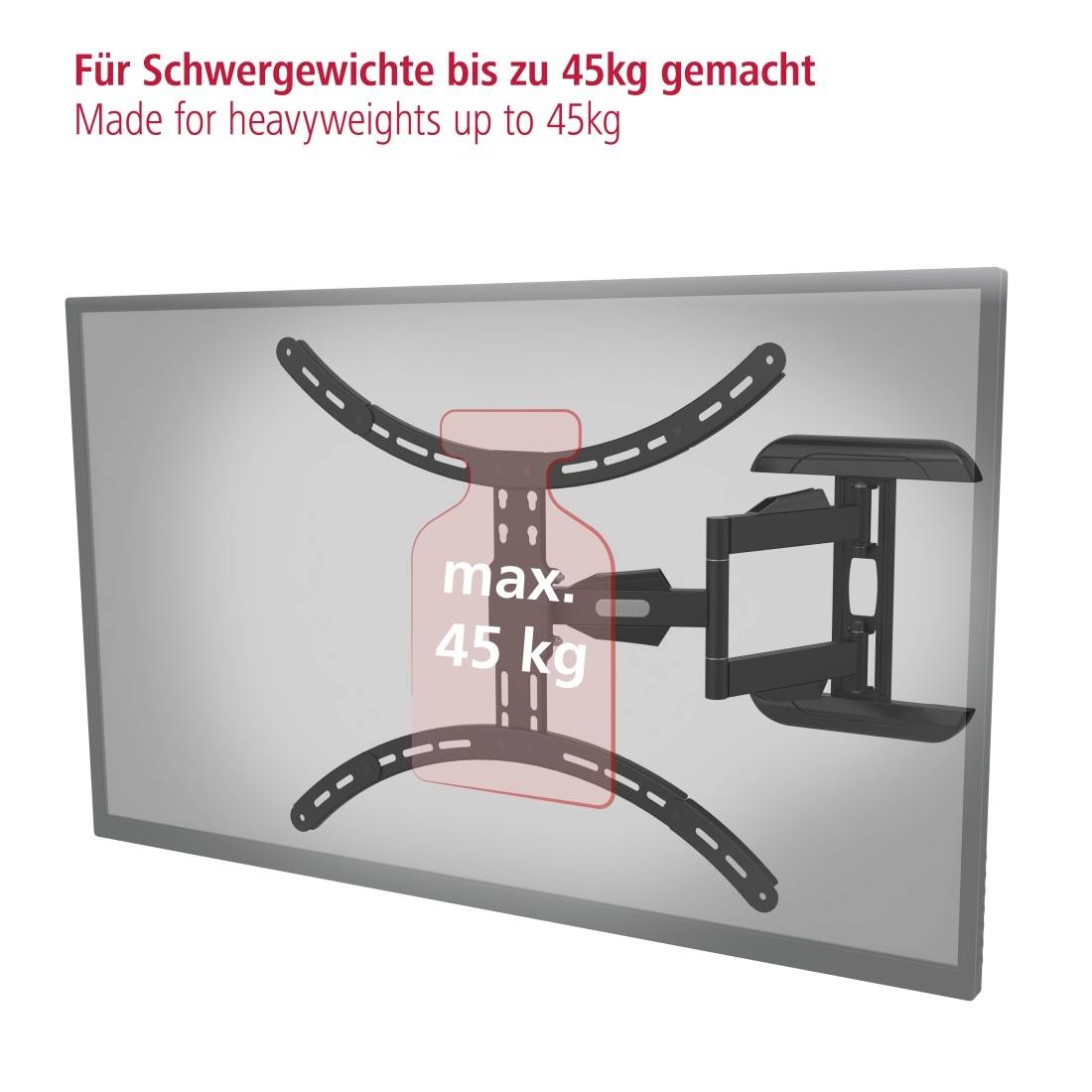

Illustration of a TV wall mount capable of supporting televisions up to 45 kg, with text: 'Designed for heavyweights up to 45 kg'

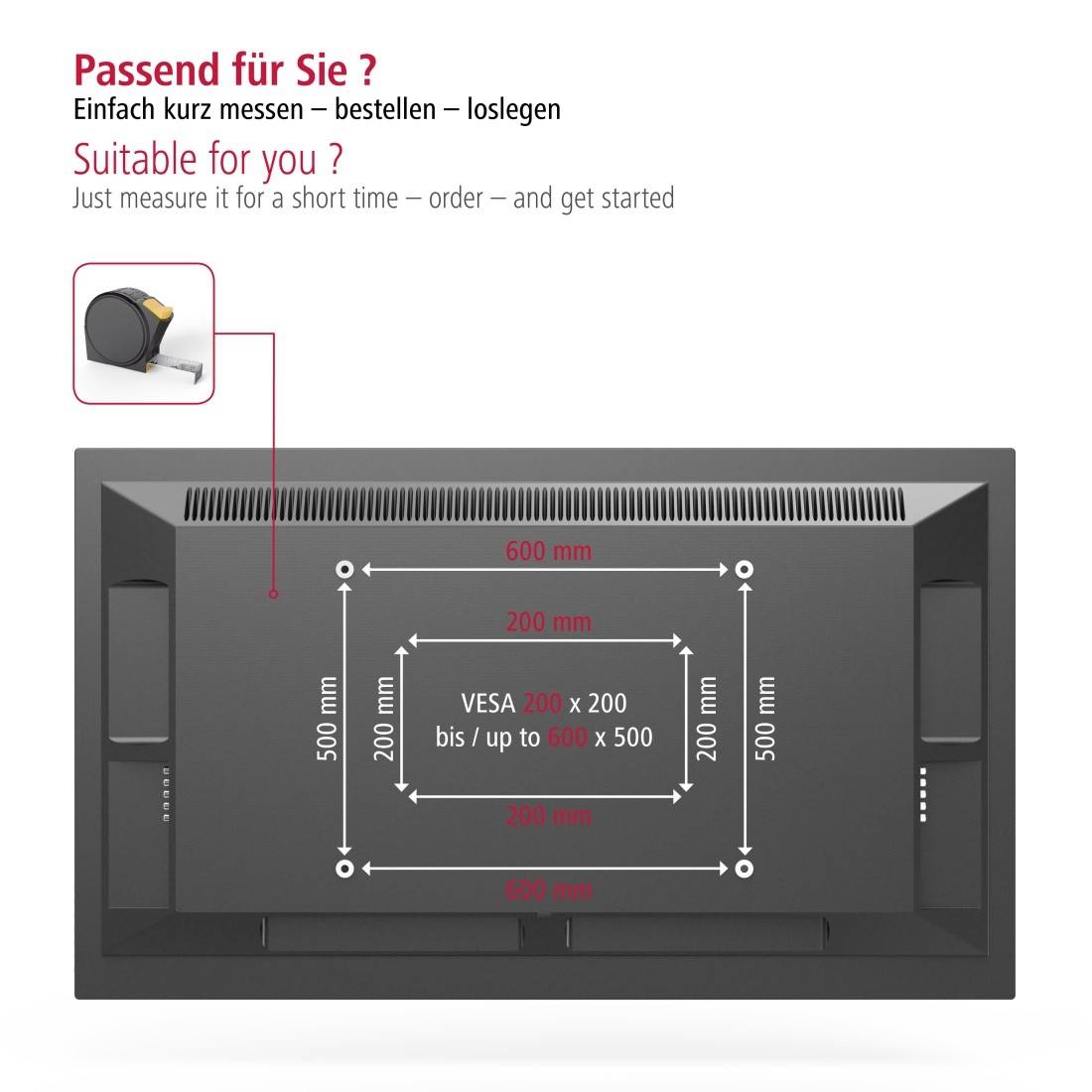

Rear view of a screen with VESA measurements. Dimensions: 500 mm x 500 mm and 200 mm x 200 mm. Instructions for measuring and ordering.

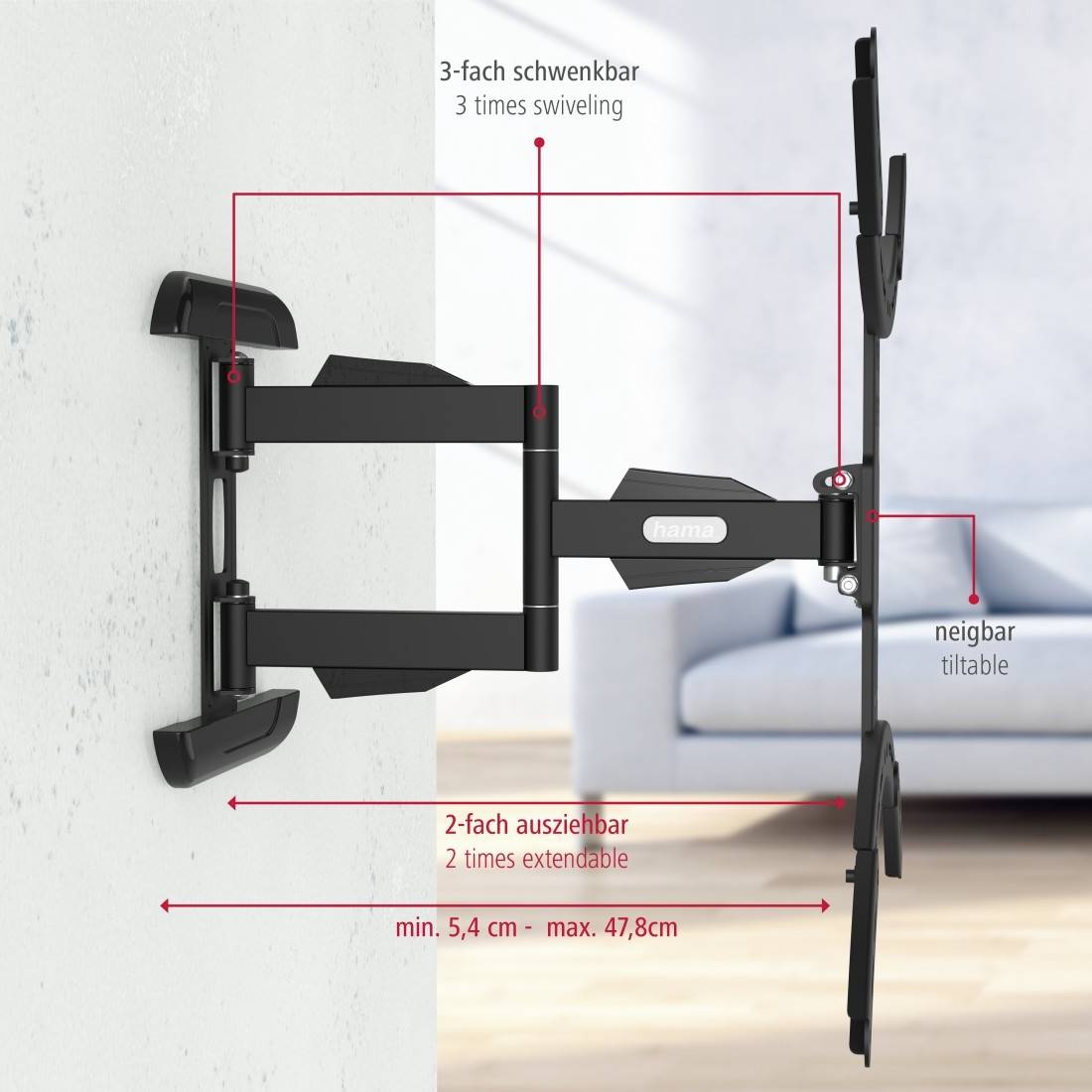

TV Wall Mount: Triple Swivel, Tiltable, Double Extendable. Minimum Distance from Wall 5.4 cm, Maximum 47.8 cm.

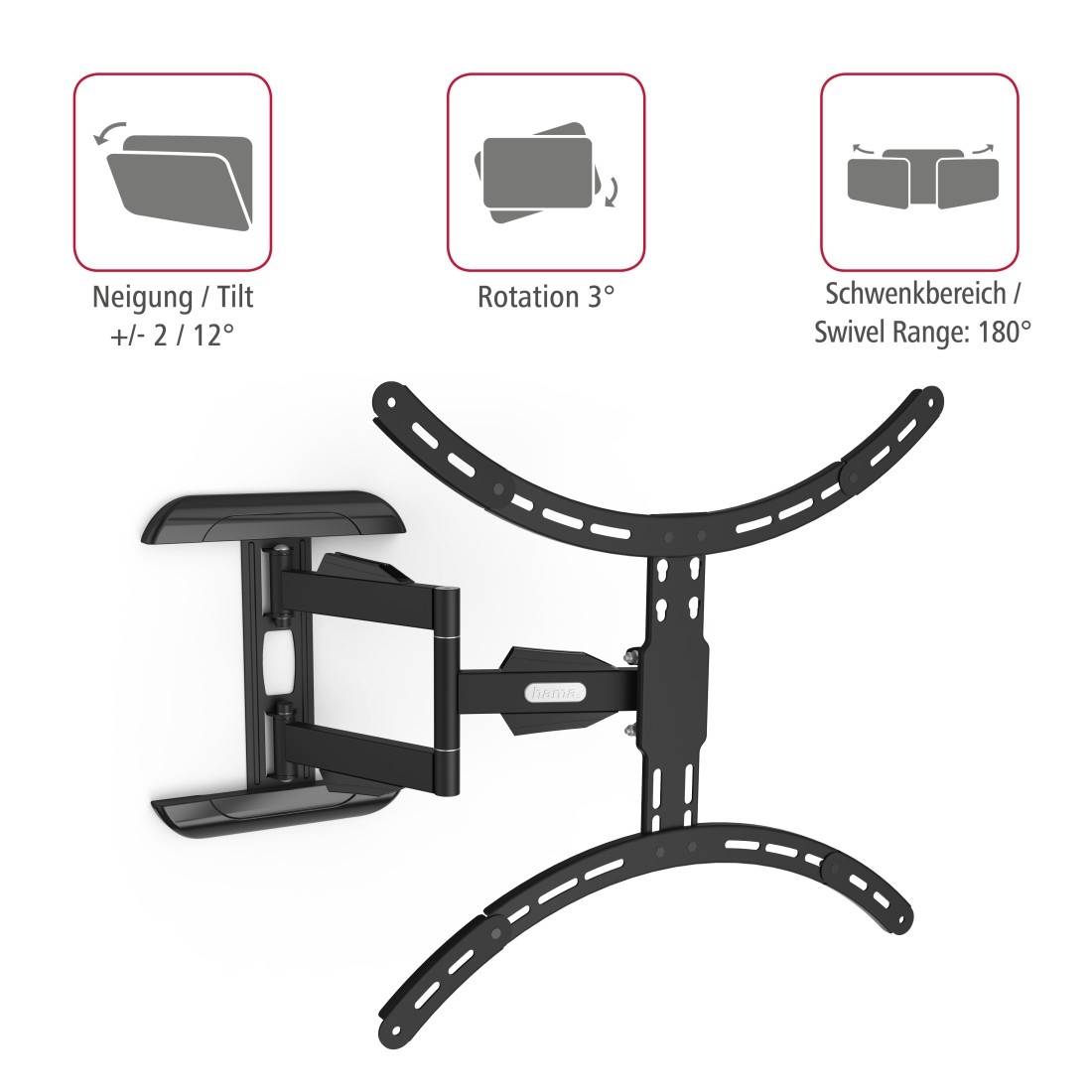

Wall mount for TVs with a tilt range of -2 to 12 degrees, rotation range of 3 degrees, and swivel range up to 180 degrees.

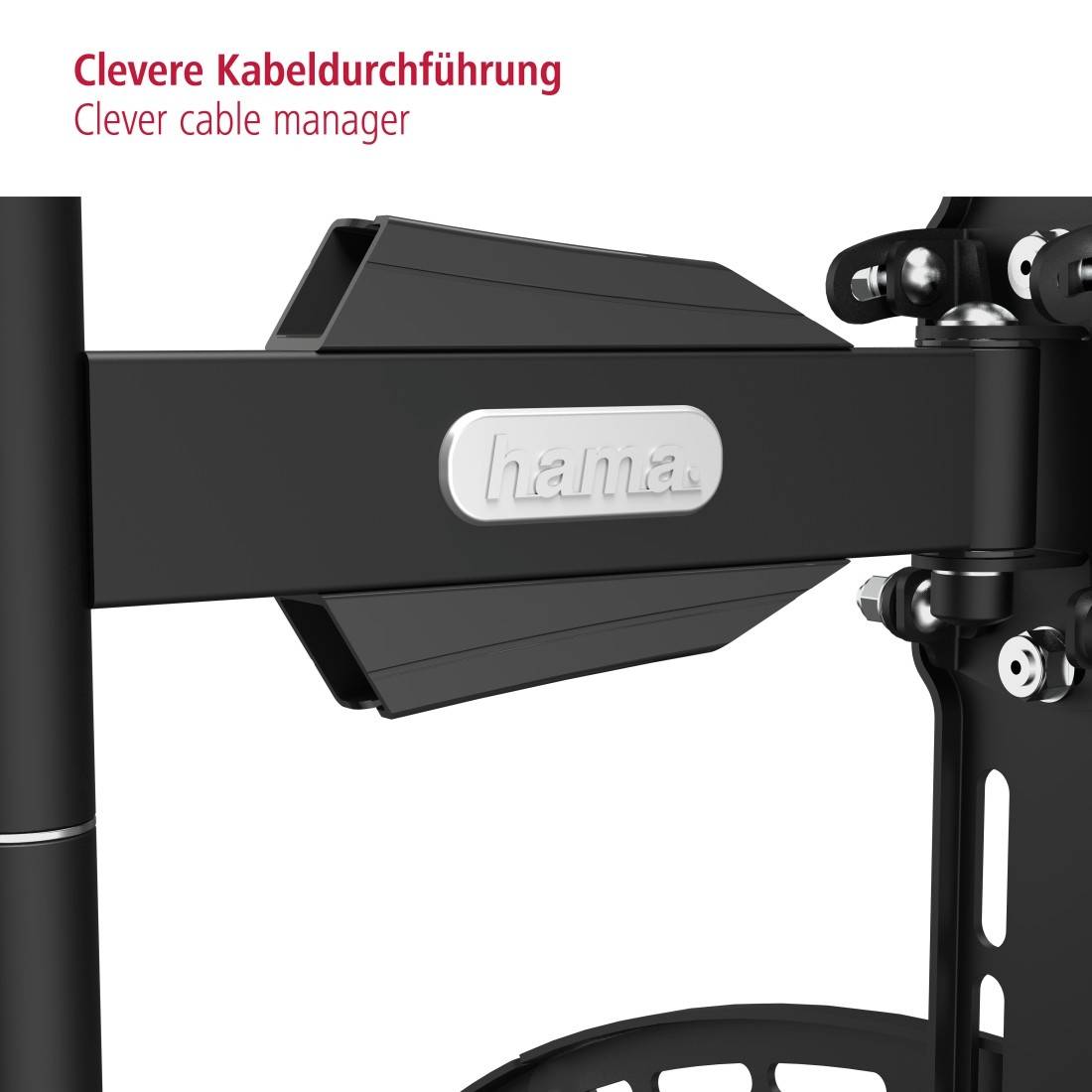

'Smarter Cable Manager' shows a Hama cable routing holder attached to a metal rod, designed for optimised organisation.

1/7

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 5 Nov

4 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 77.99 / piece)

€ 77.99

incl. VAT

Only 4 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Hama TV wall mount

Holder type: Tiltable, Swivelling
Supports VESA standards up to
Suitable for displays sized (range): 94,0 cm (37") - 190,5 cm (75")
Load capacity (max.) 45 kg

Technical specifications

Product type: TV wall mount

Suitable for: 94,0 cm (37")
96,5 cm (38")
99,1 cm (39")
101,6 cm (40")
104,1 cm (41")
106,7 cm (42")
109,2 cm (43")
111,8 cm (44")
114,3 cm (45")
116,8 cm (46")
119,4 cm (47")
121,9 cm (48")
124,5 cm (49")
127,0 cm (50")
129,5 cm (51")
132,1 cm (52")
137,2 cm (54")
139,7 cm (55")
147,3 cm (58")
152,4 cm (60")
162,6 cm (64")
165,1 cm (65")
177,8 cm (70")
190,5 cm (75")
Show more

Suitable for: 94,0 cm (37") - 190,5 cm (75")

Holder type: Tiltable
Swivelling

Max. load capacity: 45 kg

: No

: 200 x 200 mm
200 x 300 mm
300 x 100 mm
300 x 200 mm
300 x 300 mm
400 x 200 mm
400 x 300 mm
400 x 400 mm
600 x 400 mm
600 x 500 mm

Rotation: 3°

Tilt range (bottom): 12°

Tilt range (top): 2°

Swivel range (left): 180°

Swivel range (right): 180°

Distance to wall (min.): 54 mm

Distance to wall (max.): 478 mm

Factory colour: Black

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3304420 Hama TV wall mount 94,0 cm (37") - 190,5 cm (75") Tiltable, Swivelling

User & Safety Instructions

User & Safety Instructions 3304420 Hama TV wall mount 94,0 cm (37") - 190,5 cm (75") Tiltable, Swivelling

Features

Colour: Black, color tone: Black, number of joints: 3, design: TV, hole dimension Mounting: Up to M8, material: Sheet steel, max. Swivel range 180 °, max. Bearing load: 45 kg, inclination +/-: 2 / 12 °, rotation: 3 °, wall distance max.: 47.8 cm, wall distance min.: 5.4 cm, additional functions: Cable manager, spirit level, external dimension width: 63.4 cm, external dimension height: 58.2 cm, mounting plate width: 27.9 cm, mounting plate length: 35.1 cm, screen size: 102 cm (40"), 104 cm (41"), 107 cm (42"), 109 cm (43"), 112 cm (44"), 114 cm (45"), 117 cm (46"), 119 cm (47"), 122 cm (48"), 123 cm (49"), 127 cm (50"), 129 cm (51"), 132 cm (52"), 137 cm (54"), 140 cm (55"), 147 cm (58"), 152 cm (60"), 163 cm (64"), 165 cm (65"), 178 cm (70"), 191 cm (75"), 94 cm (300"), 97 cm (38"), 99 cm (200"), VESA standard: 300 x 200, 39 x 200, 37 x 100, 300 x 200, 300 x 300, 400 x 200, 400 x 300, 400 x 400, 600 x 400, 600 x 500. VESA (from-to): 200x200 - 600x500, Application area: Private, Recommended screen size: 94 - 191 cm (37" - 75"), Recommended screen size max.: 191 cm (75"), Recommended screen size min.: 94 cm (37"), Suitable for: TV, Version: tilt/swivel

Scope of delivery

- 1 TV wall mount
- Mounting material including fishing anchor
- 1 Spirit-level
- 1 installation instructions

Description

Features

Colour: Black, color tone: Black, number of joints: 3, design: TV, hole dimension Mounting: Up to M8, material: Sheet steel, max. Swivel range 180 °, max. Bearing load: 45 kg, inclination +/-: 2 / 12 °, rotation: 3 °, wall distance max.: 47.8 cm, wall distance min.: 5.4 cm, additional functions: Cable manager, spirit level, external dimension width: 63.4 cm, external dimension height: 58.2 cm, mounting plate width: 27.9 cm, mounting plate length: 35.1 cm, screen size: 102 cm (40"), 104 cm (41"), 107 cm (42"), 109 cm (43"), 112 cm (44"), 114 cm (45"), 117 cm (46"), 119 cm (47"), 122 cm (48"), 123 cm (49"), 127 cm (50"), 129 cm (51"), 132 cm (52"), 137 cm (54"), 140 cm (55"), 147 cm (58"), 152 cm (60"), 163 cm (64"), 165 cm (65"), 178 cm (70"), 191 cm (75"), 94 cm (300"), 97 cm (38"), 99 cm (200"), VESA standard: 300 x 200, 39 x 200, 37 x 100, 300 x 200, 300 x 300, 400 x 200, 400 x 300, 400 x 400, 600 x 400, 600 x 500. VESA (from-to): 200x200 - 600x500, Application area: Private, Recommended screen size: 94 - 191 cm (37" - 75"), Recommended screen size max.: 191 cm (75"), Recommended screen size min.: 94 cm (37"), Suitable for: TV, Version: tilt/swivel
