Hamlin MDRR-DT Miniature Reed Switch N/A 0.25 A 5 W
EAN:
Part number:
Item no:
Product type
Reed switch
Contact type
1 change-over
Switching voltage (max.)
175 V DC
Switching current (max.)
0.25 A
Connection
Solder pins
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.76
10
8% = € 0.21
€ 2.55
25
10% = € 0.28
€ 2.48
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 2.76 / piece)
€ 2.76
plus VAT.
Highlights & Details
Hamlin MDRR-DT Miniature Reed Switch N/A 0.25 A 5 W
- Glass plunger: 14.73 mm
Technical specifications
- Product type
Reed switch
- Type
MDRR-DT
- Contact type
1 change-over
- Switching voltage (max.)
175 V DC
- Switching current (max.)
0.25 A
- Max. switching capacity
5 W
- Connection
Solder pins
- Enclosure material
Glass
- Envelope length
14.73 mm
- Max. temperature
+125 °C
- Min. temperature
-40 °C
- Length
14.73 mm
- (Ø)
2.54 mm
- Dim

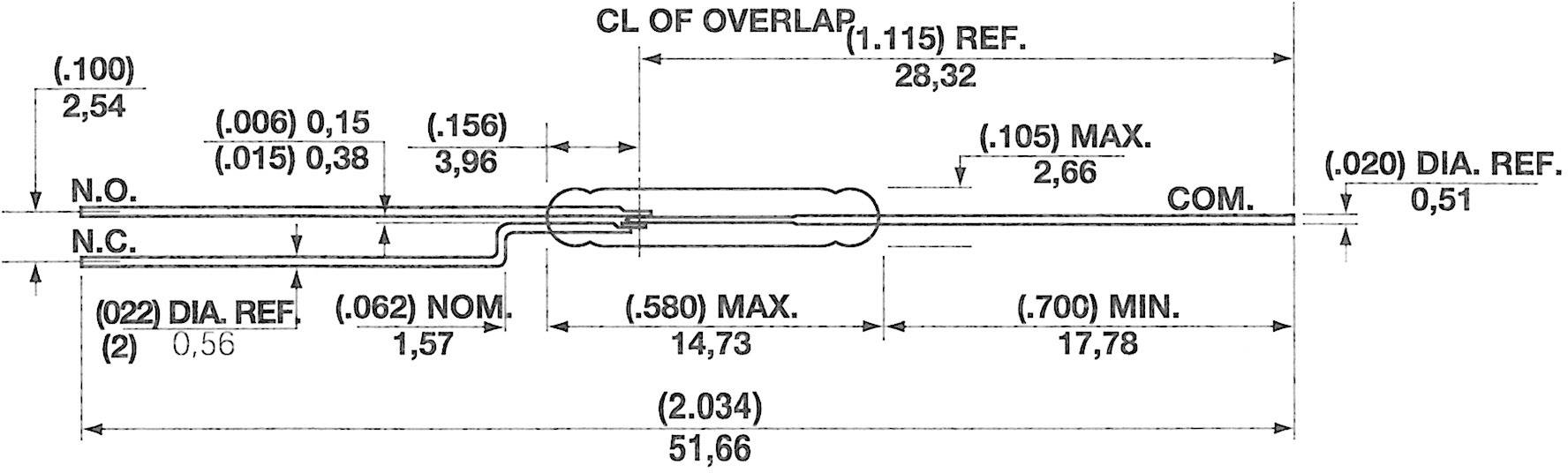

(Ø x L) 2.54 mm x 14.73 mm
- Switching capacity
5 W
- Switching current
0.25 A
- Type
MDRR-DT
Documents & Downloads
Datasheet
Datasheet 503642 Hamlin MDRR-DT Miniature Reed Switch N/A 0.25 A 5 W
User & Safety Instructions
User & Safety Instructions 503642 Hamlin MDRR-DT Miniature Reed Switch N/A 0.25 A 5 W
Description
Miniature Reed switch with changer-contact
