Name: HIKVISION Netzwerkkamera DS-2TD2636B-15/P LAN IP IR CCTV camera with temperature monitor 2688 x 1520 p
Brand: HIKVISION
SKU: 2251769
Availability: BackOrder

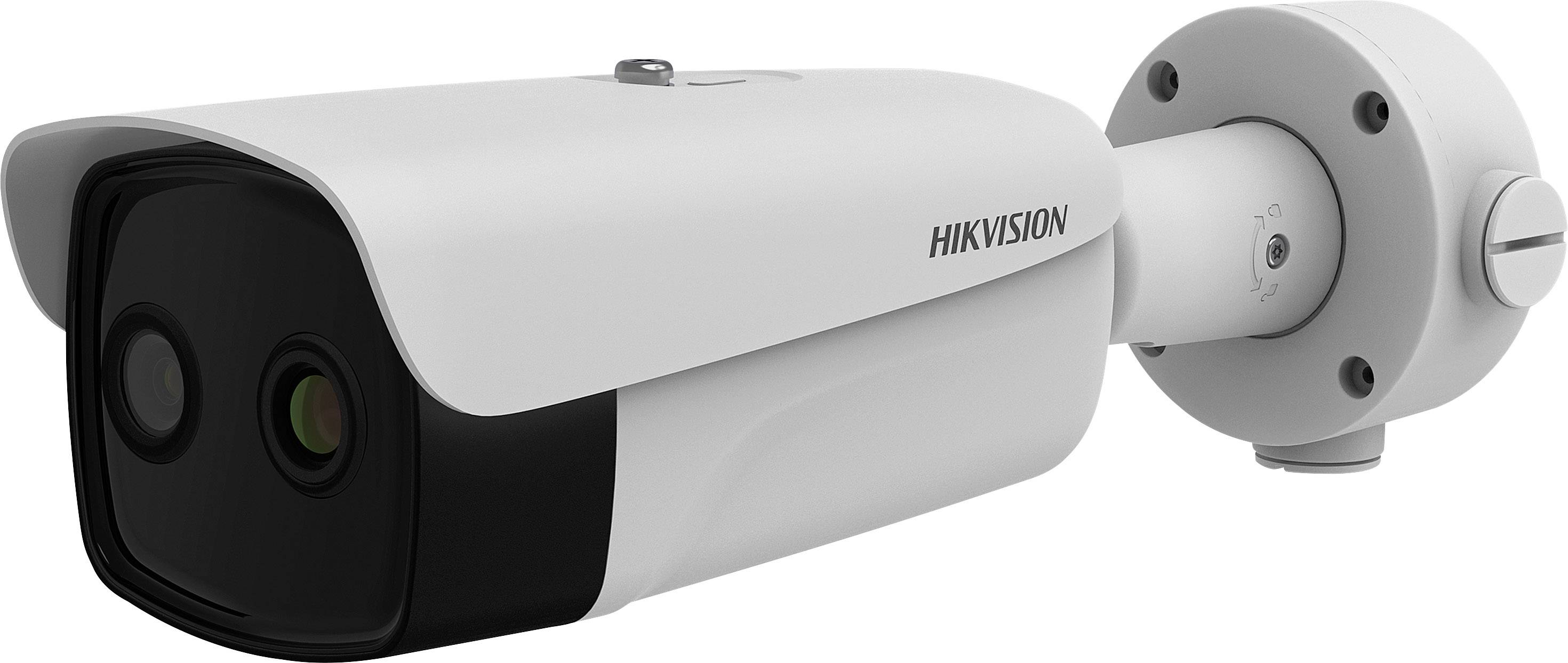

Surveillance camera: White, cylindrical camera with a black front and two lenses, mounted on a wall bracket.

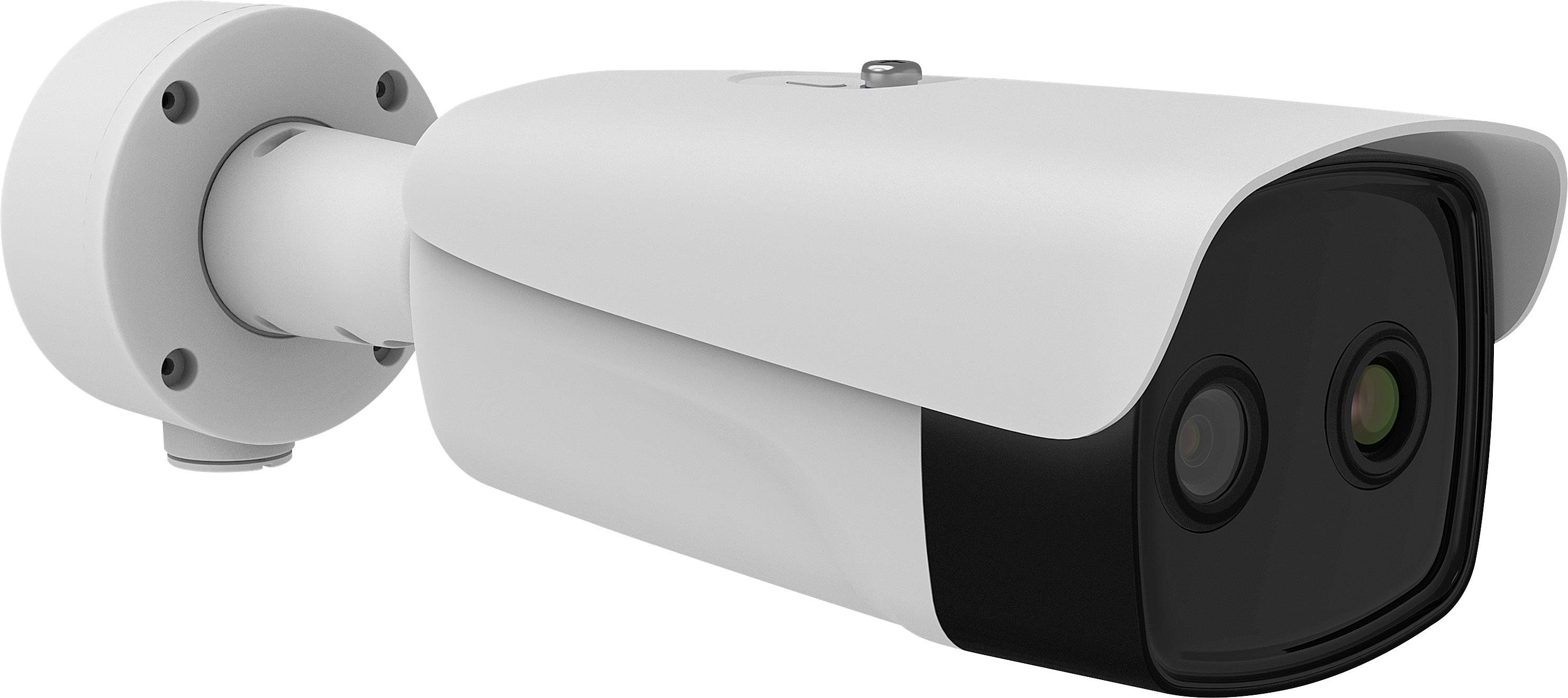

White surveillance camera with two lenses, mounted on a bracket, for monitoring areas inside buildings or outdoors.

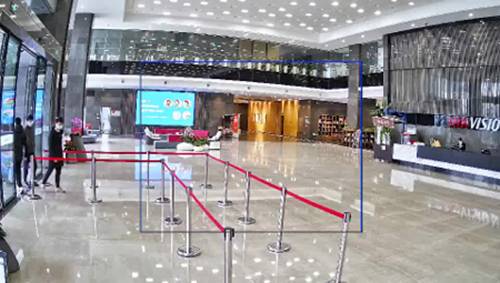

Spacious reception area of a building with a red cordon rope, seating areas, and a digital display board. Several people are visible in the background.

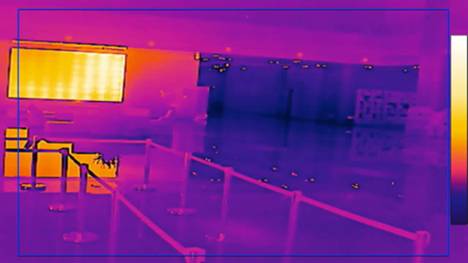

Thermographic image of an empty room with barriers in the foreground. Bright colours indicate warmer areas, dark colours cooler areas.

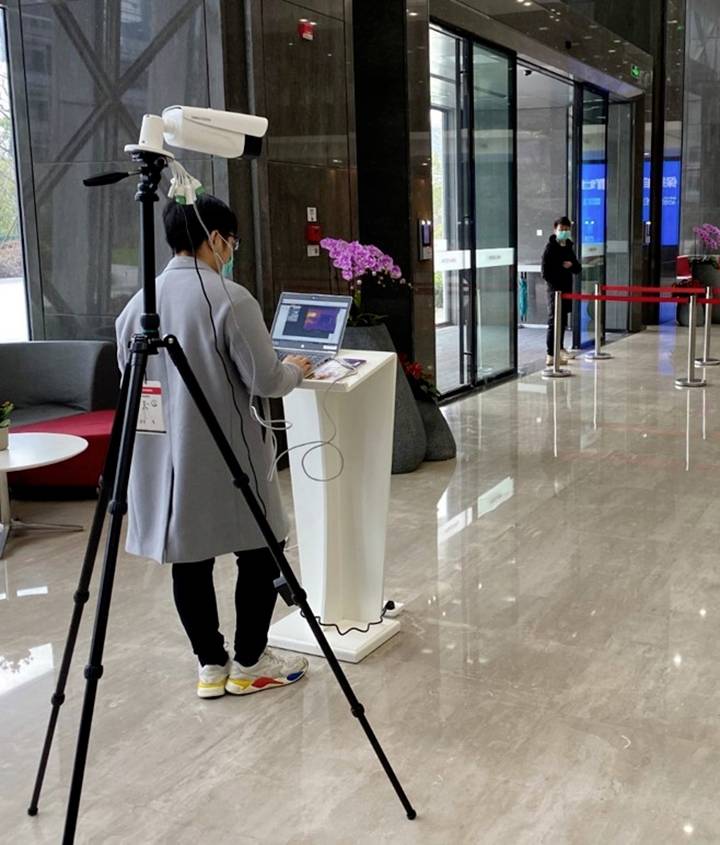

A person is using a laptop on a podium in a modern building; a camera on a tripod is monitoring the entrance, with red cordons in the background.

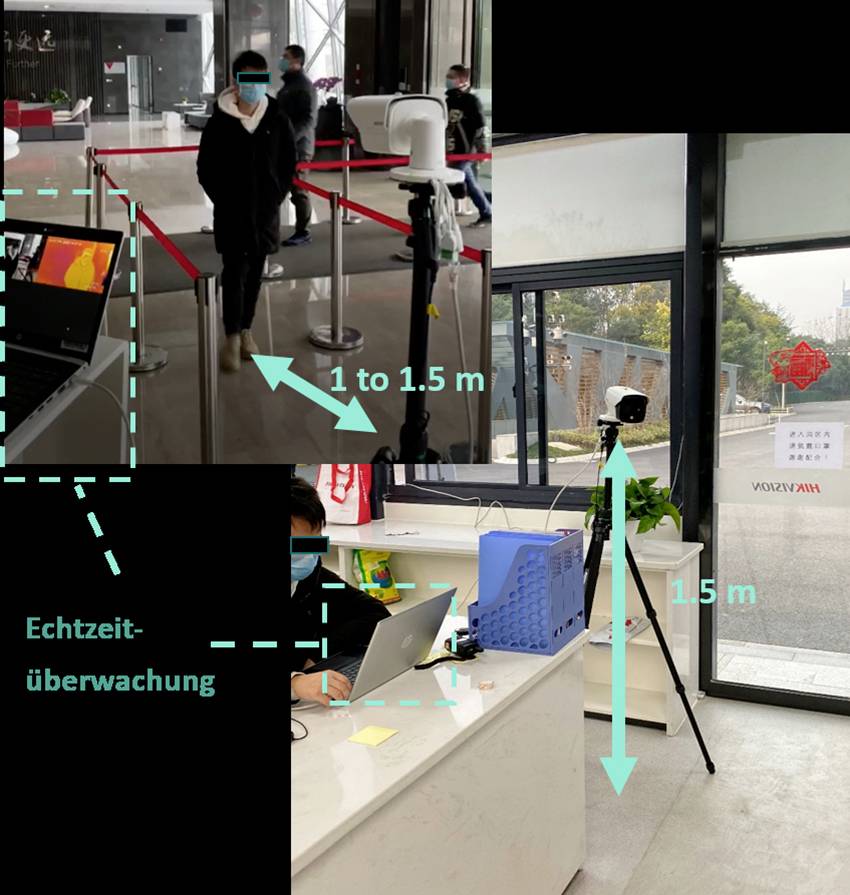

'A person enters a room with a thermal camera mounted on a tripod. The camera captures temperature and distance detection. Real-time monitoring is displayed.'

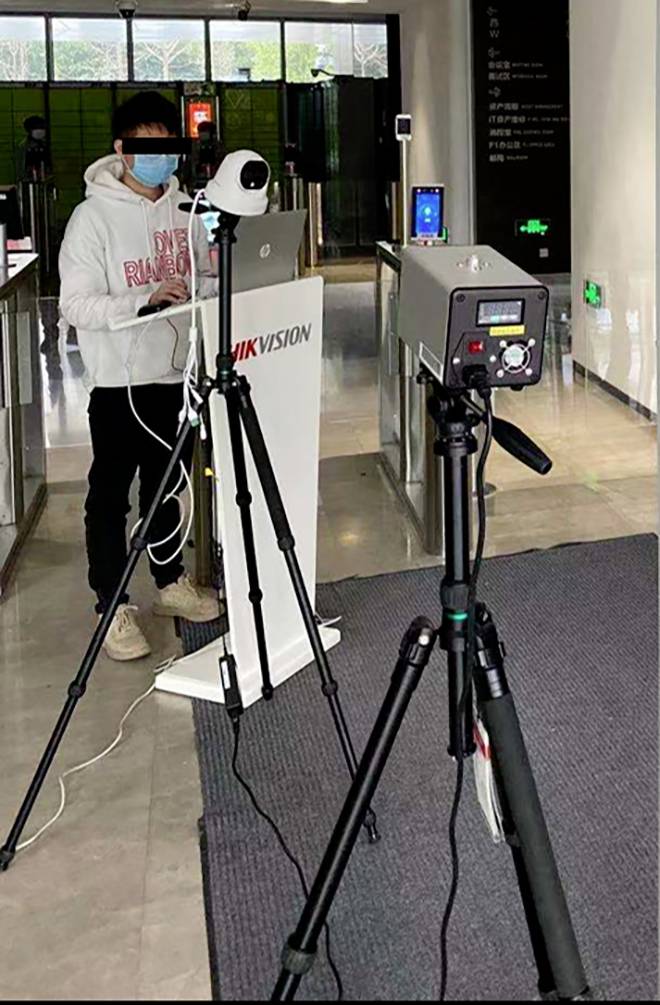

A man wearing a mask is standing in an entrance area in front of a laptop placed on a podium. A camera is positioned on a tripod in front of him.

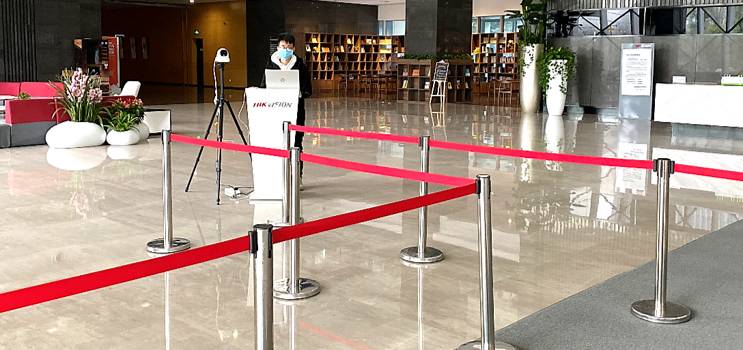

Entrance area of a building with barriers and a table, with a person wearing a mask standing nearby. Shelves and plants are visible in the background.

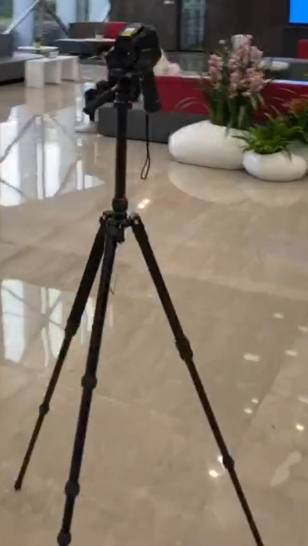

A tripod, on which a camera is mounted, stands in a modern room with a glossy floor and plants in the background.

1/10

Datasheet (PDF)

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 10,775.00 / piece)

€ 10,775.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

LAN IP-Bullet camera;2688 x 1520 p;HIKVISIONNetzwerkkamera;DS-2TD2636B-15/PIndoors

Bullet surveillance camera, focal length 6 mm
With thermal sensor, resolution 384 x 288, focal length 15 mm
Temperature monitoring, fever screening
Face detection
Free IVMS-4200 software and Hik-Connect app

Technical specifications

BI-Spectral Thermal Fever Screening Camera:
Image sensor: VOX uncooled focus plane arrays
Resolution: 384 × 288
Pixels - Interval: 17 um
Response Threshold wave receiver: 8 to 14
NETD: Less than 40 MK (at 25 °C, F # = 1.0)
Focal length: 15 mm
Focus mode: Athermalized
IFOV 1.13 mrad
Aperture: F1.0
Field of view 24.2 ° × 18.4 ° (H × V)
Minimum. Focusing distance: 2.5 m.
Optical:
4 MP resolution
Temperature measurement: Supports 3 types of temperature measurement rules, 21 rules (10 points, 10 ranges and 1 line)
Temperature range: From 30 °C to 45 °C.
Temperature accuracy: ± 0.5 °C
Video compression: H.264
Working temperature: From 10 °C to 35 °C.
User/Host level: Up to 32 users

Product type: IR CCTV camera with temperature monitor

CCTV features: PoE IEEE 802.3af
Face recognition
Saves footage on SD card
Fever screening
ONVIF support
IR LEDs

Camera type: Bullet camera

Resolution (max.): 2688 x 1520 p

Sensor size: 9.4 mm (1/2.7")

Sensor type: CMOS

Focal length: 6 mm

Max. viewing angle hor.: 51.7°

Vertical viewing angle: 28°

App compatibility: Yes

Transfer type: LAN

Light sensitivity (+ IR): 0.0018 lx

Light sensitivity (- IR): 0.0089 lx

IR range (max.): 50 m

Used at: Indoors

Type: microSD card (up to 128 GB)

Width: 118.1 mm

Height: 119.1 mm

Depth: 376.1 mm

Dim: (W x H x D) 118.1 x 119.1 x 376.1 mm

Weight: 1.82 kg

F-numbers: F1.0

: IP66

Signal standard: IP

Documents & Downloads

Datasheet

Datasheet 2251769 HIKVISION Netzwerkkamera DS-2TD2636B-15/P LAN IP IR CCTV camera with temperature monitor 2688 x 1520 p

User & Safety Instructions

User & Safety Instructions 2251769 HIKVISION Netzwerkkamera DS-2TD2636B-15/P LAN IP IR CCTV camera with temperature monitor 2688 x 1520 p

Information

Information 2251769 HIKVISION Netzwerkkamera DS-2TD2636B-15/P LAN IP IR CCTV camera with temperature monitor 2688 x 1520 p

Description

The Hikvision DS-2TD2636B thermal bullet thermal camera can measure the temperature of objects with high accuracy in real time. The camera is capable of detecting and tracking people with a higher body temperature in crowded public areas. The camera can be used for inspection and quarantine in places such as customs, airport, school and hospital.

This text is machine translated.

Features

Thermal bullet camera with fever screening
Highly sensitive thermal module with a resolution of 384 x 288
NETD is less than 40 mk (at 25 °C, F # = 1.0)
Leading thermal imaging technology: Adaptive AGC, DDE, 3D DNR
Reliable fever detection alarm
High-quality optical module with 4 MP resolution
Bi-spectrum image fusion, picture-in-picture preview
Optical:
White balance: Auto / manual / ATW (auto tracking white balance) / Indoor / outdoor / daylight lamp / sodium vapor lamp
Day & night mode: IR blocking filter with automatic switch
WDR: 120 dB
Simultaneous live view: Up to 20
Client: IVMS-4200, Hik-Connect
Built-in Micro SD card slot (Micro SD / SDHC / SDXC card up to 128 G), support for manual / alarm recording
TVS 6000V lightning protection, overvoltage protection and voltage transition protection.

Scope of delivery

Screws and raw plugs.

Hints

For indoor use only (outdoor area has too many interference factors).

Memory card not included
