Name: Hobbywing Xerun XR10 Pro 1S Model car brushless speed control Load (Amp max.): 830 A
Brand: Hobbywing
SKU: 3400154
Availability: SoldOut

An electronic controller with the label 'Xerun XR10', black casing with heat sinks and multiple connection cables on top.

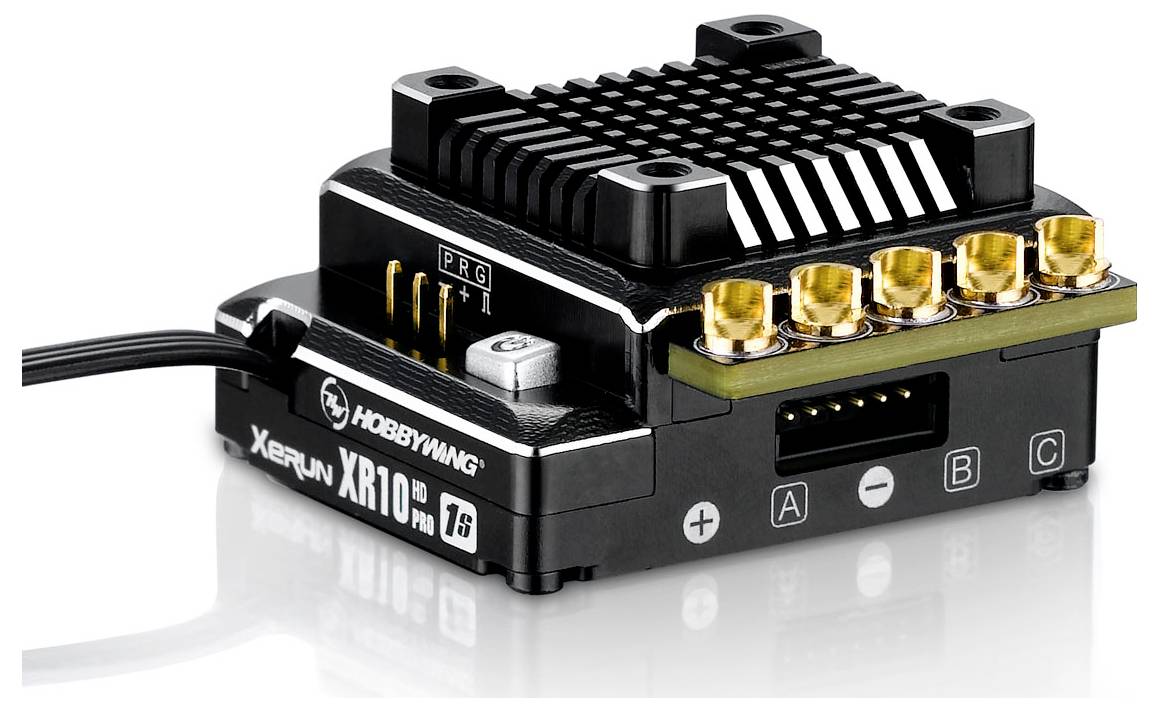

A Hobbywing ESC, model Xerun XR10 Pro, with heatsink and connection terminals, used in RC vehicles to control the motor.

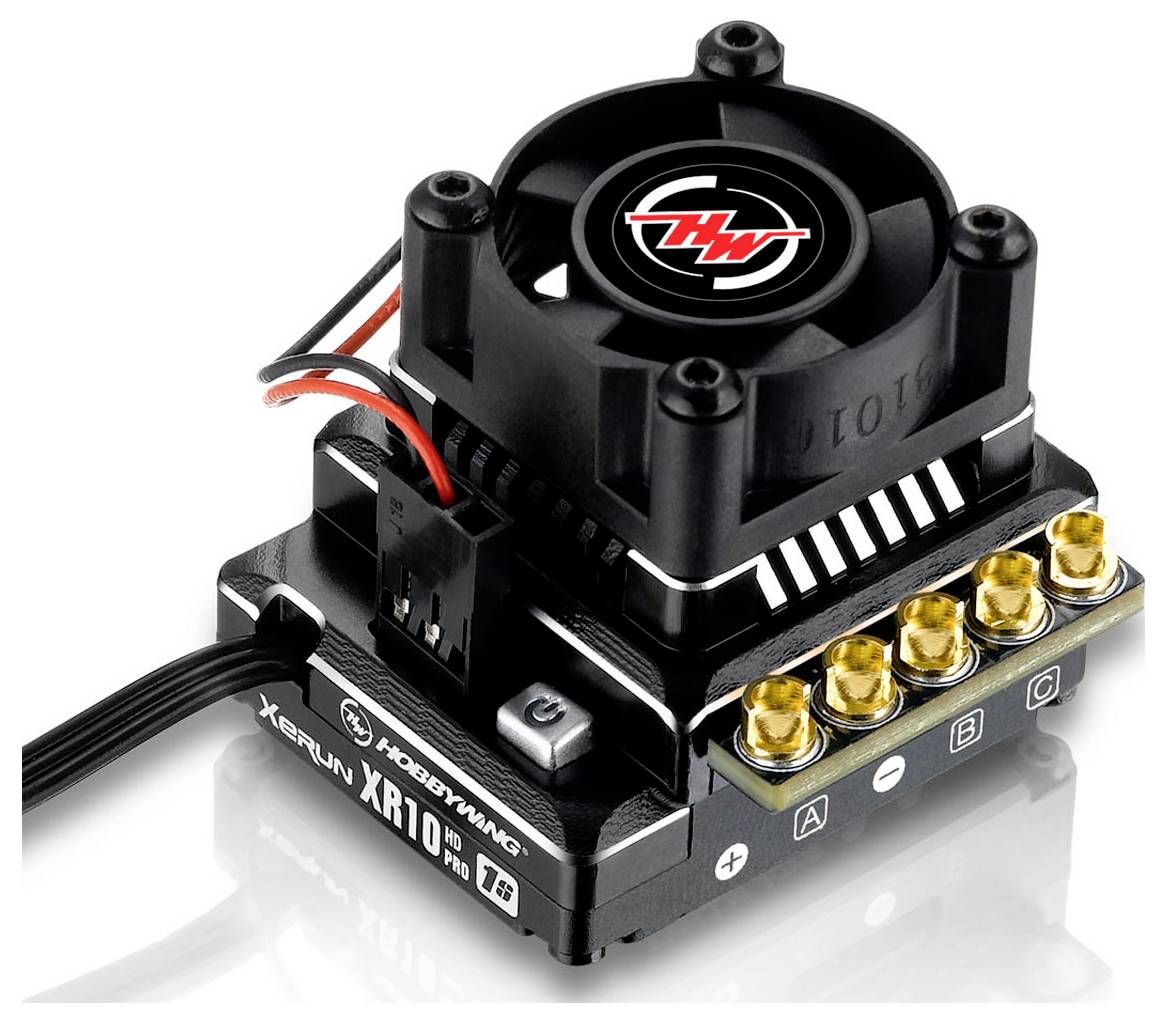

Motor control module with fan and cable connections; labelled 'Hobbywing XR10 Pro'.

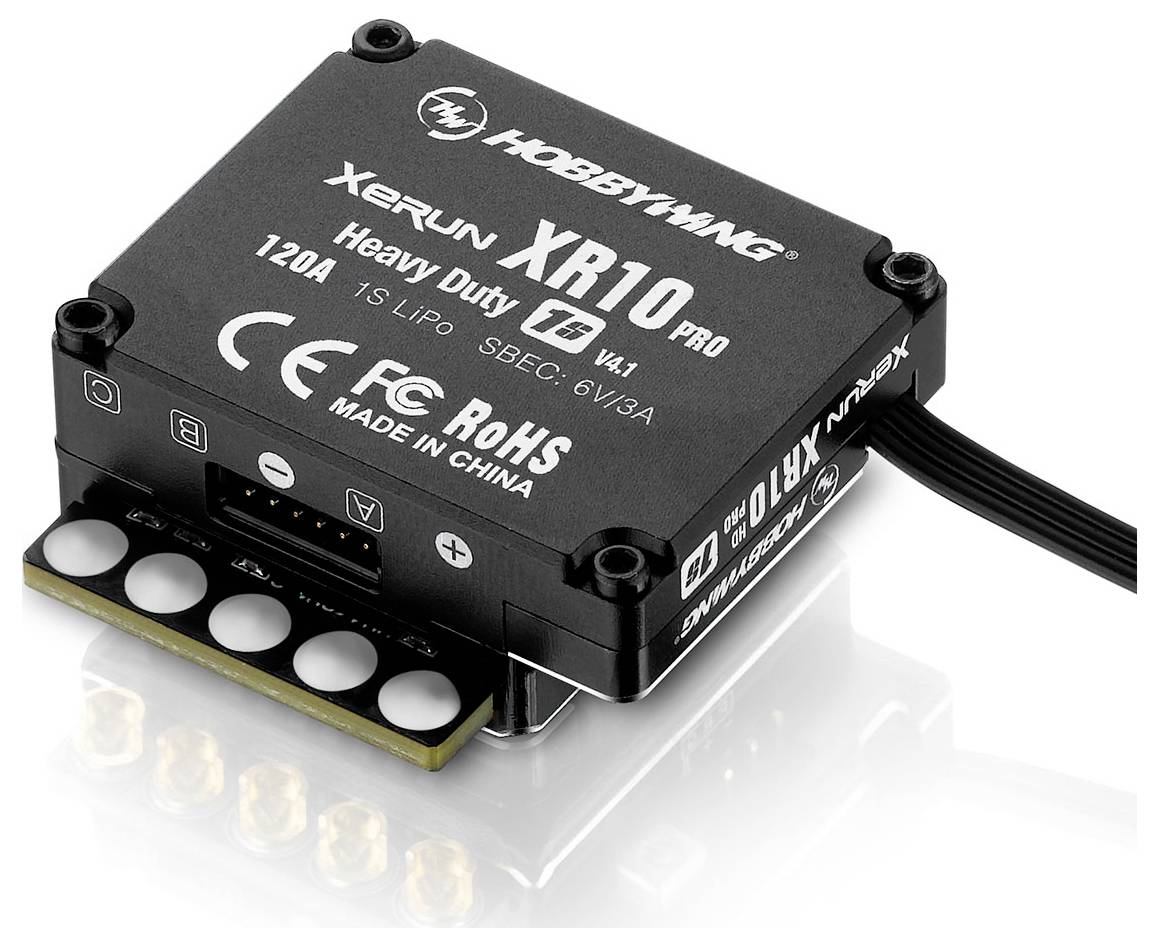

An electronic speed controller (ESC), 'Xerun XR10 Pro' by Hobbywing, black, with connection cable. Markings: 120A, for RC models.

1/4

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 214.99 / piece)

€ 214.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Input voltage 1s LiPo, 3-4s NiMH
Motor Limits: 1s: > 3.0T if ESC is in zero timing / blink mode
Applications:1/12 Touring Car

Product type: Model car brushless speed control

Dim: (L x W x H) 38 x 31 x 16 mm

Weight: 36 g

BEC data: Switch mode 6 V/3 A

Load (max.): 830 A

Permanent current: 120 A

Manufacturer part #: 30112609

Width: 31 mm

Height: 16 mm

Length: 38 mm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3400154 Hobbywing Xerun XR10 Pro 1S Model car brushless speed control Load (Amp max.): 830 A

Description

Specially designed for 1/12 Racing. Reliable hardware together with the excellent software are the ideal prerequisite for tough racing use.
Powerful BEC with 6V and 3A, electronic on/off switch, small and light are further advantages for the XR10Pro V4 1s controller.
All parameters can be set easily and quickly via the separately available WiFi module or LCD programming box.

This text is machine translated.

Features

With screw-on heat sink for a fan
5 pre-programmed profiles including blink mode
Super BEC with 6V/3A
External programming connection for programming box or WiFi module
Adjustable Turbo Timing and Boost Timing
Extremely many possibilities of the brake settings
Monitoring and protection for undervoltage, temperature of controller and motor, Fail Safe
Data logging of the max. Controller and motor temperature, speed etc.

Description

Features

With screw-on heat sink for a fan
5 pre-programmed profiles including blink mode
Super BEC with 6V/3A
External programming connection for programming box or WiFi module
Adjustable Turbo Timing and Boost Timing
Extremely many possibilities of the brake settings
Monitoring and protection for undervoltage, temperature of controller and motor, Fail Safe
Data logging of the max. Controller and motor temperature, speed etc.
