Name: Hobbywing Xerun XR10 Pro Model car brushless speed control Load (Amp max.): 1200 A
Brand: Hobbywing
SKU: 3400316
Availability: SoldOut

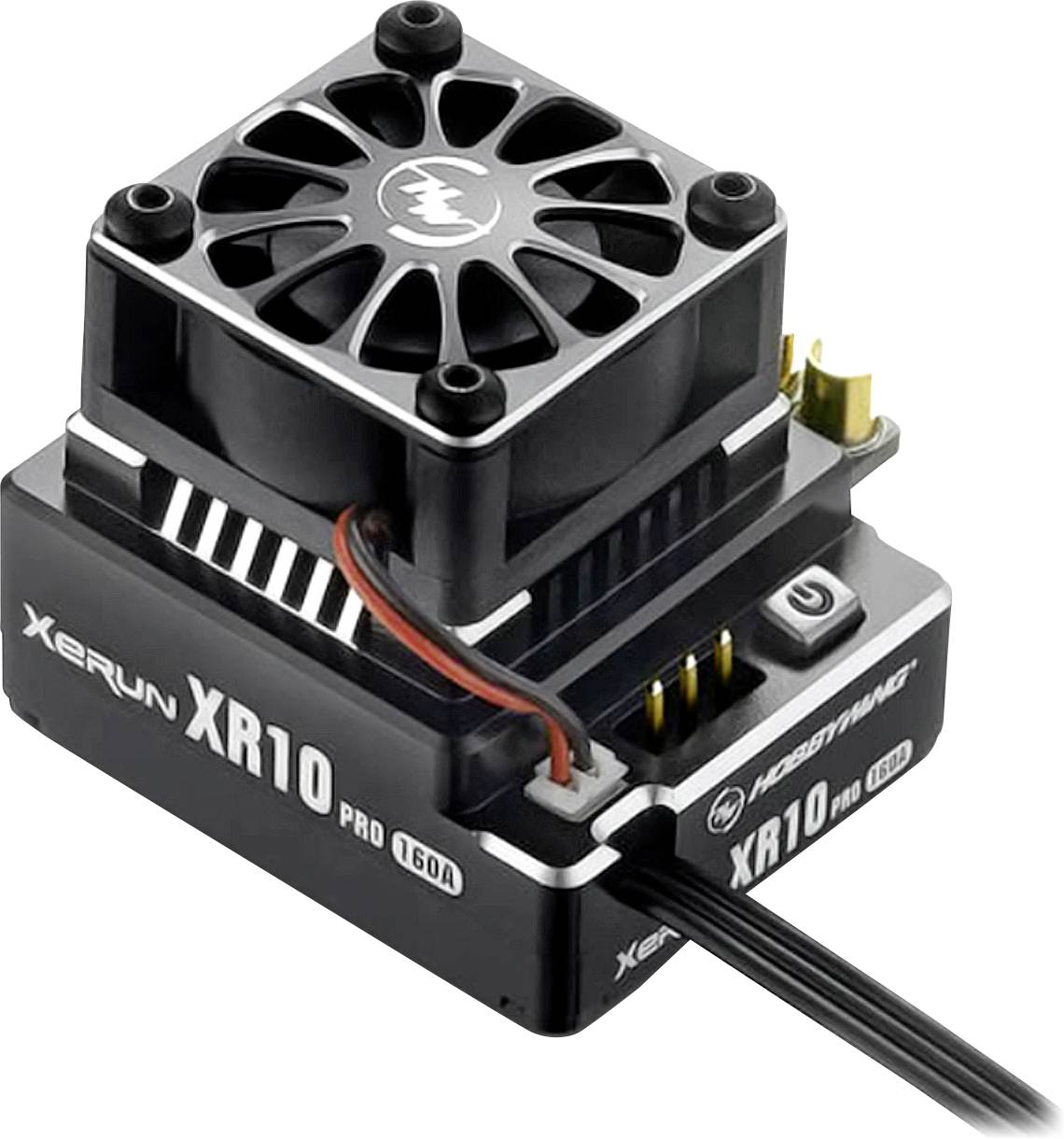

An electronic speed controller 'XeRun XR10 Pro 160A' with a fan on top, 'Hobbywing' lettering on the side, suitable for RC models.

An electronic speed controller (ESC) with heatsink and fan, ideal for use in remote-controlled cars.

An electronic controller with a heatsink and fan, equipped with multiple gold-plated connections, and two mounting screws.

Cooling unit with four golden heat sinks on top, black ribbed casing, control knobs, and cable connection.

A small computer fan with four yellowish glowing LEDs on top, a central fan and a power switch on the right.

An electronic control device with the inscription 'XeRun XR10 Pro V4'; it is designed for 2-3S LiPo batteries and has CE and RoHS certification.

1/6

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 164.99 / piece)

€ 164.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Input voltage: 2s-3s LiPo
Motor Limits: 2s LiPo: Touring Car > 3.5T, Buggy > 4.5T, 3s LiPo: Touring Car > 6.5T, Buggy 8.5T >
1/10 on-road, 1/10 off-road, 1/10 - 1/8 rock crawler, 1/10 F1, 1/10 drift

Product type: Model car brushless speed control

Dim: (L x W x H) 38 x 31 x 32 mm

Weight: 95 g

BEC data: 6V / 7.4V with 4A/8A permanent/peaks

Load capacity (1s / 30 s / 5 min): 1200 A

Load (max.): 1200 A

Permanent current: 160 A

Manufacturer part #: 30112600

No. of LiPo cells: 2s-3s

Suitable for: 1:10 OnRoad-Chassis

Width: 31 mm

Height: 32 mm

Length: 38 mm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3400316 Hobbywing Xerun XR10 Pro Model car brushless speed control Load (Amp max.): 1200 A

Description

High-end competitive controller for 1/10 on-road and 1/10 off-road classes.
The excellent performance, the high reliability and many other features fulfill the high requirements of top-level drivers in all matters.

All parameters can be set easily and quickly via the separately available WiFi module or LCD programming box.

This text is machine translated.

Features

10 Power profiles including flashing mode
Super BEC switchable between 6V and 7.4V
Electronic on/off switch
External programming connection for programming box or WiFi module
Adjustable Turbo Timing and Boost Timing
Extremely many options of setting options for gas/brake, etc.
Monitoring and protection for undervoltage, temperature of controller and motor, Fail Safe
Data logging of the max. Controller and motor temperature, speed etc.
Firmware upgrade via programming box or WiFi module (optional)

Description

Features

10 Power profiles including flashing mode
Super BEC switchable between 6V and 7.4V
Electronic on/off switch
External programming connection for programming box or WiFi module
Adjustable Turbo Timing and Boost Timing
Extremely many options of setting options for gas/brake, etc.
Monitoring and protection for undervoltage, temperature of controller and motor, Fail Safe
Data logging of the max. Controller and motor temperature, speed etc.
Firmware upgrade via programming box or WiFi module (optional)
