Datasheet 2756119 Jumo Single electrode probe 00300396 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2756119 Jumo Single electrode probe 00300396 1 pc(s)
Description

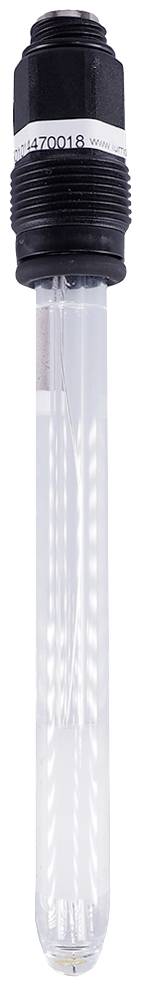

This combined rod measurement chain (gold and reference electrode in one shaft) has a high-quality zirconium dioxide diaphragm with polymerized fixed electrolyte. The additional salt template in the form of rings improves the service life of low-ion media or at high flow rates. The sample measuring chain has been specially developed for use in cyanoxidation and water disinfection. It can be used for a redox range of plus/minus 1500 mV and has a temperature resistance of -5 to +90 °C. Installed length 120 mm.
This text is machine translated.
Description
This combined rod measurement chain (gold and reference electrode in one shaft) has a high-quality zirconium dioxide diaphragm with polymerized fixed electrolyte. The additional salt template in the form of rings improves the service life of low-ion media or at high flow rates. The sample measuring chain has been specially developed for use in cyanoxidation and water disinfection. It can be used for a redox range of plus/minus 1500 mV and has a temperature resistance of -5 to +90 °C. Installed length 120 mm.
