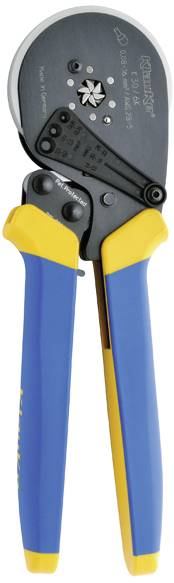

Klauke K306K K306K Squeezer Ferrules, Twin ferrules 0.08 up to 16 mm²
EAN:
Part number:
Item no:
Number
Total (€ 226.05 / piece)
€ 226.05
plus VAT.
Only 1 Piece(s) available
Highlights & Details
Press tool. For wire-end sleeves and twin cable end sleeves 0.08 - 16 mm²
- Hexagonal crimping K 30/6 K
Technical specifications
- Pressing range Twin cable end sleeves 2 x 0.5 - 2 x 10 mm²
- Product type
Squeezer
- Manufacturer part #
K306K
- Range of uses
Ferrules
Twin ferrules
- Crimp area
0.08 up to 16 mm²
- Crimp area (min.)
0.08 mm²
- Crimp area (max.)
16 mm²
- Length
215 mm
- Weight
0.5 kg
- Factory colour
Multicolour
215 m
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3209150 Klauke K306K K306K Squeezer Ferrules, Twin ferrules 0.08 up to 16 mm²
Description
Pressing tool for wire end sleeves and twin cable end sleeves 0.08 - 16 mm², hex crimping, a press profile for all cross-sections from 0.08 - 16 mm² through automatic cross-section adjustment, with locking device for evenly controlled press results, lateral sleeve insertion (side pressing), positioner for small cable end sleeves 0.08 - 4 mm², hand grips with slip protection and labeling field
Features:
· One crimp profile for all cross-sections of 0,08-16 mm² by automatic cross-section adjustment
· With locking device for evenly controlled pressing results
· Side sleeve insertion (side pressing)
· Positioner for small wire-end sleeves
· Handgrips with slip protection and label field
This text is machine translated.
Features:
· One crimp profile for all cross-sections of 0,08-16 mm² by automatic cross-section adjustment
· With locking device for evenly controlled pressing results
· Side sleeve insertion (side pressing)
· Positioner for small wire-end sleeves
· Handgrips with slip protection and label field
This text is machine translated.
