Knipex 97 52 63 DG Squeezer Machined contacts 0.08 up to 2.5 mm²
EAN:
Part number:
Item no:
Number
Total (€ 701.68 / piece)
€ 701.68
plus VAT.
Only 9 Piece(s) available
Highlights & Details
Four-punch pliers for turned contacts

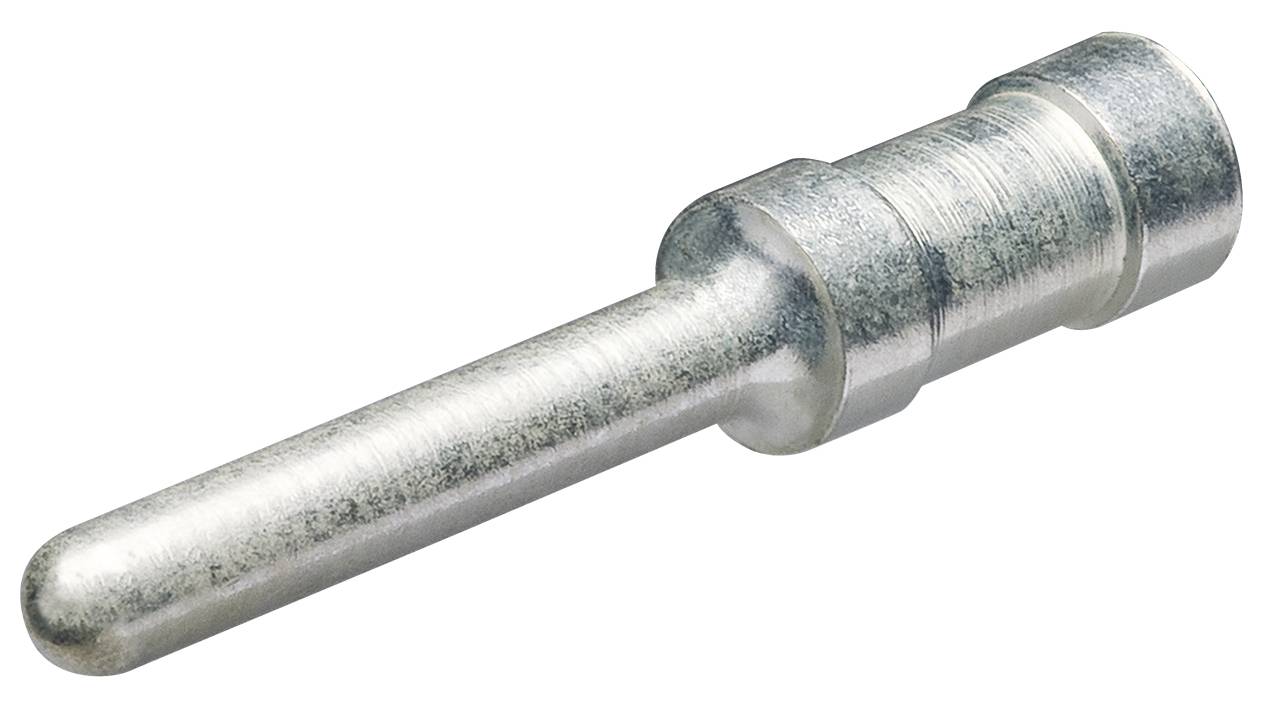

- For crimping of machined contacts
- Four indent crimping for highest quality crimp connections
- Plug gauge for checking the basic setting
- consistently high crimping quality through locking device (can be unlocked)
- Power strengthening through highly effective lever transmission for fatigue-free working
Technical specifications
- AWG 28 - 13
- Number of cavities: 1 pcs.
- Product type
Squeezer
- Manufacturer part #
97 52 63 DG
- Range of uses
Machined contacts
- Crimp area
0.08 up to 2.5 mm²
- Crimp area AWG
13 up to 28 awg
- Crimp area (min.)
0.08 mm²
- Crimp area (max.)
2.5 mm²
- Crimp area AWG (min.)
28 awg
- Crimp area AWG (max.)
13 awg
- Length
195 mm
- Material
Chromium-vanadium electric furnace steel
- Material properties
chrome plated
tempered
- Width
82 mm
- Weight
388 g
- Suitable for
Turned contacts
- Type
97 52 63 DG
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 822454 Knipex 97 52 63 DG Squeezer Machined contacts 0.08 up to 2.5 mm²
Description
Crimp dimension in steps of 0.01 mm adjustable. With digital display of set crimp dimensions and possibility of re-kalibrierung via RESET function with electronic wear monitoring. Setting in mm, inch or comparable selector positions according to MIL. Clamp-on ammeter in plastic case with foam inserts and positioning for the recording of the contacts. For crimping of turned contacts. For solder-free electrical connections Four indent crimping for exact crimp connection. Plug gauge for checking the basic settings. consistently high crimping quality through locking device (can be unlocked) Cirmping pressure is precisely set (calibrated) at the factory Power strengthening through lever transmission for fatigue-free working High usage comfort through handy design. Chromium-vanadium electro-steel in special quality, oil-hardened
This text is machine translated.
This text is machine translated.
Features
- Clamp-on ammeter in plastic case with foam padding.
- Plug gauge for checking the basic setting
- consistently high crimping quality through locking device (can be unlocked)
- Cirmping pressure is precisely set (calibrated) at the factory
- Power strengthening through lever transmission for fatigue-free working
- High usage comfort through handy design
- Fine-stage pressure setting on different cross sections of the conductor by means of adjusting wheel
- With digital display of set crimp ground
- Positioning help for the recording of the contacts
- For crimping of machined contacts
- Display can be switched between mm and inch and MIL-Values
- Four indent crimping for exact crimp connection
- For solder-free electrical connections
