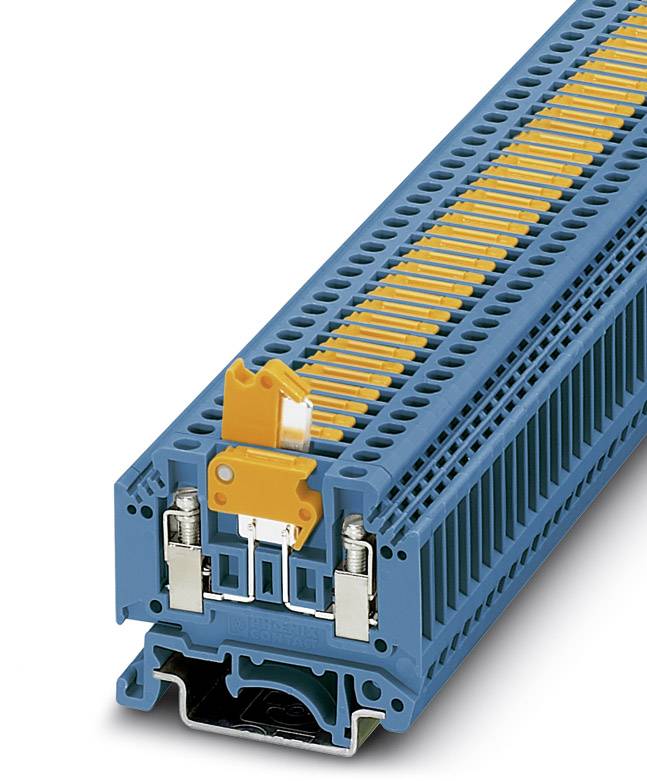

Knife disconnect terminal block MTK BU 3101197 Phoenix Contact
EAN:
Part number:
Item no:
Product type
N terminal
Connection
Screws
Cross section (flexible) (max.)
2.5 mm²
Cross section (inflexible) (max.)
4 mm²
Nominal current - rounded value
16 A
Datasheet (PDF)
Number (Package size 50 pc(s))
Total (€ 5.19 / piece)
€ 259.66
plus VAT.
14-day return policy included
Highlights & Details
Knife disconnect terminal block MTK BU
- MTK BU
Technical specifications
- Product type
N terminal
- Connection
Screws
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- Cross section (inflexible) (max.)
4 mm²
- AWG (min.)
24
- AWG max.
14
- Clamp width
5.2 mm
- No. of rows
1
- Number of pins
2
- Factory colour
Blue
- Nominal current
16 A
- Nominal current - rounded value
16 A
- Nominal voltage
400 V
- Stripping length (max.)
7 mm
- Manufacturer part #
3101197
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
MTK BU
- Dim
(L x W x H) 46 x 5.2 x 51.5 mm
- Width
5.2 mm
- Height
51.5 mm
- Length
46 mm
- Contamination level
3
- Flammability rating
V0
- Insulation material
PA
- Insulation
PA
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 565276 Knife disconnect terminal block MTK BU 3101197 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 565276 Knife disconnect terminal block MTK BU 3101197 Phoenix Contact
Description
Knife disconnect terminal block, Connection type: Screw connection, Cross section: 0.2 mm² - 4 mm², AWG: 24 - 12, Nominal current: 16 A, Nominal voltage: 400 V, Length: 46 mm, Width: 5.2 mm, Color: blue, Assembly: NS 35/7,5, NS 35/15, NS 32
