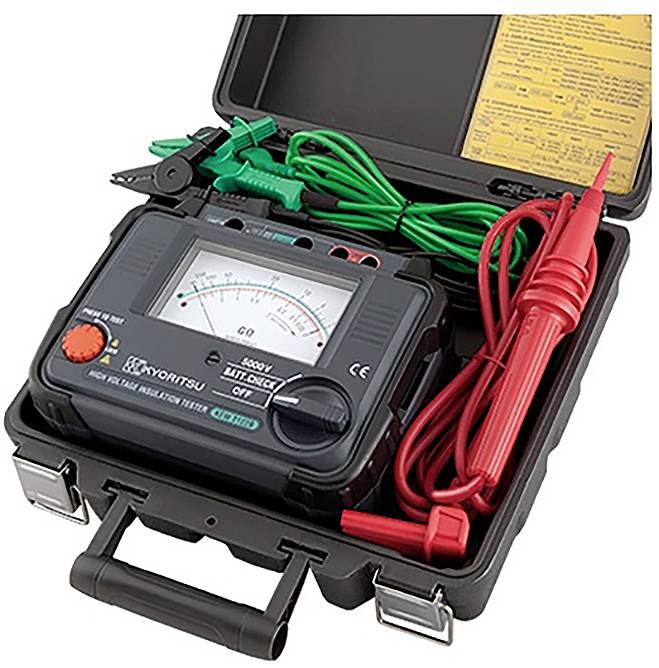

An open carrying case containing an analog insulation tester with probes and clips, displaying a voltage reading and instruction sheet.

An open carrying case containing an analog insulation tester with probes and clips, displaying a voltage reading and instruction sheet.

Kyoritsu

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Mon 23 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 975.00 / piece)

€ 975.00

incl. VAT

Only available for business customers

14-day return policy included

Report legal concerns

Highlights & Details

Kyoritsu KEW 3122B high-voltage insulation tester

Analogue
Extremely easy usage
Automatic areas that are indicated by individual LEDs
Newly designed alligator clips
The first effective range of measurement: 0.1 - 50GOhm
Safety standard IEC 61010-1 CAT IV 300V / CAT III 600V
Insulation resistance: Test voltage 5000V measuring range 5GOhm/100GOhm (auto-ranging)
Accuracy: 0.2 - 100 GOhm: ±5%rdg, 0 - 0.2GOhm, 100GOhm - infinity: ±10%rdg or 0.5% of the scale length

Technical specifications

Measuring current: Approx. 1 mA

Product type: Insulation tester

Test voltage: 5000 V

Reading type: Insulation resistance

: Manufacturer's standards (no certificate)

Reading range - resistance: 5 GΩ/200 GΩ

: IP41
IP10

Power supply (details): 12 V

Dim: (L x W x H) 80 x 200 x 140 mm

Weight: 1.8 kg

Display type: Analogue

Insulation resistance (max.): 200 GΩ

Calibration service: Factory calibration for resistance and test voltage

Voltage reading range (max.): 5000 V

Voltage reading range (min.): 5000 V

Reading category: CAT IV 300 V
CAT III 600 V

Width: 200 mm

Height: 140 mm

Length: 80 mm

Documents & Downloads

Datasheet

Datasheet 3642364 Kyoritsu KEW 3122B Insulation tester 5000 V 200 GΩ

User & Safety Instructions

User & Safety Instructions 3642364 Kyoritsu KEW 3122B Insulation tester 5000 V 200 GΩ

Description

Kyoritsu high-voltage insulation tester

This text is machine translated.

Scope of delivery

High-voltage test lead
Ground line
Guard cable
Hard case
Batteries (8x LR14)
User manual

Description

Kyoritsu high-voltage insulation tester

This text is machine translated.

Scope of delivery

High-voltage test lead
Ground line
Guard cable
Hard case
Batteries (8x LR14)
User manual
