Kyoritsu KEW 3431 Insulation tester 250 V, 500 V, 1000 V 2000 MΩ
Datasheet (PDF)
EAN:
Part number:
Item no:
Total (€ 535.00 / piece)
€ 535.00
incl. VAT
Only available for business customers
14-day return policy includedHighlights & Details

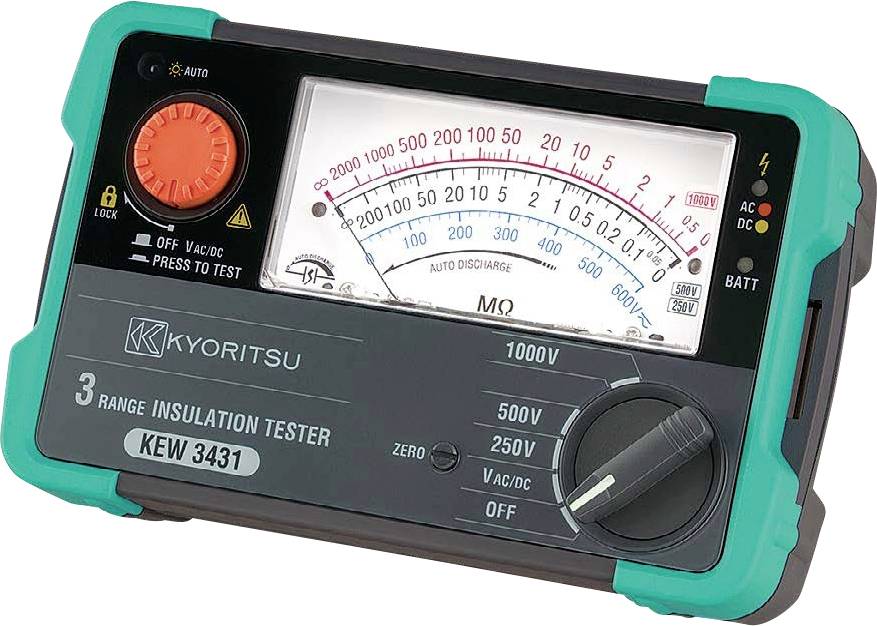

Kyoritsu KEW 3431 analogue insulation tester
- LED-Light and illuminated Scale
- Circuit warning with buzzer and flashing LED
- Insulation resistance test voltage 250V/500V/1000V
- Max. Effective scale value: 200MΩ/2000MΩ
- Average 5MΩ/50MΩ
- First effective measuring range 0.1 - 100MΩ Accuracy: ±5%
- Second effective measuring range 1 - 1000MΩ Accuracy: ±10%
- LED insulation status indicator shows the result in red / green, 0.25/0.5/1MOhm
- Voltage measurement AC 600V [45 - 65Hz]/DC 600V Accuracy: ±5%
Technical specifications
- LED status indicator for live voltage
- Discharge function for capacitive loads
- Robust case with hinged lid
- Product type
Insulation tester
- Test voltage
250 V
500 V
1000 V
- Reading type
Insulation resistance
Voltage
Manufacturer's standards (no certificate)
- Reading range - resistance
0 – 20 Ω
IP54
- Power supply (details)
6 V
- Dim
(L x W x H) 97 x 156 x 46 mm
- Weight
440 g
- Display type
Analogue
- Max. frequency
60 Hz
- Min. frequency
40 Hz
- Frequency range
40 Hz - 60 Hz
- Insulation resistance (max.)
2000 MΩ
- Calibration service
Factory calibration; ISO certification optional
- Voltage reading range (max.)
600 V AC
- Reading category
CAT III 600 V
- Width
156 mm
- Height
46 mm
- Length
97 mm
Documents & Downloads
Datasheet
Datasheet 3642366 Kyoritsu KEW 3431 Insulation tester 250 V, 500 V, 1000 V 2000 MΩ
User & Safety Instructions
User & Safety Instructions 3642366 Kyoritsu KEW 3431 Insulation tester 250 V, 500 V, 1000 V 2000 MΩ
Description
Kyoritsu analogue insulation tester
This text is machine translated.
This text is machine translated.
Scope of delivery
- Meter,
- Test leads (7107A)
- Carry strap
- Batteries (4x AA)
- User manual
- Transport bag (9139)
