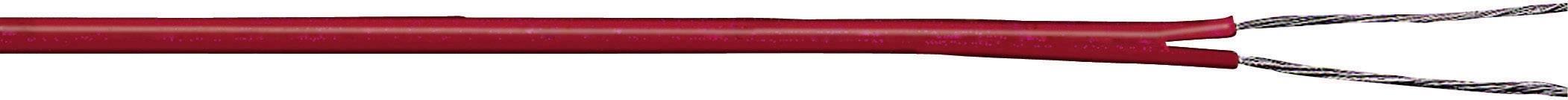

LAPP 65202/1 Strand ÖLFLEX® 180 SiZ 2 x 0.75 mm² Red Sold per metre
EAN:
Part number:
Item no:
Product type
Strand
Cable type
ÖLFLEX® 180 SiZ
No. of leads
2 x
Cross section (each core)
0.75 mm²
Cable features
Halogen-free
Flame-retardant
Datasheet (PDF)
Quantity (meter)
Savings
Package size (plus VAT.)
1
-
€ 2.34
10
7% = € 0.17
€ 2.17
25
10% = € 0.24
€ 2.10
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 2.34 / piece)
€ 2.34
plus VAT.
14-day return policy included
Highlights & Details
LAPP 65202/1 Strand ÖLFLEX® 180 SiZ 2 x 0.75 mm² Red Sold per metre
- -50 - +180 °C
Technical specifications
- Product type
Strand
- Cable type
ÖLFLEX® 180 SiZ
- No. of leads
2 x
- Cross section (each core)
0.75 mm²
- Cross section
2 x 0.75 mm²
- Cable features
Halogen-free
Flame-retardant
- Width
4.6 mm
- Height
2.3 mm
- Factory colour
Red
- Content
Sold per metre
- Nominal voltage
500 V
- Nominal voltage U0
300 V
- Test voltage
2000 V
- Packaged
No
- Sold per metre
Yes
- Halogen-free
Yes
- Manufacturer part #
65202/1
- Insulation material
Silicone
- Core layout
Finely stranded according to VDE 0295, Class 5/IEC 60228
- Min. temperature range (fixed installation)
-50 °C
- Max. temperature range (fixed installation)
+180 °C
- Max. length sold by the metre
100 m
- Type
ÖLFLEX® HEAT 180 SiZ
- Cable type
HEAT 180 SiZ
- Nominal voltage (details)
300/500 V
- Type
ÖLFLEX® HEAT 180 SiZ 2X0.75
- Cross section
2 x 75 mm² Without green/yellow
- Bend radius
15 x external dia. for wide range of applications, 6 x external dia. when permanently installed, 3 x external dia. at cable end, once
- Temperature range
When fixed : -50 - +180 °C
Documents & Downloads
Datasheet
Datasheet 603202 LAPP 65202/1 Strand ÖLFLEX® 180 SiZ 2 x 0.75 mm² Red Sold per metre
User & Safety Instructions
User & Safety Instructions 603202 LAPP 65202/1 Strand ÖLFLEX® 180 SiZ 2 x 0.75 mm² Red Sold per metre
Information
Information 603202 LAPP 65202/1 Strand ÖLFLEX® 180 SiZ 2 x 0.75 mm² Red Sold per metre
Description
Single core silicone for use in high and low ambient temperatures. Flexible to VDE 0295 class 5 Isolation on Silicon-based for two parallel veins.
