Name: Laserliner 082.233A Inspection camera Probe diameter: 7.9 mm Probe length: 1.5 m
Brand: Laserliner
SKU: 3350328
Availability: InStock

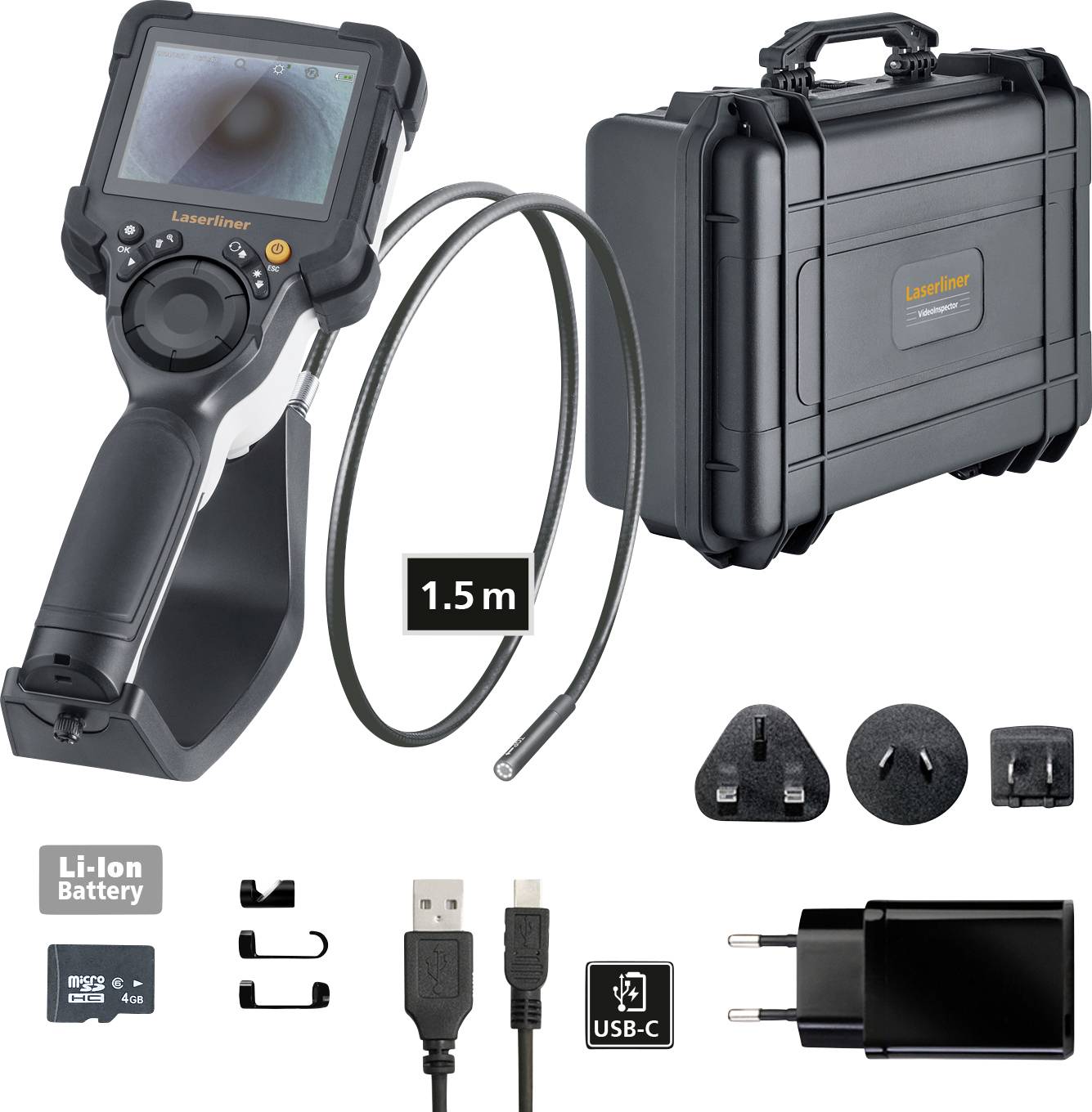

Inspection Camera Set: digital camera with 1.5 m flexible cable, robust carry case, Li-Ion battery, USB-C cable, power supply and adapters.

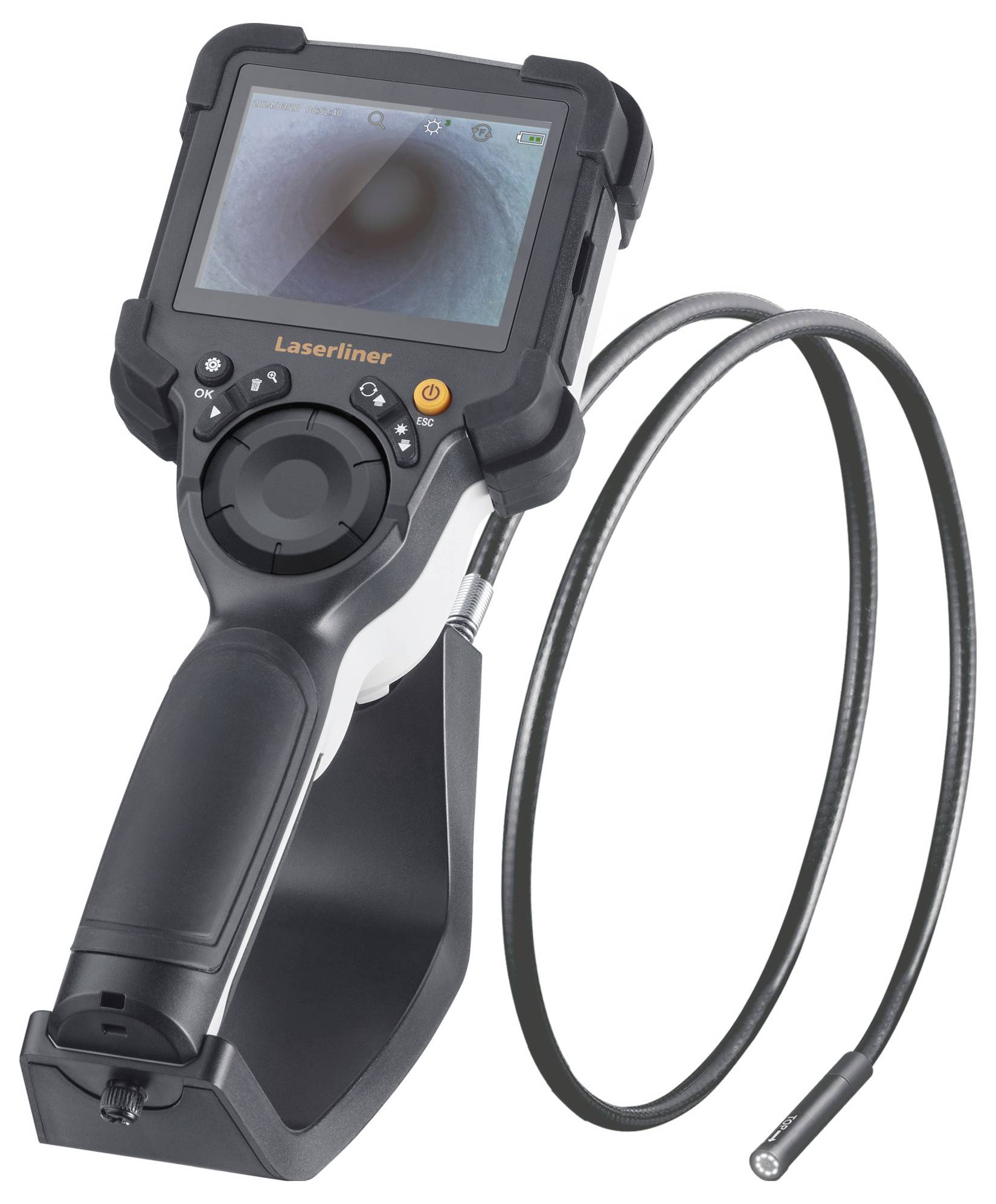

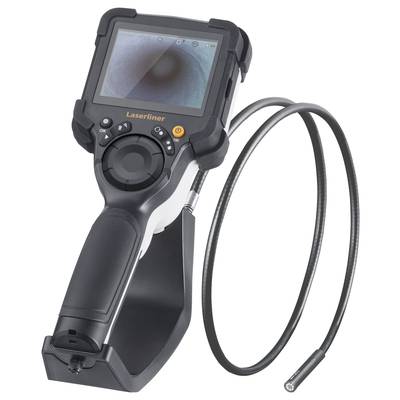

Portable endoscopic device with screen and flexible probe. Used for inspecting hard-to-reach areas.

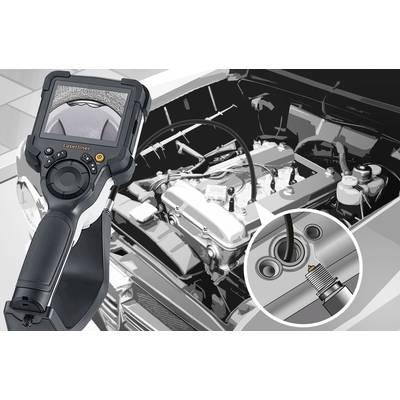

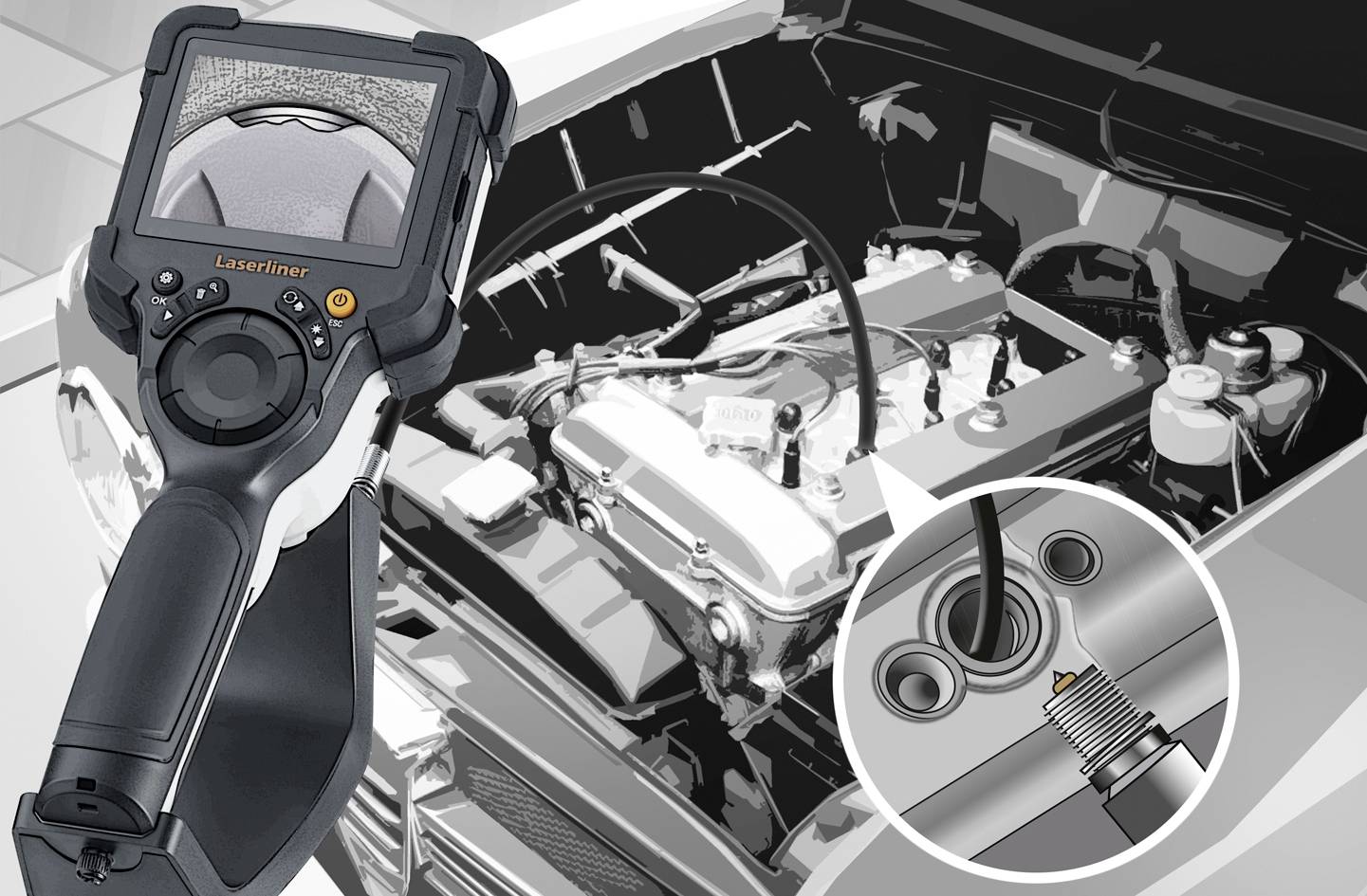

An endoscope shows the interior of an engine compartment. An image section enlarges the detail of a spark plug in the cylinder head.

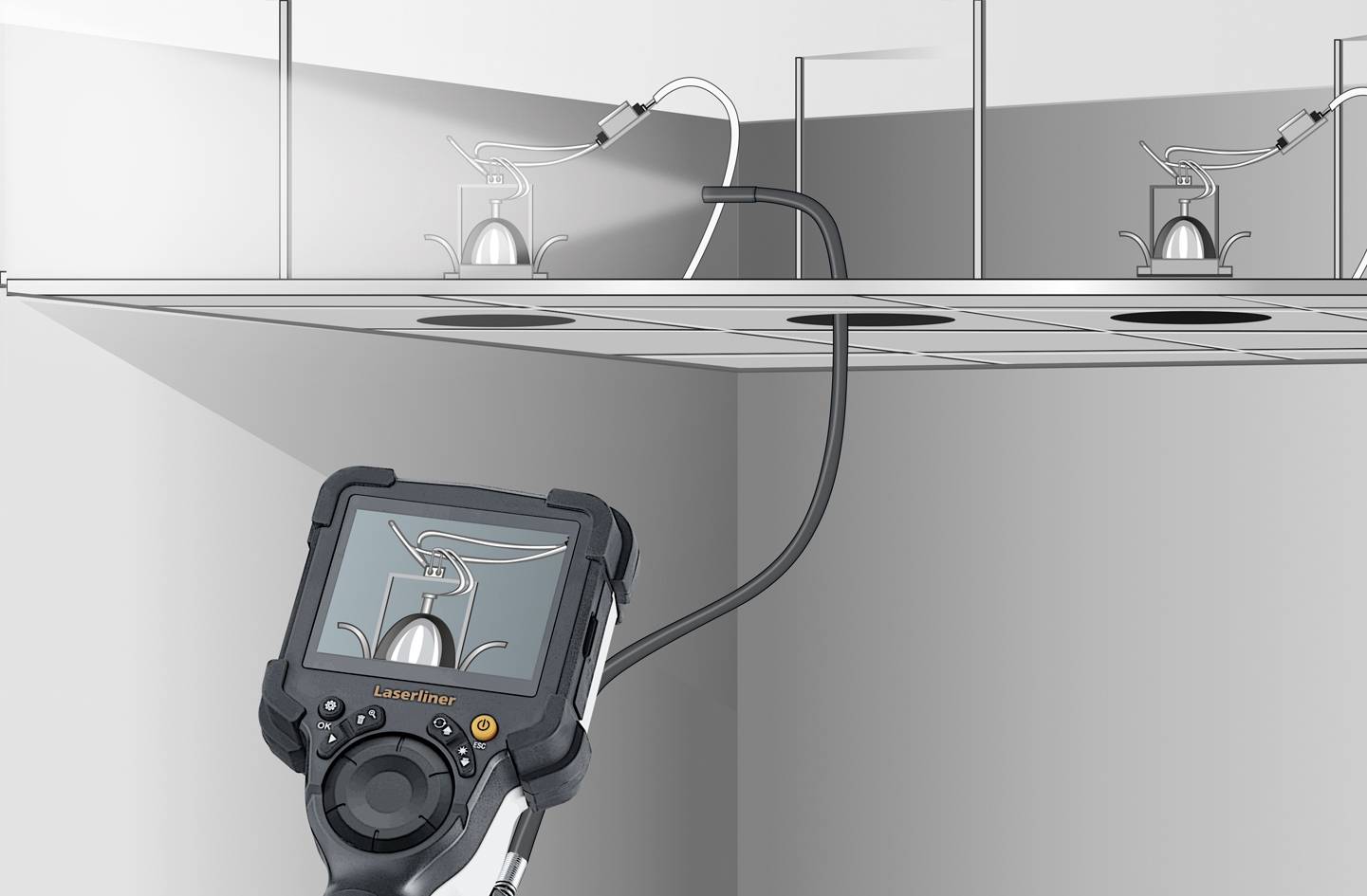

An endoscope is used to inspect cable installations in a suspended ceiling, as shown by the direct display on the screen.

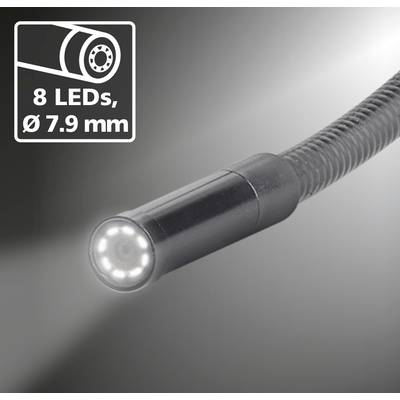

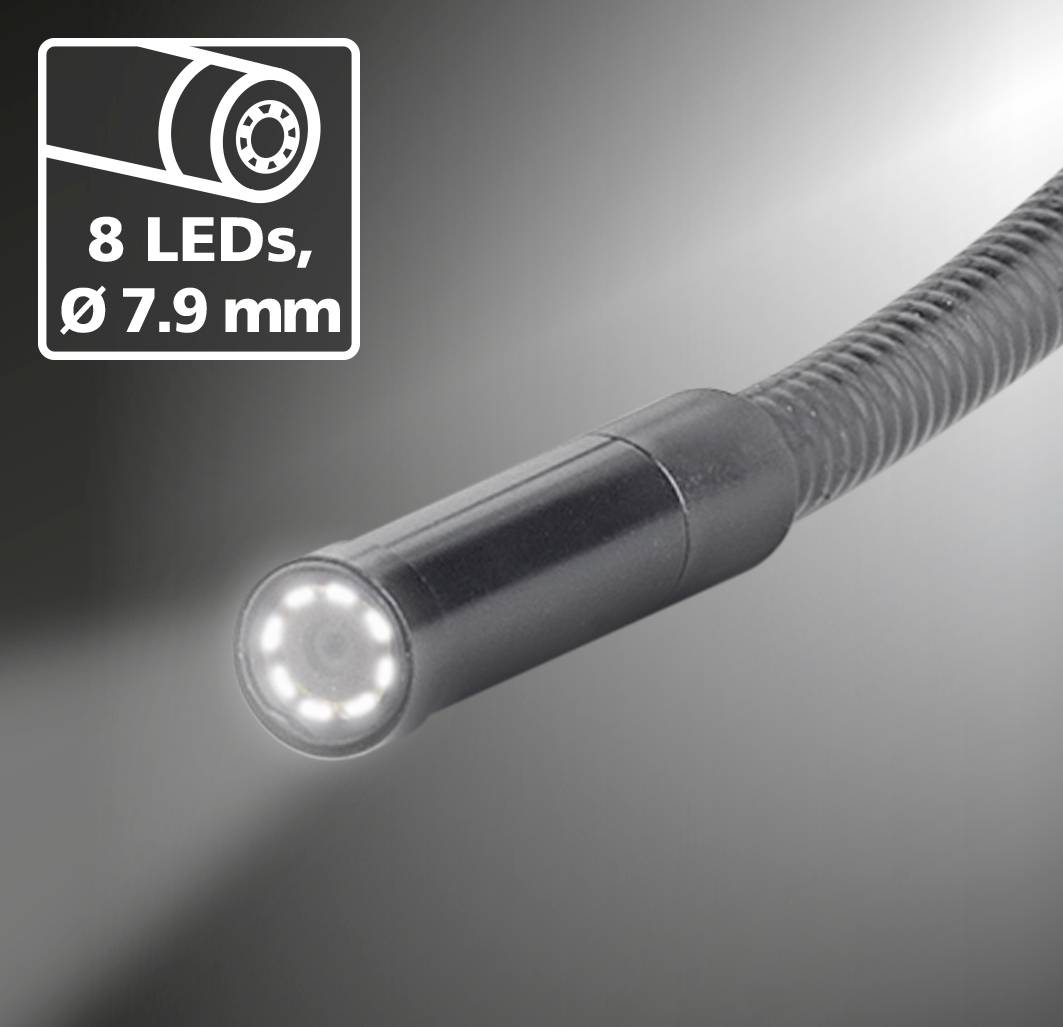

Endoscope camera with flexible swan neck, 8 LEDs illuminating at the front. Text in image: '8 LEDs, Ø 7.9 mm'

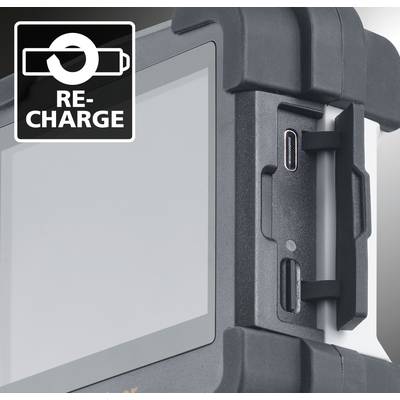

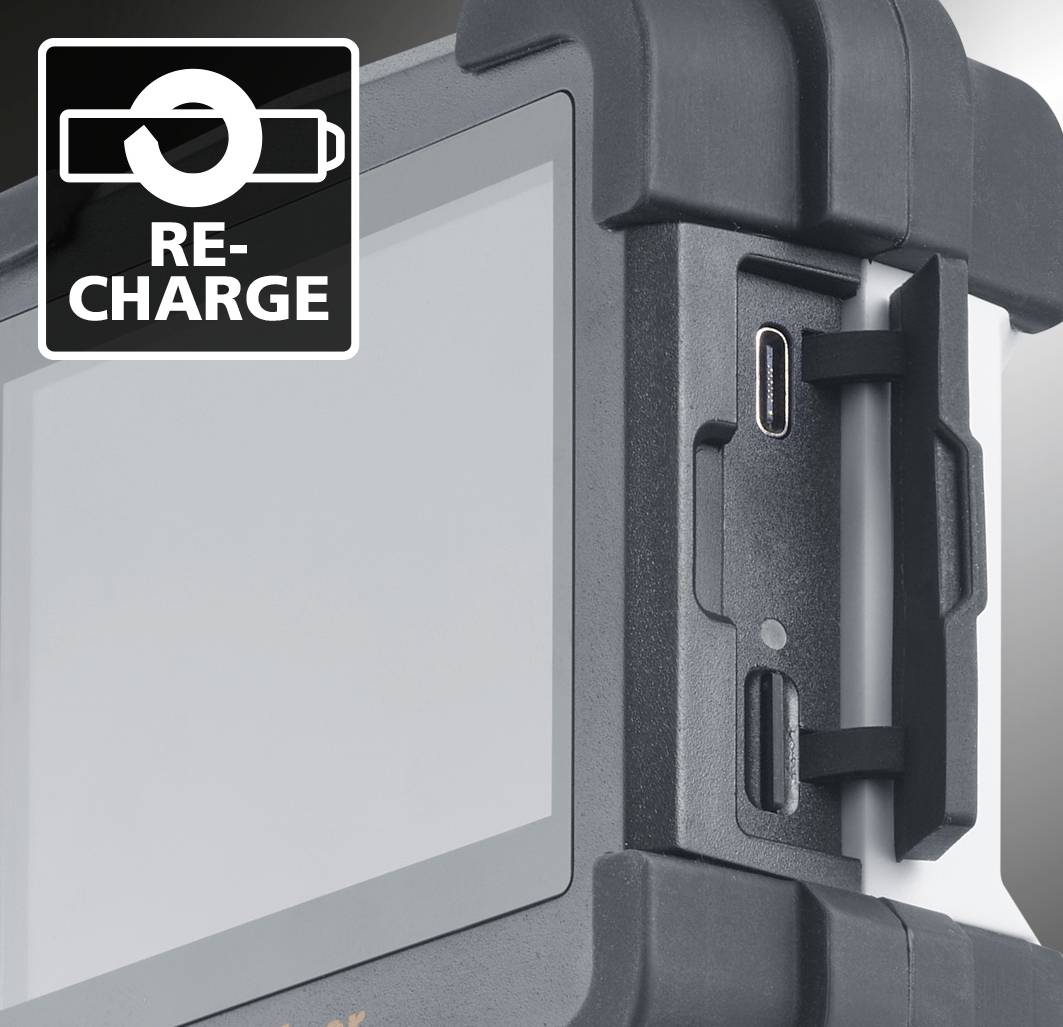

Close-up of an electronic device housed in a robust black casing. A symbol with the text 'RE-CHARGE' indicates its charging function.

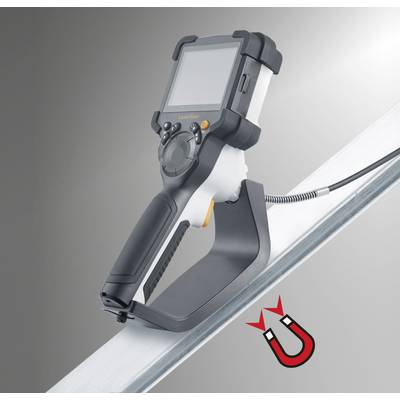

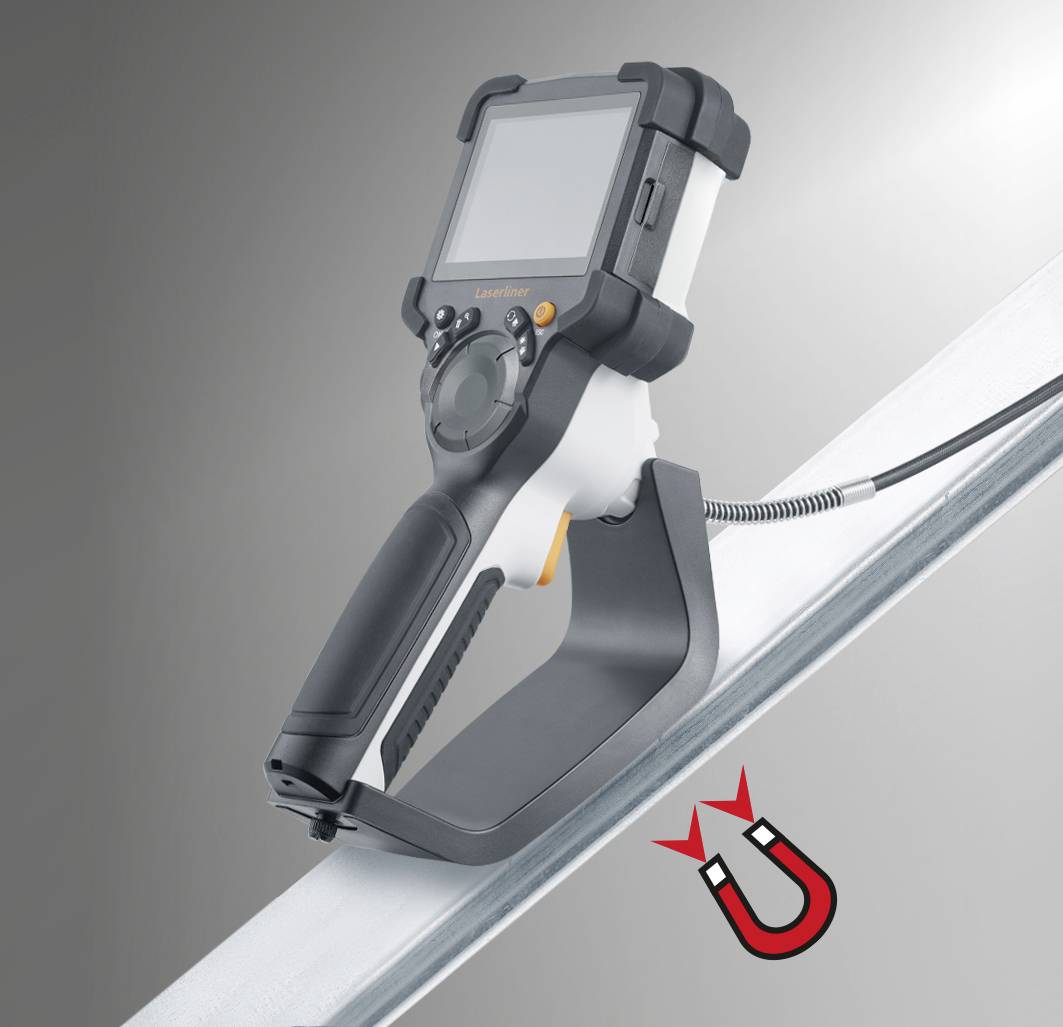

A portable testing device with a screen and ergonomic handle rests on a metal surface, with a magnet symbol underneath, indicating magnetic adhesion.

A cross-sectional view of a nozzle system shows the focal point of a 3D printing process, with a focal range between 3 cm and 8 cm.

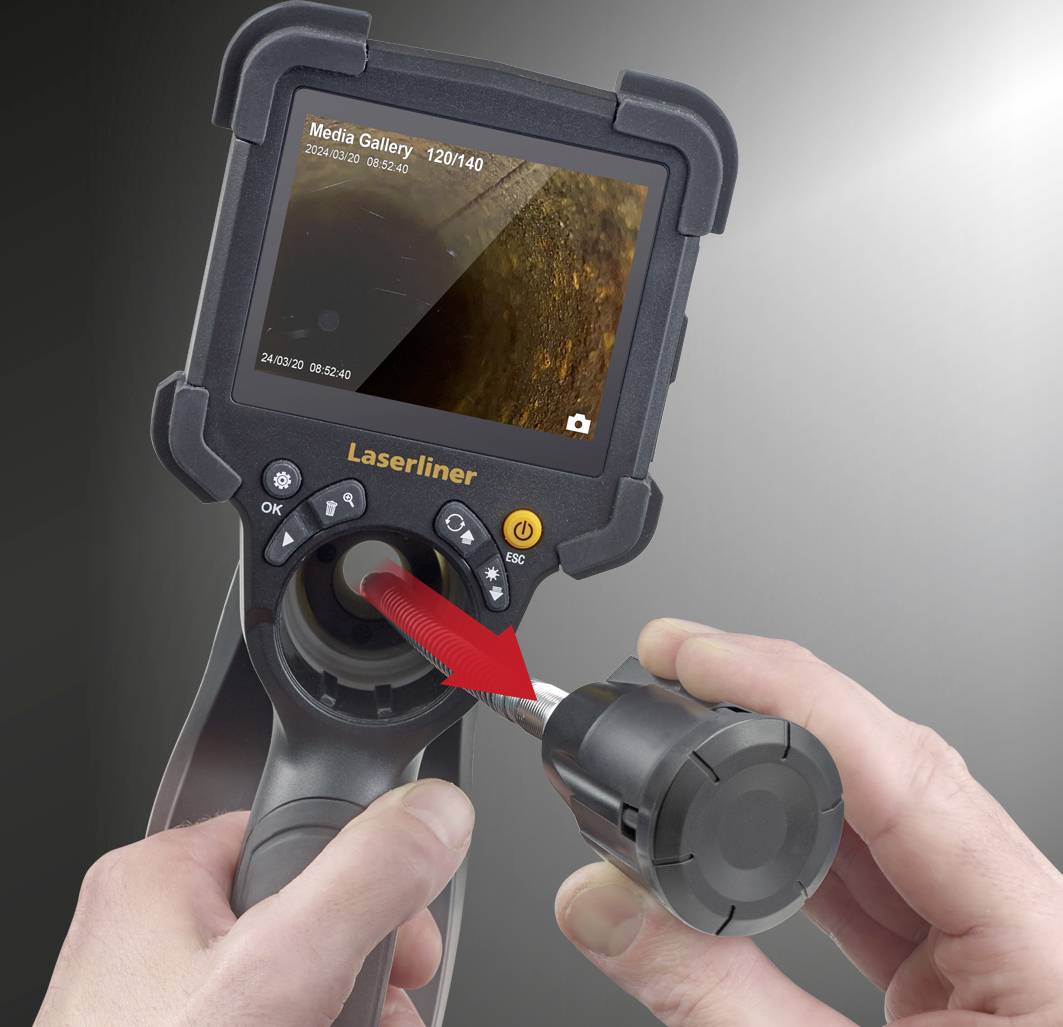

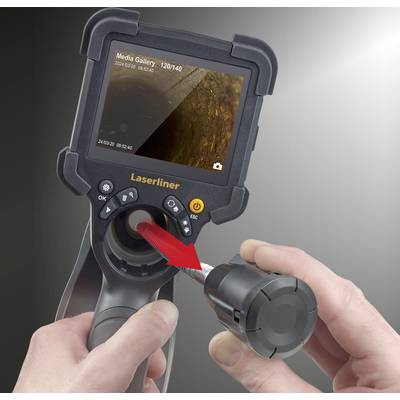

A person is holding a hand-operated inspection device by Laserliner. The screen displays an enlarged image with the image number '120/140'.

1/9

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 5 Nov

2 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 415.00 / piece)

€ 415.00

incl. VAT

Only 2 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Professional video inspection system for easy visual inspection of inaccessible areas

Effective problem localization behind or in objects, walls, wires, cavities
The camera head and sensor are waterproof and resistant to petrol and diesel
Bright object lighting at the camera through 6 high-power LEDs
User has both hands free to work thanks to the magnetic stand on the base unit
Flexible application possibilities: Compatible with high-quality camera units InsectorCamera 3DX , 3DL and 3DM
Device fits well in the hand through an ergonomic design
Image is available in variable views through rotation and mirroring on the monitor
Natural colors for realistic representation
Can also be used in network operation
Magnet, mirror and hook attachment for fastening on camera head
Evaluation and documentation via micro SD card and USB-C interface
Media Gallery with the date and time of the recordings
Time stamp: Fixed marking of each recording with date and time
Energy-saving automatic cut-off after adjustable time

Technical specifications

Depth: 110 mm

Product type: Inspection camera

Probe diameter: 7.9 mm

Probe length: 1.5 m

Endoscope features: Digital zoom

Display resolution: 640 x 480 Pixel

Camera resolution: 1280 x 720 Pixel

Digital zoom: 2 x

Power supply (details): Li-Ion battery pack 3.7V/2.8 Ah, USB Type C 5V / 2A

Field of view: 80°

Light source: 6 high-power LEDs

Weight: 685 g

Dim: (L x W x H) 150 x 10.8 x 26 cm

Length: 150 cm

Width: 10.8 cm

Height: 26 cm

Type: VideoInspector

Documents & Downloads

Datasheet

Datasheet 3350328 Laserliner 082.233A Inspection camera Probe diameter: 7.9 mm Probe length: 1.5 m

User & Safety Instructions

User & Safety Instructions 3350328 Laserliner 082.233A Inspection camera Probe diameter: 7.9 mm Probe length: 1.5 m

Description

The professional video inspection system is Ideal for accurate problem locating behind or in objects, walls, pipes and cavities. The camera head and sensor are waterproof and resistant to petrol and diesel. Other advantages are the first-class LED object lighting and the magnetic stand for setting up the base unit. Owing to a natural reproduction of colors a very realistic representation is offered. In addition to the Inspector Camera included in the delivery, the base unit is also compatible with the high-quality camera units Inspector Camera 3DX, 3DL and 3DM. Thus, a large range of possible areas of application is offered.
