Buy VOLTCRAFT BS-300XRSD Endoscope Probe diameter: 8 mm Probe length: 1.83 m

Endoscope camera with a flexible tube and display, showing a close-up view of a technical component on the screen.

Endoscope with a flexible tube and display. It is used for inspecting hard-to-reach areas.

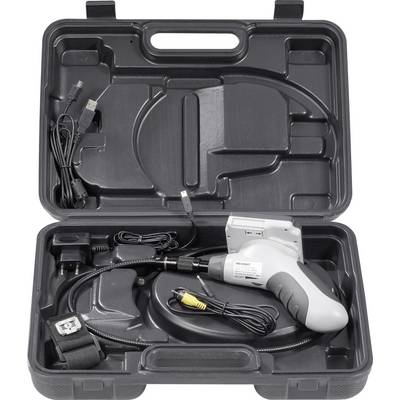

An open plastic case reveals a portable electric screwdriver with accessories, including a charging cable and additional tool parts.

Endoscope camera with flexible cable and handheld device. Ideal for examining hard-to-reach areas.

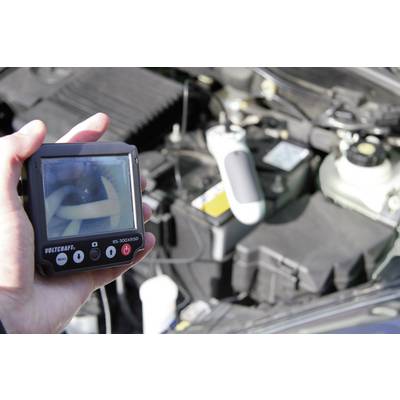

A person is holding a diagnostic device with a screen, displaying the internal condition of a car part. The engine compartment is visible in the background.

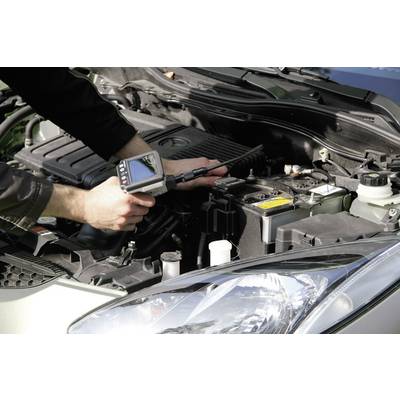

A person is checking the car's engine with a diagnostic device. The bonnet is open, and the device is displaying data on a screen.

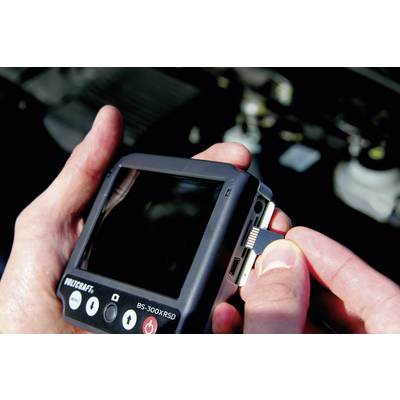

A person is inserting a memory card into a diagnostic device. Blurred automotive parts are visible in the background.

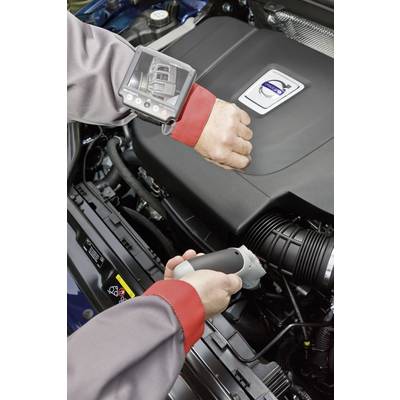

A mechanic inspects a car engine with a handheld device. A screen on the wrist displays details of the engine.

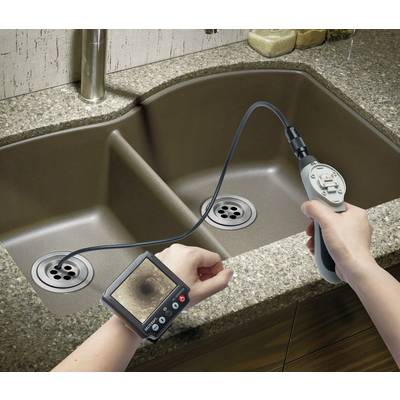

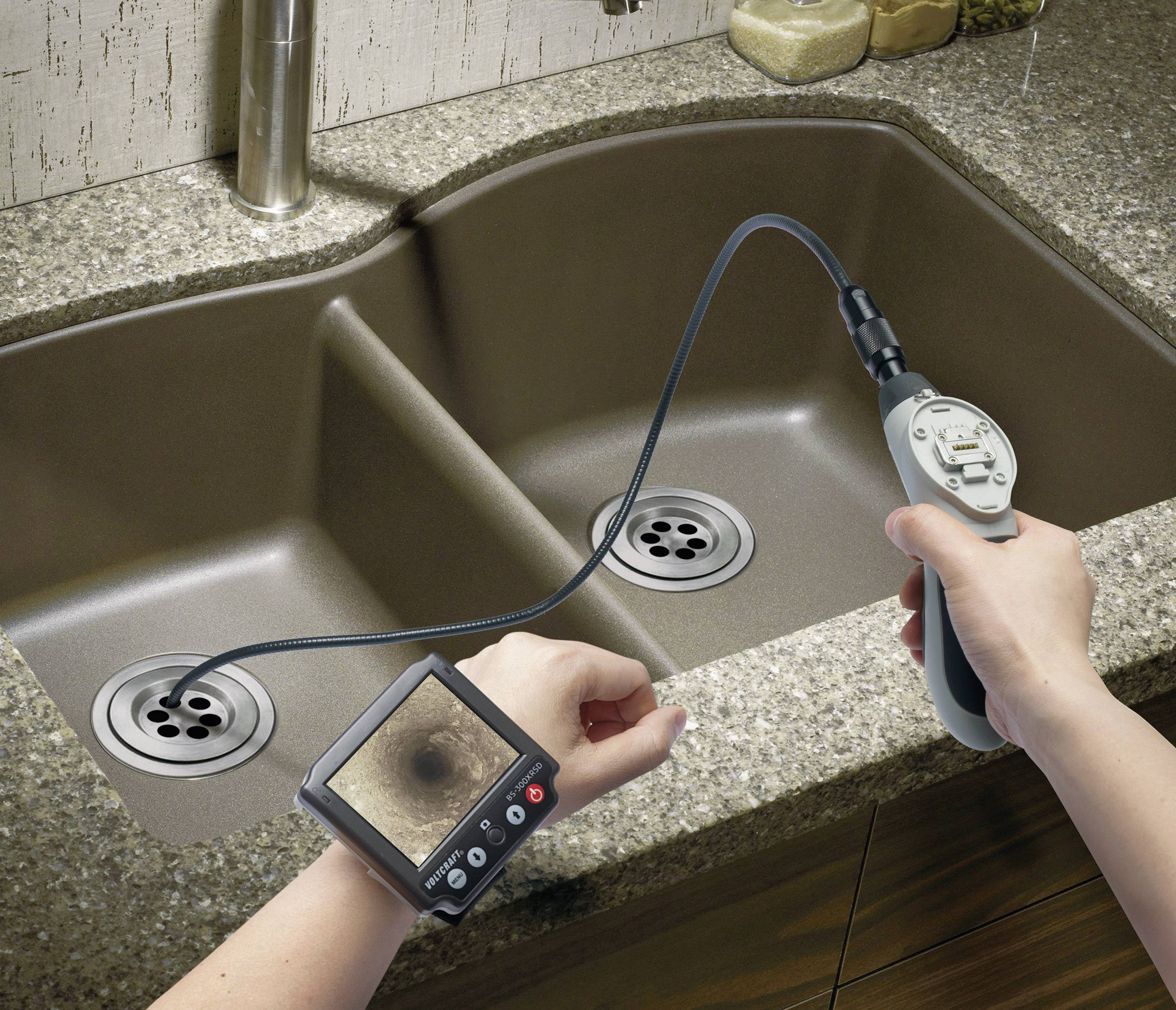

A person is using an inspection camera with a monitor to check the drain underneath the sink. The device is showing the interior of the pipe.

1/9

Our service for you

Datasheet (PDF)

Fast track dispatch on Mon, 14 Sep

53 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 172.26 / piece)

€ 172.26

plus VAT.

Report legal concerns

Highlights & Details

Endoscope with detachable wireless display BS-300 XRSD

Exchangeable endoscope cameraOptional extension of camera rangeErgonomic pistol handleWith removable radio monitor with 8.9 cm (3.5")MicroSD card slot (up to max. 32 GB micro SDHC)Video outputWith rescue hook, mirror and magnetOptional cameras with Ø 3.9 mm and up to 20 m length are available as accessories

Technical specifications

Wi-fi Range: 5 m

Product type: Endoscope

Probe diameter: 8 mm

Probe length: 1.83 m

Endoscope features: Exchangeable camera attachment
Detachable screen
TV output
Waterproof

Display resolution: 320 x 240 Pixel

Camera resolution: 640 x 480 Pixel

Focus: 60 mm - ∞

Light source: 4 white LEDs

Max. bend radius: 45 mm

Weight: 680 g

Type: BS-300XRSD

Min. focusing distance: 60 mm

Documents & Downloads

Datasheet

Datasheet 1209851 VOLTCRAFT BS-300XRSD Endoscope Probe diameter: 8 mm Probe length: 1.83 m

User & Safety Instructions

User & Safety Instructions 1209851 VOLTCRAFT BS-300XRSD Endoscope Probe diameter: 8 mm Probe length: 1.83 m

Information

Information 1209851 VOLTCRAFT BS-300XRSD Endoscope Probe diameter: 8 mm Probe length: 1.83 m

Conformity certificate

Conformity certificate 1209851 VOLTCRAFT BS-300XRSD Endoscope Probe diameter: 8 mm Probe length: 1.83 m

Warranty Terms

Warranty Terms 1209851 VOLTCRAFT BS-300XRSD Endoscope Probe diameter: 8 mm Probe length: 1.83 m

Description

Endoscope with waterproof semi-flexible gooseneck for inspection of the cavities. The dimmable 4-LED camera light on 8 mm camera head ensures optimum illumination. By means of the detachable Monitor, you will be able to use the endoscope flexible and independent of the position of the device to ensure an optimum view of the display.

This text is machine translated.

Features

Removable LCD color monitor with Lipo battery and USB charging function
MicroSD card slot (Supported SD-card types: micro SD (max 2 GB), micro SDHC (max. 32 GB)
Water-tight camera probe
Video output
