Buy Laserliner 082.281A Inspection camera Probe diameter: 3.9 mm Probe length: 2 m

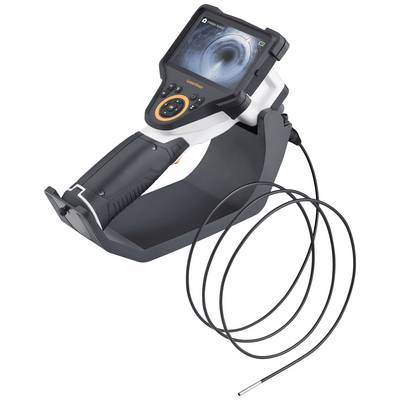

Industrial endoscope with display and flexible cable, used for inspecting hard-to-reach areas.

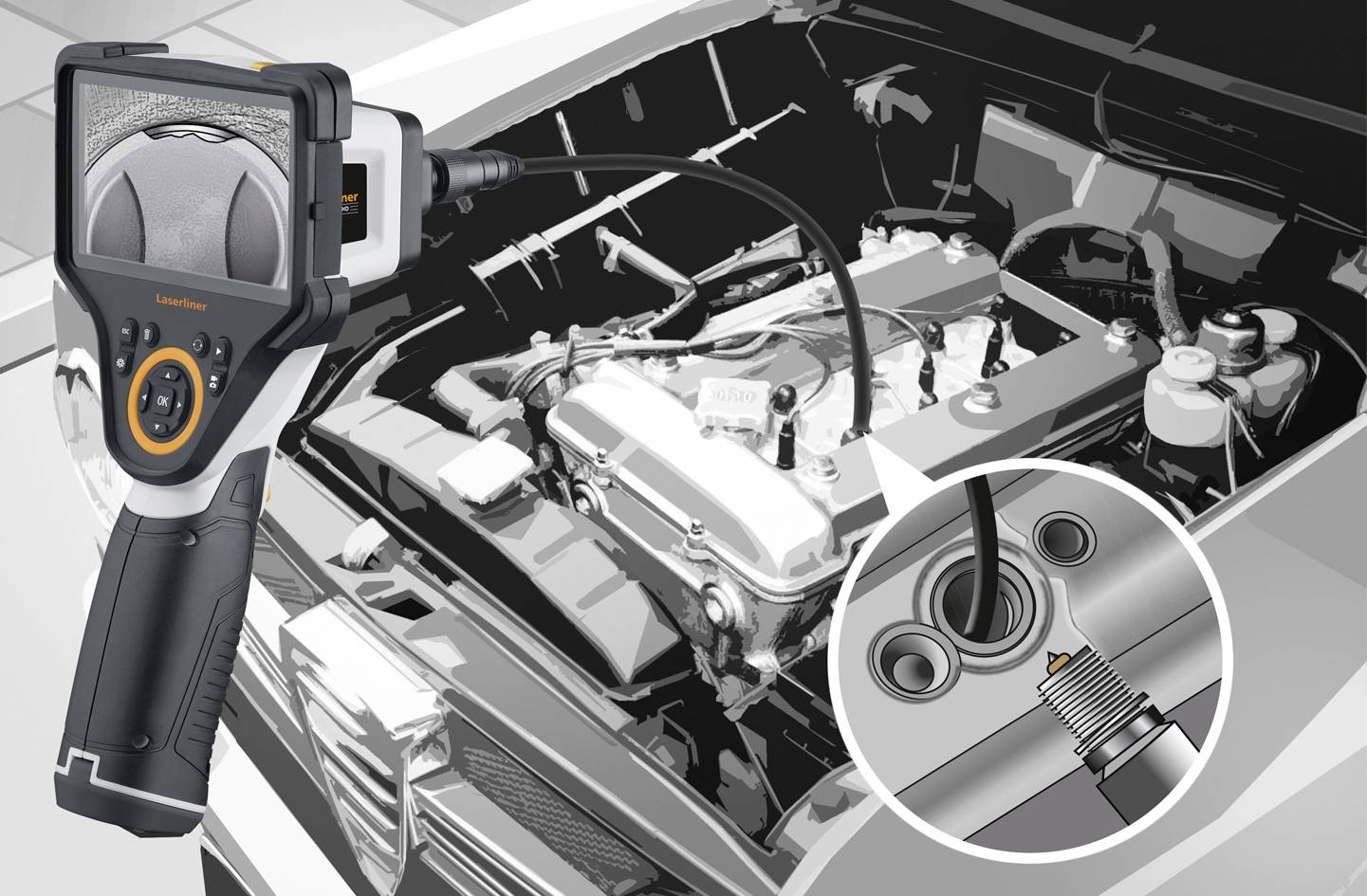

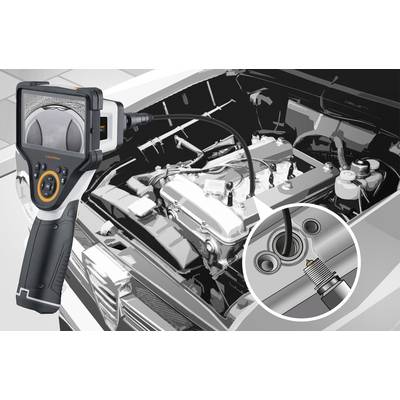

An endoscope inspects the engine of a car, displays the spark plug in use on a screen, emphasising diagnostic tool usage.

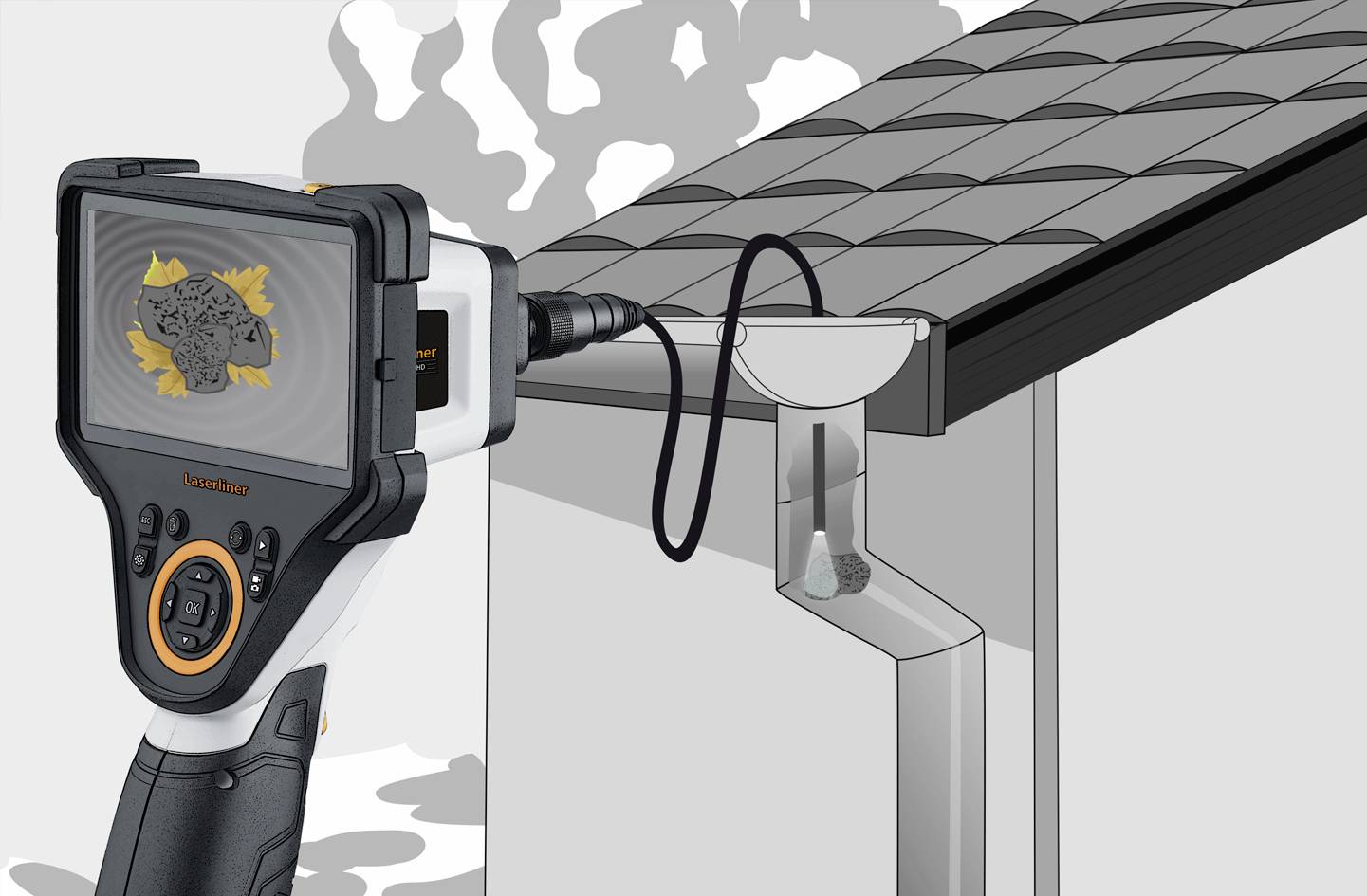

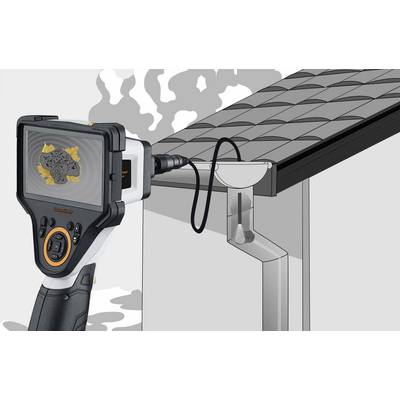

A hand-held camera shows a blocked downpipe in a gutter, cutting through to indicate the precise location of the problem.

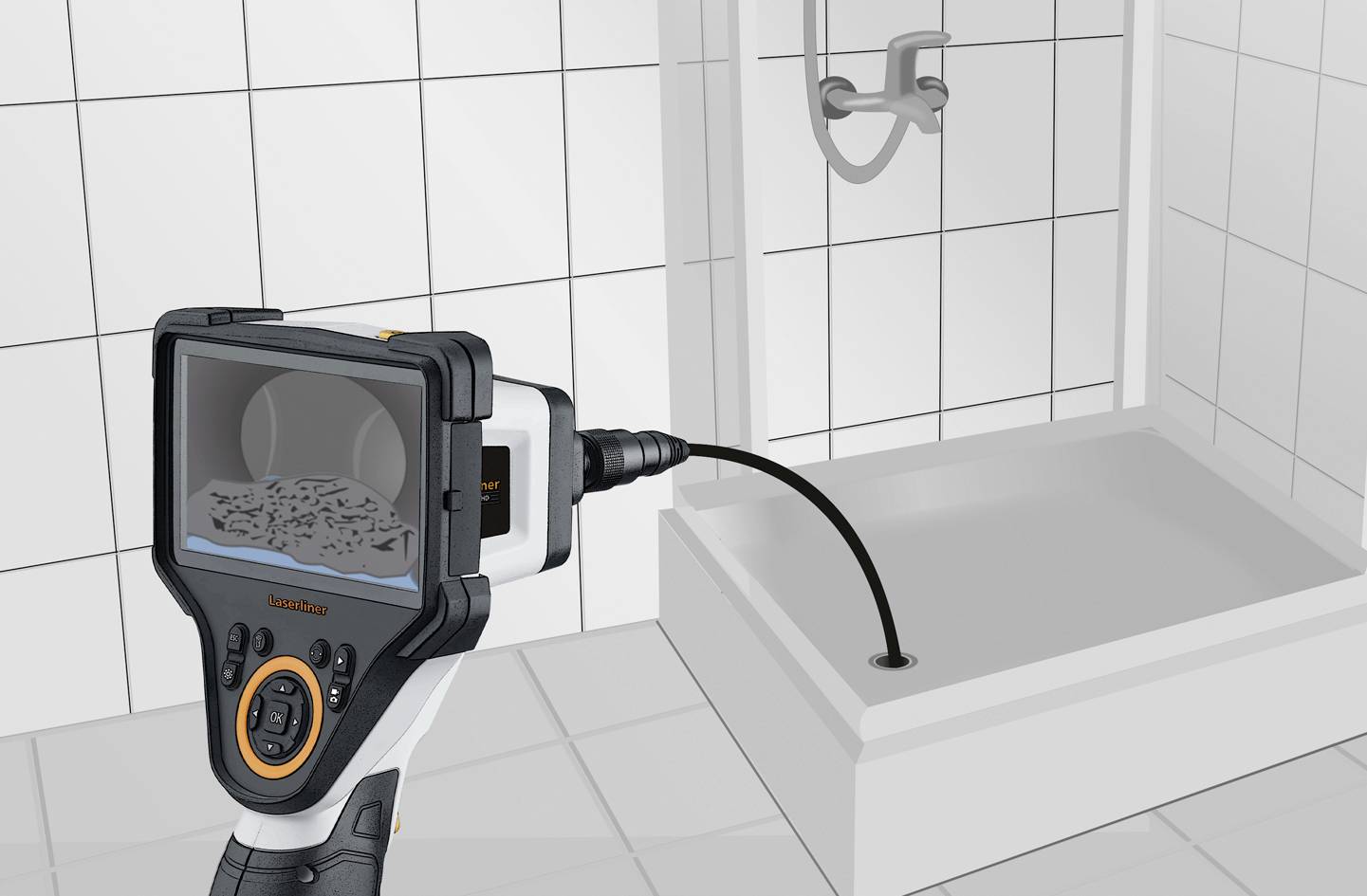

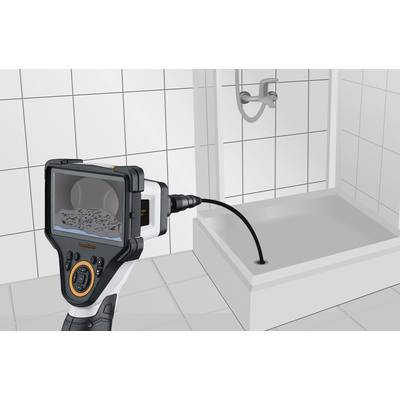

An endoscope shows a blocked shower on the screen. Tiled wall and shower head visible. Device is examining the drainage channel.

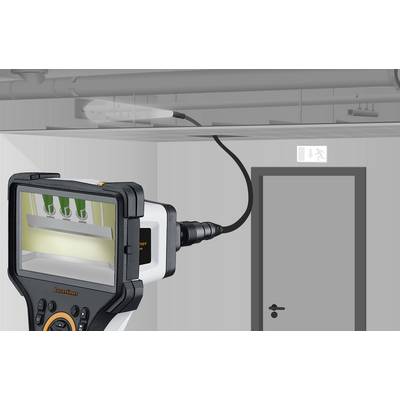

An inspection camera shows an image of three green switches in a ceiling cavity. The camera is connected to a cable.

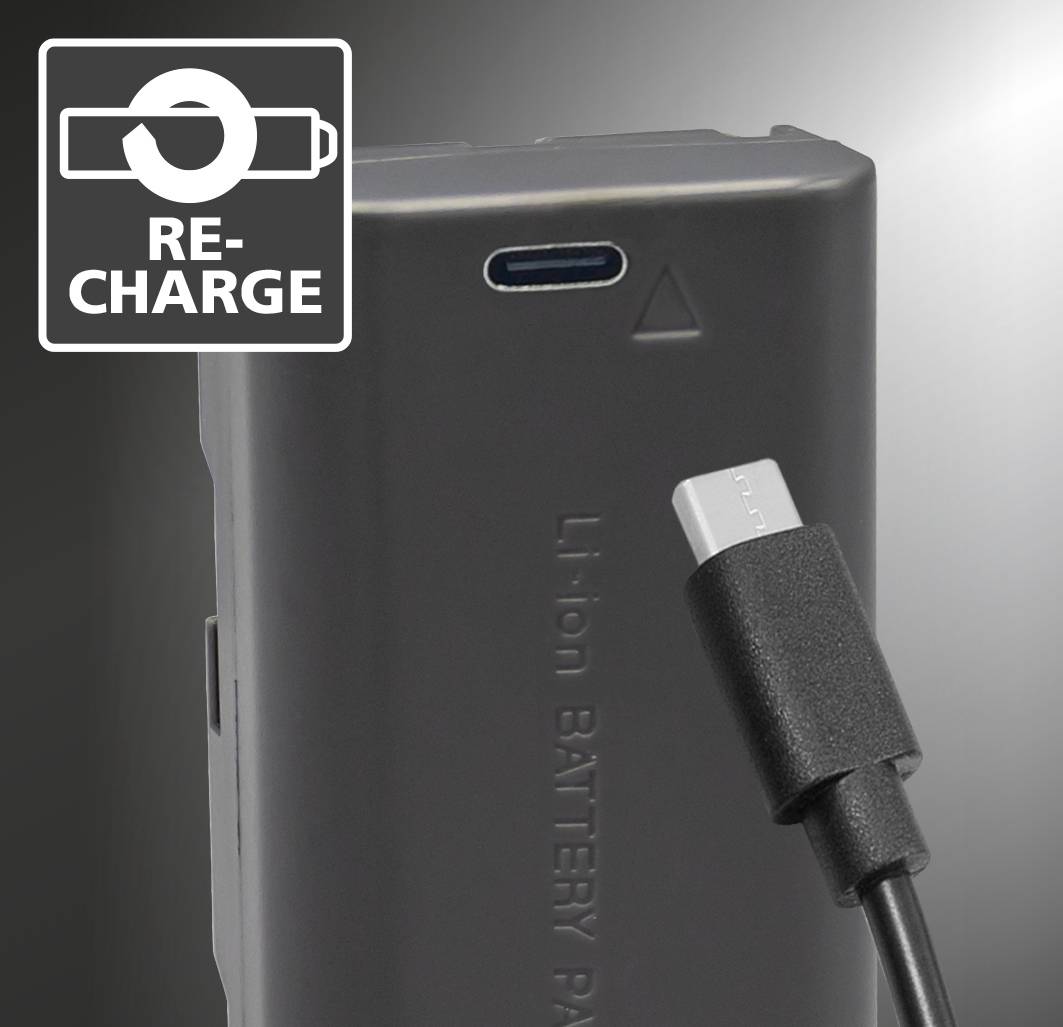

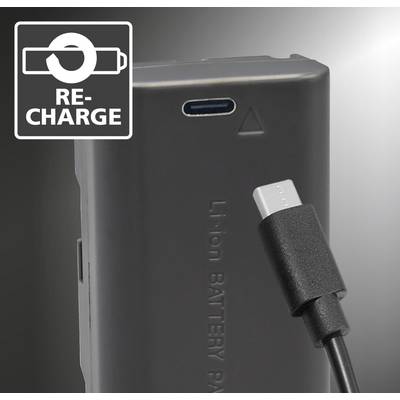

A charger is plugged into a lithium-ion battery, with the 'RE-CHARGE' symbol in the top left, indicating that it is being charged.

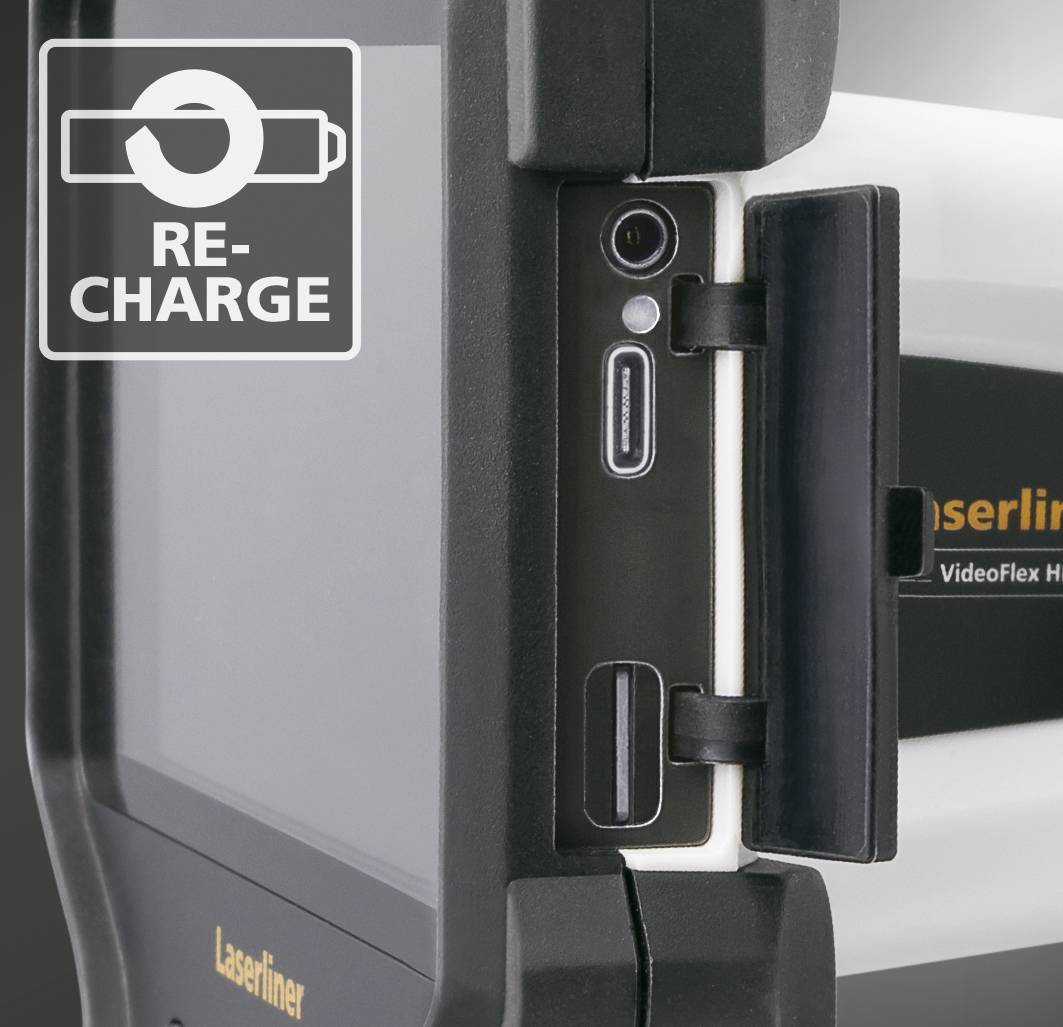

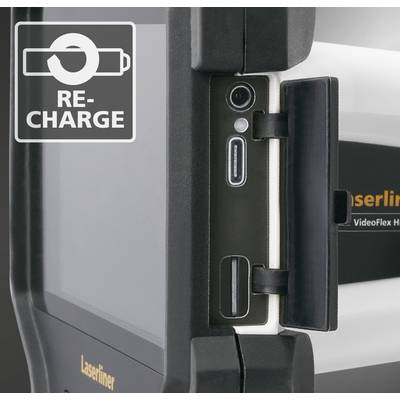

Close-up of a laser level device with display and connections. Top left, a symbol and text 'RE-CHARGE', likely indicating battery charging.

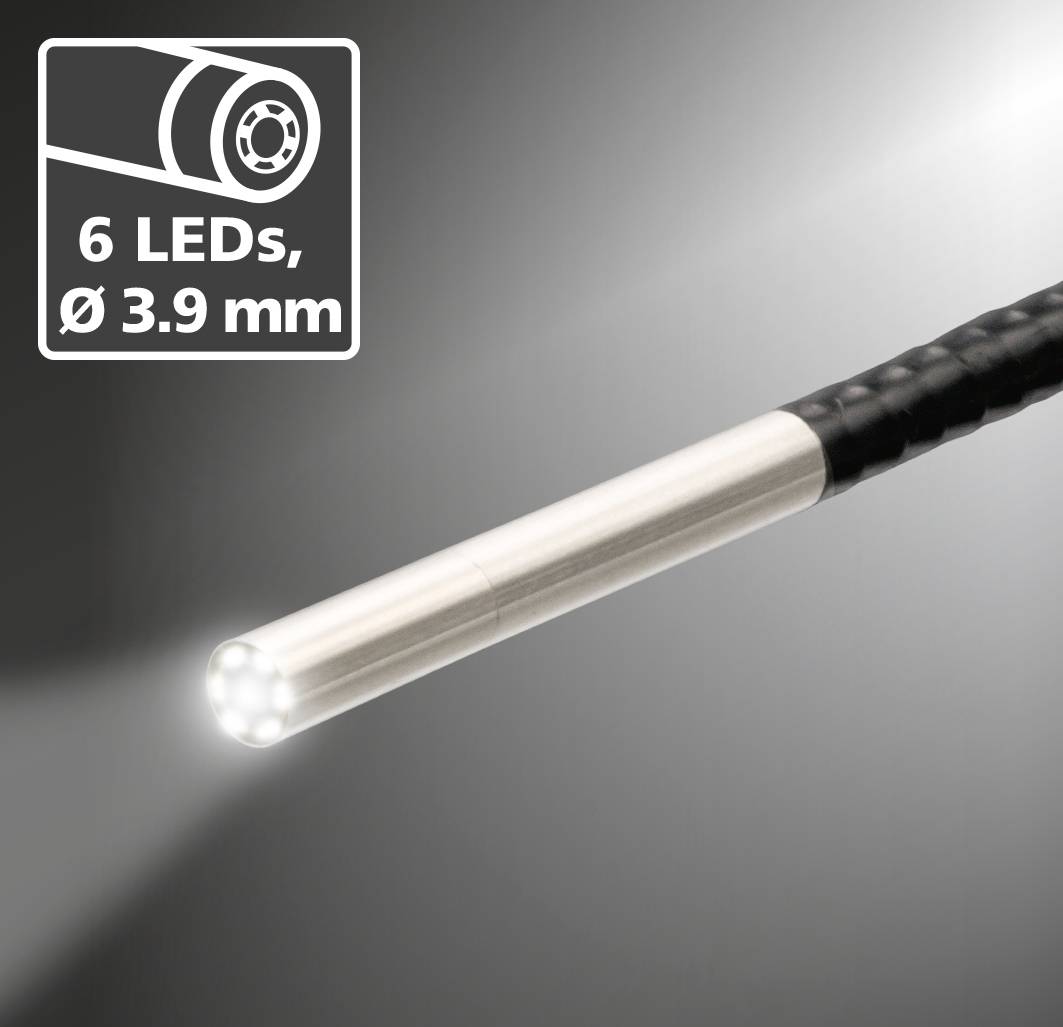

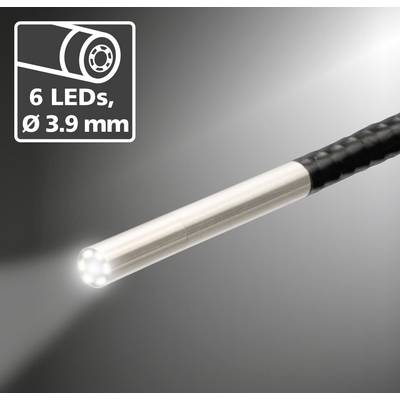

Endoscope probe with 6 LEDs, diameter 3.9 mm; features illuminated tip for viewing in narrow spaces or cavities.

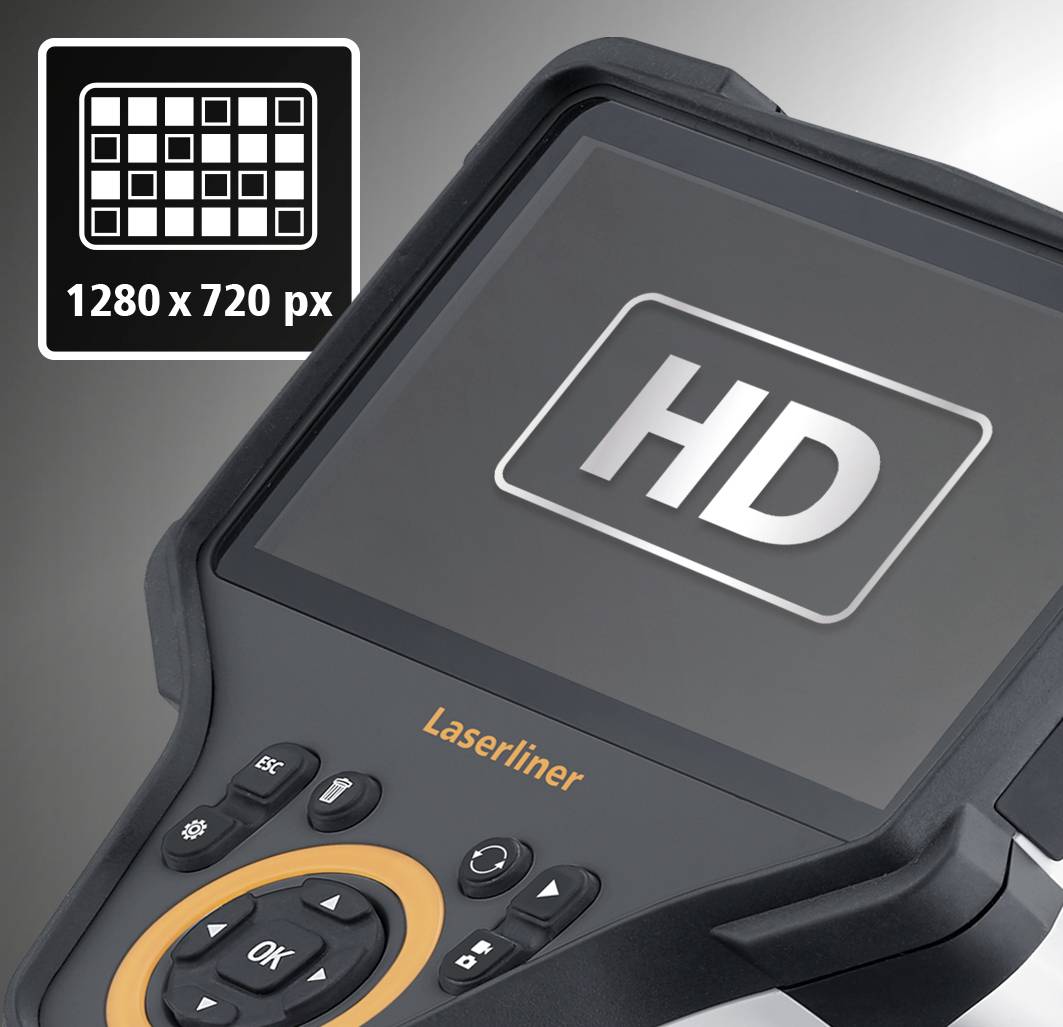

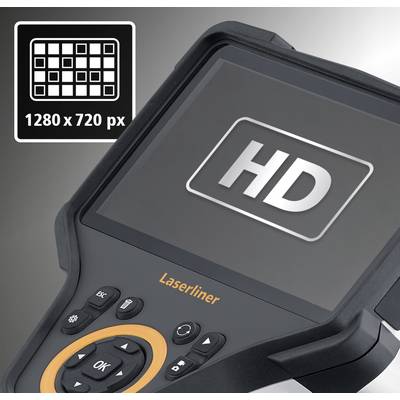

Portable device with HD screen, buttons and the inscription 'Laserliner'. Image quality: 1280 x 720 pixels.

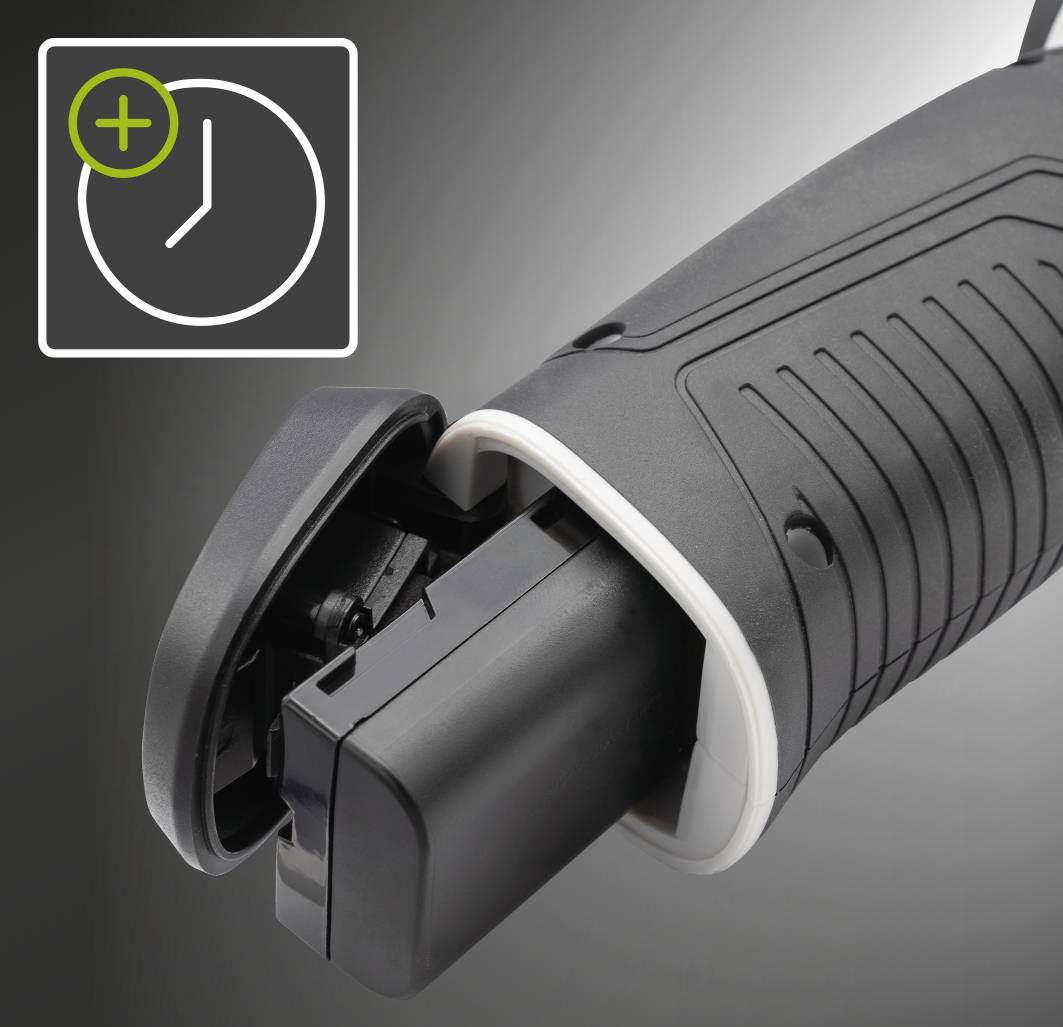

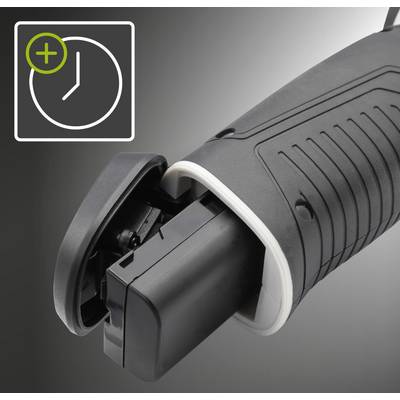

A battery pack is inserted into a housing, with a symbol for extended operating time in the upper corner.

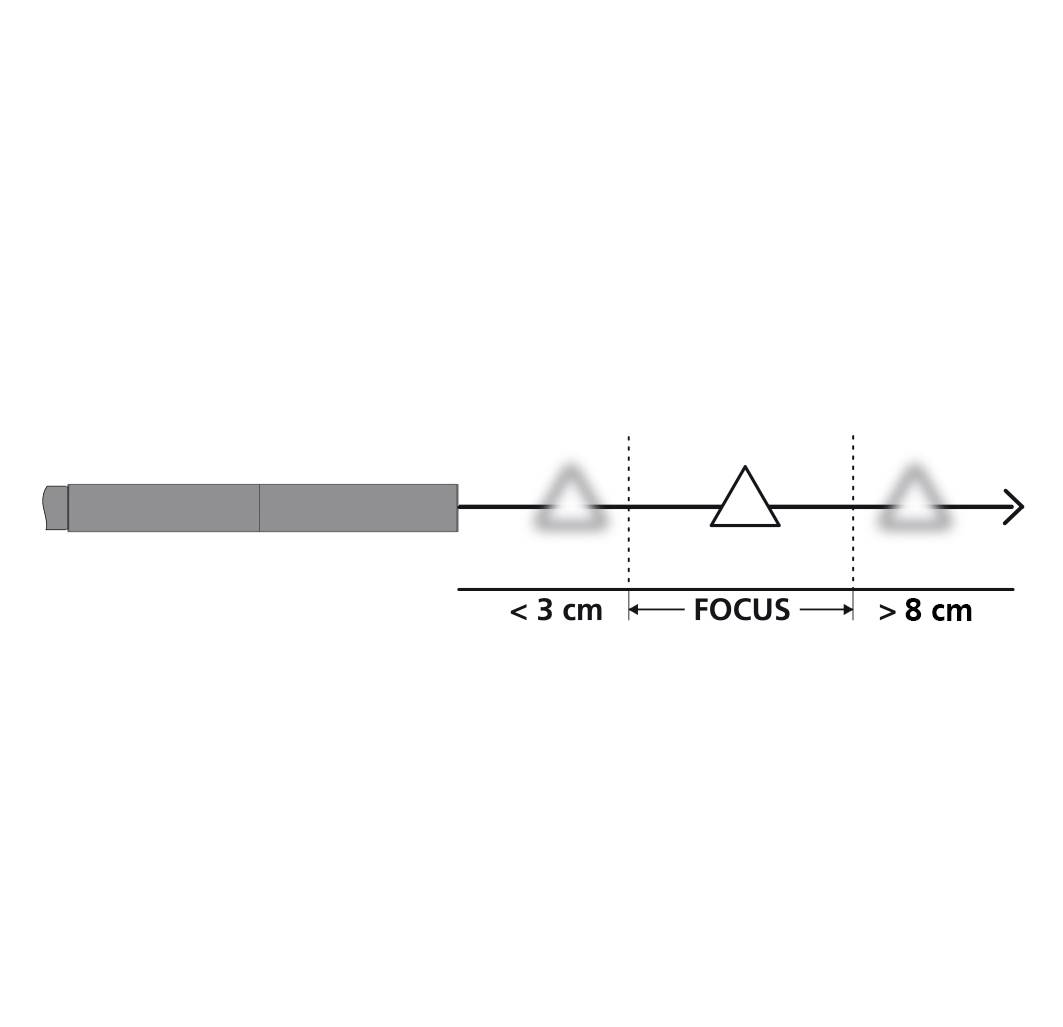

A test shows that objects are out of focus when less than 3 cm from the FOCUS point, are sharp within the FOCUS range (3-8 cm), and become blurry again beyond 8 cm.

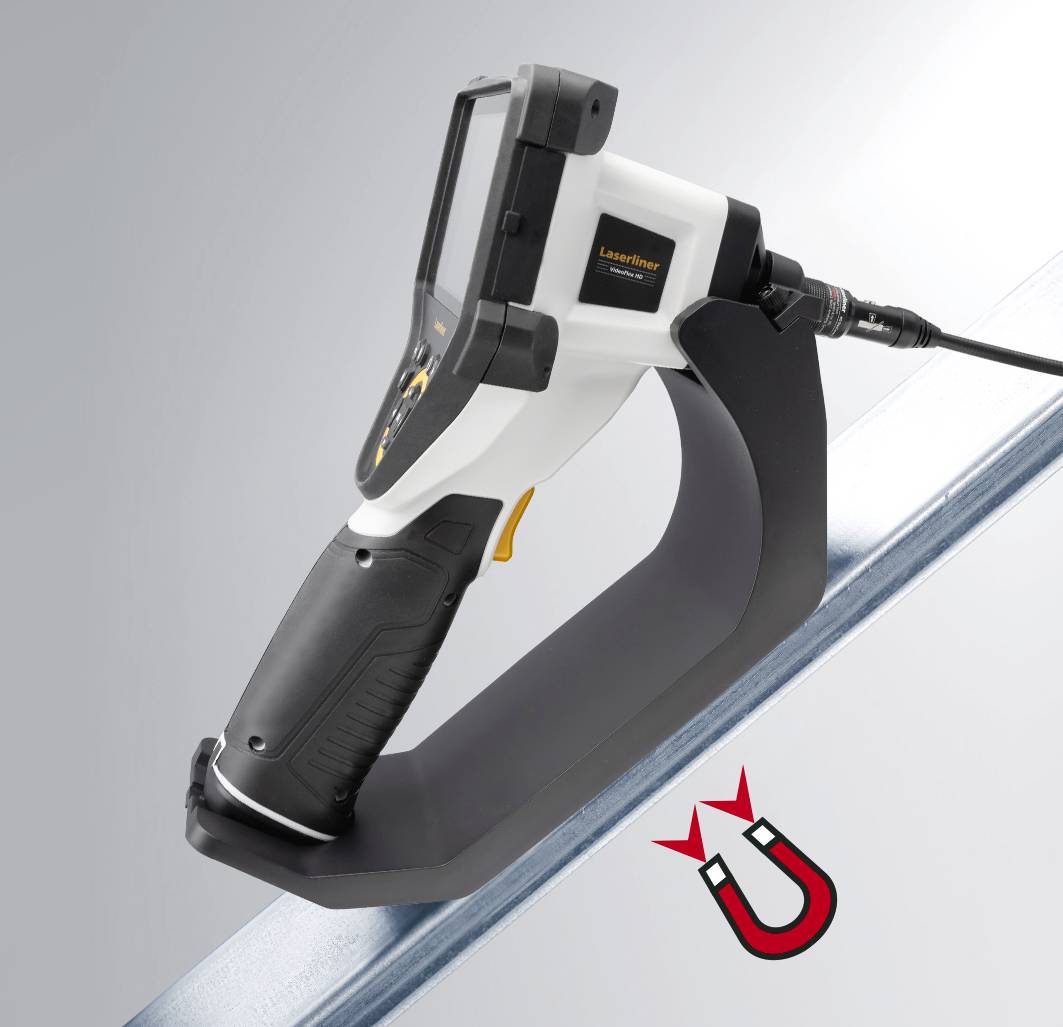

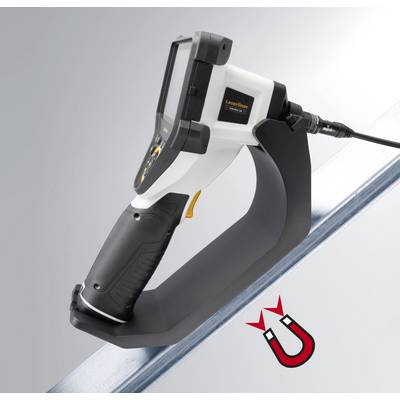

Cable camera with handle rests on metal, suggested by magnet symbol.

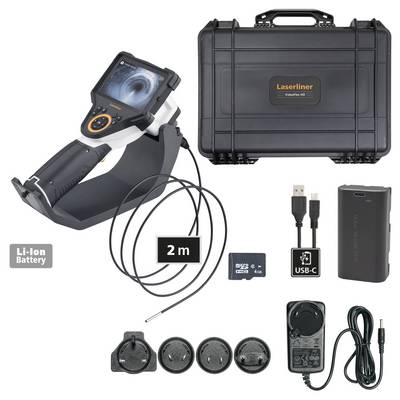

An inspection camera set with monitor, hard-shell case, Li-ion battery, USB-C cable, power adapter, various lens attachments and memory card.

1/13

Fast track dispatch on Mon, 14 Sep

2 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 948.74 / piece)

€ 948.74

plus VAT.

Only 2 Piece(s) available

Report legal concerns

Technical specifications

Min Bending radius of probe 75 mmLength of camera head 30 mmDiameter of camera head: Ø 3.9 mm

Product type: Inspection camera

Probe diameter: 3.9 mm

Probe length: 2 m

Endoscope features: Digital zoom

Camera resolution: 1280 x 720 Pixel

: IP67

Field of view: 83°

Max. bend radius: 75 mm

Weight: 100 g

Dim: (L x W) 2 m x 3.9 mm

Length: 2 m

Width: 3.9 mm

Type: VideoFlex HD Micro

Ambient temperature: 0 °C to 50 °C

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2842863 Laserliner 082.281A Inspection camera Probe diameter: 3.9 mm Probe length: 2 m

Warranty Terms

Warranty Terms 2842863 Laserliner 082.281A Inspection camera Probe diameter: 3.9 mm Probe length: 2 m

Description

The professional video inspection system with compact camera head is ideal for precise visual inspections on small openings, for example in pipelines, wall cavities and vehicles. The high-resolution camera enables very detailed pictures and video recordings with 1:1-playback on the display without loss of quality. The details can be captured excellently through the clear digital Zoom. Other advantages are the first class LED object illumination, optimal contrast reproduction of shades of gray, petrol and diesel resistant camera head and the magnetic stand for setting up the base unit.

This text is machine translated.

Features

Professional and high resolution video inspection system – suitable for very small openings

Scope of delivery

VideoFlex HDMicroCamera 2 mMagnetic holderHigh-capacity pack (Li-ion)Mains / charger incl. international AdapterUSB-C cable Micro SD cardCarrying case
