Buy VOLTCRAFT BS-25HR Endoscope Probe diameter: 8 mm Probe length: 88 cm

Portable inspection device with a flexible camera cable and display, suitable for exploring hard-to-reach areas.

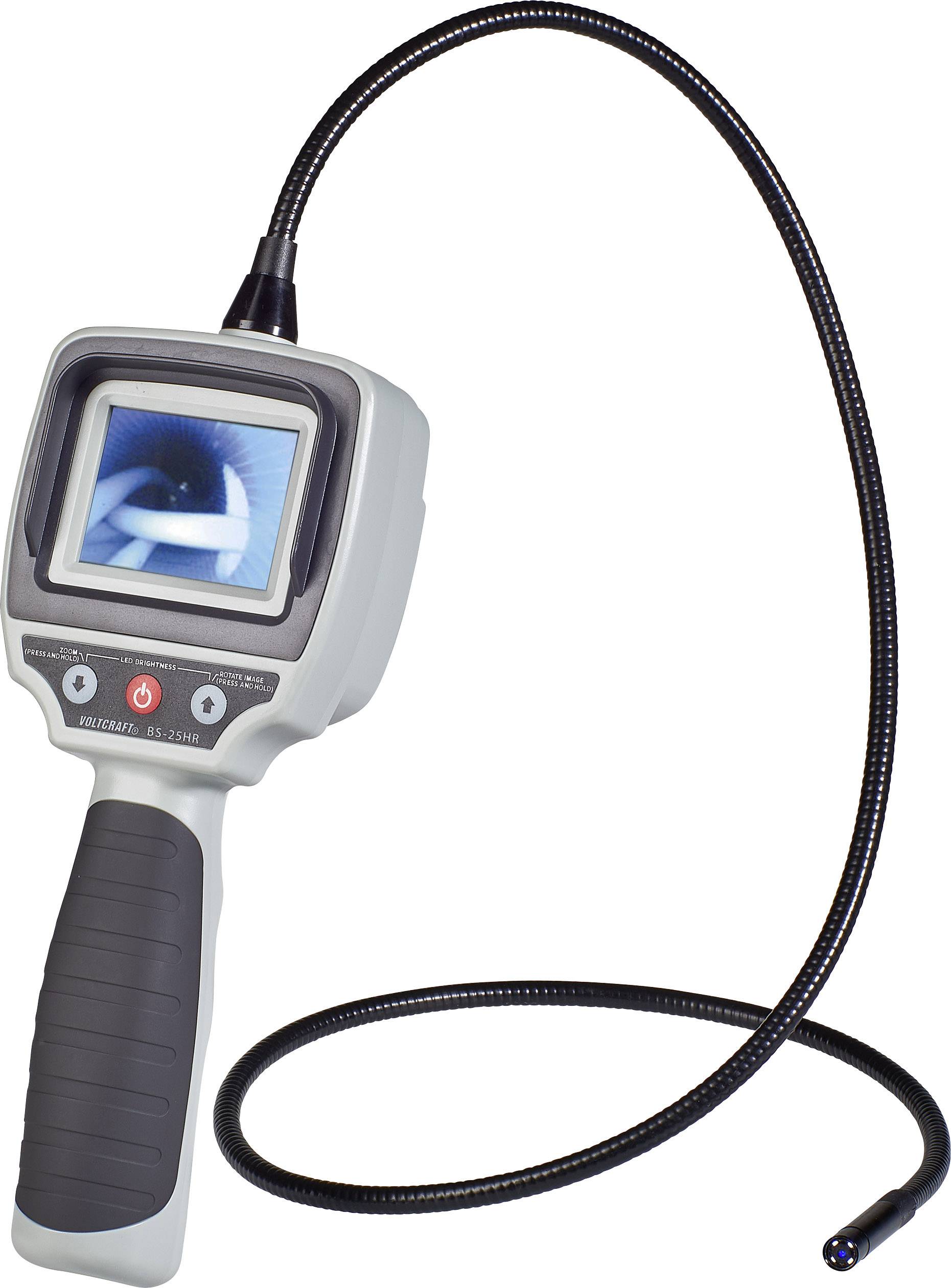

A portable endoscope with a flexible tube displays an image of an interior on the screen. Ideal for technical inspections.

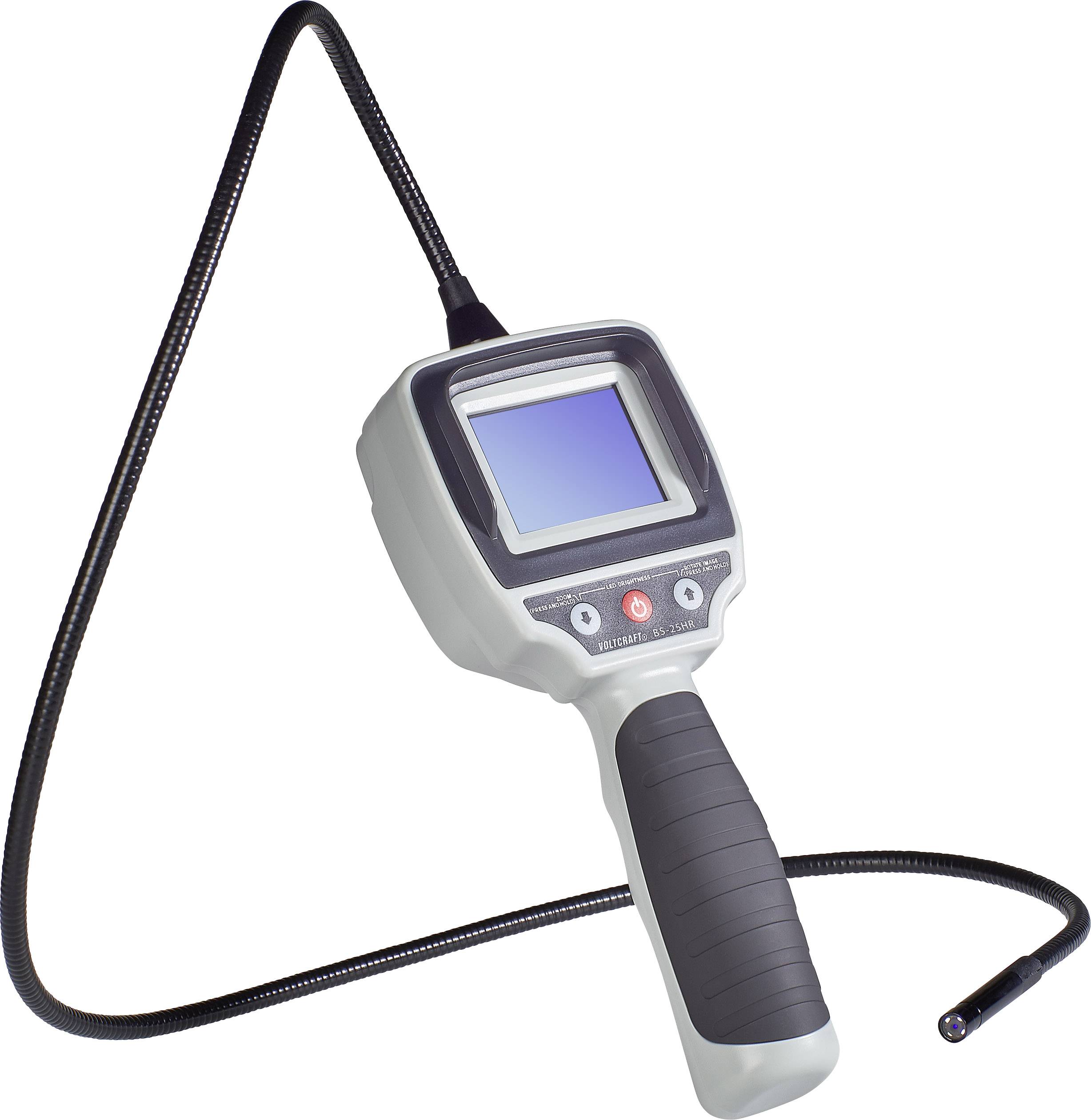

A portable endoscope with a flexible swan neck and camera for visual inspection of hard-to-reach areas.

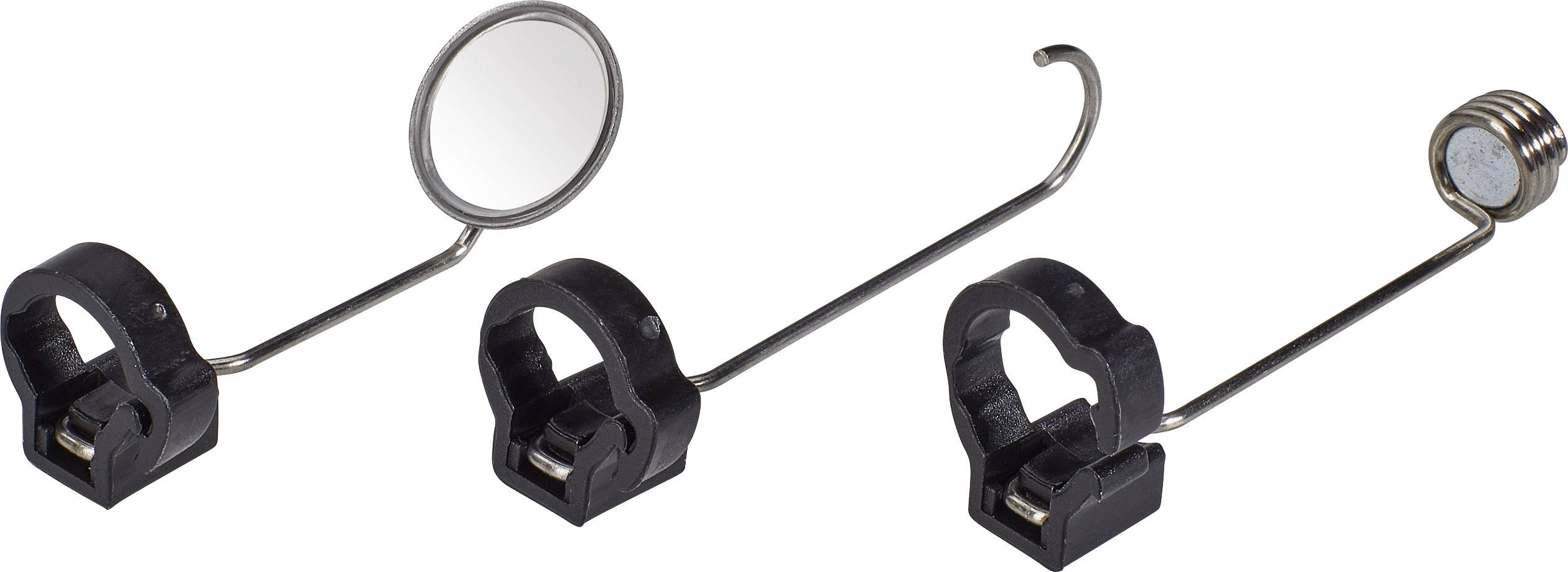

Three black mounting brackets with long metal arms, each with a mirror, a hook, and a magnet at the end. Suitable for tool storage.

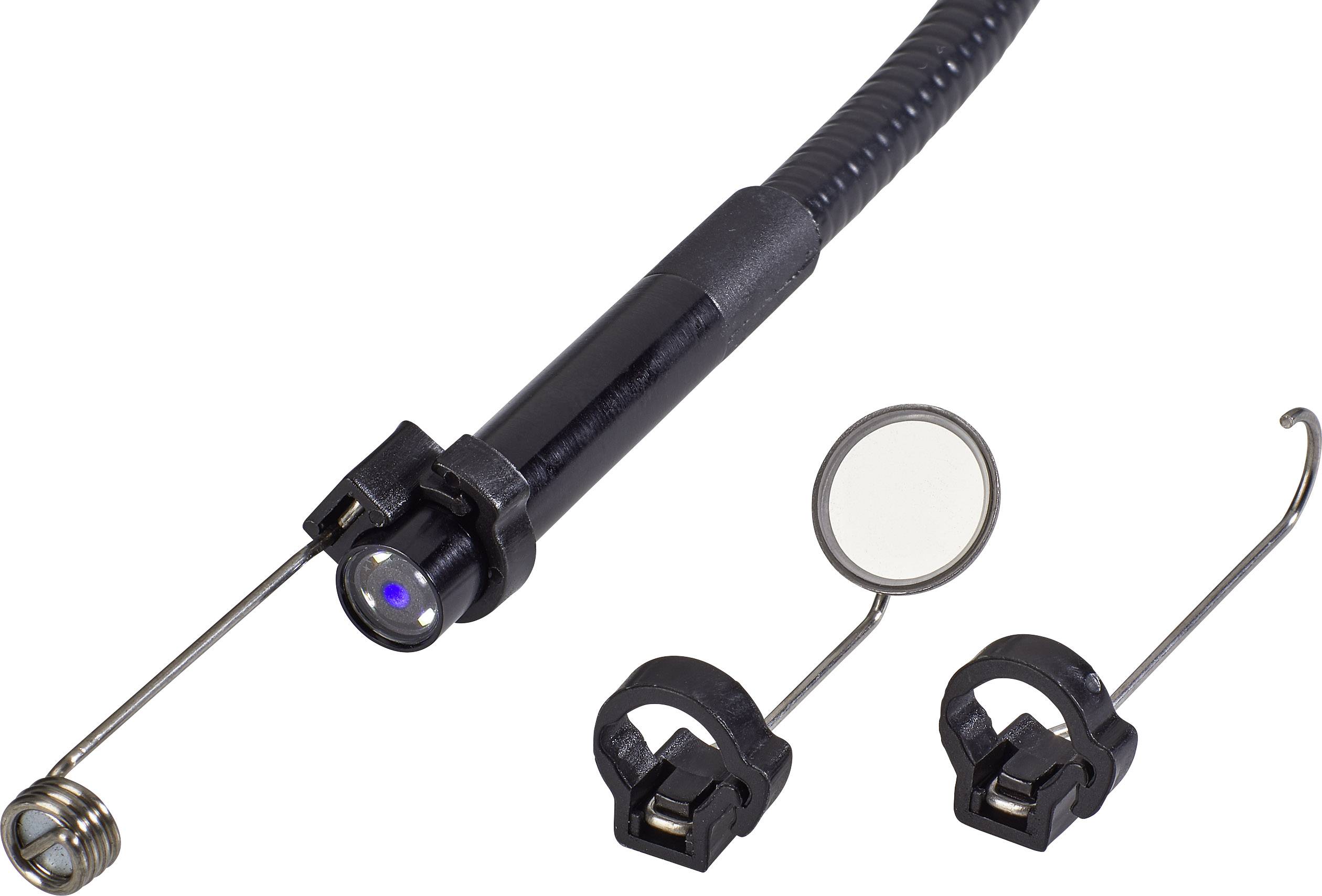

Camera probe with LED light, hook and mirror attachment. Suitable for inspecting hard-to-reach areas.

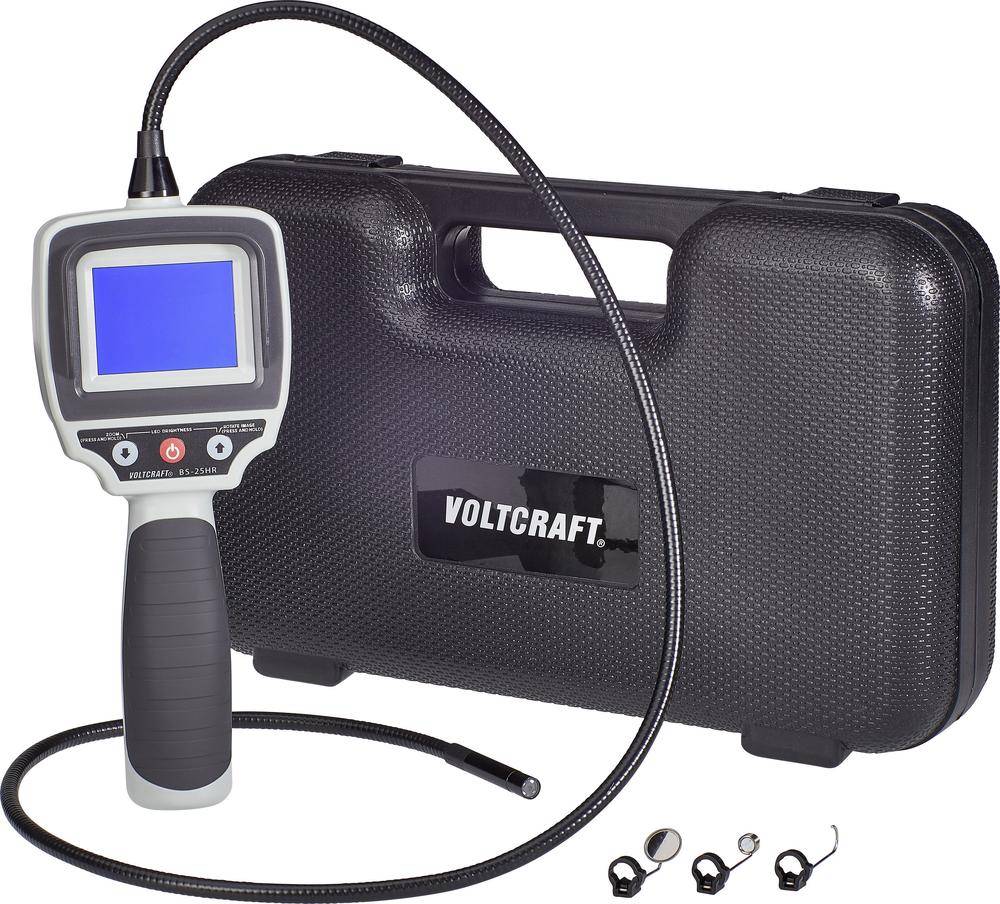

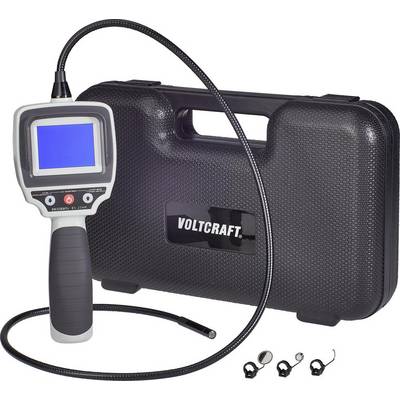

Inspection camera with display, flexible cable and three attachments, next to a black hard-shell case.

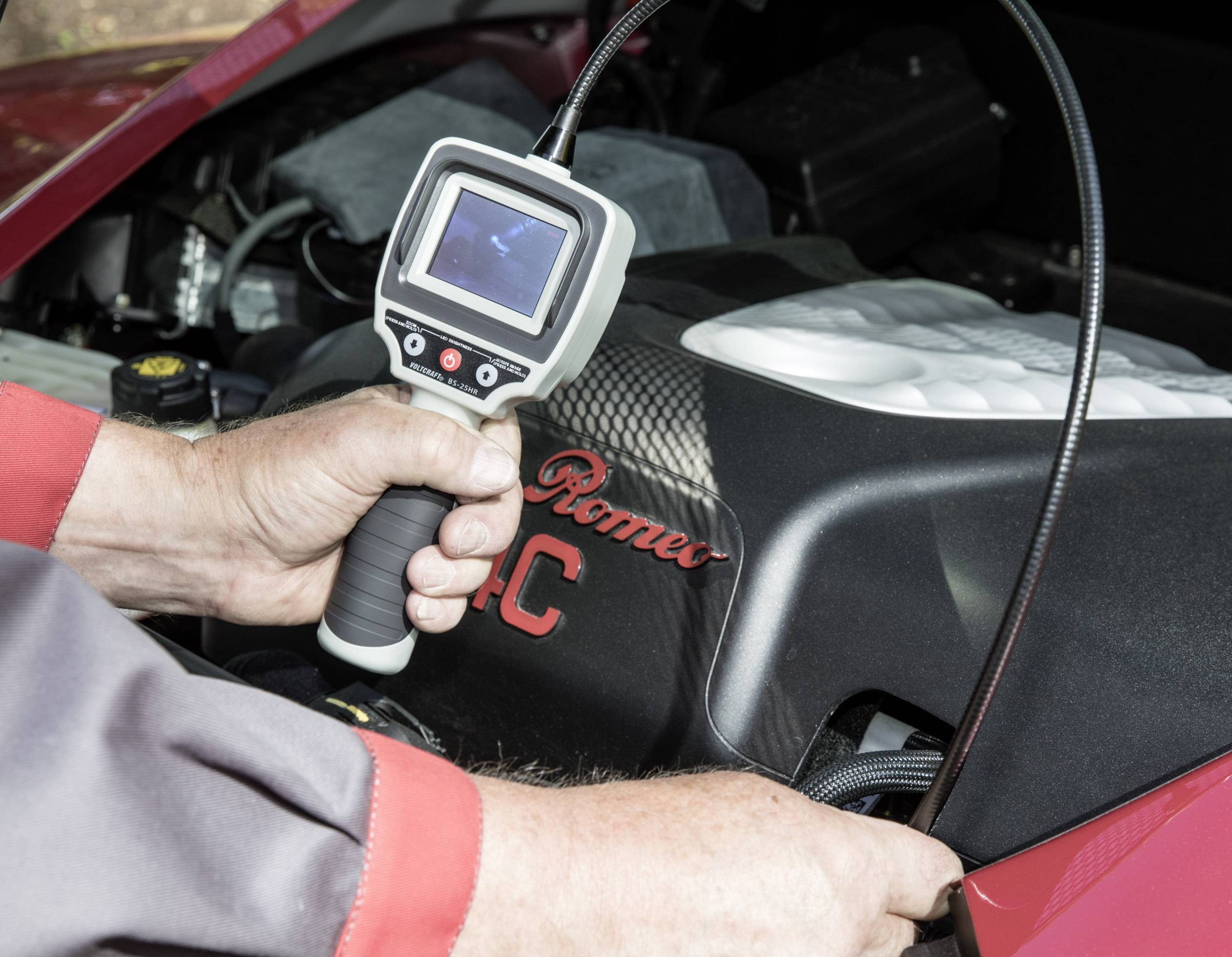

A person is using an inspection camera to check the engine compartment of a vehicle. The monitor displays an image of the interior.

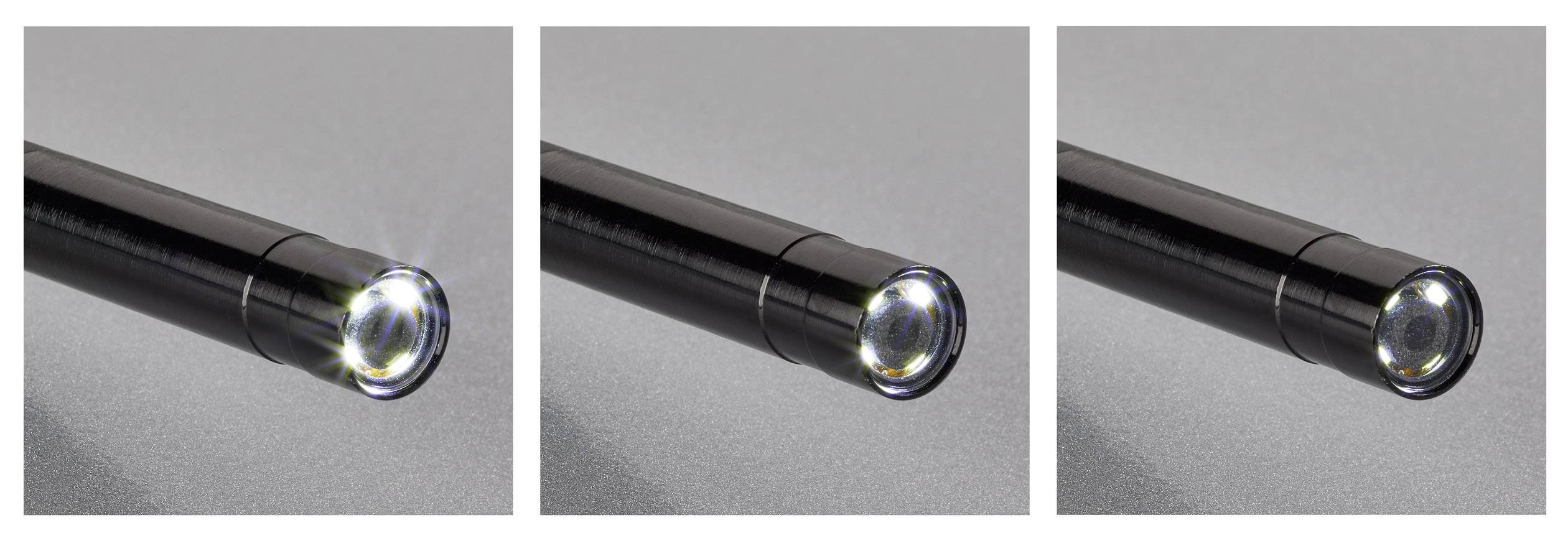

Three identical dark rods with luminous ends on a grey background.

VOLTCRAFT BS-25HR Endoscope Probe diameter: 8 mm Probe length: 88 cm-8

Close-up of a microphone with a focused view of the capsule tip, surrounded by a blurred background.

Dental mirror with a metal handle in a dental practice against a blurred background.

1/11

Our service for you

Datasheet (PDF)

Fast track dispatch on Wed, 5 Aug

160 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 65.54 / piece)

€ 83.18

-21 %

€ 65.54

plus VAT.

Report legal concerns

Highlights & Details

BS-25HR Endoscope

Waterproof mii camera (IP67) with 4 dimmable white LEDs
Ergonomic handle
5.8 cm TFT monitor with 960 x 240 pixels
Flexible gooseneck
Rotating image
Zoom function
Adjustable background light

Technical specifications

Display size: 2.3" (6 cm)
IP67 rating (camera head)

Product type: Endoscope

Probe diameter: 8 mm

Probe length: 88 cm

Endoscope features: Image rotation
LED lit
Digital zoom
High-resolution

Display resolution: 960 x 240 Pixel

Camera resolution: 640 x 480 Pixel

Focus: 3 cm - ∞

Digital zoom: 2 x

: IP67 (probe)

Power supply (details): 4x AA battery

Field of view: 54°

Light source: 4x LED (white)

Max. bend radius: 45 mm

Weight: 313 g

Type: BS-25HR

Ambient temperature: 0 to +45 °C

Min. focusing distance: 30 mm

Documents & Downloads

Datasheet

Datasheet 1086332 VOLTCRAFT BS-25HR Endoscope Probe diameter: 8 mm Probe length: 88 cm

User & Safety Instructions

User & Safety Instructions 1086332 VOLTCRAFT BS-25HR Endoscope Probe diameter: 8 mm Probe length: 88 cm

Conformity certificate

Conformity certificate 1086332 VOLTCRAFT BS-25HR Endoscope Probe diameter: 8 mm Probe length: 88 cm

Warranty Terms

Warranty Terms 1086332 VOLTCRAFT BS-25HR Endoscope Probe diameter: 8 mm Probe length: 88 cm

Description

The BS-25HR endoscope features a colour camera and is ideal for inspecting areas that are notoriously difficult to access The endoscope comes with a 34.5" (88cm) semi-rigid gooseneck that can be inserted into ducts, conduits, and pipes, or used on car engine compartments to check for damage or corrosion. The dimmable LED camera lighting ensures optimum illumination. An extremely useful tool for DIYers and model makers, as well as for keen naturalists, to explore e.g. animal burrows or bird nesting boxes in a non-intrusive way.

Features

34.5" (88 cm) semi-rigid gooseneck
Waterproof camera head (Ø 8 mm)
Dimmable 4 LED lighting
LC colour display
Zoom function (x1 / x1.5 / x2)
180 degree screen image flip
Anti-slip handle.

Scope of delivery

Magnet, gripper and mirror attachment
Case
User manual.

Hints

Not to be used on humans or animals! Batteries not included.
