VOLTCRAFT BS-1500T Endoscope main unit
EAN:
Part number:
Item no:
Number
Total (€ 730.25 / piece)
€ 730.25
plus VAT.
Only 3 Piece(s) available
Highlights & Details
BS-1000T Endoscope basic device
- 8,89 (3,5'') cm TFT monitor
- Digital zoom function
- Video output
- Snapshot and video function
- Image comparison function
- Voice recording
- SD card included
- For use with various endoscope cameras
Technical specifications
- SD card (up to 32 GB)
- LED light: dimmable
- Product type
Endoscope main unit
- Endoscope features
Video output
Image function
TV output
SD card slot
Digital zoom
LED lit
Image rotation
Tripod mount
- Display resolution
320 x 240 Pixel
- Camera resolution
640 x 480 Pixel
- Digital zoom
2 x
- Power supply (details)
rechargeable 3.7 V/DC lithium polymer rechargeable battery / 5V/DC mains adapter
- Max. bend radius
14 mm
- Weight
650 g
- Dim
(L x W x H) 5 x 12.5 x 24 cm
- Length
5 cm
- Width
12.5 cm
- Height
24 cm
- Type
BS-1500T
- Ambient temperature
0 - 40 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1340787 VOLTCRAFT BS-1500T Endoscope main unit
Conformity certificate
Conformity certificate 1340787 VOLTCRAFT BS-1500T Endoscope main unit
Security datasheet
Security datasheet 1340787 VOLTCRAFT BS-1500T Endoscope main unit
Warranty Terms
Warranty Terms 1340787 VOLTCRAFT BS-1500T Endoscope main unit
Description
High-quality endoscope basic device with battery operation, mini USB interface, large display 8.89 cm (3.5") with 320 x 240 pixels, SD-card slot and TV output. The basic device can be combined as desired with different endoscope cameras to build the endoscope matching the task best. The BS-1500T has an image and video recording function with the option of direct playback or storage of data on SD card. During a video recording or during playback, stills can be generated at the same time to record relevant events precisely. The images and videos can be transferred to a computer via SD card or USB interface or played on a TV device via AV cable. The device also has a smooth brightness function setting for the connected endoscope camera. The playback image can also be mirror-inverted to optically balance out a mirror attached to the endoscope camera. The digital zoom function enables precise consideration of smaller areas. Both the thread and magnets on the rear of the casing are used for locking for hands-free work. The integrated LiPo battery enables an operating time of up to 4 hours.
Features
- Direct selection keys for zoom and image rotation
- Distance Counter function to the size measurement of objects
- Continuous brightness regulation for the used camera probes
- Integrated lipo-Battery (replaceable)
- Tripod mount
- On-screen menu in 26 languages
- Display 8.89 cm (3.5") with 320 x 240 pixels
- AV output (NTSC/PAL)
- Video format, MPEG4
- Picture format JPEG (640 x 480)
- Mini-USB interface
- SD card slot
- Video output
- Picture and video recording function

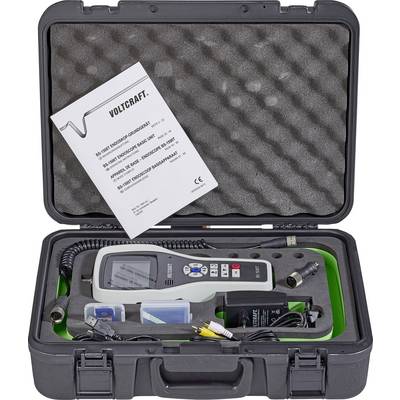

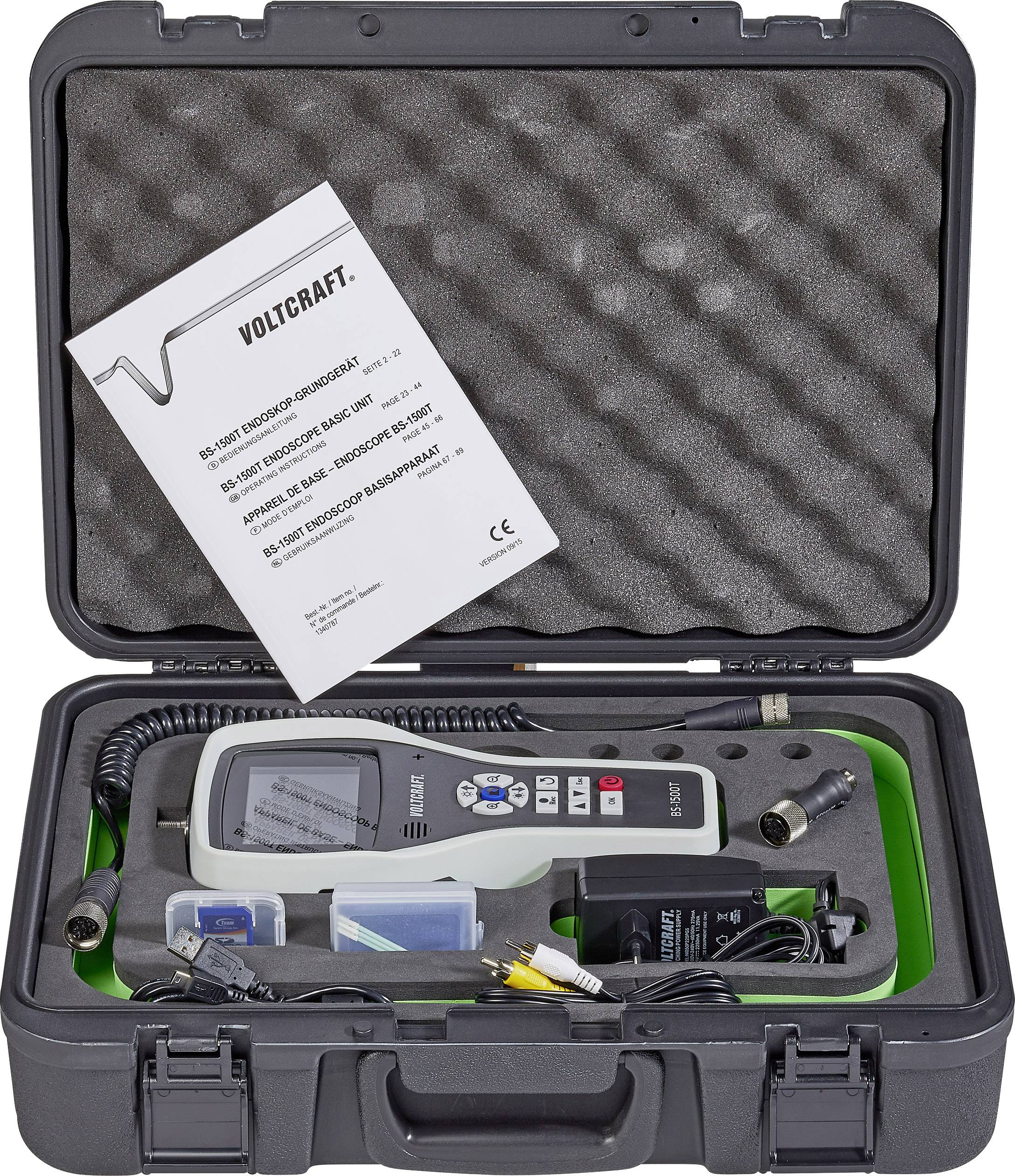

Scope of delivery
- Endoscope basic device
- Storage case
- Mains adapter
- USB cable
- 4 GB SD card
- Cleaning accessories
- AV cable
- Operating instructions.
Hints
For operation a suitable endoscope camera is needed (not included).
