Buy VOLTCRAFT BS-26+IP WIFI Endoscope Probe diameter: 9 mm Probe length: 1 m

A portable endoscope with a flexible swan neck and a camera at the tip. At the front are control buttons and an LED display panel.

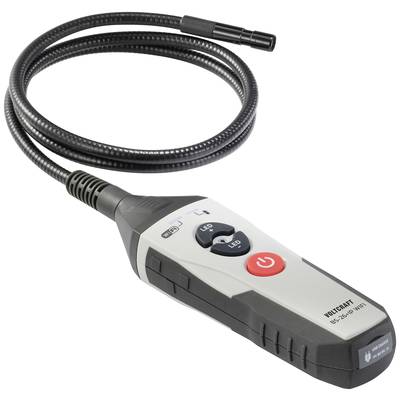

A portable inspection device with a flexible gooseneck and a camera at its tip; suitable for hard-to-reach areas.

A handheld endoscope with a flexible probe for inspecting hard-to-reach areas, used in technical or medical applications.

Endoscope camera with a flexible cable for inspecting hard-to-reach areas. Includes USB cable and small tool.

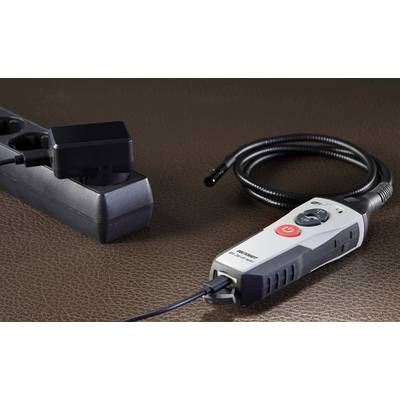

A multi-socket extension lead and an electric tool with a red switch are lying on a brown surface.

Two black flexible endoscopic probes with LED lights attached at the ends, one with a small camera, the other with a mirror.

Endoscope camera with illuminated lens on a black background, displaying technical details with a flexible cable for hard-to-reach areas.

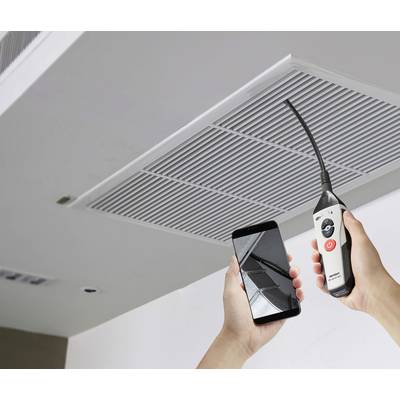

A person is checking the interior of a ventilation shaft on the ceiling using an endoscope camera and smartphone.

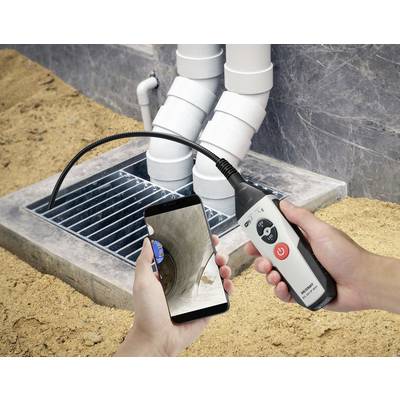

A person is holding an endoscope and a smartphone. The endoscope is examining a pipe within a drainage grid. The image shows its use for inspection.

An endoscope camera cable with a diameter of 9 mm. Symbols indicate: IP67 protection, 1000 mm length, 55° field of view.

1/10

Our service for you

Datasheet (PDF)

Fast track dispatch on Mon, 14 Sep

61 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 53.77 / piece)

€ 53.77

plus VAT.

Report legal concerns

Highlights & Details

BS-26+IP WIFI Endoscope

Wirelessimageand video transmission via Wi-Fi
Free app for Android™ and iOS
Adjustable6-pieceLED light (front camera)
Adjustable1-pieceLED light (side camera)
Camera probe length: 1 m
IP67 camera probe Ø 9 mm

Technical specifications

Product type: Endoscope

Probe diameter: 9 mm

Probe length: 1 m

Endoscope features: Wi-Fi

Camera resolution: 640 x 480 Pixel

Focus: 4-8 cm

: IP67 (probe)

Power supply (details): 3.7 V 2600 mAh

Field of view: 55°

Light source: LED

Max. bend radius: 50 mm

Weight: 318 g

Handle grip dimensions: 49*32 mm

Dim: (L x W x H) 197 x 49 x 32 mm

Length: 197 mm

Width: 49 mm

Height: 32 mm

Type: BS-26+IP WIFI

Ambient temperature: 0-50 °C

Plastic free packaging: Plastic-free packaging

Documents & Downloads

Datasheet

Datasheet 2615969 VOLTCRAFT BS-26+IP WIFI Endoscope Probe diameter: 9 mm Probe length: 1 m

User & Safety Instructions

User & Safety Instructions 2615969 VOLTCRAFT BS-26+IP WIFI Endoscope Probe diameter: 9 mm Probe length: 1 m

Warranty Terms

Warranty Terms 2615969 VOLTCRAFT BS-26+IP WIFI Endoscope Probe diameter: 9 mm Probe length: 1 m

Description

With the endoscope BS-26+IP WIFI, you can explore even hard-to-reach areas effortlessly and get an exact picture in every situation. The flexible 150 cm long gooseneck is perfectly suitable for checking the pipes and wires in the house or cavities in the car for damage or corrosion. The LED camera light thereby provides for optimum lighting conditions and a perfect picture quality in color.

This text is machine translated.

Features

Camera resolution: 640 x 480 pixels (0.3 MP)
Built-in rechargeable battery (2600 mAh)
Field of view: 55°
Video recording format: MOV
Photo format: JPG
Frame rate: 30 fps
Frequency range: 2.4 GHz
Transmission range in open area: Max. 20 m
Battery status indicator

Scope of delivery

Borescope
Hook attachment
USB cable
User manual
