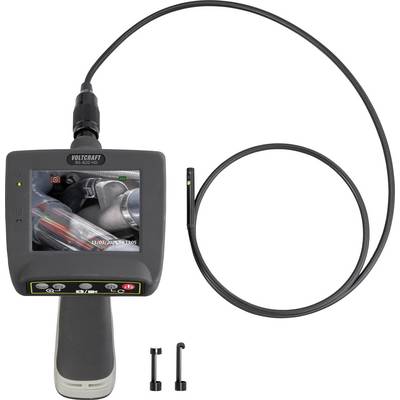

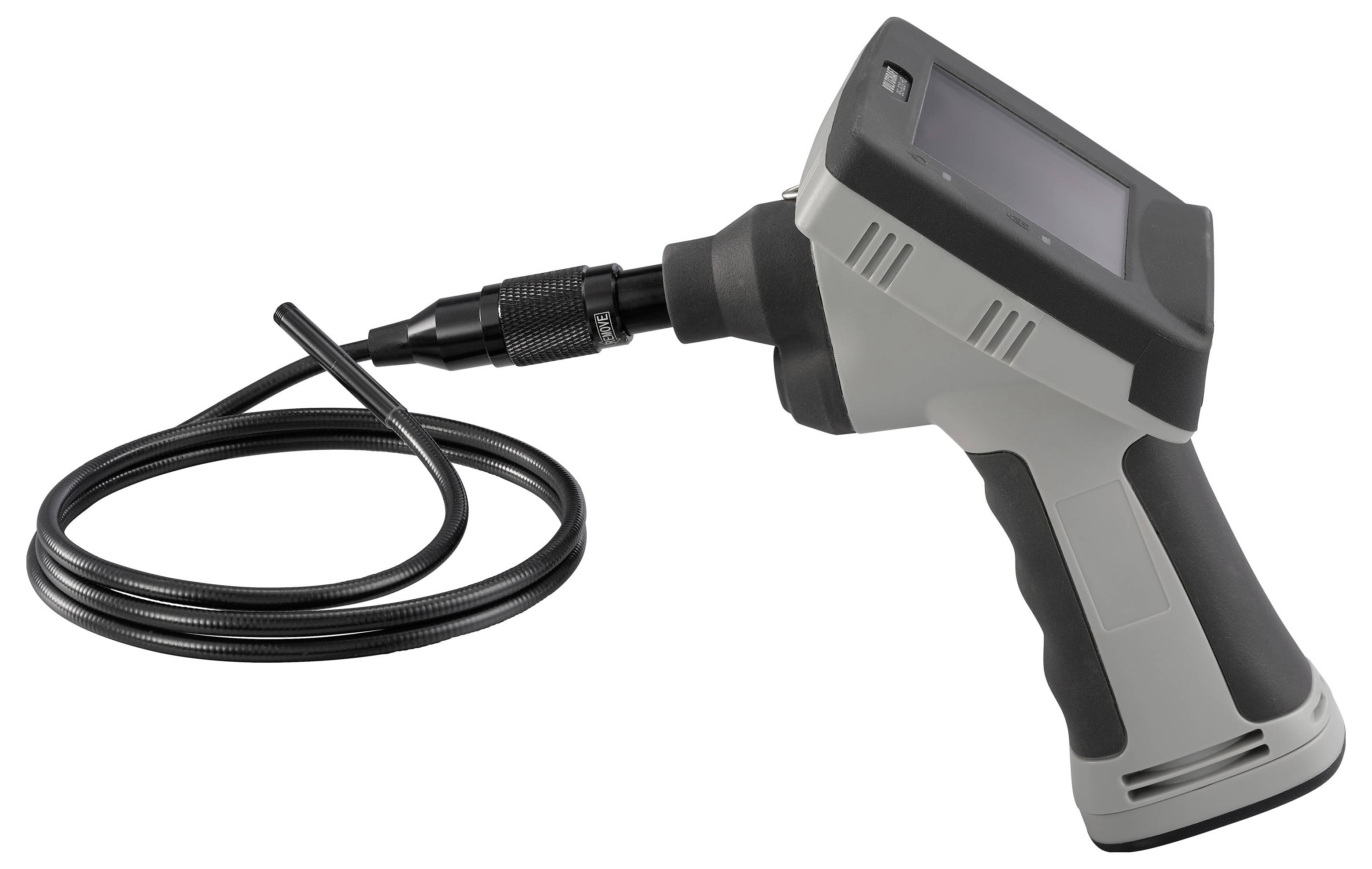

Buy VOLTCRAFT BS-820 HD Endoscope Probe diameter: 5.5 mm Probe length: 1 m

1/10

Datasheet (PDF)

Fast track dispatch on Mon, 14 Sep

154 Piece(s)

Sales and shipping:

Piece(s)

Total (€ 247.90 / piece)

€ 247.90

plus VAT.

Highlights & Details

Endoscope features: High-resolution
Waterproof
Image function
Image rotation
Digital zoom
Video output
Battery indicator

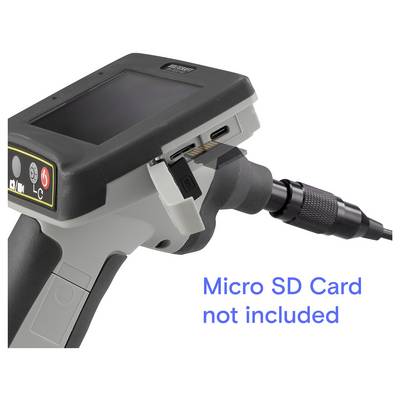

SD card slot

Datasheet 3553224 VOLTCRAFT BS-820 HD Endoscope Probe diameter: 5.5 mm Probe length: 1 m

User & Safety Instructions 3553224 VOLTCRAFT BS-820 HD Endoscope Probe diameter: 5.5 mm Probe length: 1 m

Warranty Terms 3553224 VOLTCRAFT BS-820 HD Endoscope Probe diameter: 5.5 mm Probe length: 1 m

Display & basic function:
8.89 cm (3.5") TFT-LCD Display
Display Resolution: 640 x 480 pixels
Display rotation: 0 - 180°
Image Capture
Digital Zoom (1x, 2x, 3x)
Video Recording
Frame Rate: 25 fps
Photo Format: JPG
Video Format: AVI
Automatic Power Off

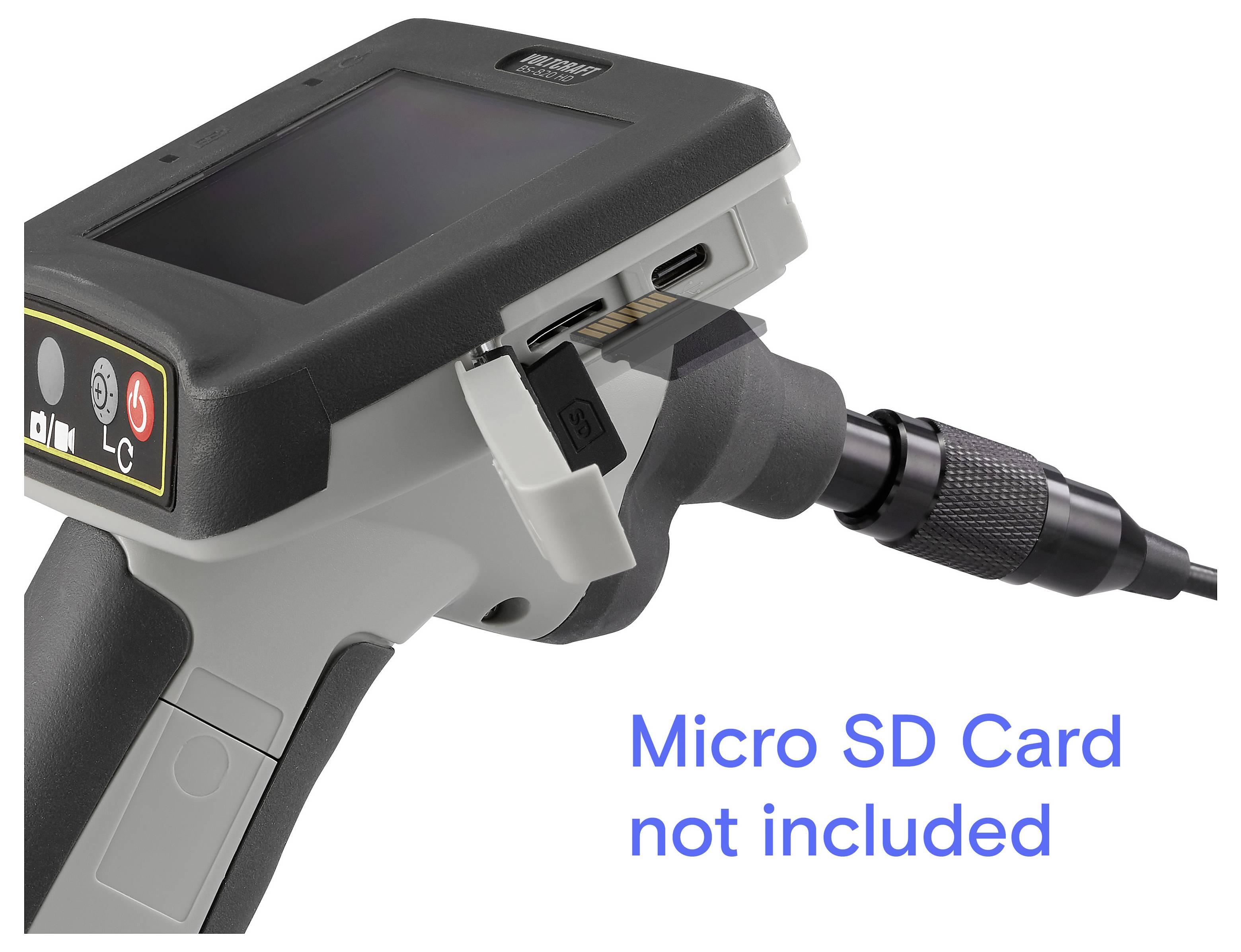

Max. microSD Card Storage: 128 GB
Data Transmission: USB Type-C® Interface
Camera:
Camera Head Diameter: 5.5 mm Dual Camera
Sensor Size (Front and Side): 1/9” HD CMOS Sensor
Resolution (Front and Side): 1280 x 720p (1 MP)

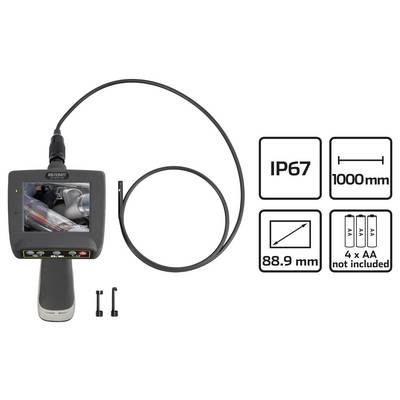

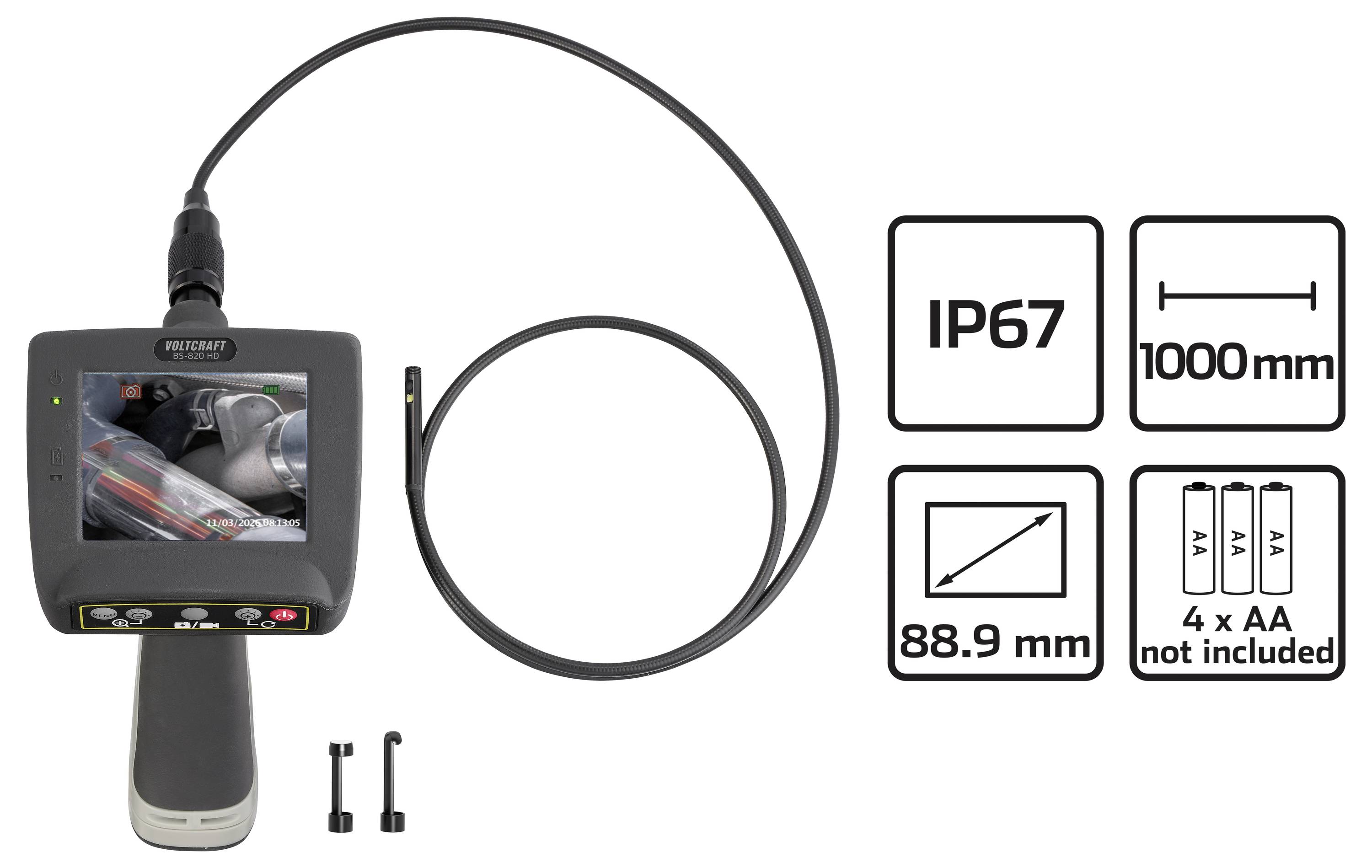

IP67 Rated Camera Head and Tube
Tube Length: 1 m

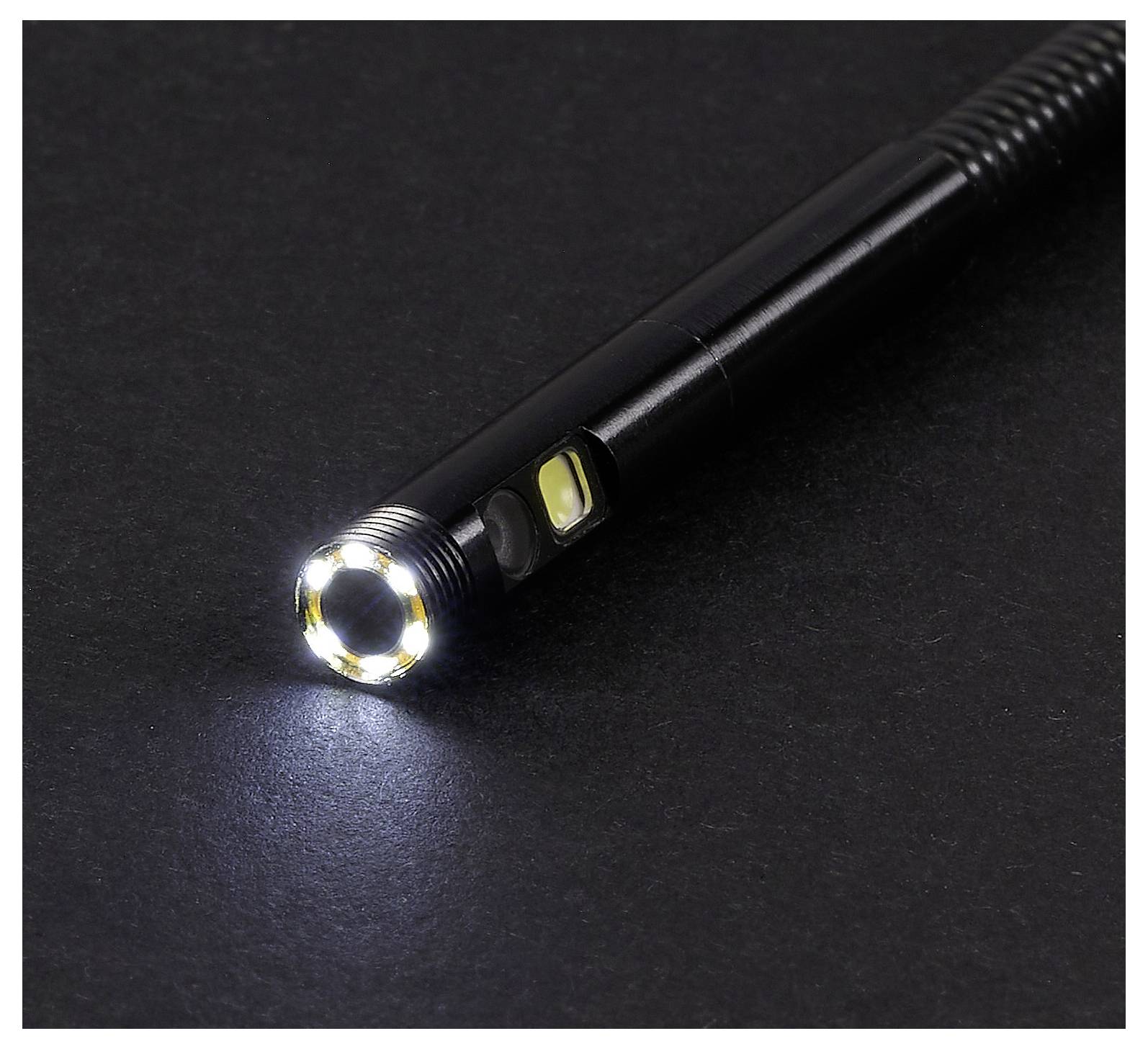

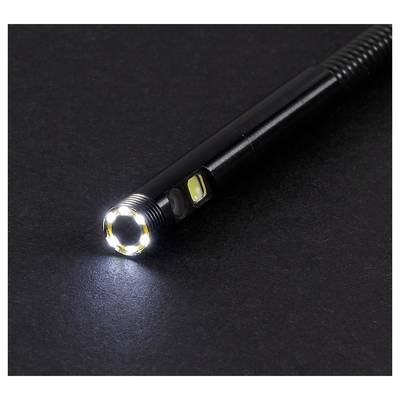

Adjustable (6+1) LEDs
Front LED Brightness: 580 ± 150 lux (at a distance of 35 mm)
Side LED Brightness: 1500 ± 150 lux (at a distance of 35 mm)
Fixed Focus: Front (35 mm to 60 mm), Side (20mm to 50 mm)
Minimum Bending Radius: 45 mm
Field of View: 68°
Automatic Exposure and White Balance

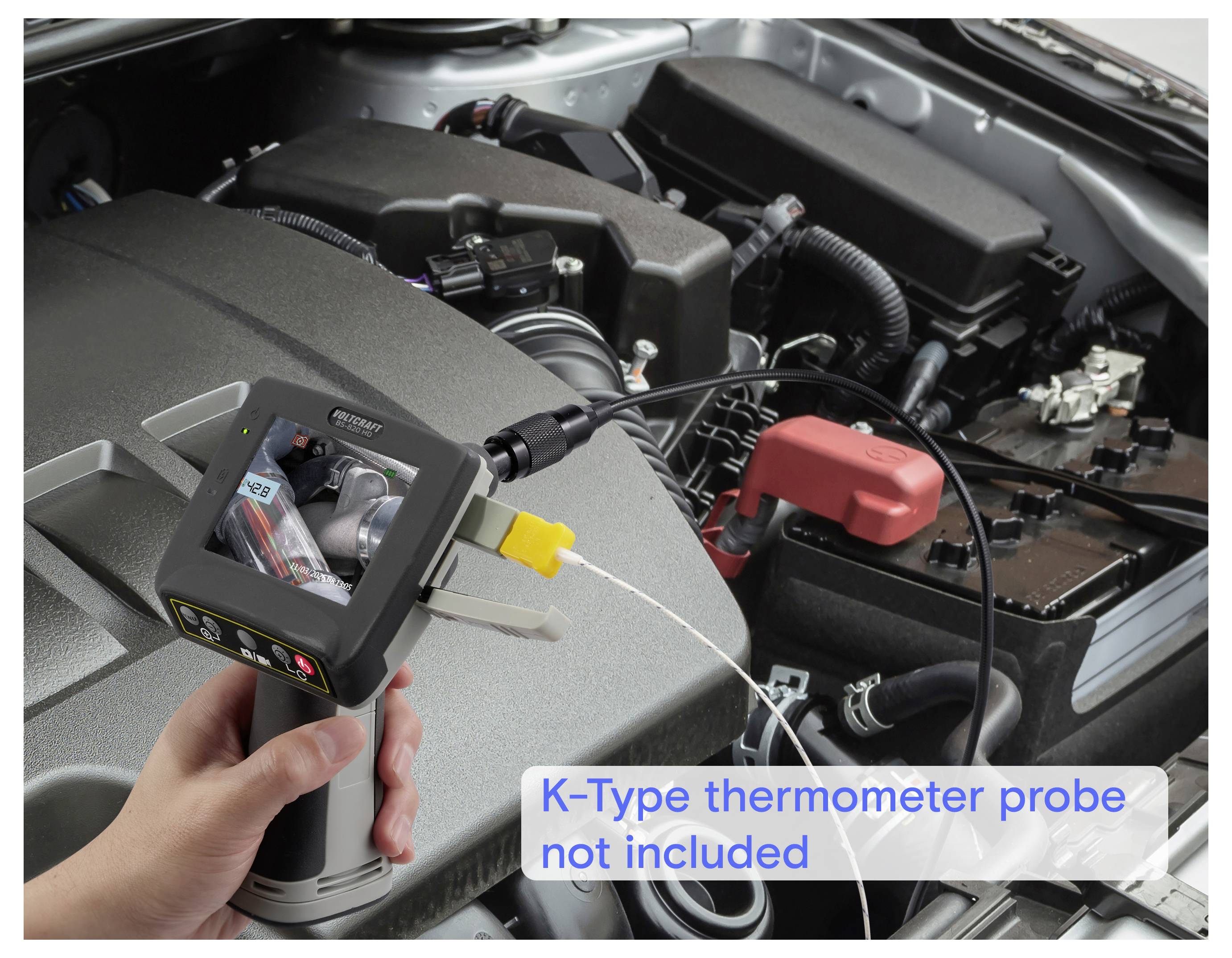

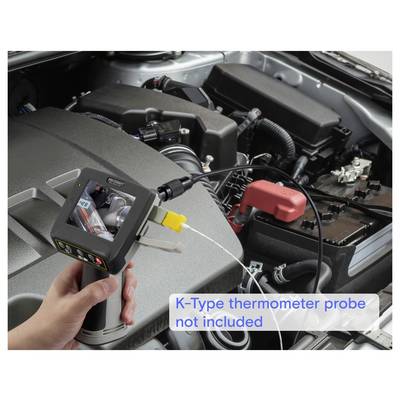

Suitable thermocouples
K-type thermocouple measurement range: -200 °C to 1350 °C
K-type thermocouple measurement accuracy: -200 °C to 700 °C; ±2 °C/+700°C to 1350 °C; ±4 °C
