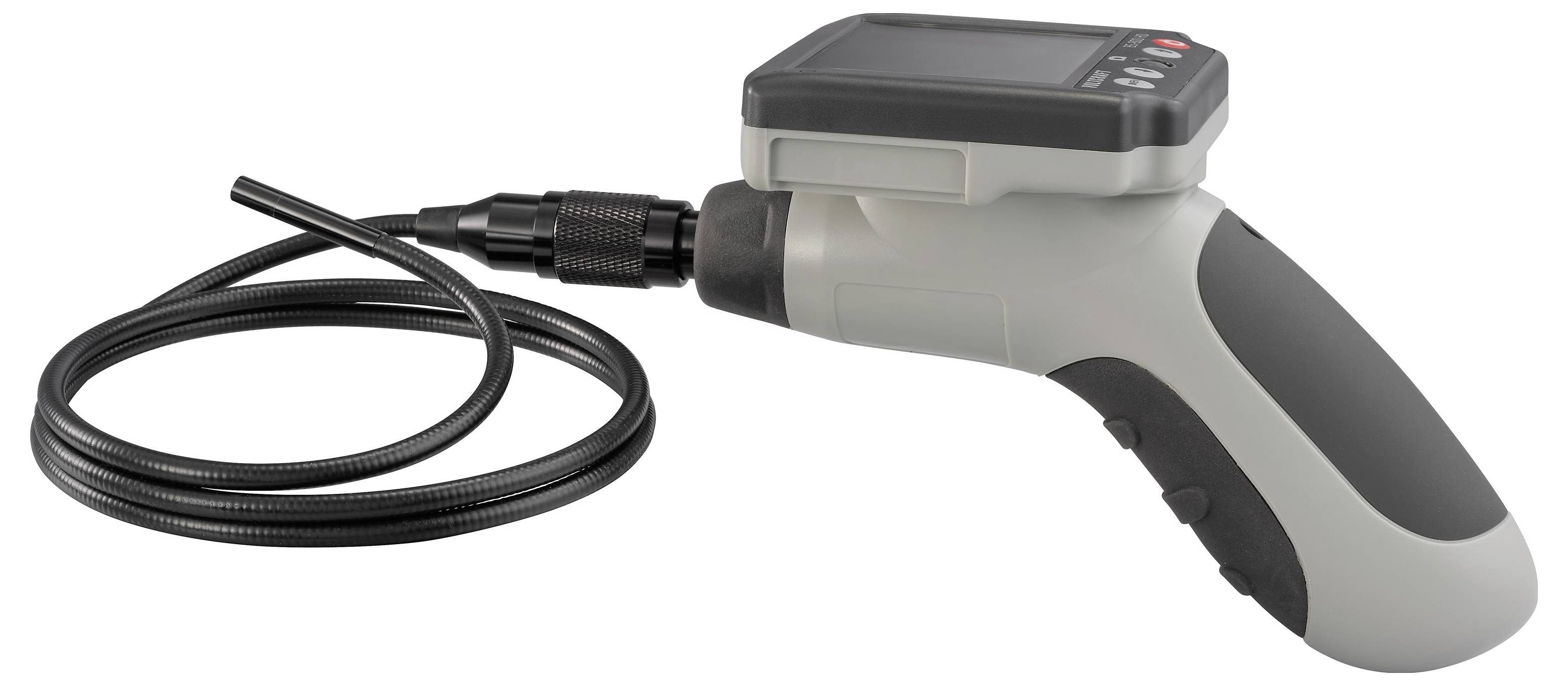

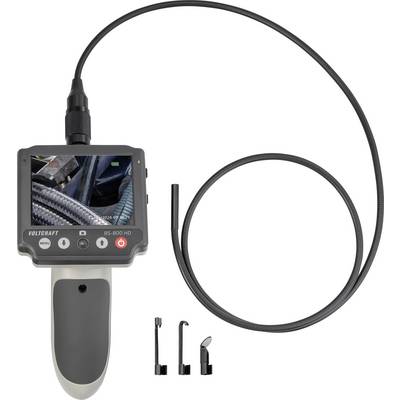

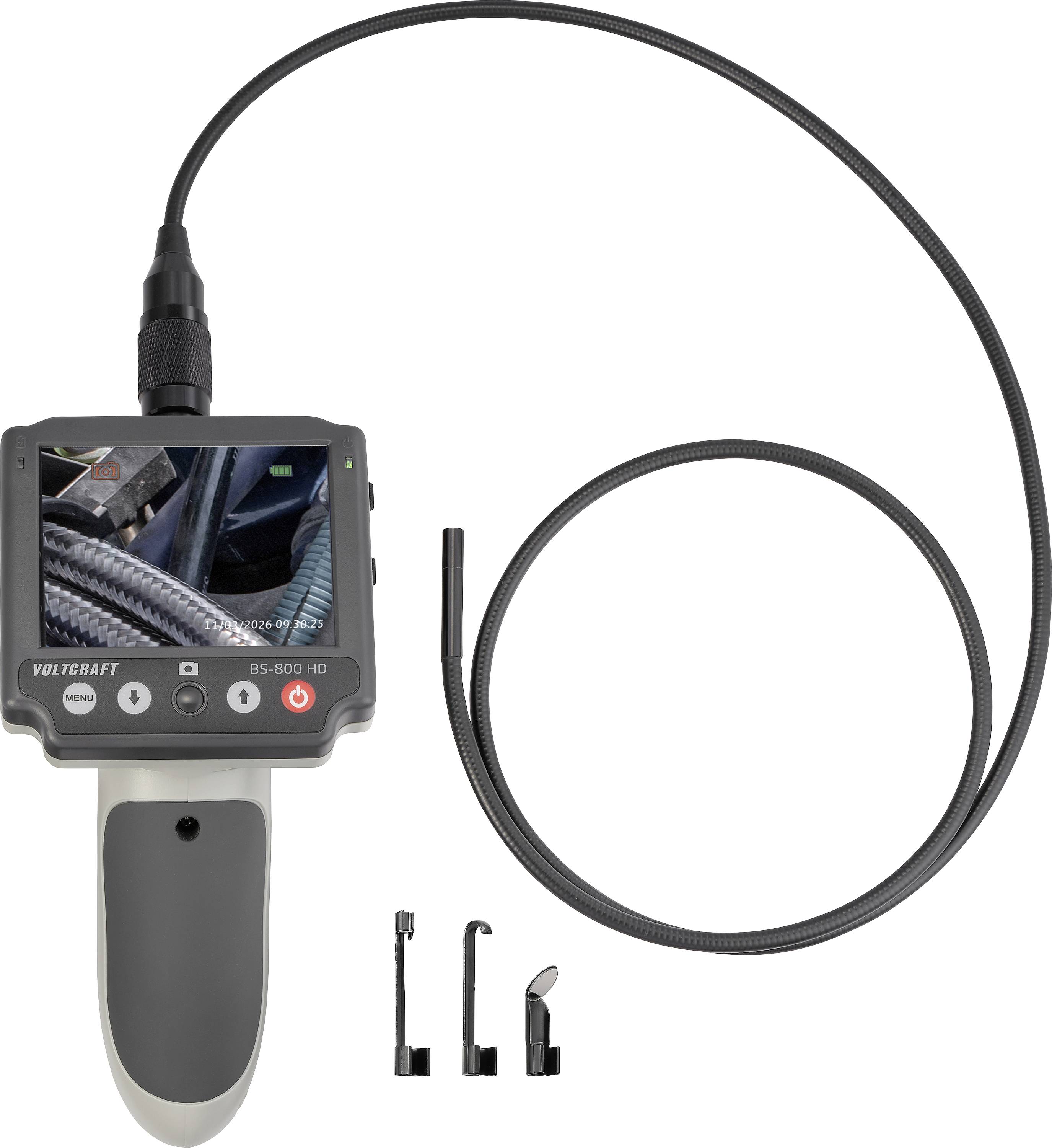

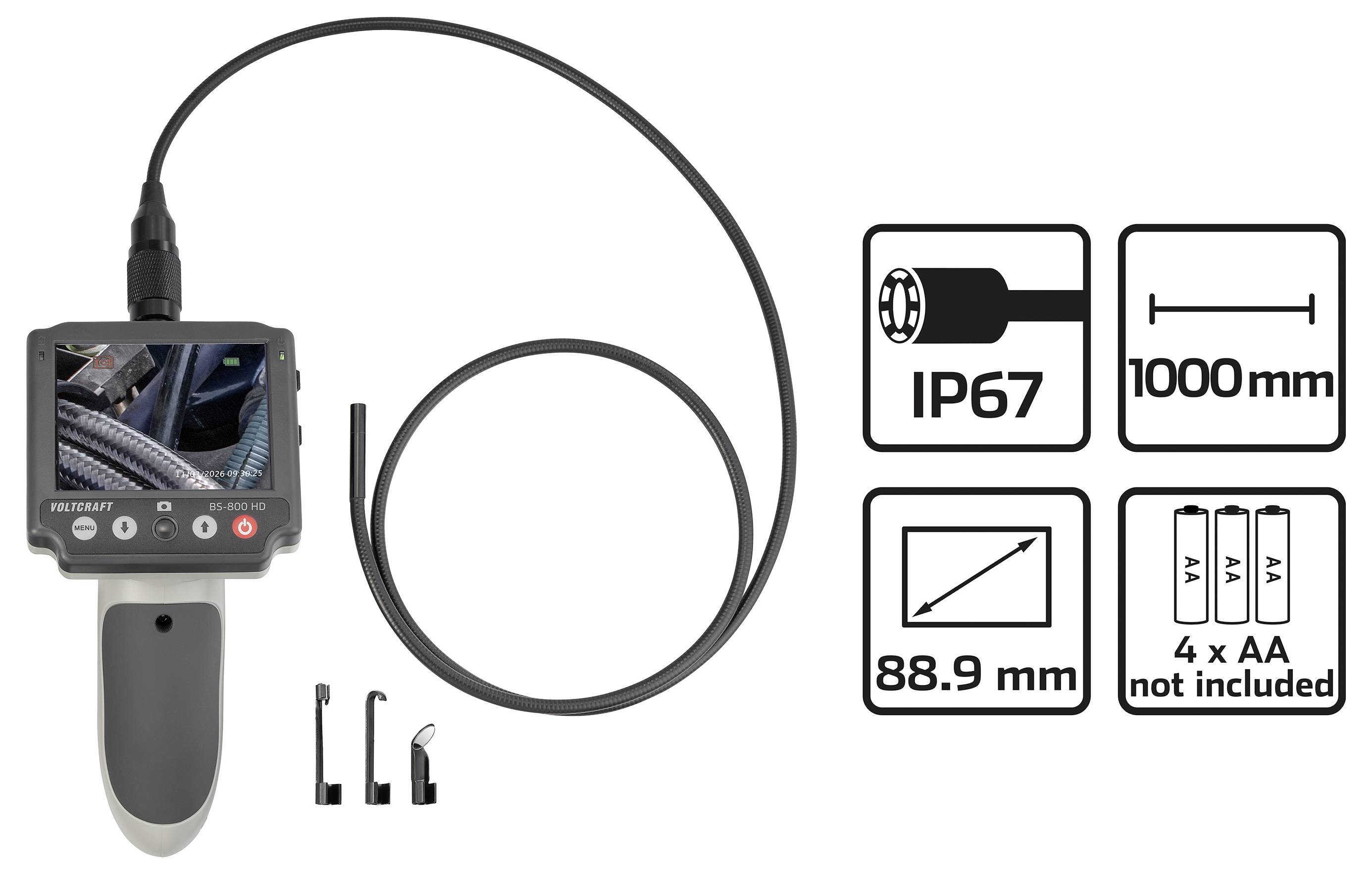

Buy VOLTCRAFT BS-800 HD Endoscope Probe diameter: 5.5 mm Probe length: 1 m

1/10

Datasheet (PDF)

Fast track dispatch on Mon, 14 Sep

185 Piece(s)

Sales and shipping:

Piece(s)

Total (€ 134.45 / piece)

€ 134.45

plus VAT.

Highlights & Details

Endoscope features: High-resolution
Image function
Image rotation
Digital zoom
Video output
Battery indicator

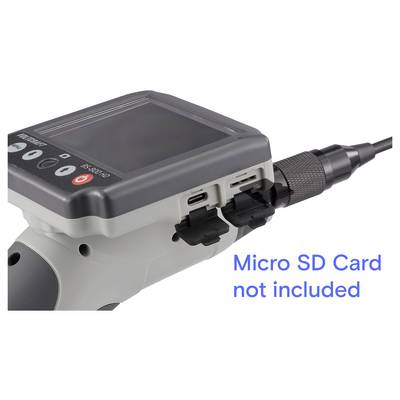

SD card slot

Datasheet 3553223 VOLTCRAFT BS-800 HD Endoscope Probe diameter: 5.5 mm Probe length: 1 m

User & Safety Instructions 3553223 VOLTCRAFT BS-800 HD Endoscope Probe diameter: 5.5 mm Probe length: 1 m

Warranty Terms 3553223 VOLTCRAFT BS-800 HD Endoscope Probe diameter: 5.5 mm Probe length: 1 m

Display and Basic Function:
Display type: 88.9 mm (3.5") TFT-LCD
Display resolution: 640 x 480 pixels
Display rotation: 0° to 180°
Snapshot function
Digital zoom: 1x, 2x, 3x
Video recording
Frame rate: 25 fps
Photo format: JPG
Video format: AVI
Automatic power-off function

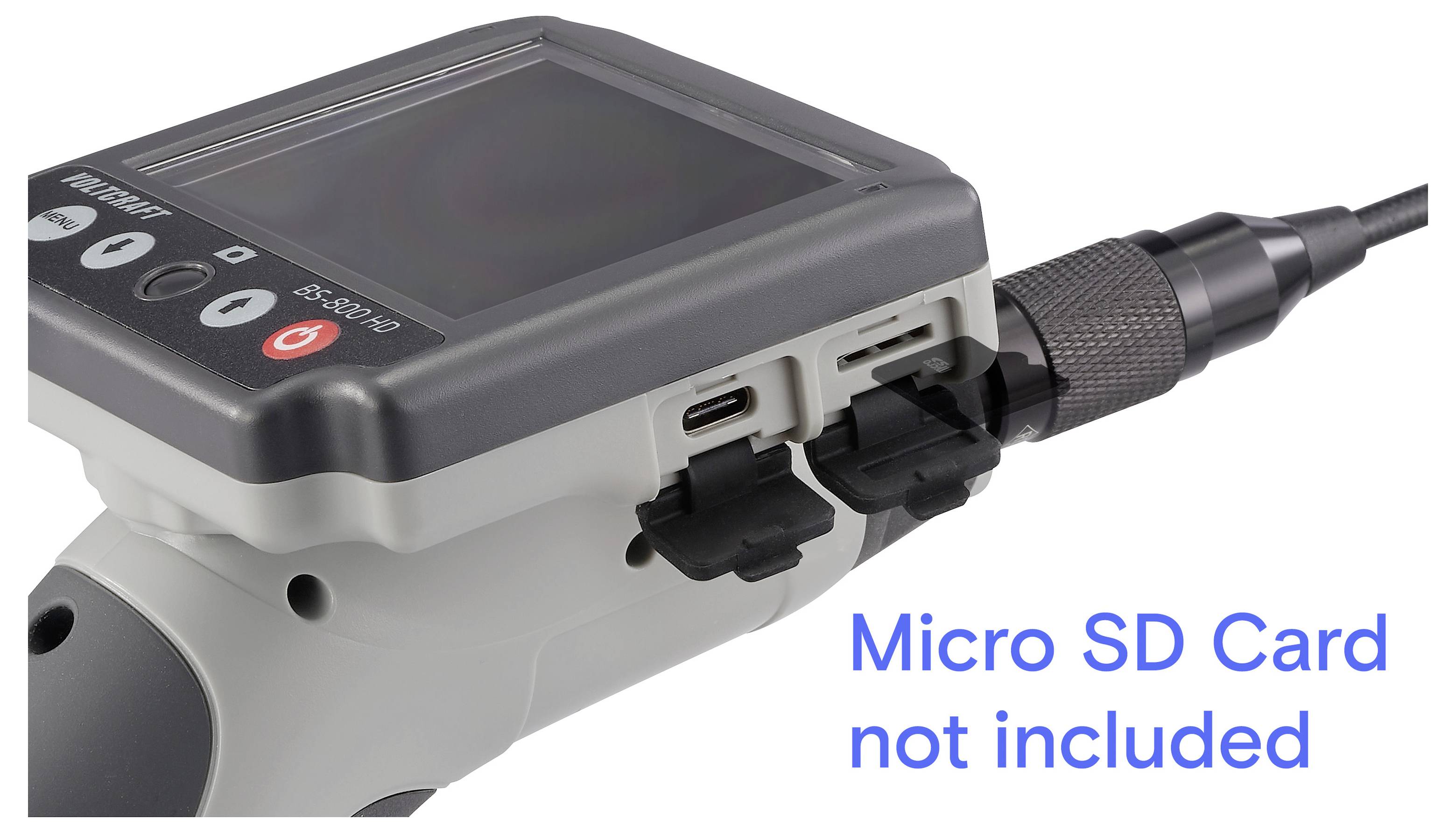

Max. microSD card storage: 128 GB
Data transmission: USB Type-C® interface
Camera:
Camera head diameter: 5.5 mm
Sensor: 1/9” HD CMOS
Resolution: 1280 x 720p (1 MP)

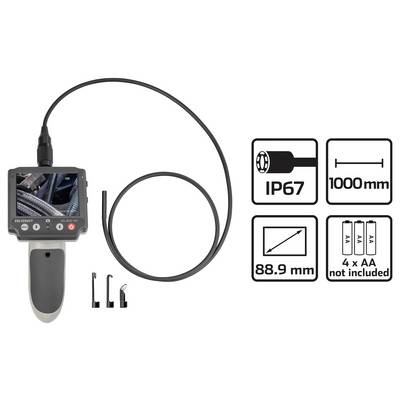

IP rating: IP67 (Camera head and tube)
Tube length: 1 m

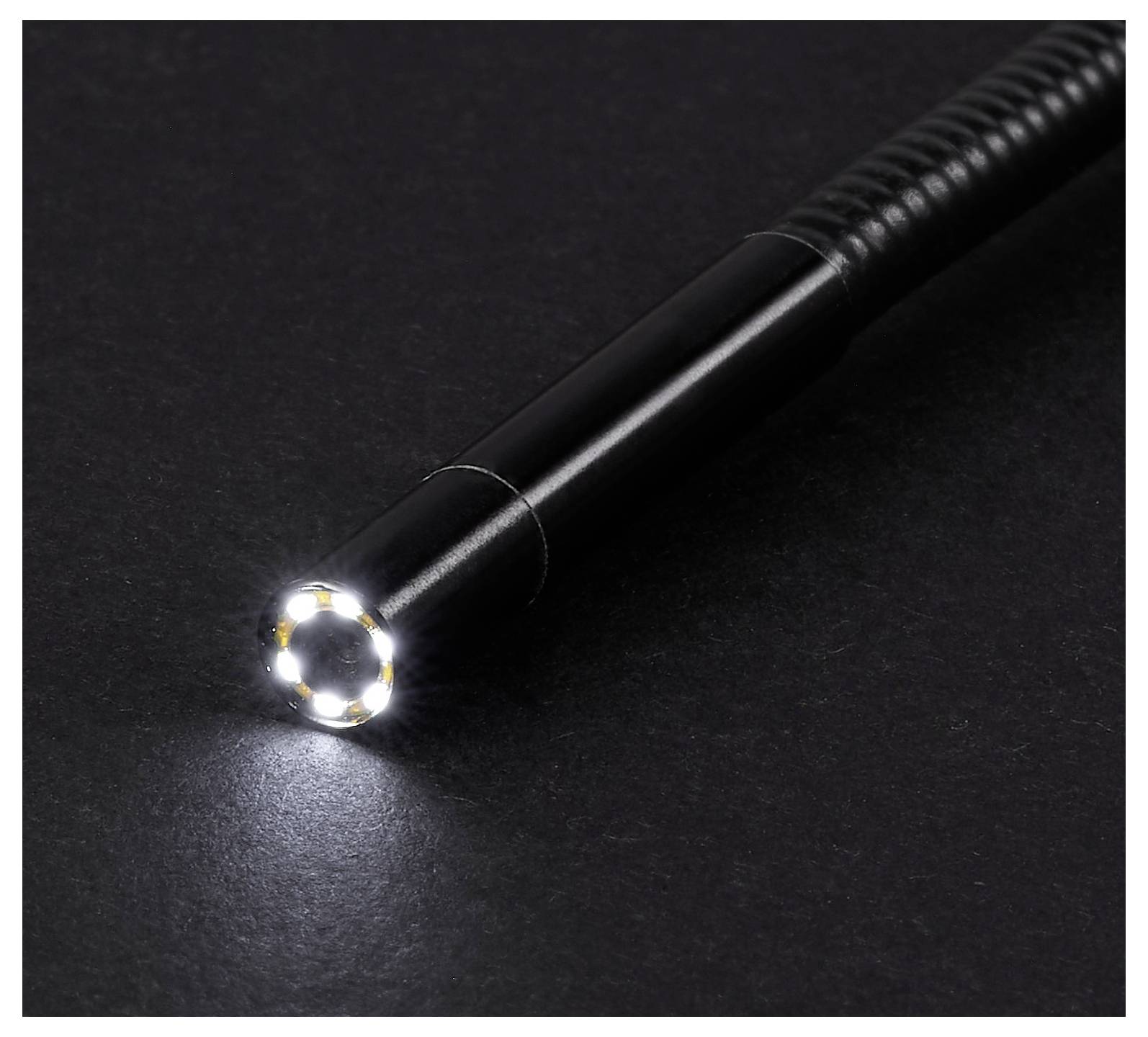

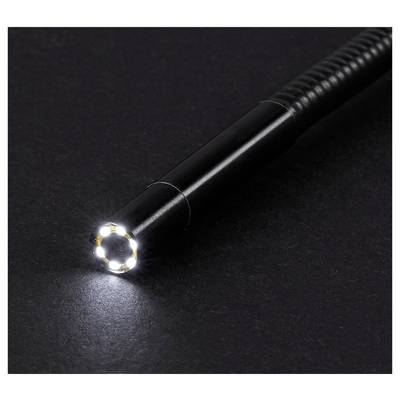

6 adjustable LEDs
LED brightness: 580 ± 150 lux (at a distance of 35 mm)
Fixed camera focus: 35 mm to 60 mm
Minimum bending radius: 45 mm
Field of view: 68°
Automatic exposure and white balance

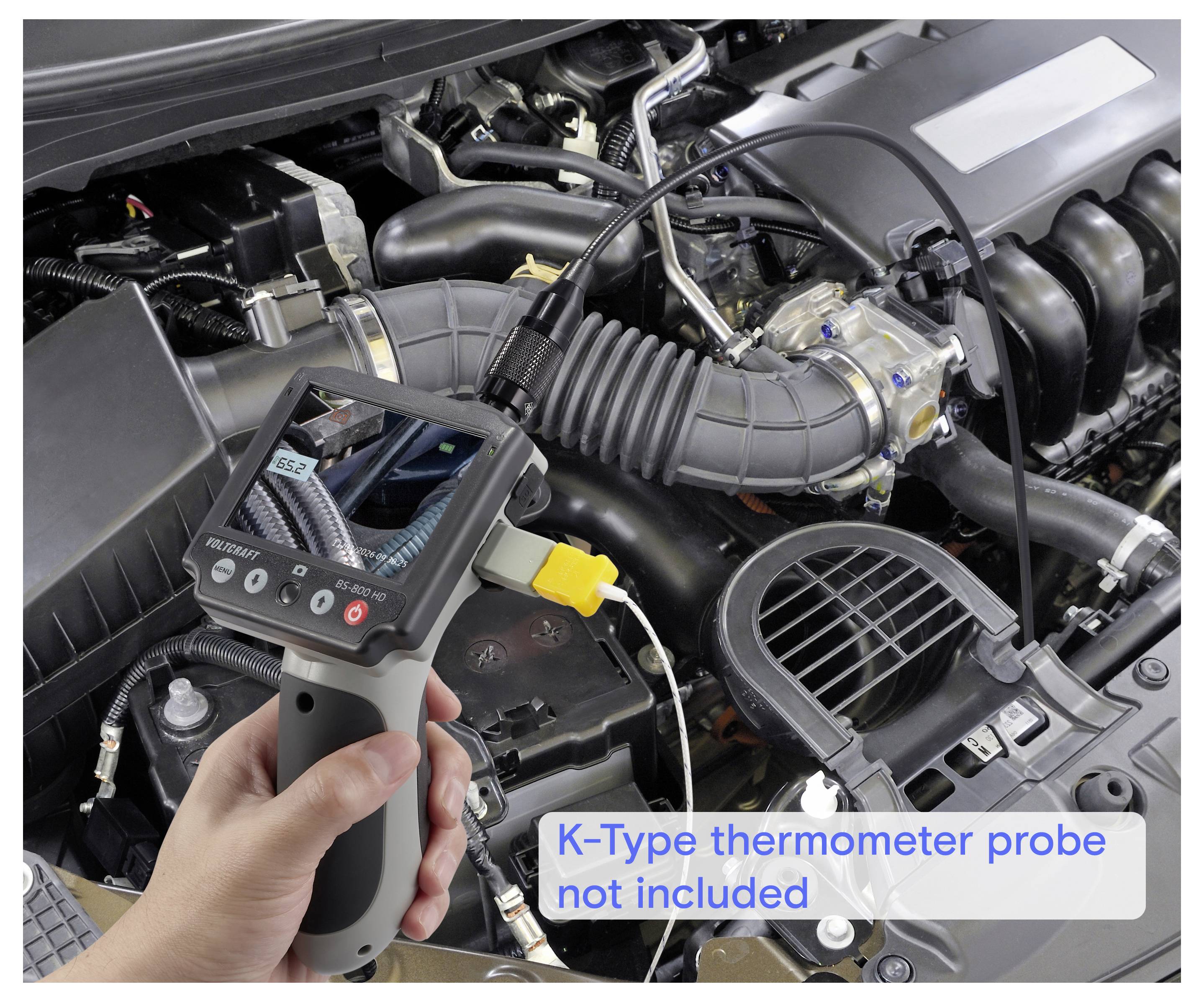

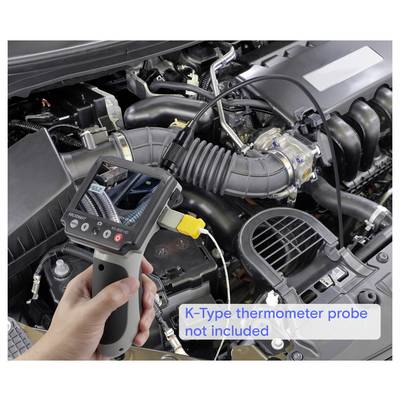

Suitable thermocouples
K-type thermocouple measurement range: -200 °C to 1350 °C
K-type thermocouple measurement accuracy: -200 °C to 700 °C; ±2 °C/+700°C to 1350 °C; ±4 °C
