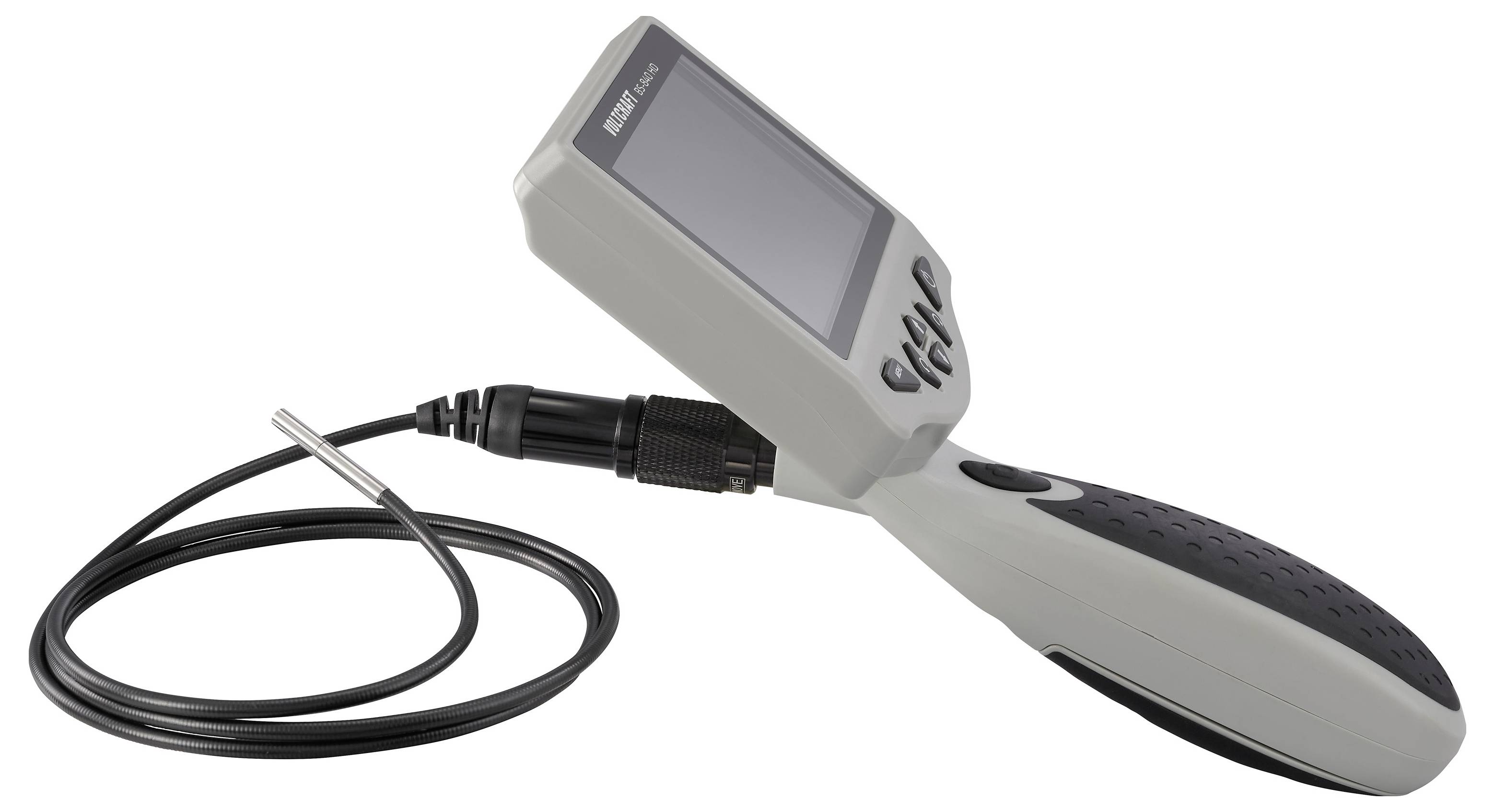

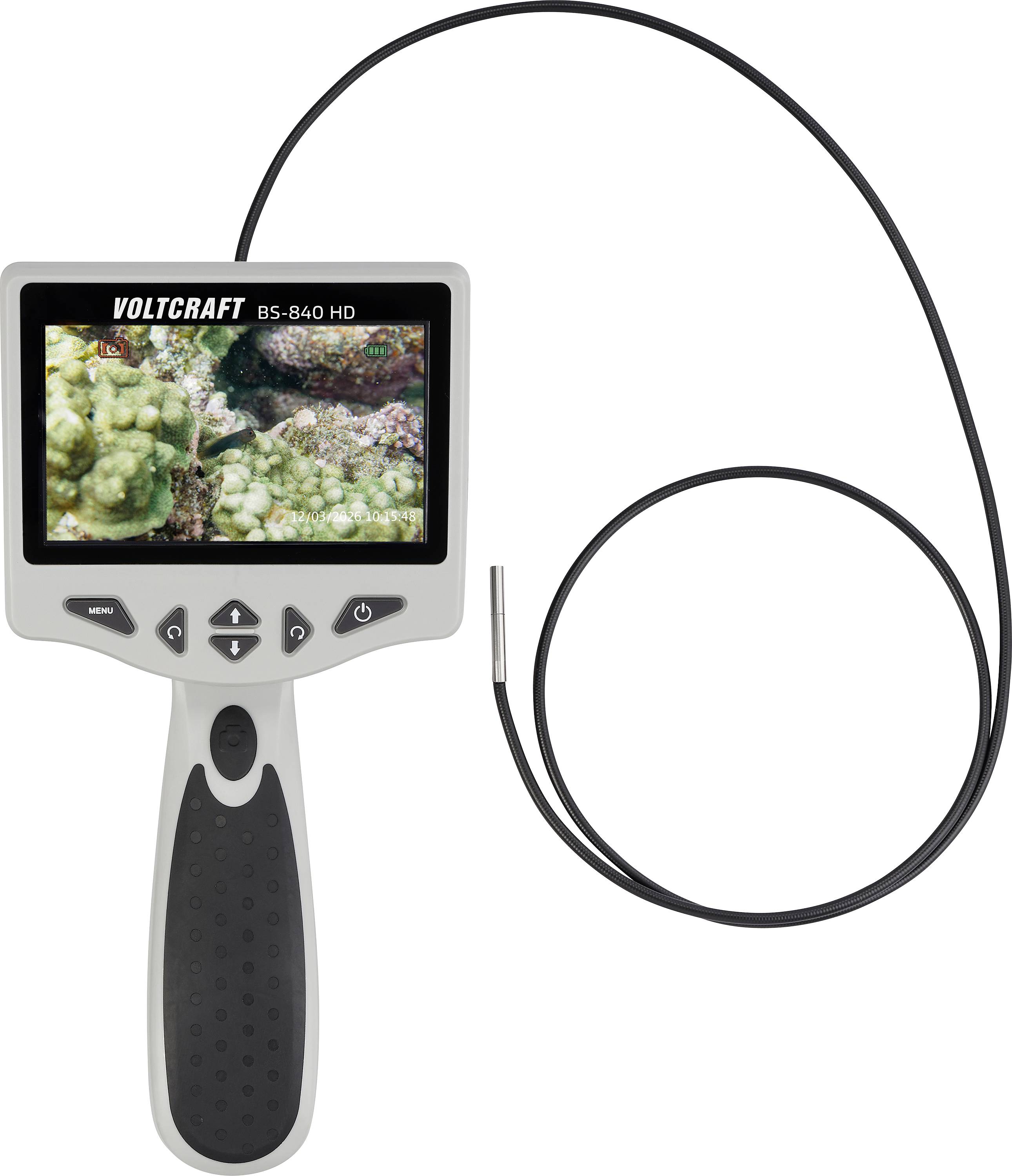

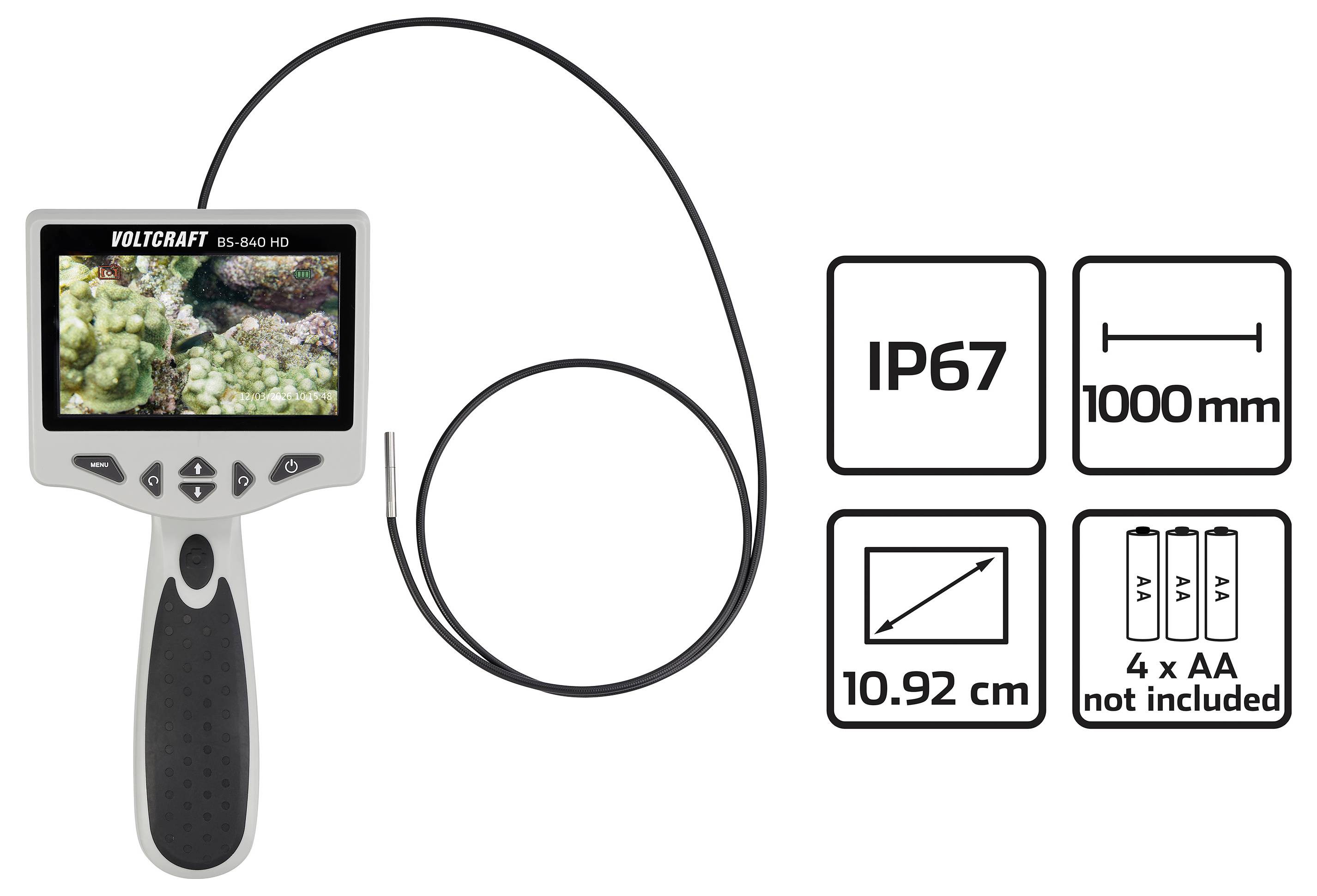

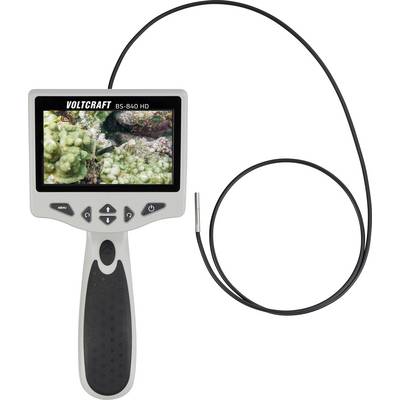

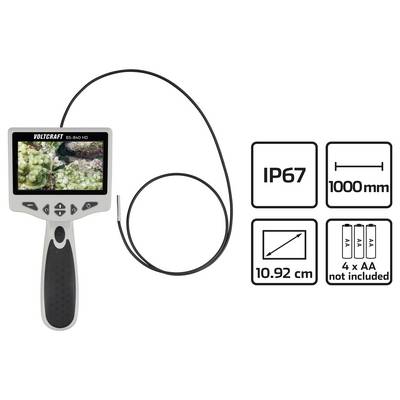

Buy VOLTCRAFT BS-840 HD Endoscope Probe diameter: 3.9 mm Probe length: 1 m

1/9

Datasheet (PDF)

Fast track dispatch on Mon, 14 Sep

145 Piece(s)

Sales and shipping:

Piece(s)

Total (€ 231.09 / piece)

€ 231.09

plus VAT.

Highlights & Details

1.0 Megapixel (1280 x 720) camera resolution
High-definition 10.92 cm (4.3 Inch) TFT-LCD display
Adjustable 6-piece LED light providing 580 ± 150 lux brightness (at a distance of 35 mm)
1 m flexible camera probe
Ø 3.9 mm IP67-rated camera probe
USB-C® port for connecting K-type thermocouple

Endoscope features: High-resolution
Image function
Image rotation
Digital zoom
Video output
Battery indicator

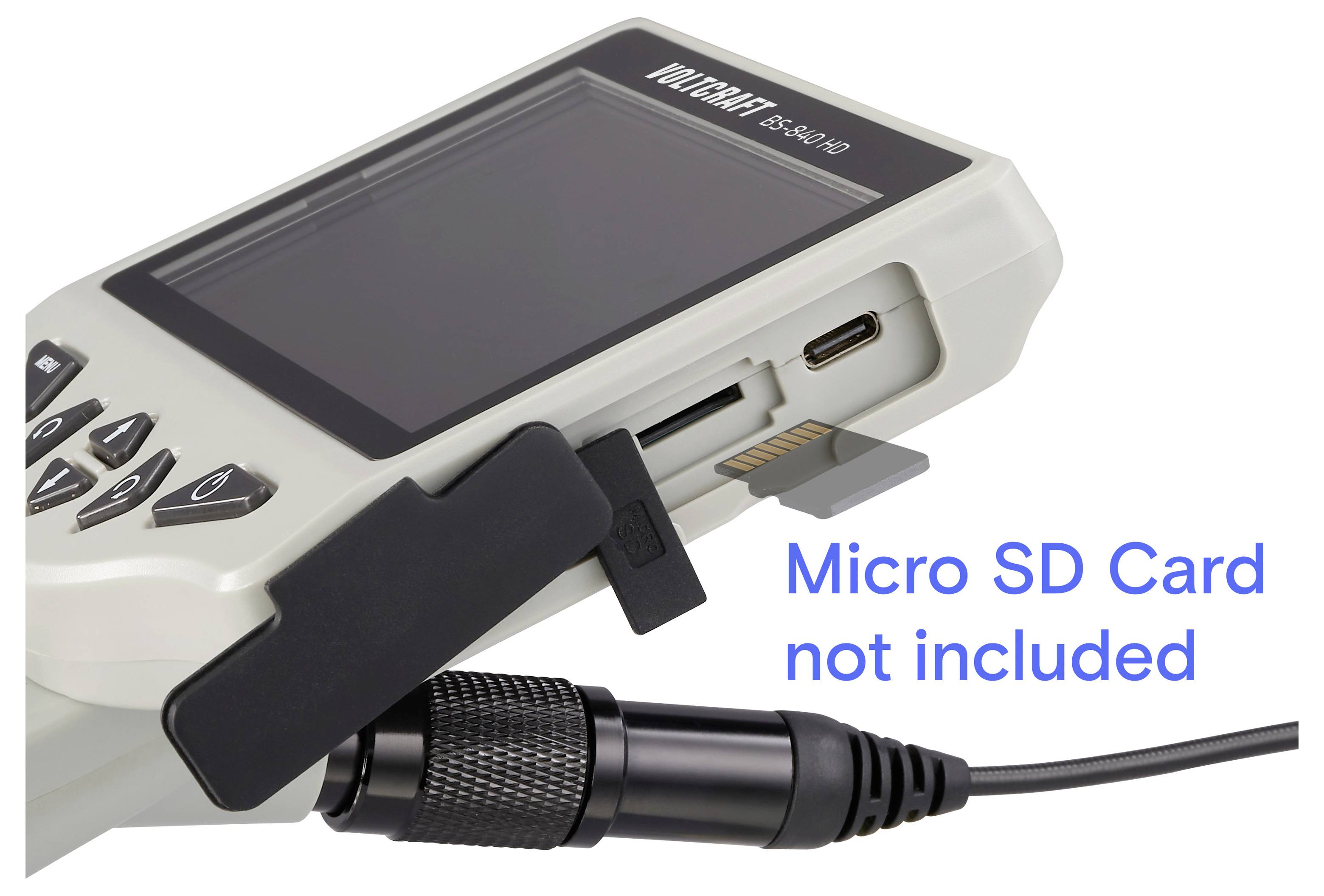

SD card slot

Datasheet 3553225 VOLTCRAFT BS-840 HD Endoscope Probe diameter: 3.9 mm Probe length: 1 m

User & Safety Instructions 3553225 VOLTCRAFT BS-840 HD Endoscope Probe diameter: 3.9 mm Probe length: 1 m

Warranty Terms 3553225 VOLTCRAFT BS-840 HD Endoscope Probe diameter: 3.9 mm Probe length: 1 m

Display and basic function:
Display type: 10.92 cm (4.3") TFT-LCD
Display resolution: 800 x 480 pixels
Display rotation: 0 - 360°
Snapshot image capture
Digital zoom: 1x, 2x, 3x
Video recording
Frame rate: 25 fps
Photo format: JPG
Video format: AVI
Automatic power off

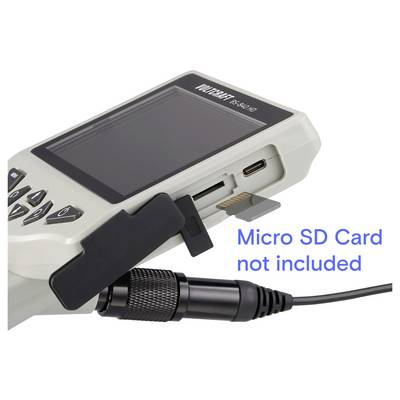

Max. microSD card storage: 128 GB
Data transmission: USB Type-C® interface

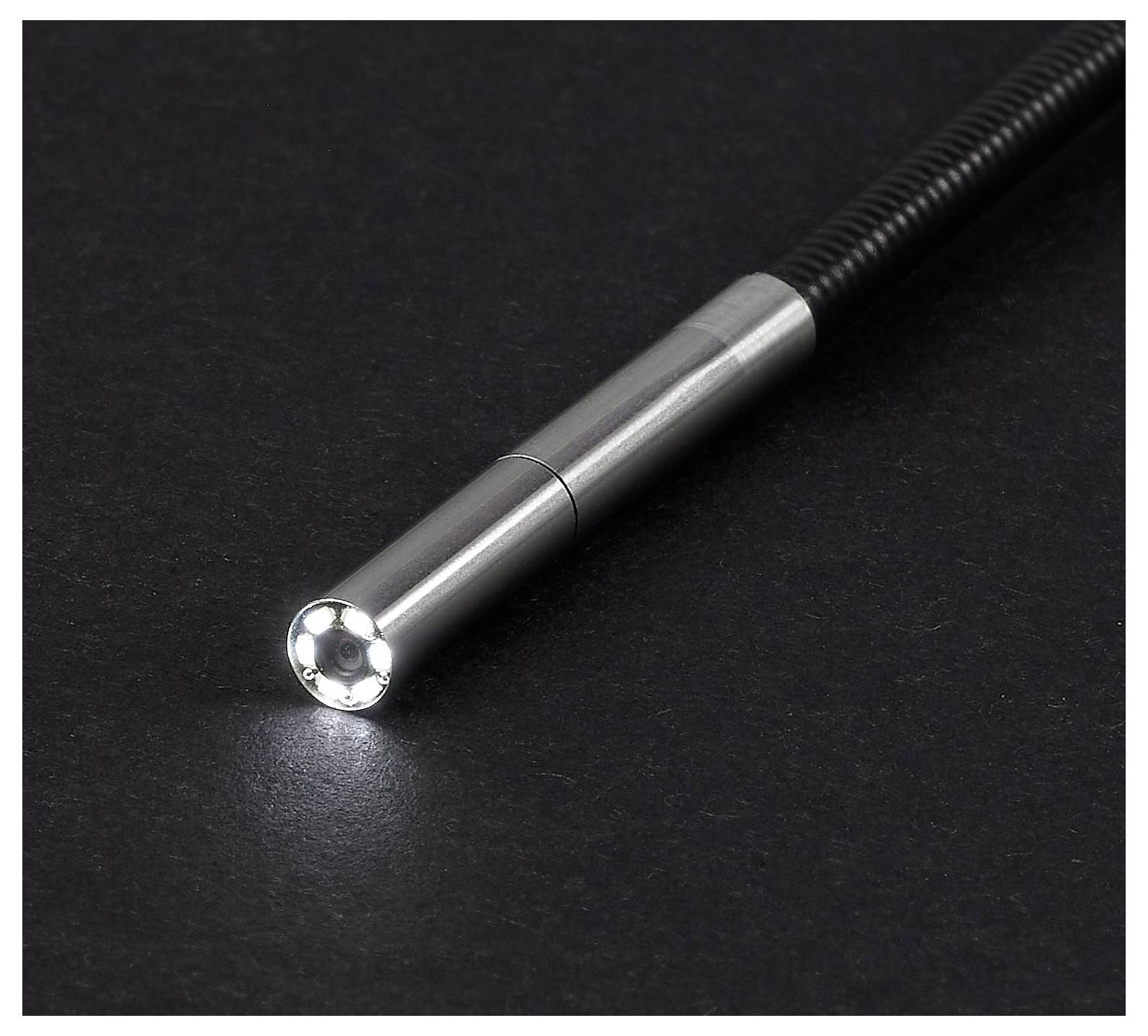

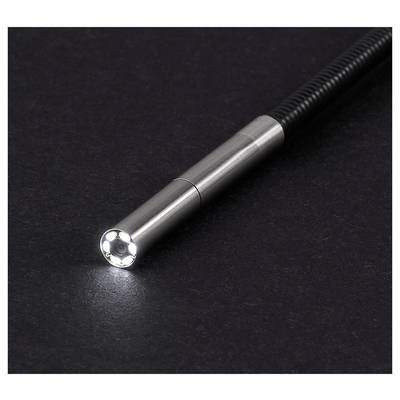

Camera:
Camera head diameter: 3.9 mm
Sensor size: 1/9” HD CMOS sensor
Resolution: 1280 x 720p (1 MP)
IP rating: IP67 (camera head and tube)
Tube length: 1 M
6 adjustable LEDs
LED brightness: 580 ± 150 lux (at a distance of 35 mm)
Fixed focus: 20 mm to 80 mm
Minimum bending radius: 45 mm
Field of view: 80°
Automatic exposure and white balance

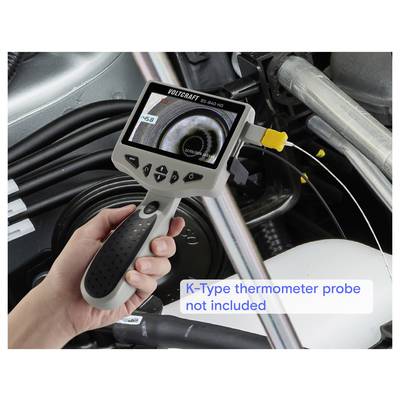

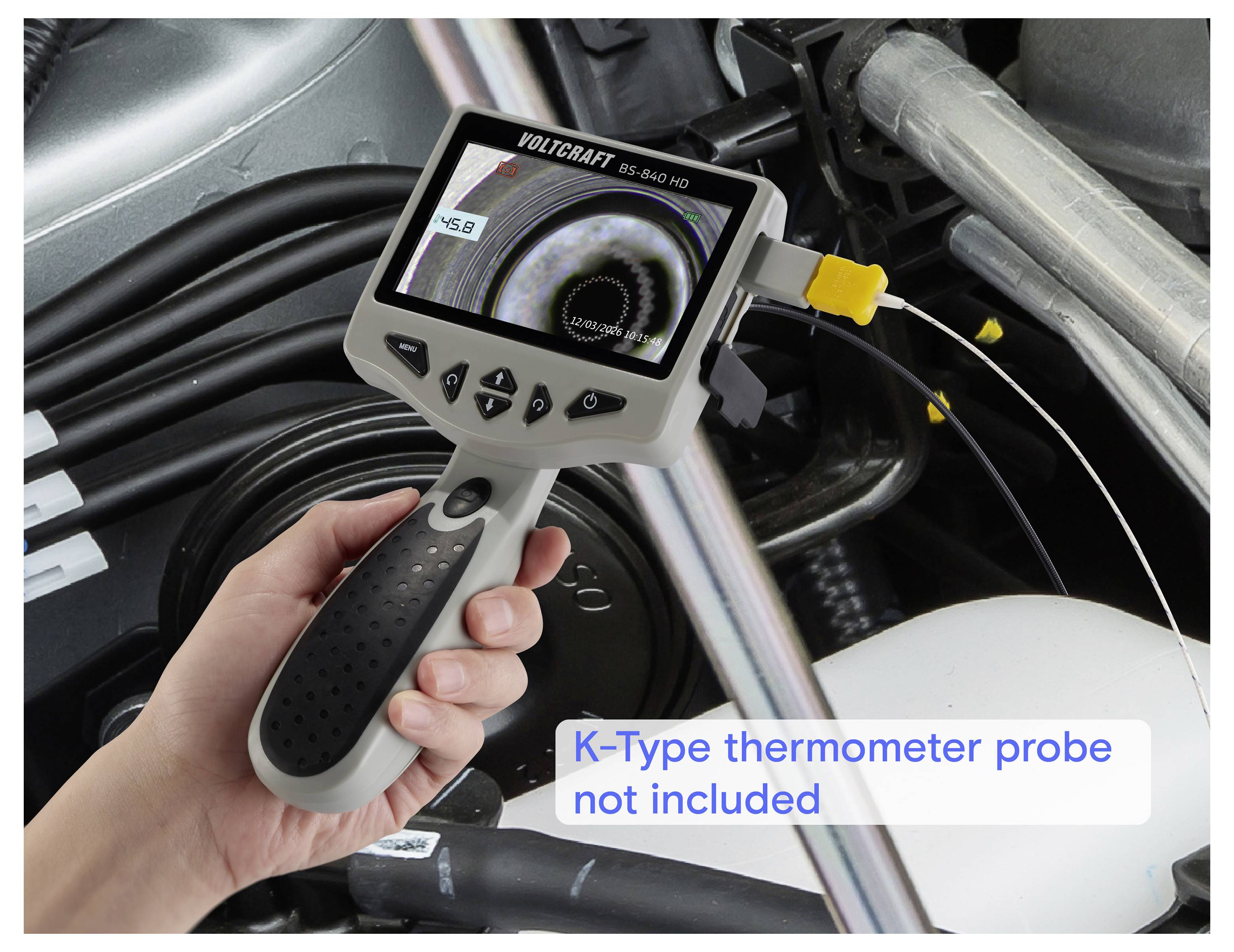

Suitable thermocouples
K-type thermocouple measurement range: -200 °C to 1350 °C
K-type thermocouple measurement accuracy: -200 °C to 700 °C; ±2 °C/+700°C to 1350 °C; ±4 °C
