Buy Laserliner 082.234A Inspection camera

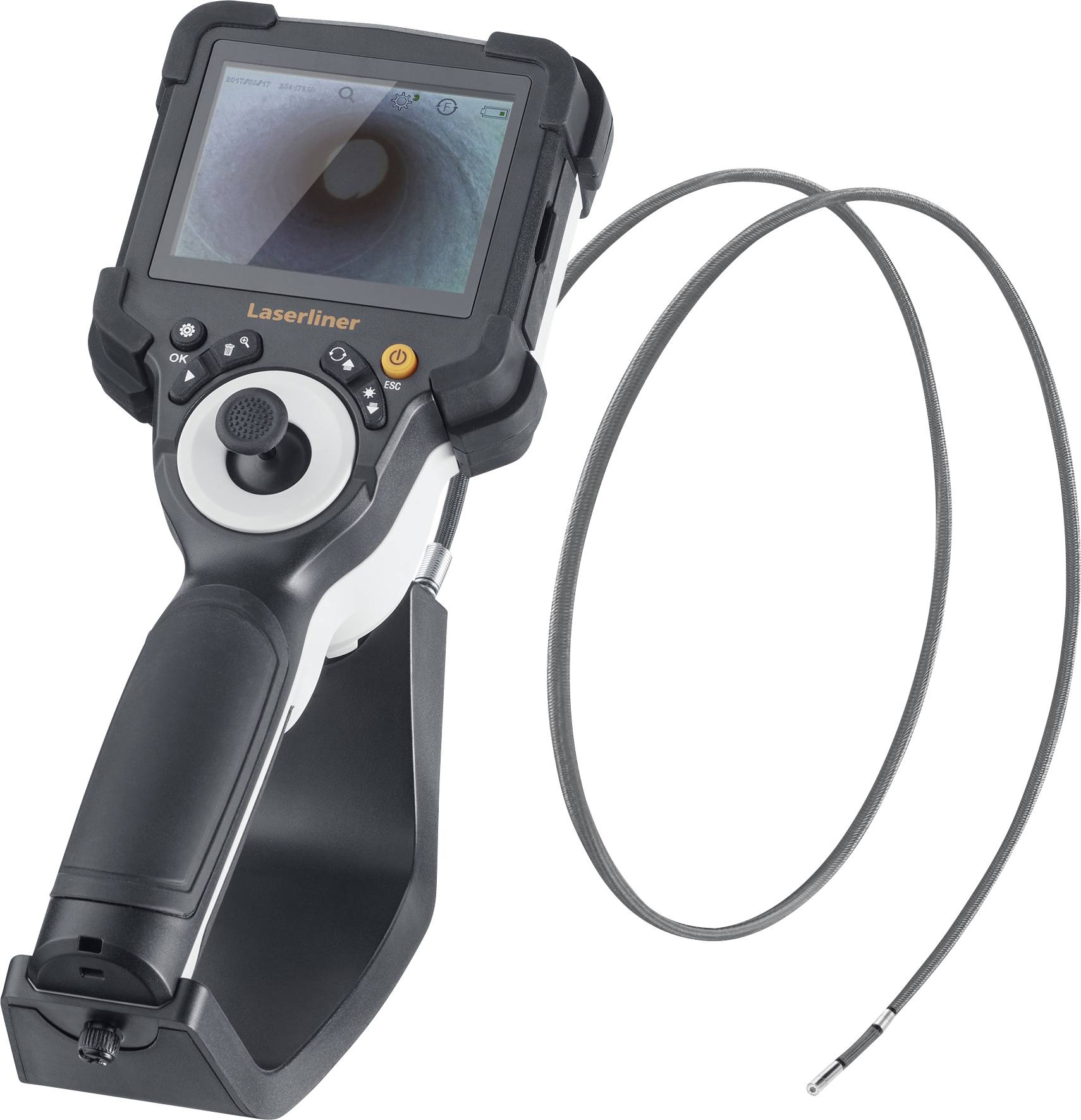

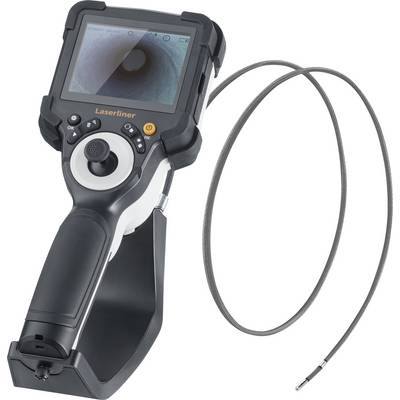

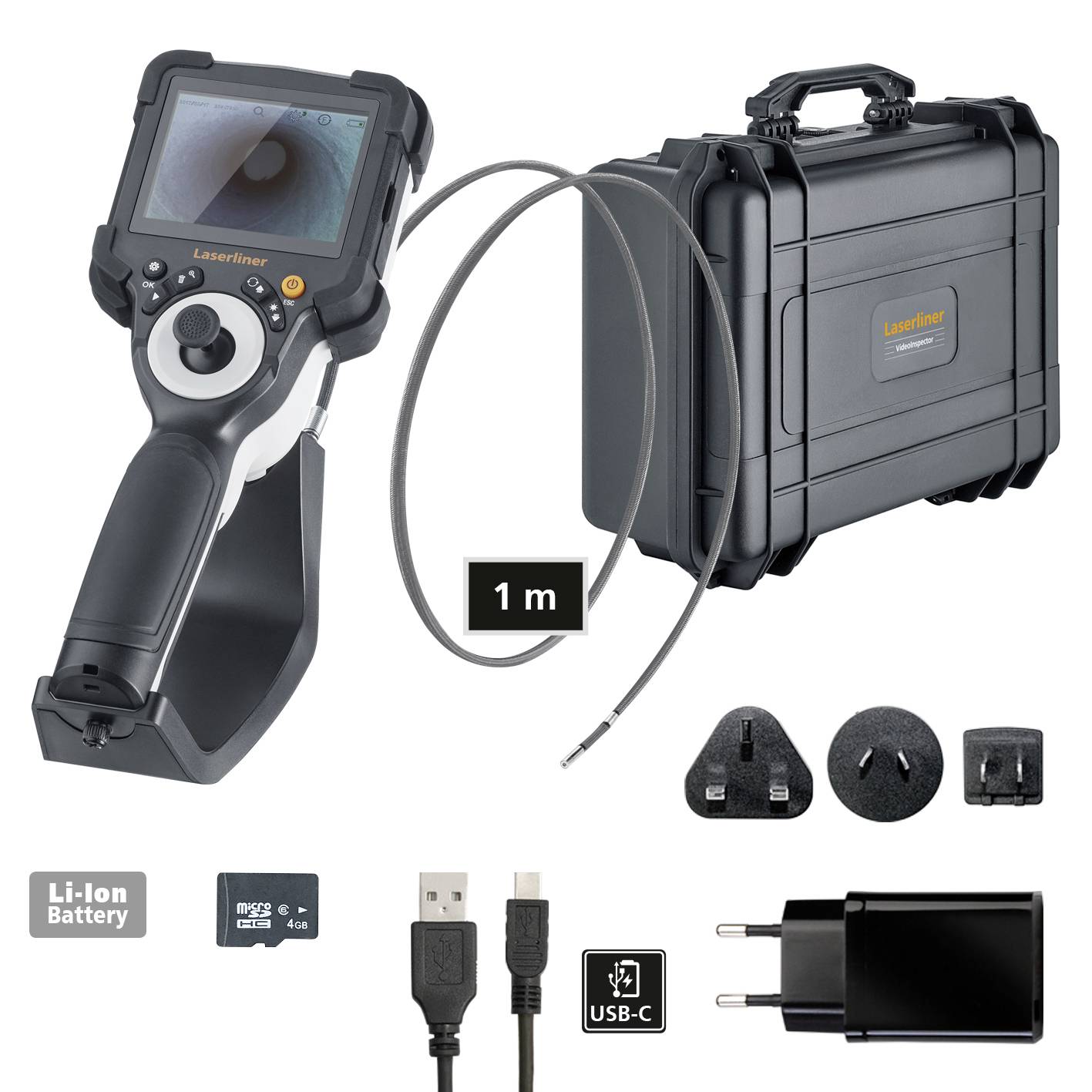

Industrial endoscope with screen and flexible cable. Suitable for inspecting hard-to-reach areas.

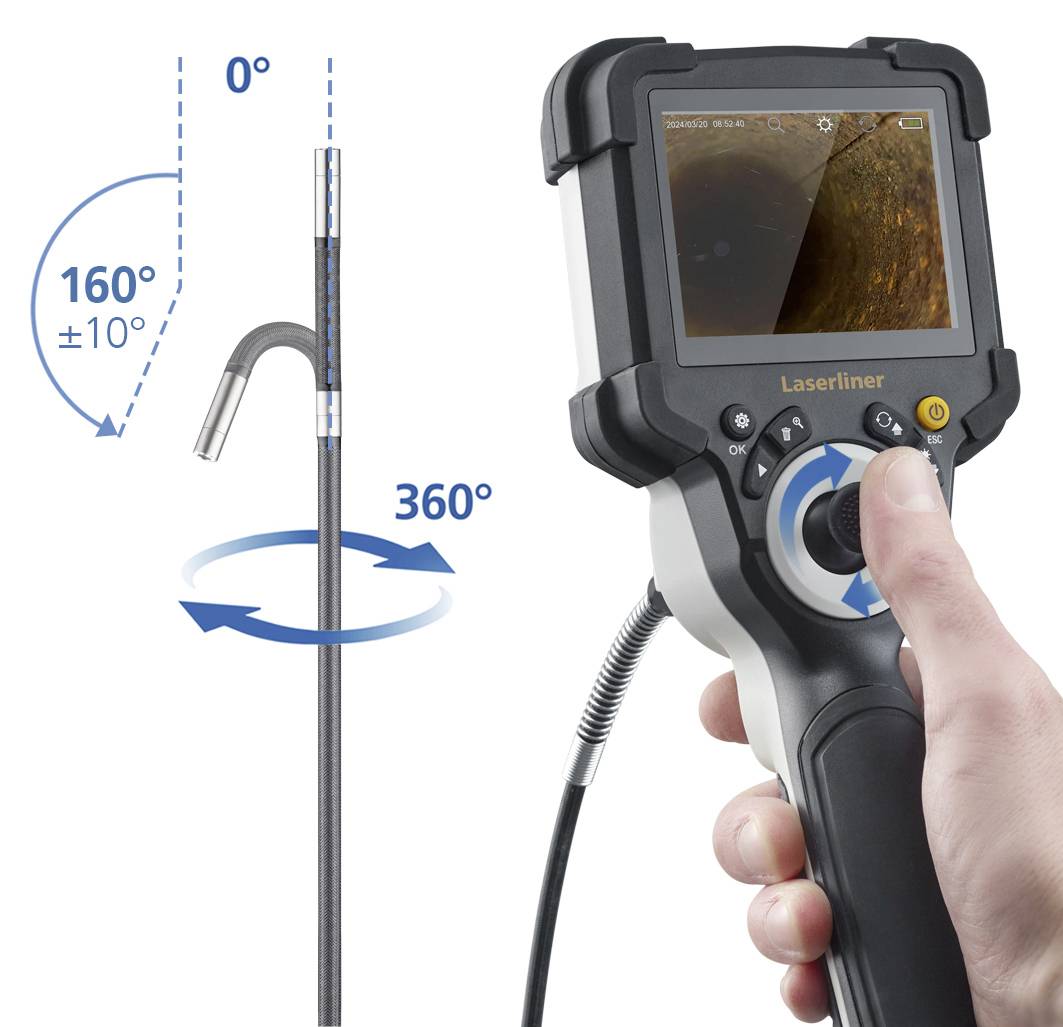

A person is holding an inspection device with a screen. The device enables camera movements of 360° horizontally and 160° vertically.

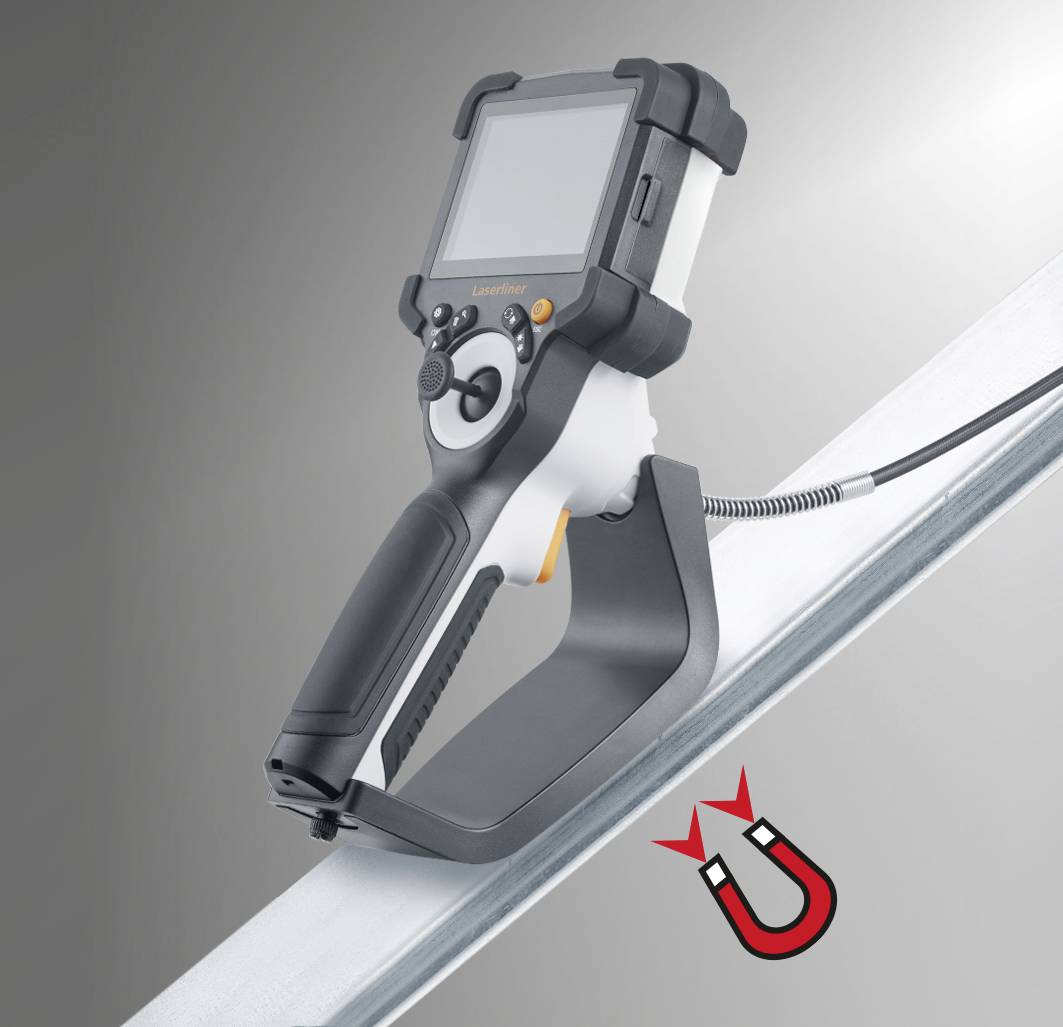

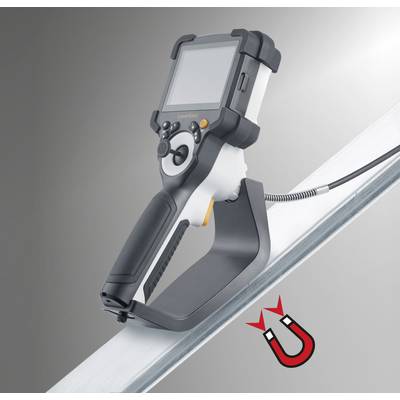

Handheld device with a screen and buttons, attached to a magnetic rod. Magnet symbol located at the bottom right, on a grey background.

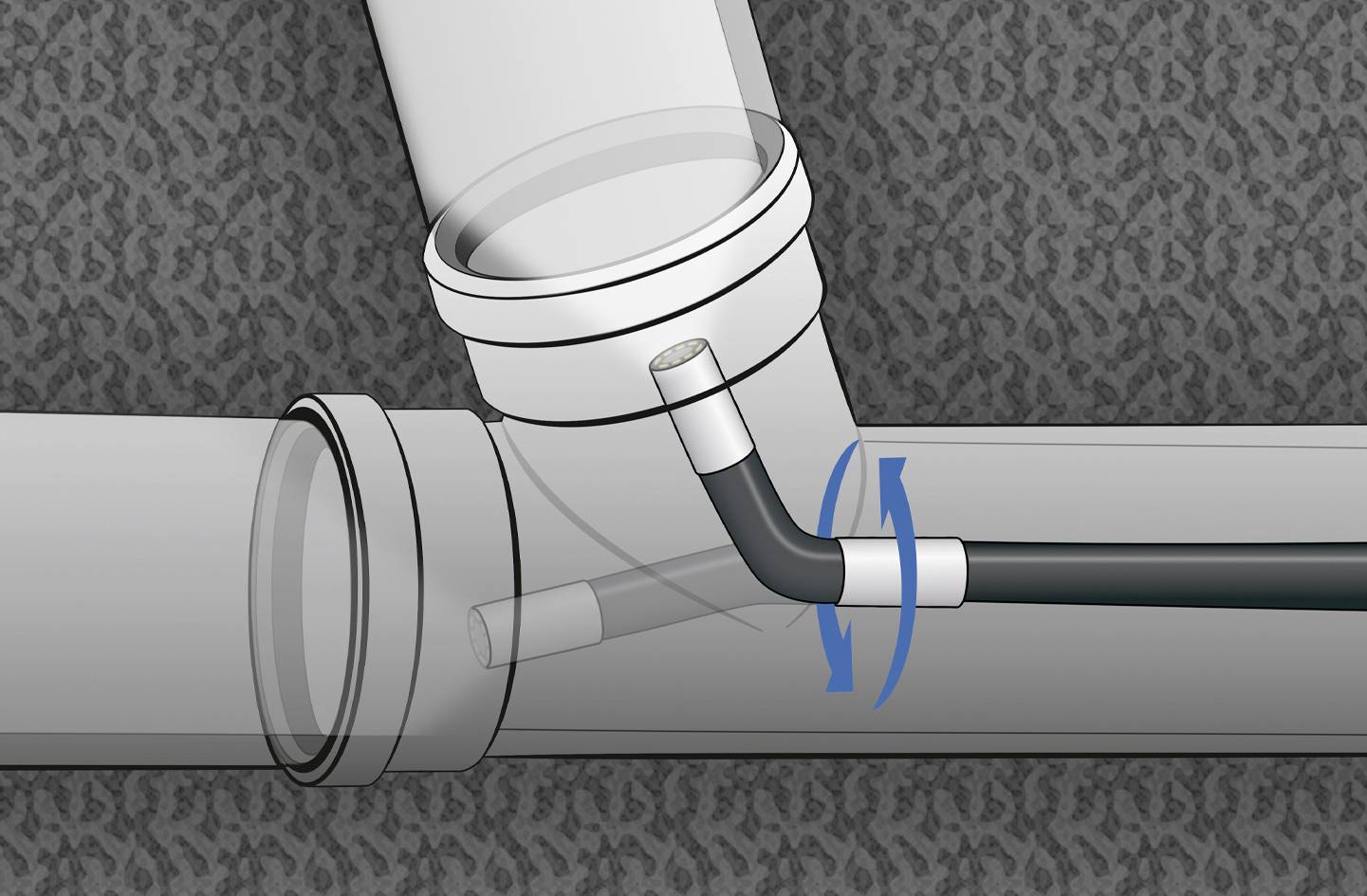

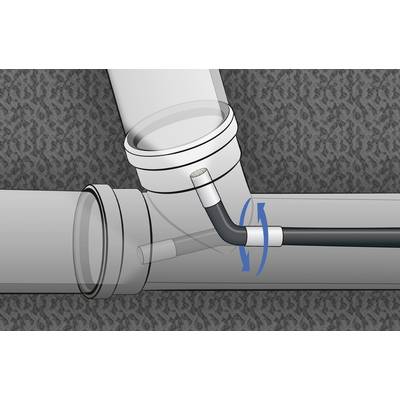

Pipe connection with a flexible cable inserted through a side hole. Arrows indicate the direction of cable movement.

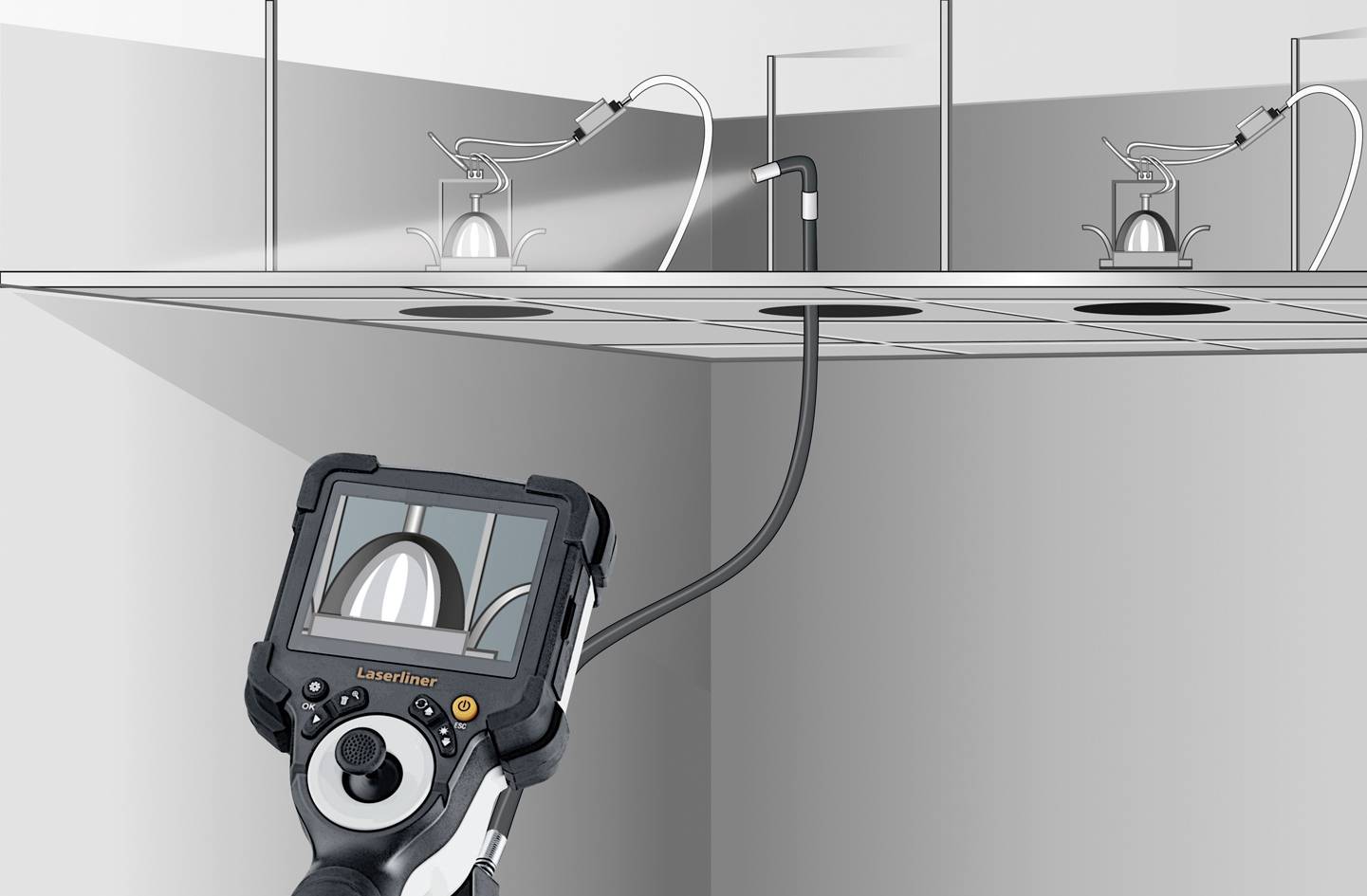

An inspection camera checks pipes above a suspended ceiling. An image of the interior of the ceiling is visible on the screen.

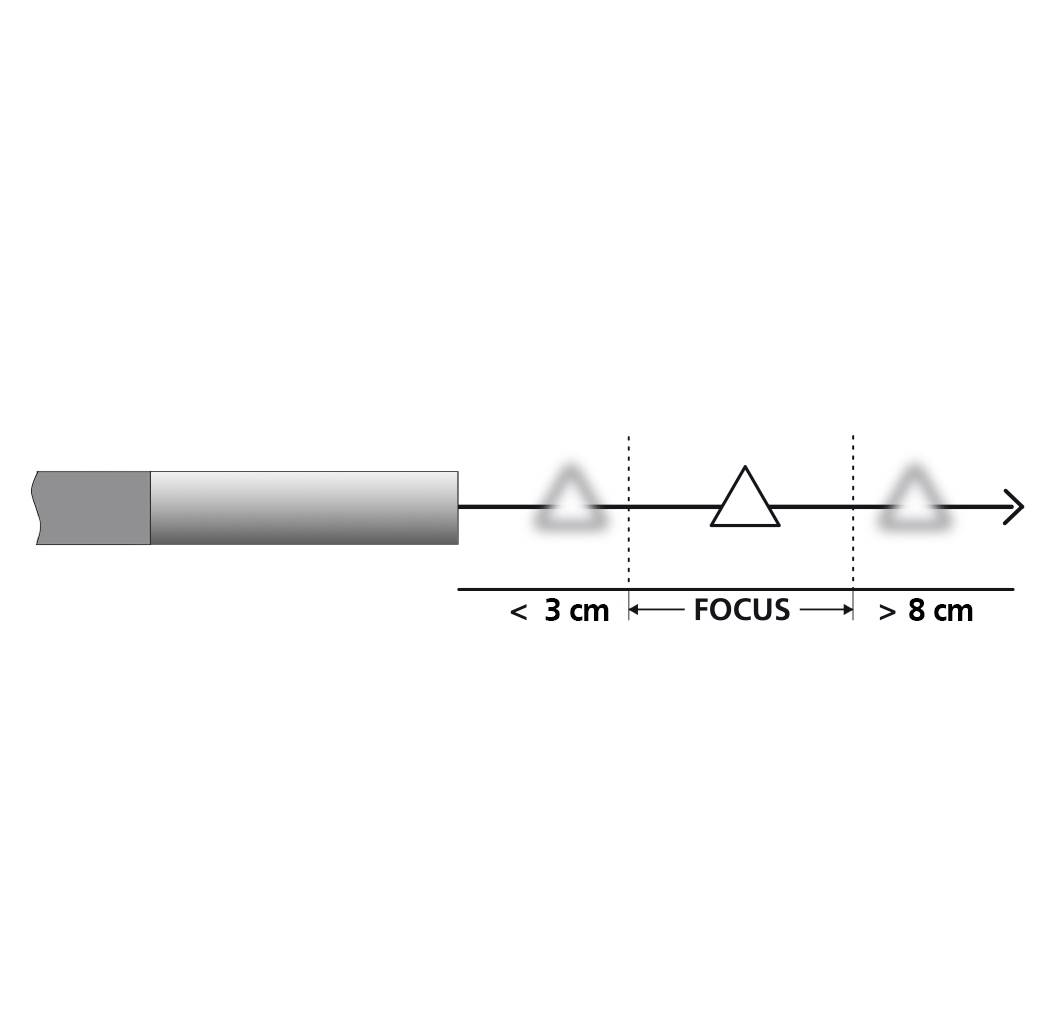

'Illustration of a torch beam focus: Distances less than 3 cm and more than 8 cm are blurry. Focus between 3 cm and 8 cm.'<br><br>Note: I translated "Taschenlampe" as "torch" which is the British English term, whereas Americans would say "flashlight".

1/7

Datasheet (PDF)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 1,247.90 / piece)

€

Report legal concerns

Highlights & Details

Professional video inspection system with individually movable, compact camera head - maximum Flex mobility in complex work

- Effective problem localization behind or in objects, walls, pipes, cavities
- Maximum Flex flexibility and optimum perspective with joystick control of the camera head
- Time-saving set-up on site by quickly adjusting the required viewing angle
- Ideal for hard-to-reach areas that are not visible with rigid camera systems
- Reliable inspection by moving pipe seals off by 360°
- Small camera head ideal for hard-to-reach areas
- Camera head and probe are waterproof and resistant to diesel, petrol, engine oil, AdBlue®, ethyl alcohol and salt water (salt content 28%)

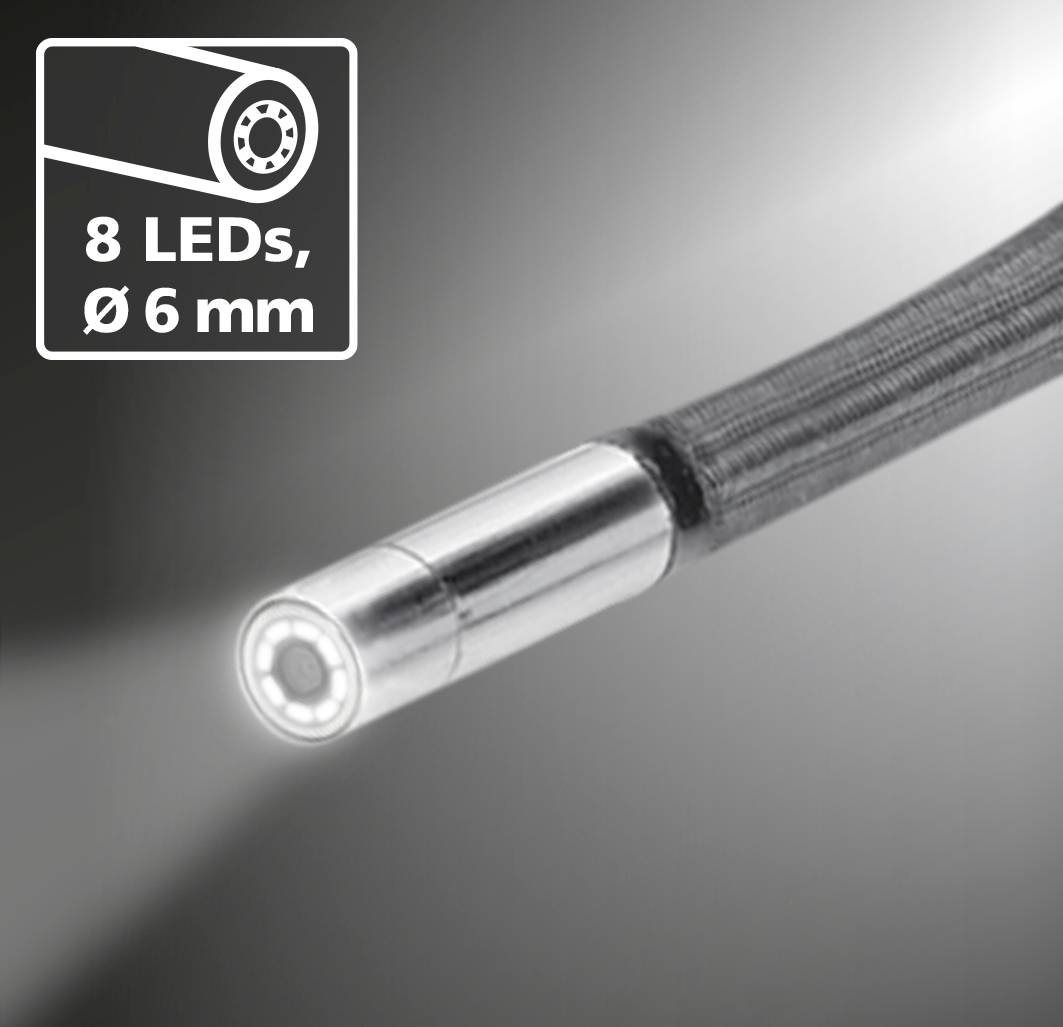

- Bright object lighting by 8 high-power LEDs
- The user has both hands free to work with the magnetic stand on the Basi unit
- Image is available in variable views by rotation and mirroring on the monitor
- True-to-life colors for realistic display
- Can also be used in network operation

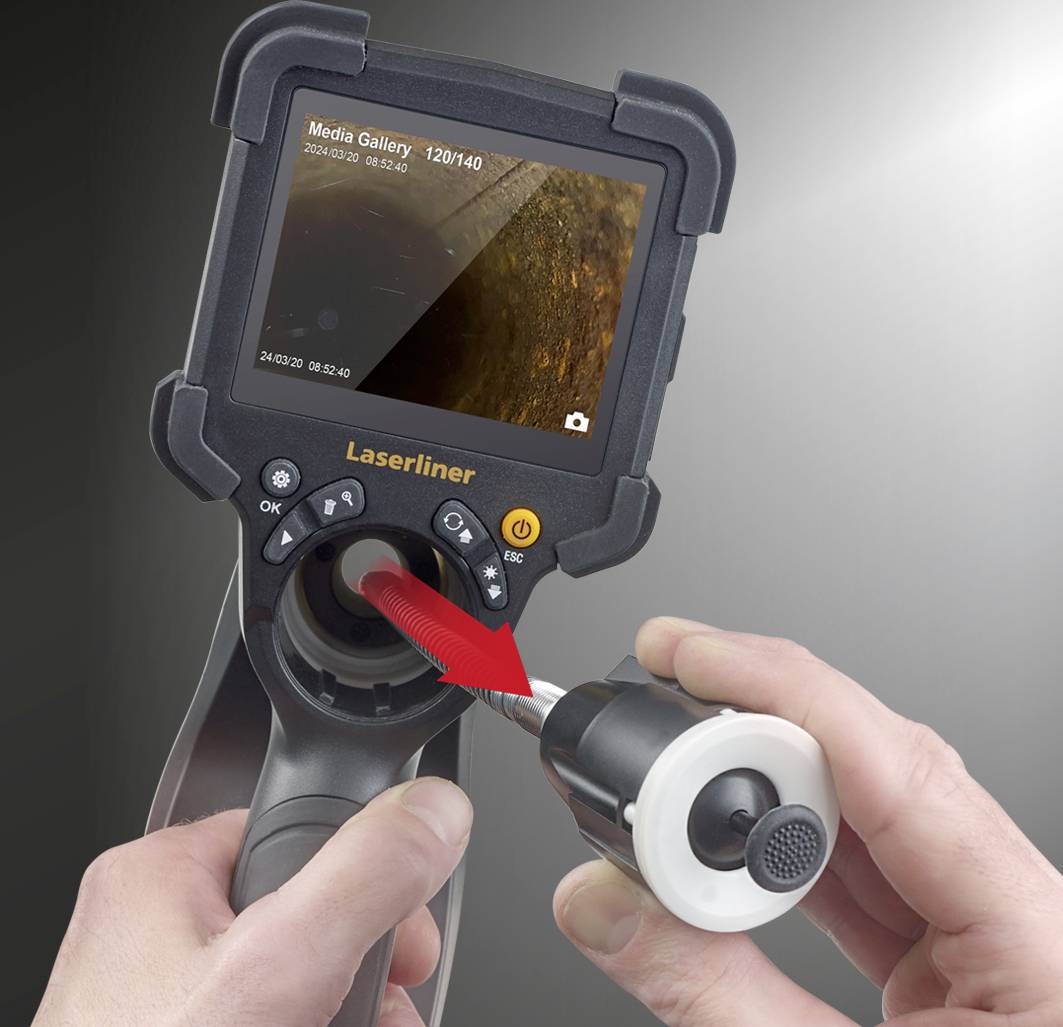

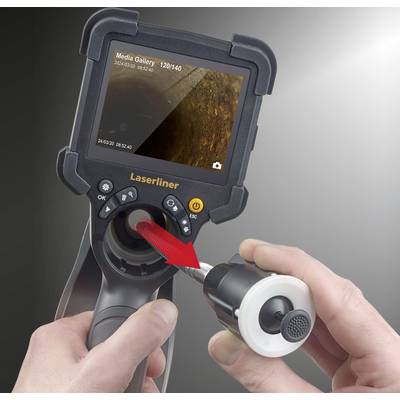

- Flex possible applications through interchangeable camera unit

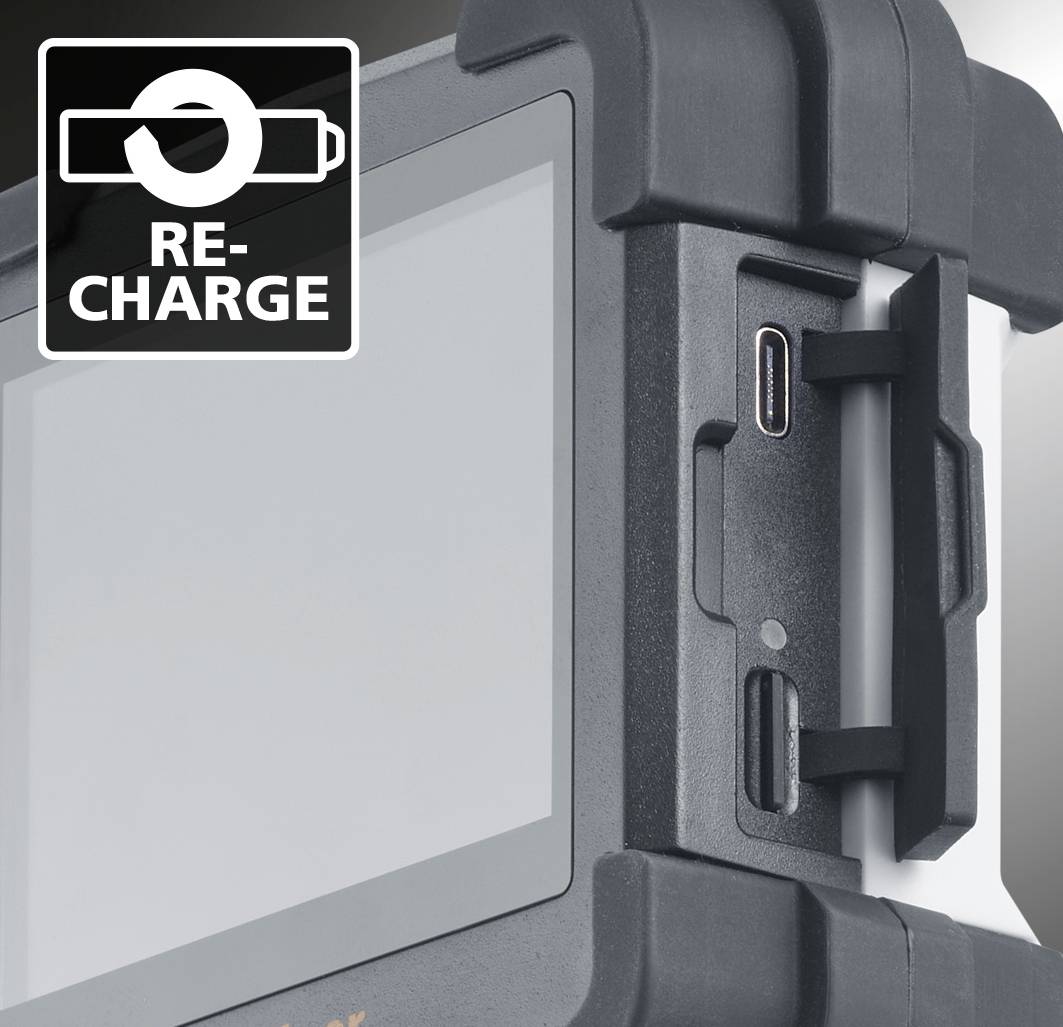

- Evaluation and documentation via micro SD card and USB-C interface
- Media Gallery with the date and time of the recordings
- Time stamp: Fixed marking of each recording with date and time
- The device lies well in the hand thanks to the ergo design
- Energy-saving automatic shutdown after adjustable time
- 8 languages available

Technical specifications

Display resolution: 640 x 480 Pixel

Digital zoom: 2 x

Weight: 700 g

Dim: (L x W x H) 100 x 10.8 x 26 cm

Length: 100 cm

Width: 10.8 cm

Height: 26 cm

Screen size diagonal (inches): 1.0 inch

Type: VideoInspector 3DM

Product type: Inspection camera

Documents & Downloads

Datasheet

Datasheet 3398100 Laserliner 082.234A Inspection camera

User & Safety Instructions

User & Safety Instructions 3398100 Laserliner 082.234A Inspection camera

Warranty Terms

Warranty Terms 3398100 Laserliner 082.234A Inspection camera

Description

This professional video inspection system offers maximum Flex compatibility even with complex work. It has an individually movable, compact camera head, which can be adjusted by joystick on the Basi unit quickly on the optimum perspective. This allows the investigation of hard-to-reach areas that are not visible with rigid camera systems. The small diameter of the camera head makes it possible to check even very small openings. The inspection is also very reliable, as e.g. pipe seals can be checked by 360° and the damage points can be detected in a targeted manner. Camera head and probe are waterproof and resistant to diesel, petrol, engine oil, AdBlue®, ethyl alcohol and salt water, making the device very versatile. Other advantages are the first-class LED object lighting and the magnetic stand for setting up the Basi unit.

This text is machine translated.
