Name: Laserliner 082.277A Inspection camera
Brand: Laserliner
SKU: 3398106
Availability: BackOrder

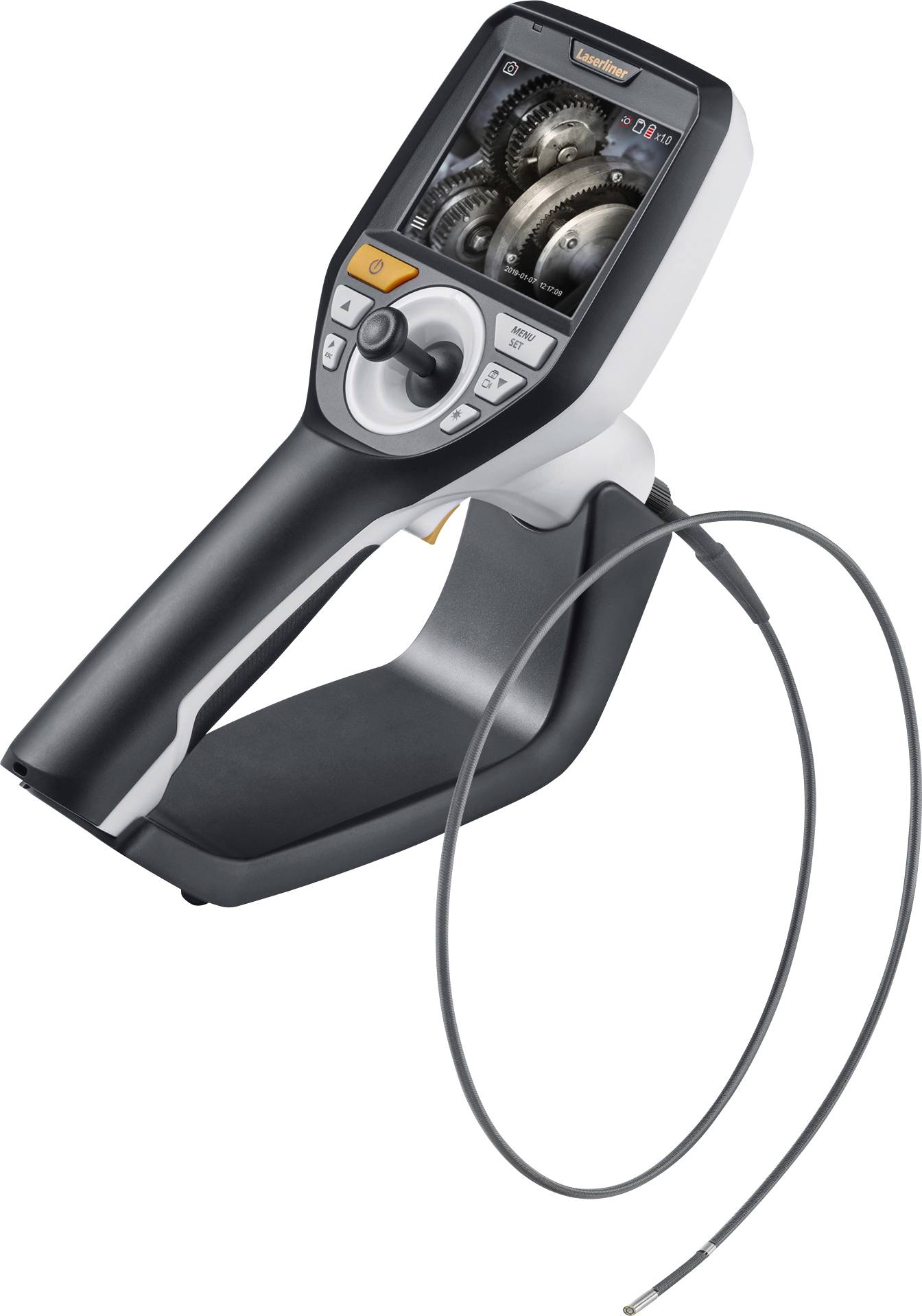

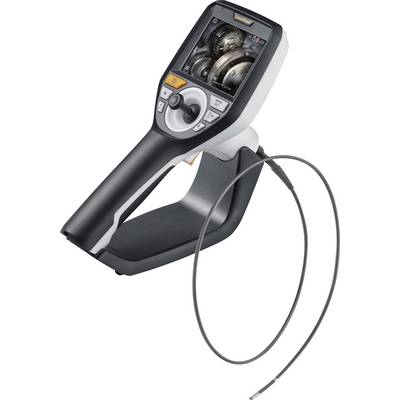

A digital endoscope with a flexible cable and monitor displays the interior of machines or pipes. It assists with inspections.

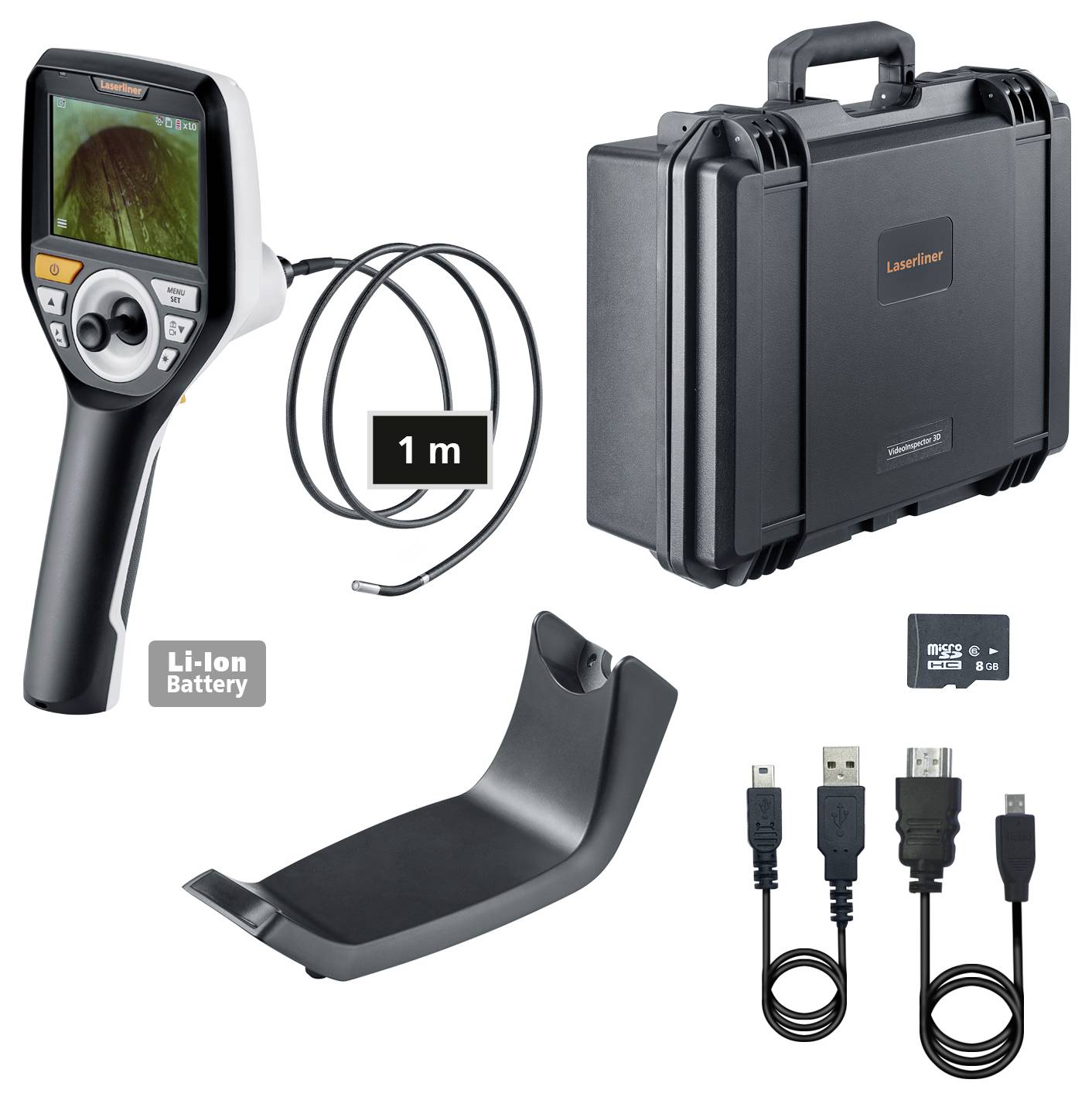

Inspection camera set with screen, flexible cable, hard-shell case, charger, USB cables and memory card.

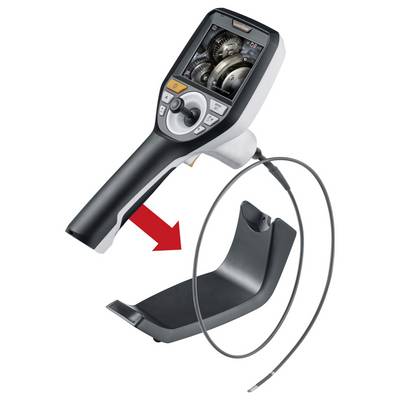

A portable endoscope with a screen shows gears. A flexible cable with a camera is connected. A red arrow points to the mounting bracket.

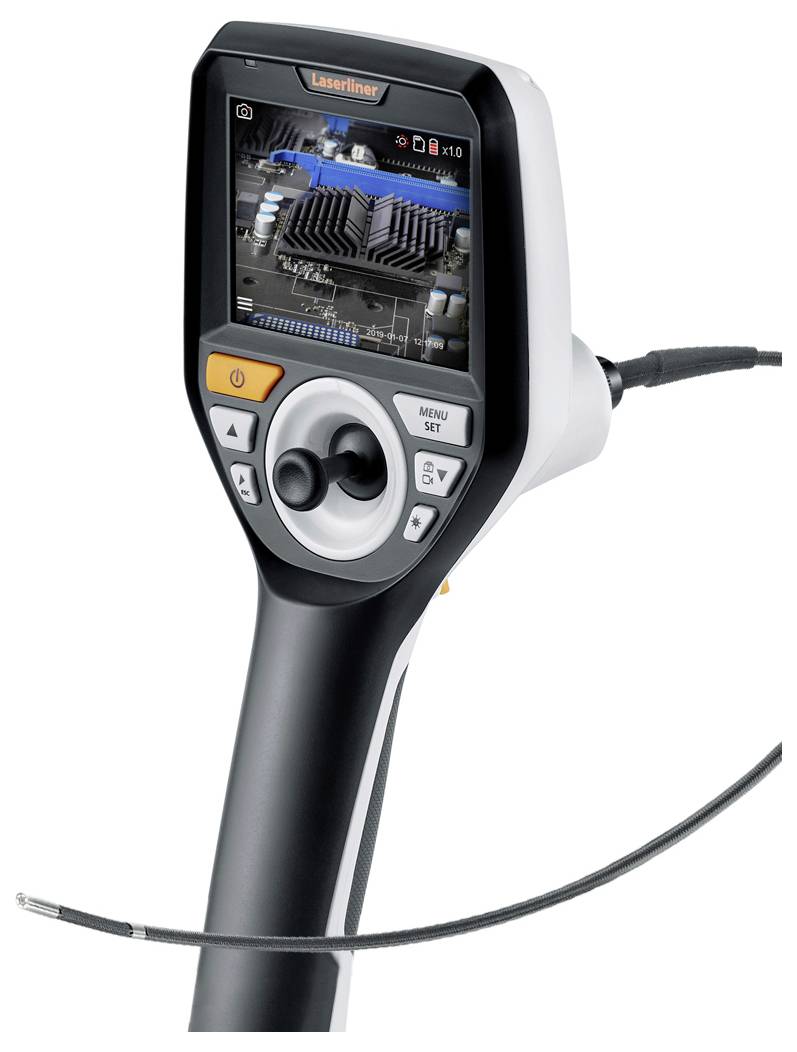

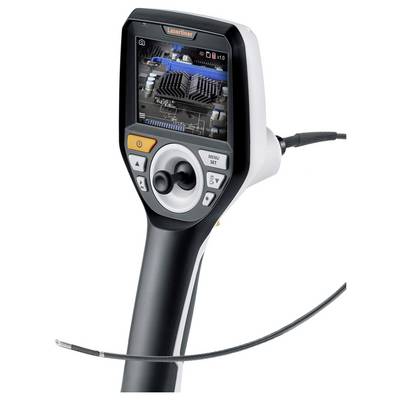

Industrial endoscope camera with LCD screen showing technical details of a machine. Flexible cable tube for inspection.

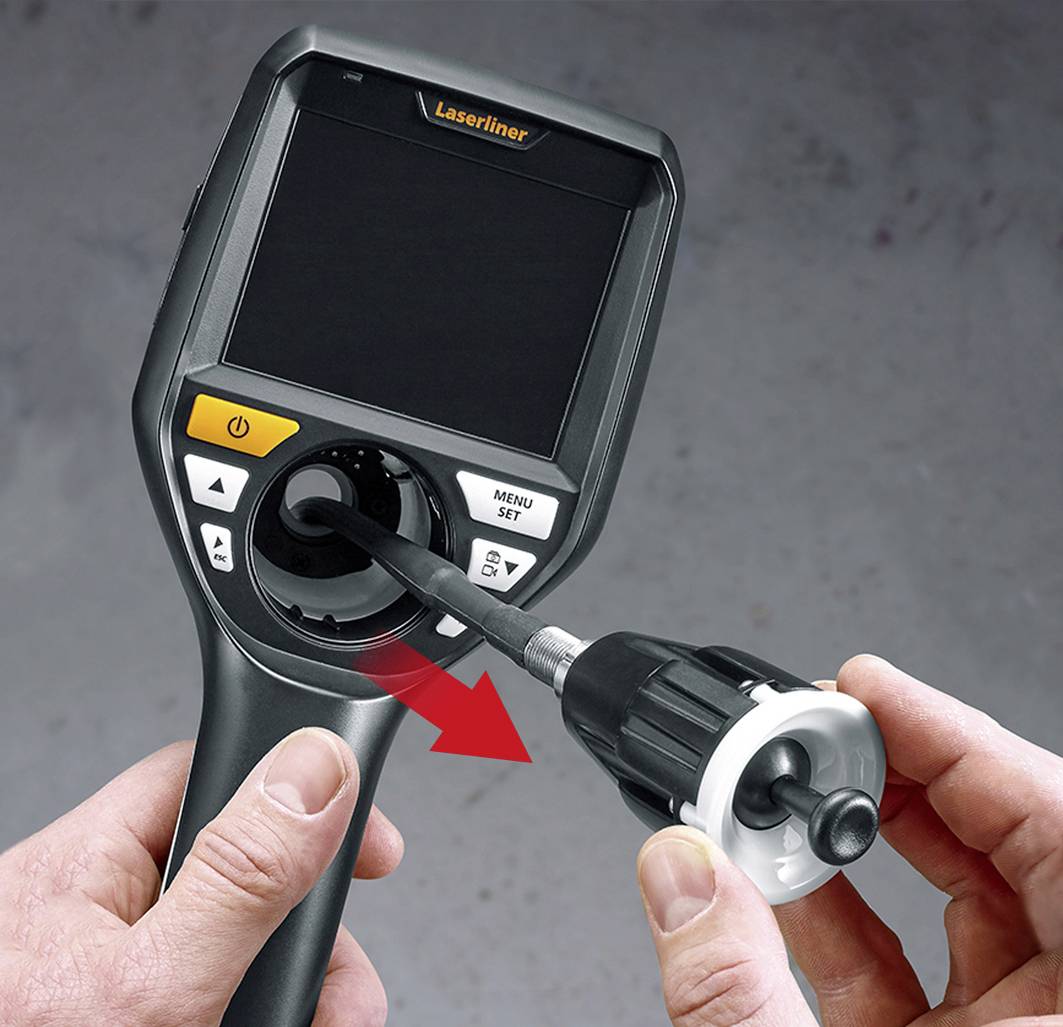

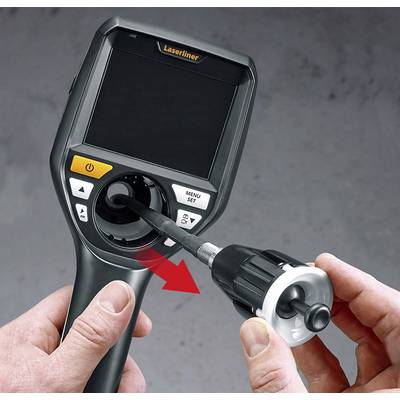

A person is holding an inspection camera device and inserting a flexible probe into the lens to use the device.

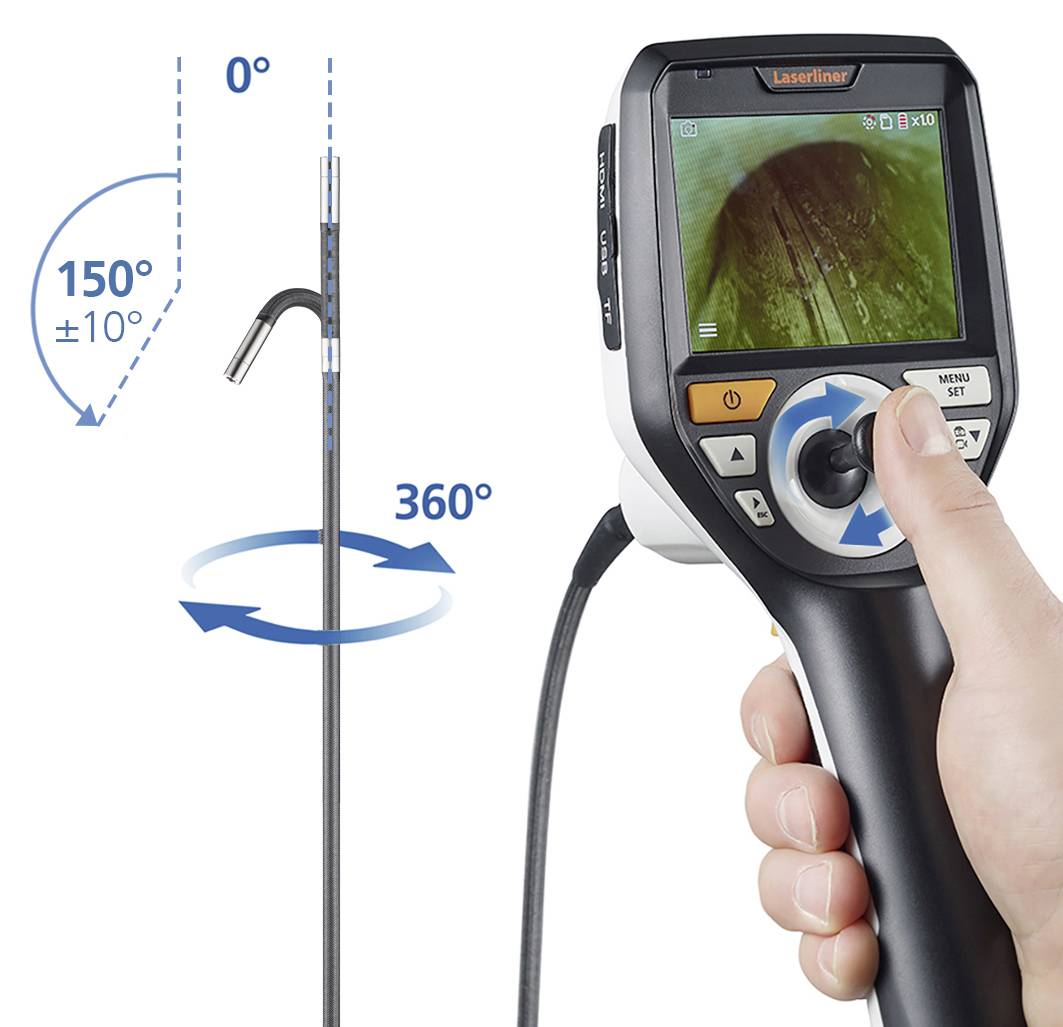

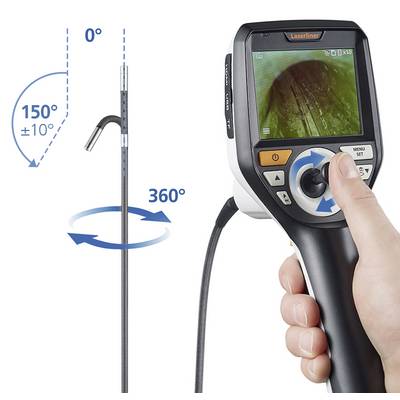

A person is holding an endoscope with a display showing an internal image. The device has a flexible 360-degree camera.

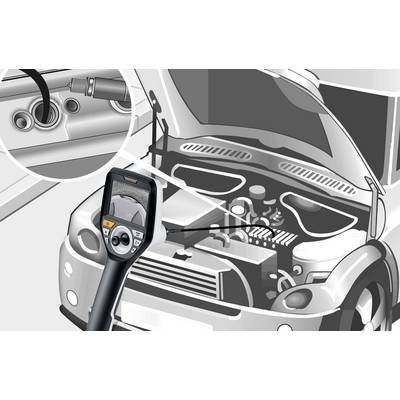

Bonnet of a car open, diagnostic device checking spark plugs through a magnified viewing window. Process of engine inspection.

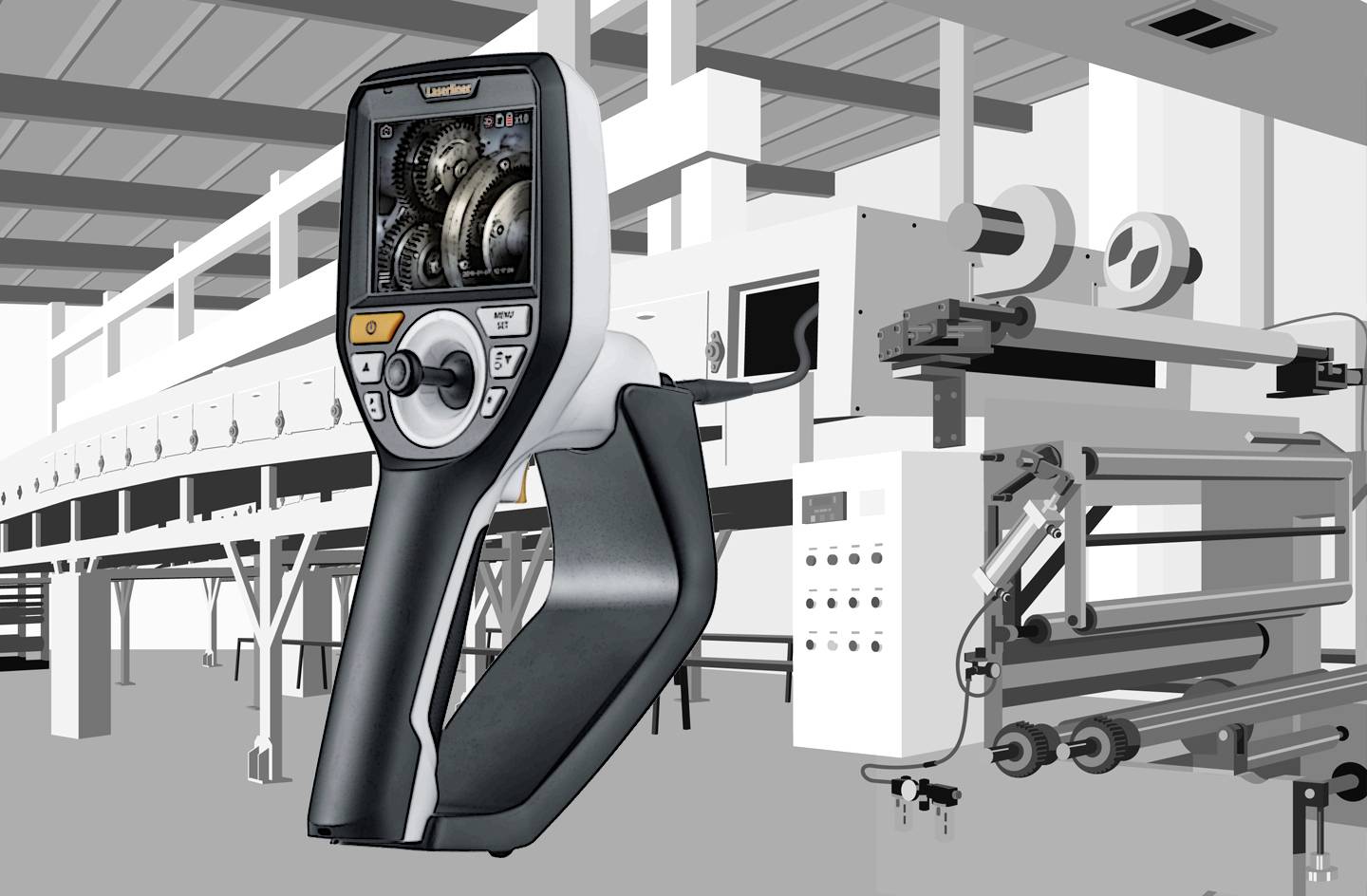

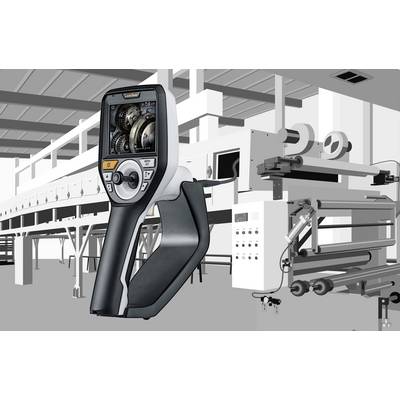

A portable inspection device is shown in front of a large industrial printing press. The device displays gears on the screen.

1/9

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Fri 13 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 4,375.00 / piece)

€ 4,375.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Professional video inspection system with individually movable, extremely compact camera head for narrow areas

- Small diameter of camera head ideal for small openings
- Simple problem localization behind or in objects, walls, pipes, cavities
- Clear pictures even under the worst conditions
- Manual 3D control of titanium camera head with maximum 160° movement
- Robust, durable adjustment mechanism

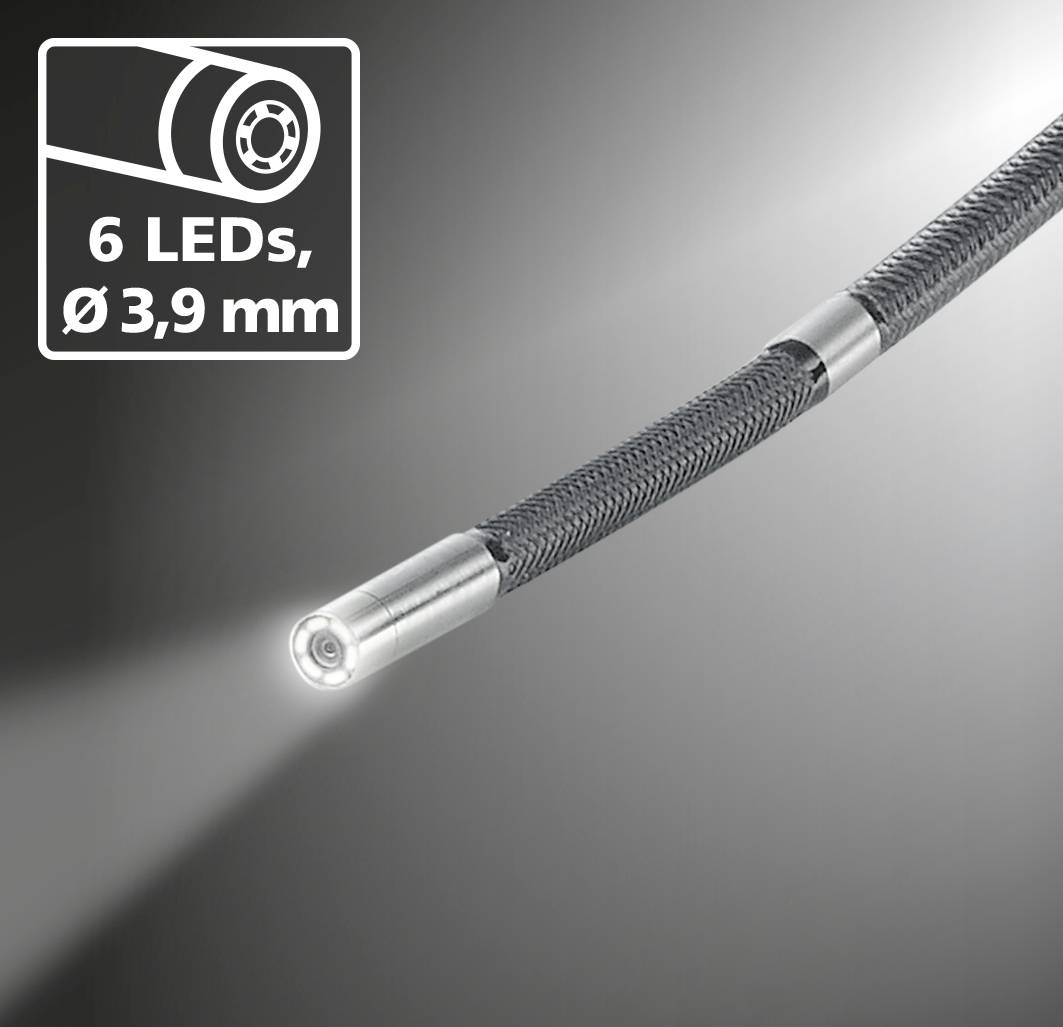

- Bright object lighting with 6 ceramic high-performance LEDs
- Image rotation in 90° steps
- REC function Picture and video on SDHC memory card
- High-quality, long-life Flex tube made from Wolf-ram
Multi-language on-screen display
- Connecting external monitors via HDMI
- Micro USB port for charging the battery
- Can replace the camera unit

Technical specifications

Product type: Inspection camera

Endoscope features: Image function
SD card slot
Swivelling
Video output
Exchangeable camera attachment
HDMI
LED lit
Image rotation
Waterproof

Display resolution: 640 x 480 Pixel

Digital zoom: 10 x

: IP68

Weight: 625

Dim: (L x W x H) 100 x 11.5 x 19 mm

Length: 100 mm

Width: 11.5 mm

Height: 19 mm

Type: VideoInspector 3D Micro (3,9 mm; 1 m)

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 3398106 Laserliner 082.277A Inspection camera

User & Safety Instructions

User & Safety Instructions 3398106 Laserliner 082.277A Inspection camera

Warranty Terms

Warranty Terms 3398106 Laserliner 082.277A Inspection camera

Description

The professional video inspection system with extremely compact camera head is ideal for precise visual inspections on small openings, for example in vehicles or machines. The waterproof, movable camera head can be set optimally for the application via the 3D control. The object illumination with six ceramic high-performance LEDs provides clear images even under the worst conditions. The image rotation takes place in 90° steps on the high-contrast TFT display. With the REC-function the still images and videos can be recorded for later evaluation. The device has a robust adjustment mechanism and a long-life Flex tube made of Wolf ram.
