Name: Laserliner 082.283A Inspection camera Probe diameter: 6 mm Probe length: 2 m
Brand: Laserliner
SKU: 3058924
Availability: InStock

Industrial endoscope with a flexible cable and screen, displaying an image of the inside of a machine. Primarily used for inspection purposes.

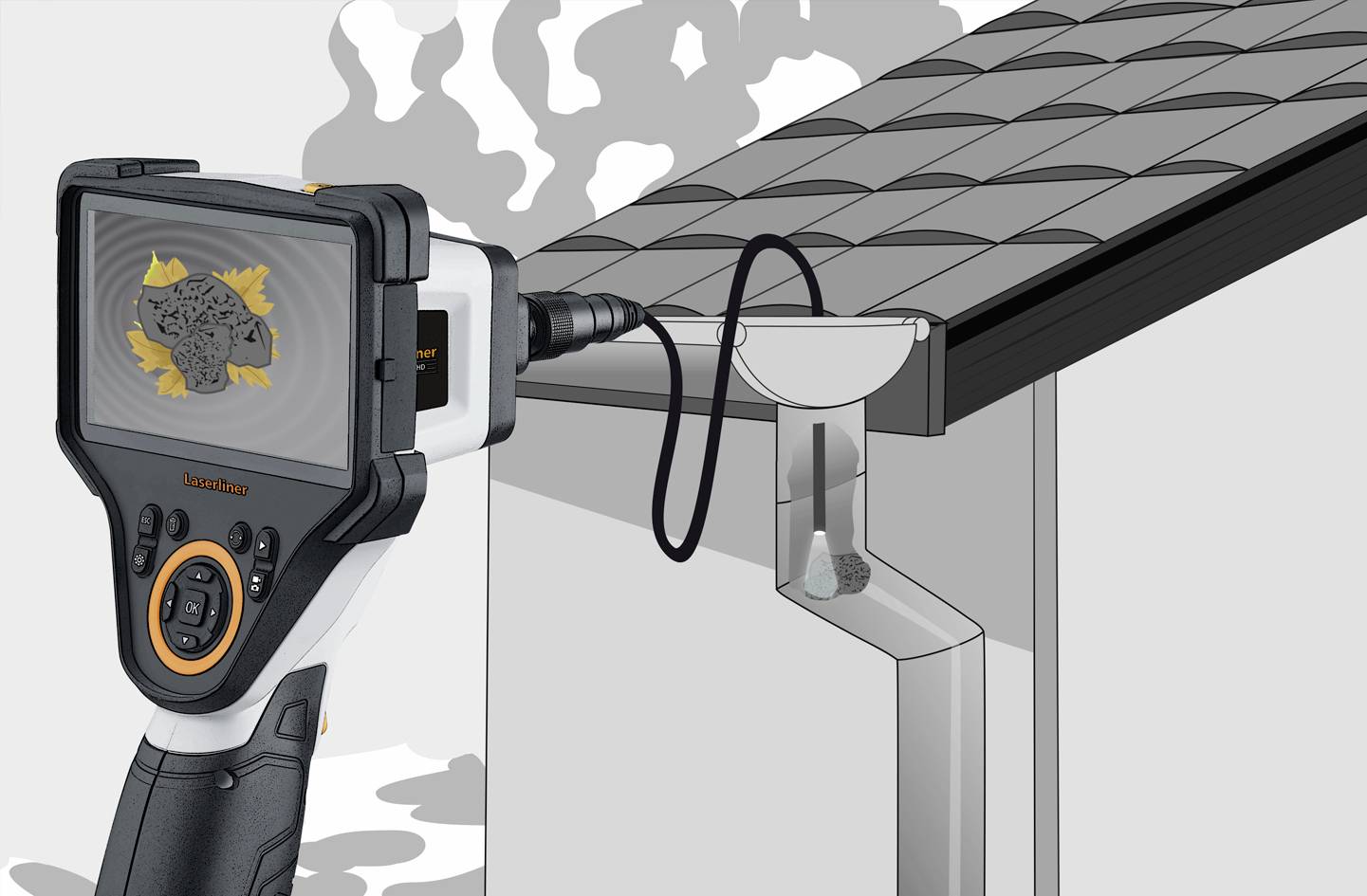

An endoscope is used to inspect a gutter downpipe for leaf blockages.

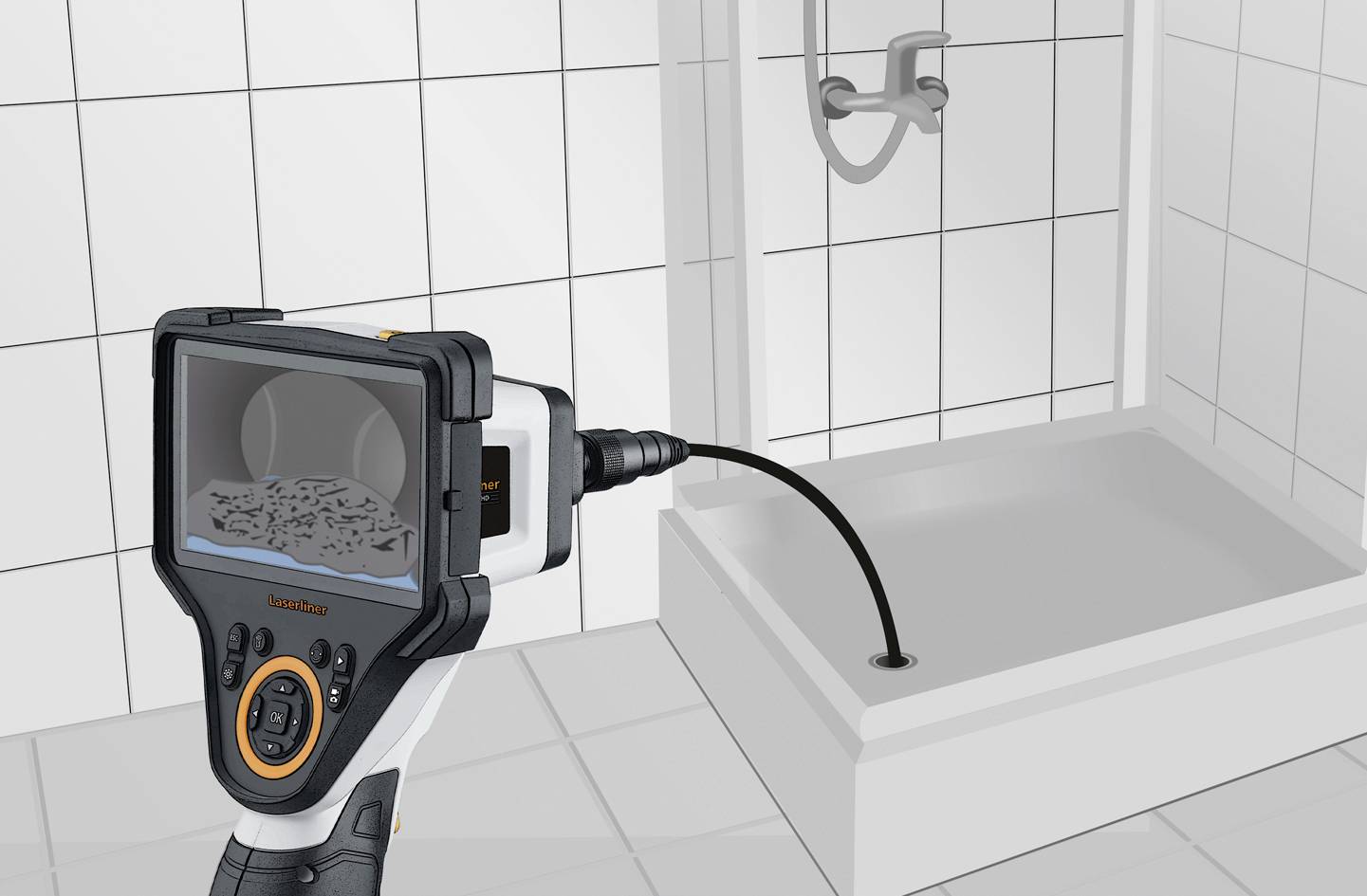

An endoscope shows blocked pipes in a shower. The flexible cable is inserted into the drain to investigate the blockage.

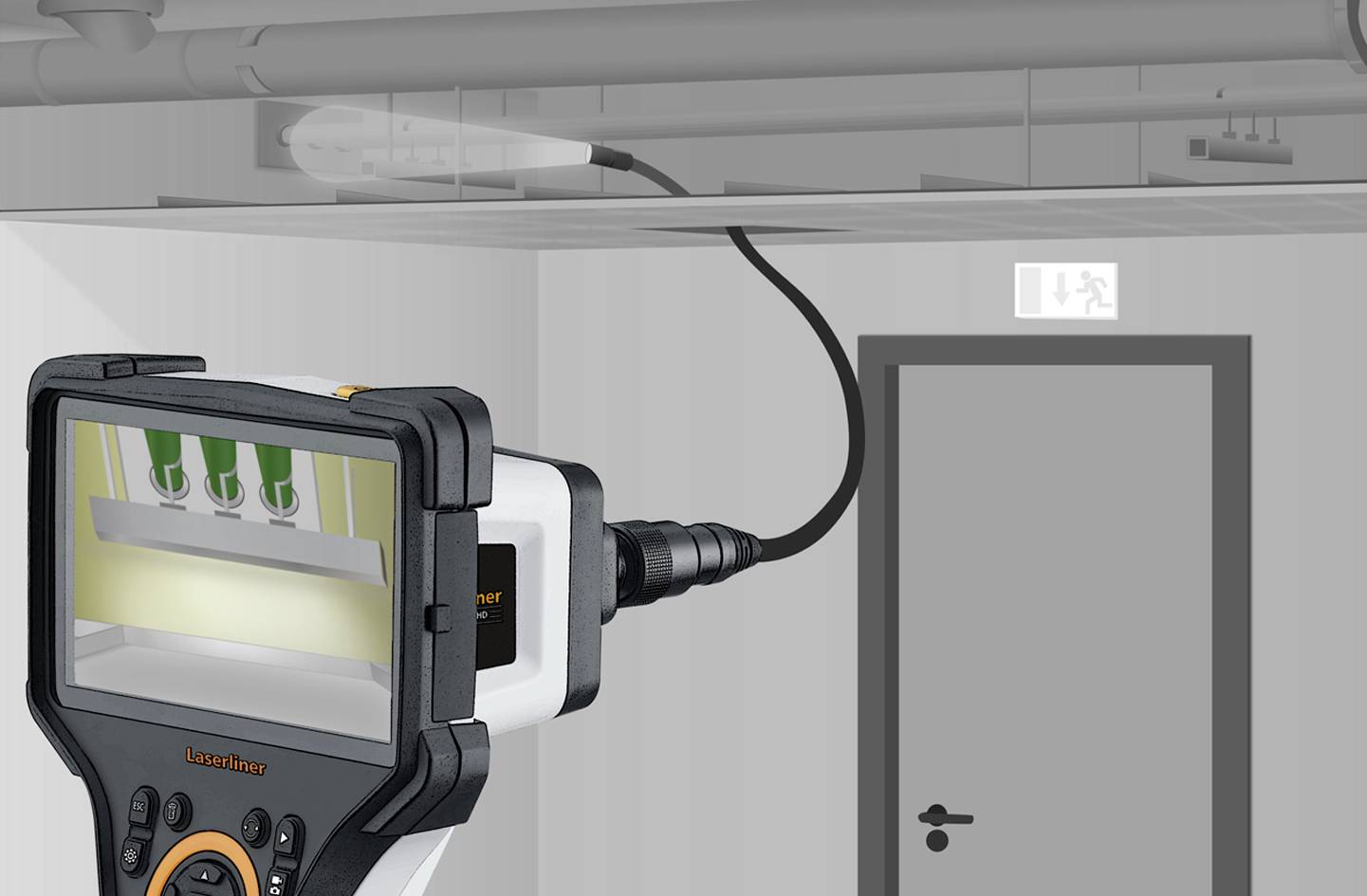

A camera inspection device displays pipes behind a ceiling. It is used to check hidden installations.

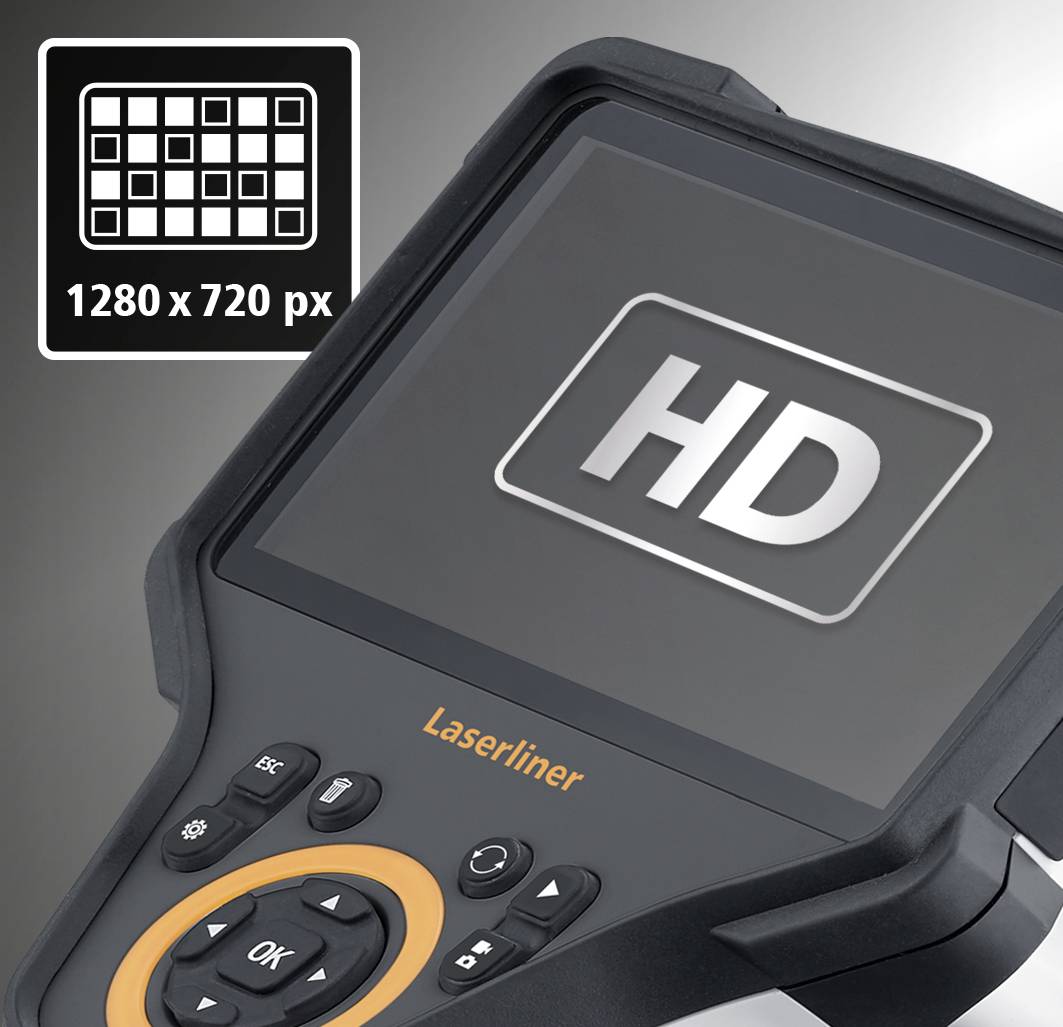

A laser measuring device with an HD screen resolution of 1280 x 720 pixels, suitable for precise HD measurements.

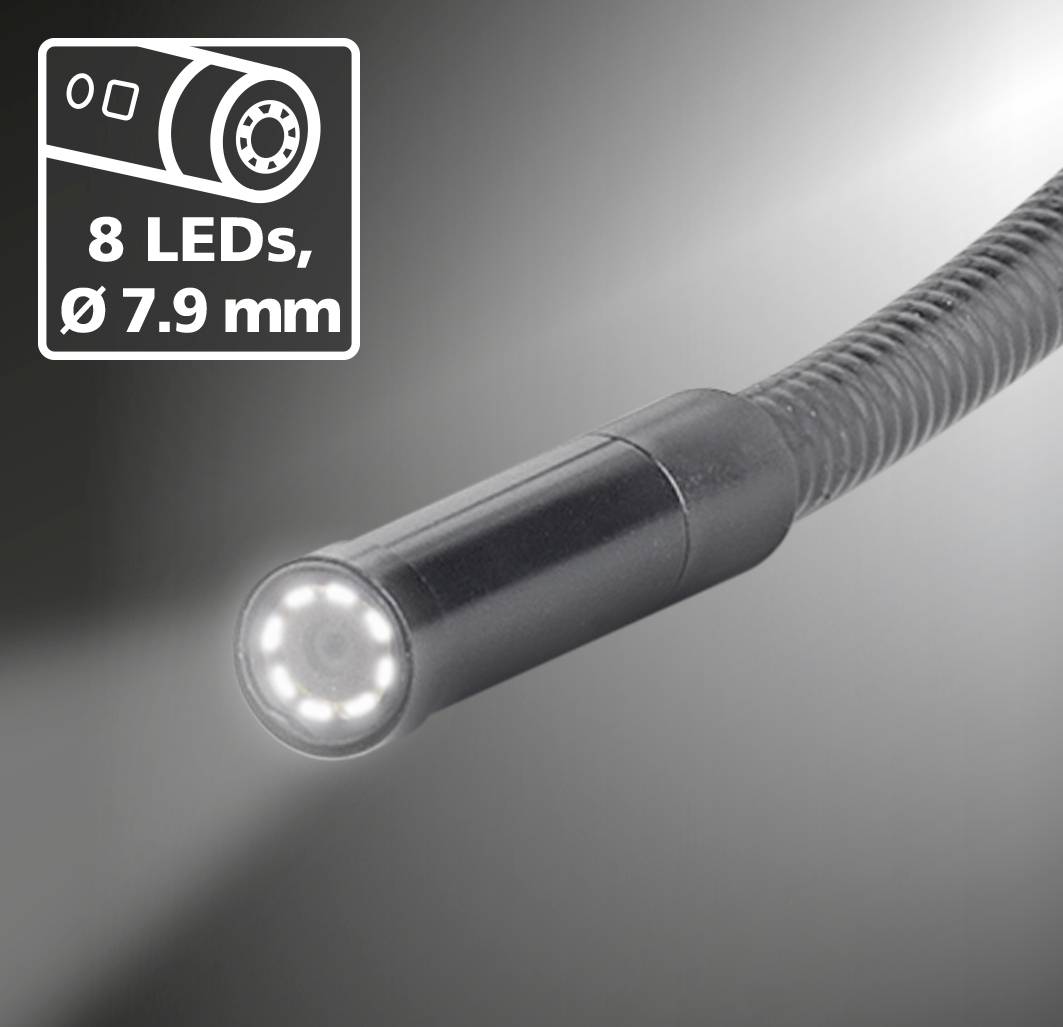

Endoscope camera with 8 LEDs, diameter 7.9 mm, flexible cable. Ideal for hard-to-reach areas.

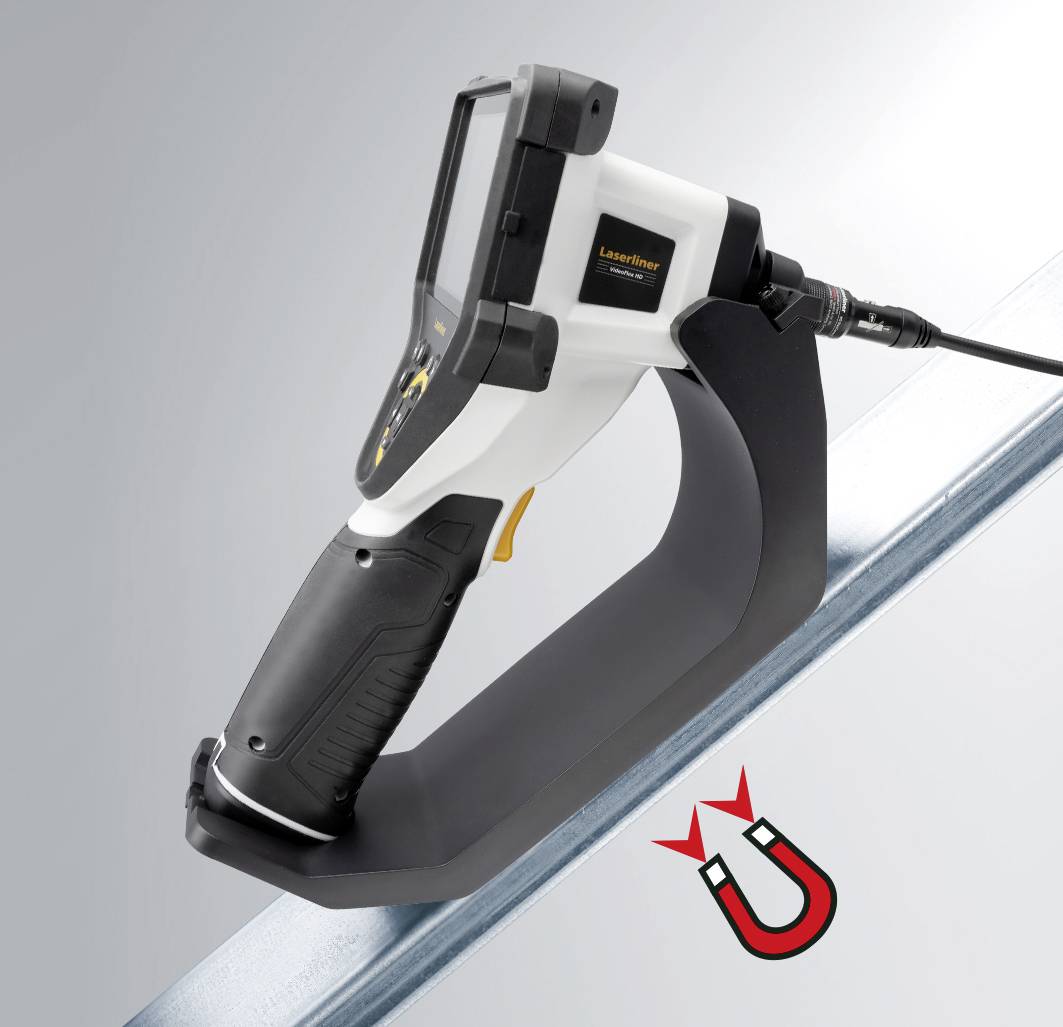

A portable measuring device directed at a metal carrier signals the inspection of material composition with a magnet symbol.

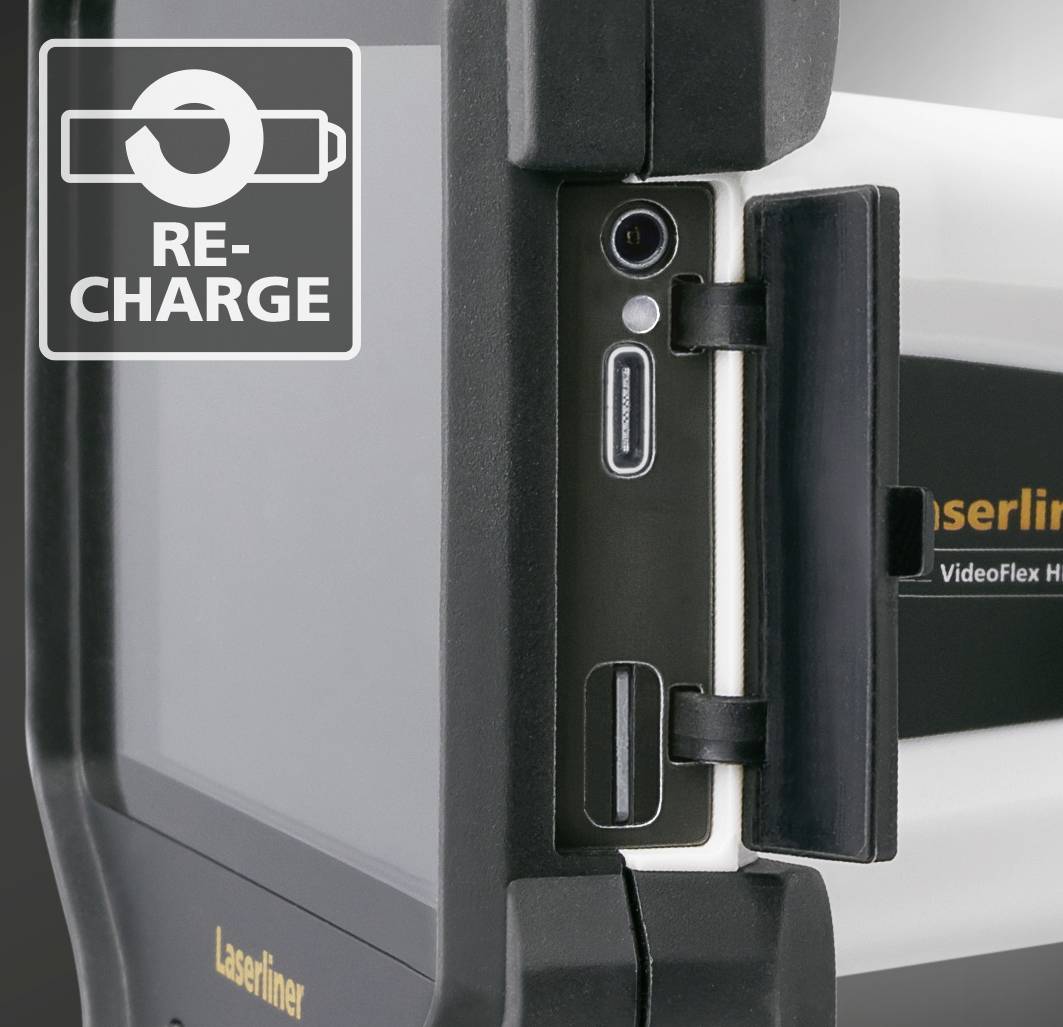

A device by Laserliner, possibly a video endoscope camera. There is an indicator for charging ('RE-CHARGE').

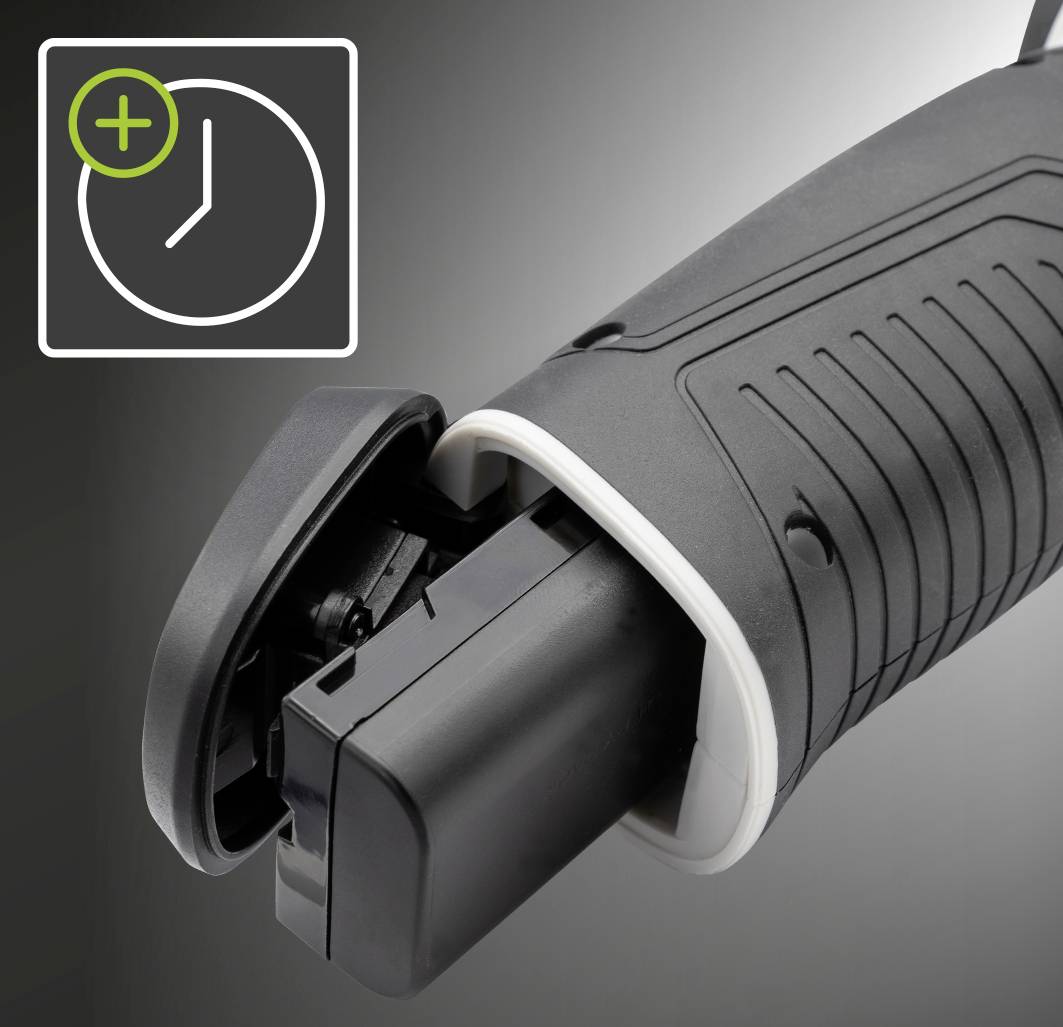

A black electric power tool lies on a grey background. Next to it is a symbol with a clock and plus sign, indicating extended working hours.

Laserliner 082.283A Inspection camera Probe diameter: 6 mm Probe length: 2 m-9

1/10

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

3 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 965.00 / piece)

€ 965.00

incl. VAT

Only 3 Piece(s) available

14-day return policy included

Report legal concerns

Technical specifications

Screen:
5" TFT color display
Memory: Micro SD up to 32 GB
USB-C connection
Li-Ion battery pack: 2.6 Ah; 7.4 V; 19.24 Wh
Power supply 9 V/DC 2 A
Operating time: Approx. 5 hours.
Charging time: About 3 hours.
Probe
Protection class: IP68
Number of LED bulbs: 8

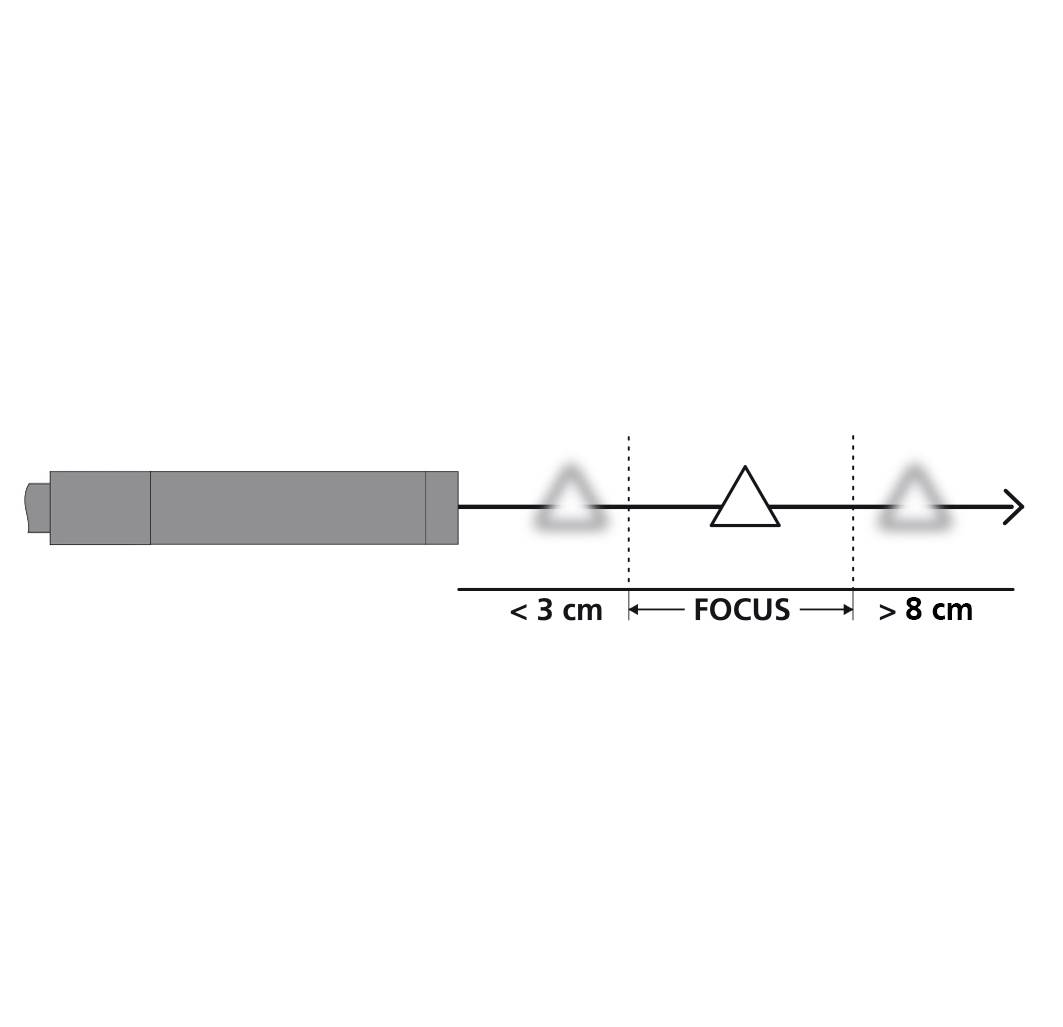

Depth of field (DOF): 3 - 8 cm
Weight: 175 g

Product type: Inspection camera

Probe diameter: 6 mm

Probe length: 2 m

Endoscope features: Exchangeable camera attachment

Display resolution: 1280 x 720 Pixel

Camera resolution: 1280 x 720 Pixel

: IP54

Field of view: 80°

Weight: 956 g

Dim: (L x W x H) 14 x 31 x 21 cm

Length: 14 cm

Width: 31 cm

Height: 21 cm

Type: VideoFlex HD Duo

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3058924 Laserliner 082.283A Inspection camera Probe diameter: 6 mm Probe length: 2 m

Warranty Terms

Warranty Terms 3058924 Laserliner 082.283A Inspection camera Probe diameter: 6 mm Probe length: 2 m

Description

The professional video inspection system with interchangeable front and side views is Ideal for exact visual inspections in pipelines, wall cavities and vehicles. This very small camera head is ideal for narrow openings, for example in engines, gears or car bodies. The high-resolution camera enables very detailed pictures and video recordings with 1:1-playback on the display without loss of quality. The details can be captured excellently through the clear digital Zoom. Other advantages are the first-class LED object illumination, optimum contrast reproduction of gray shades and the magnetic stand. The magnet and hook attachments can be mounted on petrol and diesel resistant camera head for tightening or lifting of objects that are difficult to reach.

This text is machine translated.

Features

Effective problem localization behind or in objects, walls, wires, cavities
Very detailed picture and video recordings through high-resolution camera and 1:1-playback on the display without loss of quality
Small camera head Ideal for hard-to-reach areas
Extremely clear digital Zoom through high resolution of the camera
User has both hands free for positioning the camera unit thanks to the magnetic stands on the base unit
Quick change of view by pressing a button through front and side camera
Bright object lighting at the camera through 7 high-power LEDs
Camera head and probe resistant against petrol and diesel
Magnet and hook attachments for attachment at the camera head enable tightening/lifting of objects that are difficult to reach
Natural colors for realistic representation
Optimal contrast reproduction of gray shades
Image is available through rotation and reflection on the monitor
Webcam function for live transmission of inspection on the PC, Ideal for stationary operation in the industry
Long operating life through the powerful HighCapacity pack with lithium-ion technology
Well readable, colored battery charging indicator
Device with multi-standard power supply can be recharged or the battery pack can be charged in removed condition with commercially available USB-C charger
Can also be used in network operation
Flexible usage options through exchangeable camera unit
Innovative user interface and individually configurable front button for convenient operation
Evaluation and documentation via micro SD card and USB-C interface
Media Gallery with the date and time of the recordings
Time stamp: Fixed marking of each recording with date and time regardless of the output medium
Device fits well in the hand through an ergonomic design
Energy-saving automatic cut-off after adjustable time
8 languages available

Scope of delivery

VideoFlex HD
DuoView camera 2 m
Magnetic holder
Top clips
High-capacity pack (Li-ion)
Mains / charger incl. international Adapter
USB-C cable
Micro SD card
Carrying case
