Buy Laserliner 084.330A Inspection camera Probe diameter: 39 mm Probe length: 5 m

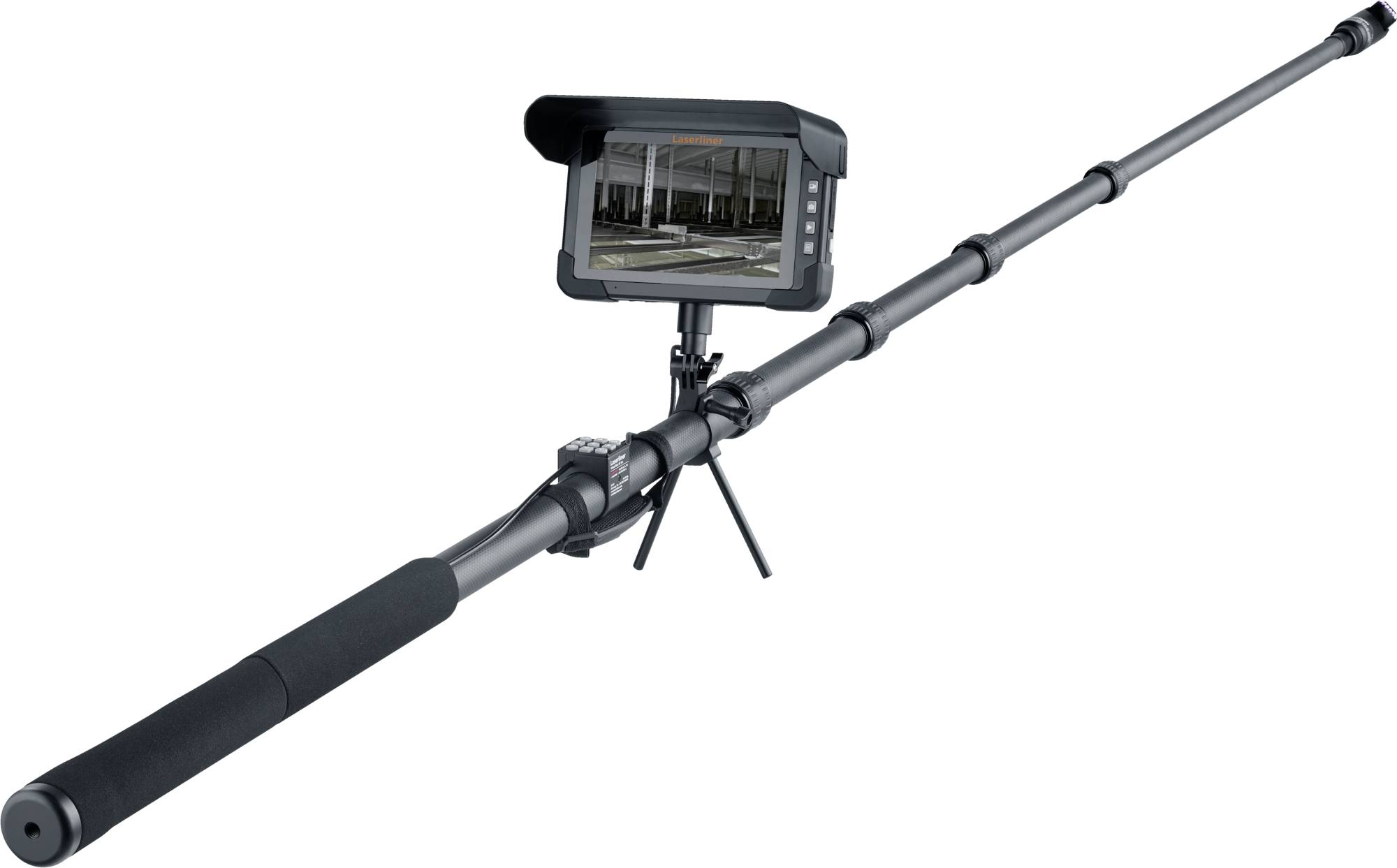

Long-range inspection camera on a telescoping pole with grip handle and tripod stand, showing a monitor previewing an indoor construction site.

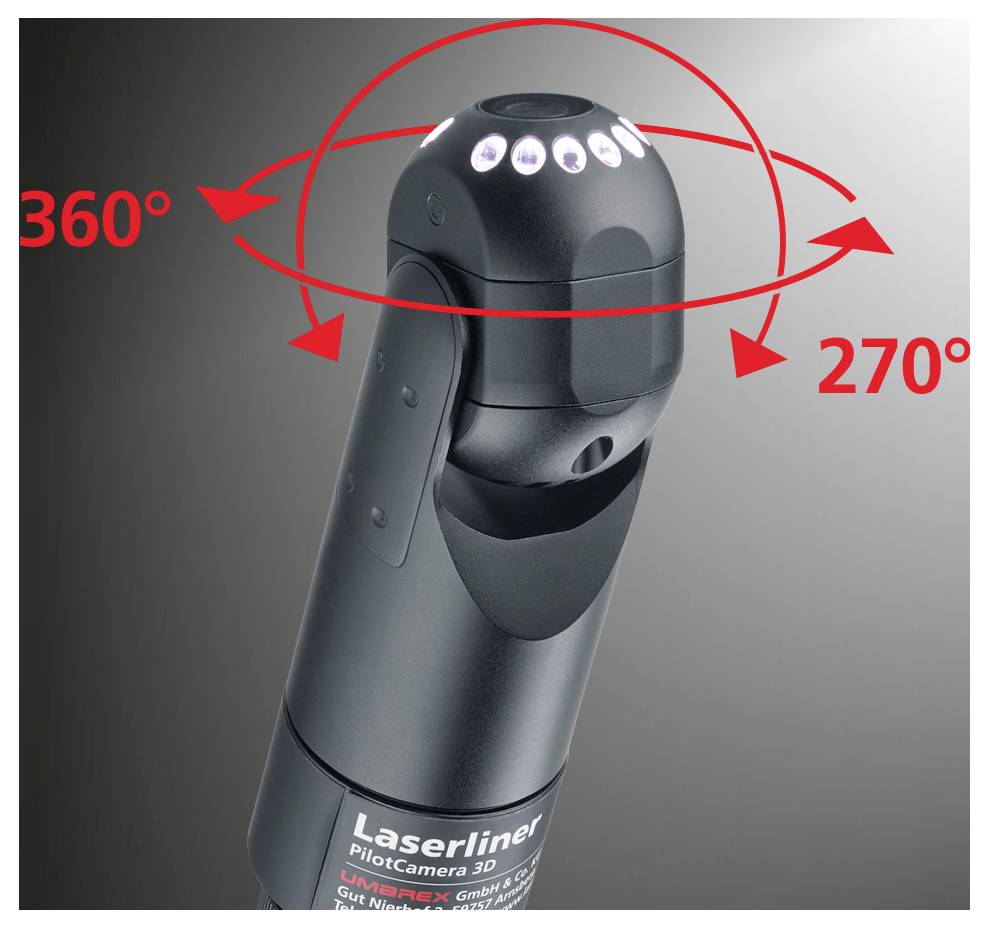

Product photo of a Laserliner PentaCamera 3D with red arrows showing 360° horizontal and 270° vertical rotation around the camera head.

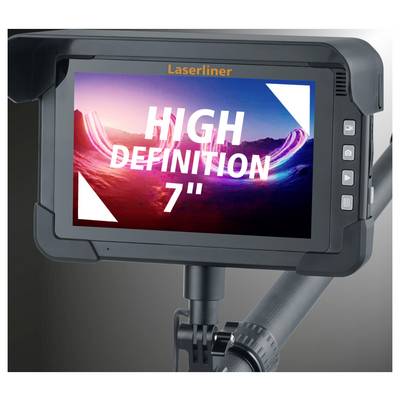

Laserliner 7-inch high-definition monitor mounted on a stand, showing a colorful promotional display on its screen.

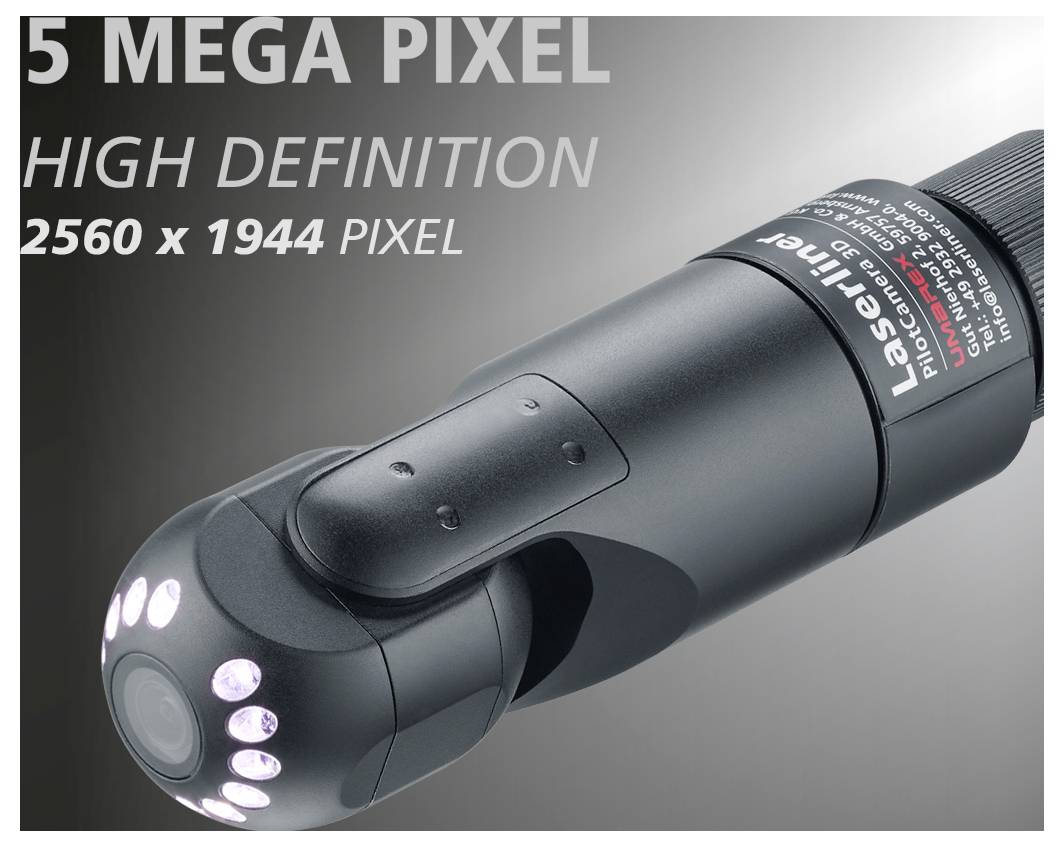

Black laser borescope camera with LED ring light, labeled '5 MEGA PIXEL' and 'HIGH DEFINITION 2560 x 1944 PIXEL'.

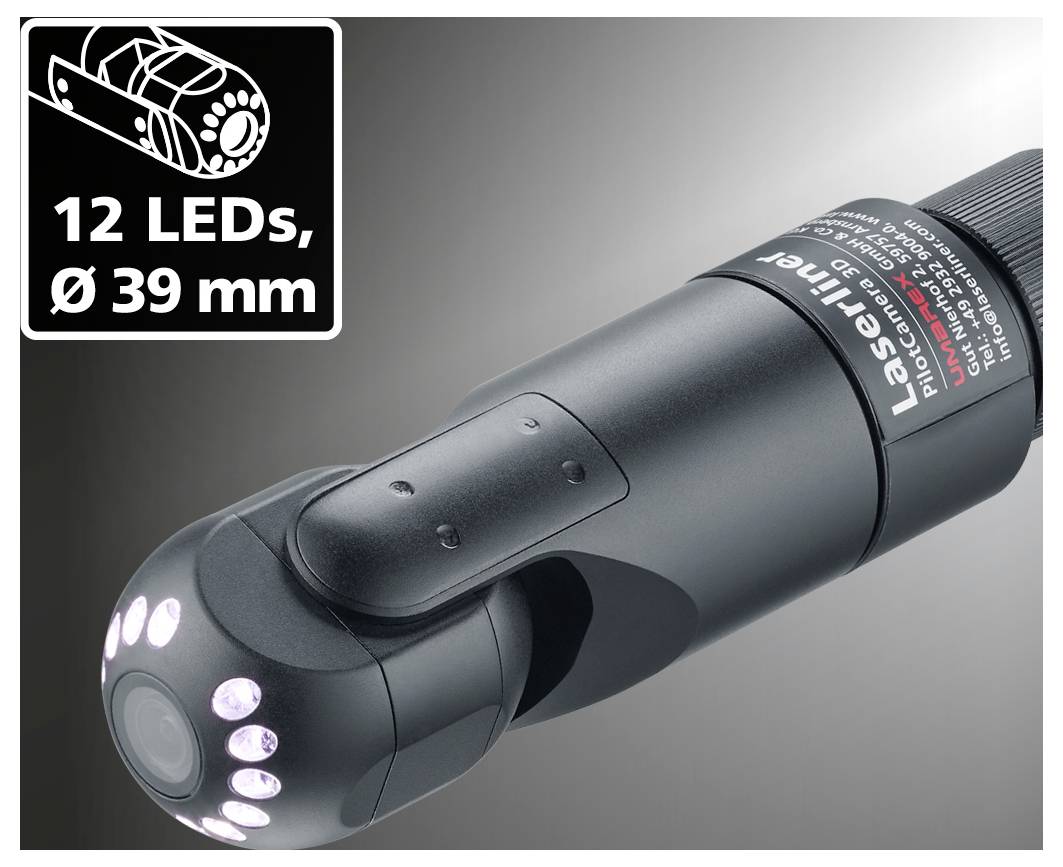

Black handheld flashlight with 12 LEDs around the head; inset text reads '12 LEDs, Ø 39 mm'.

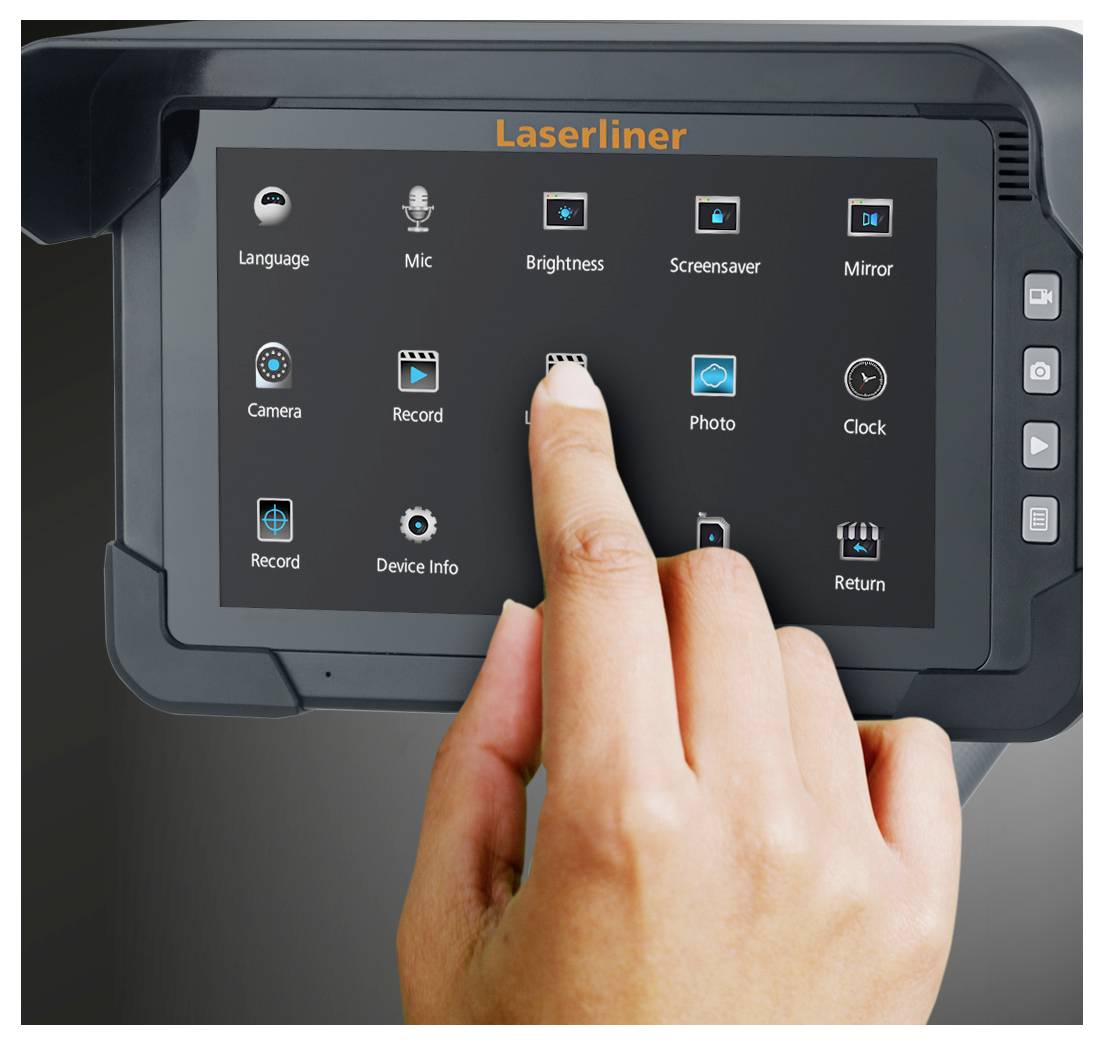

Hand taps the 'LED' menu icon on a Laserliner touchscreen device showing settings like Language, Mic, Brightness, Screensaver, Camera, Photo, Clock, and Return.<br>

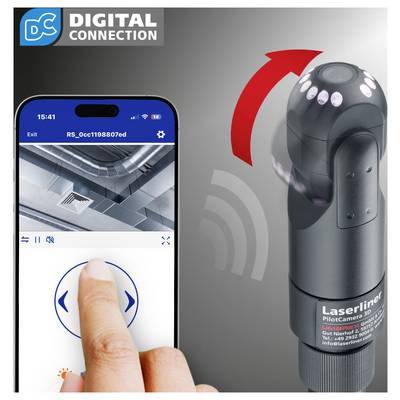

Smartphone app controls a Laserliner inspection camera, showing live view and swipe navigation for remote viewing.

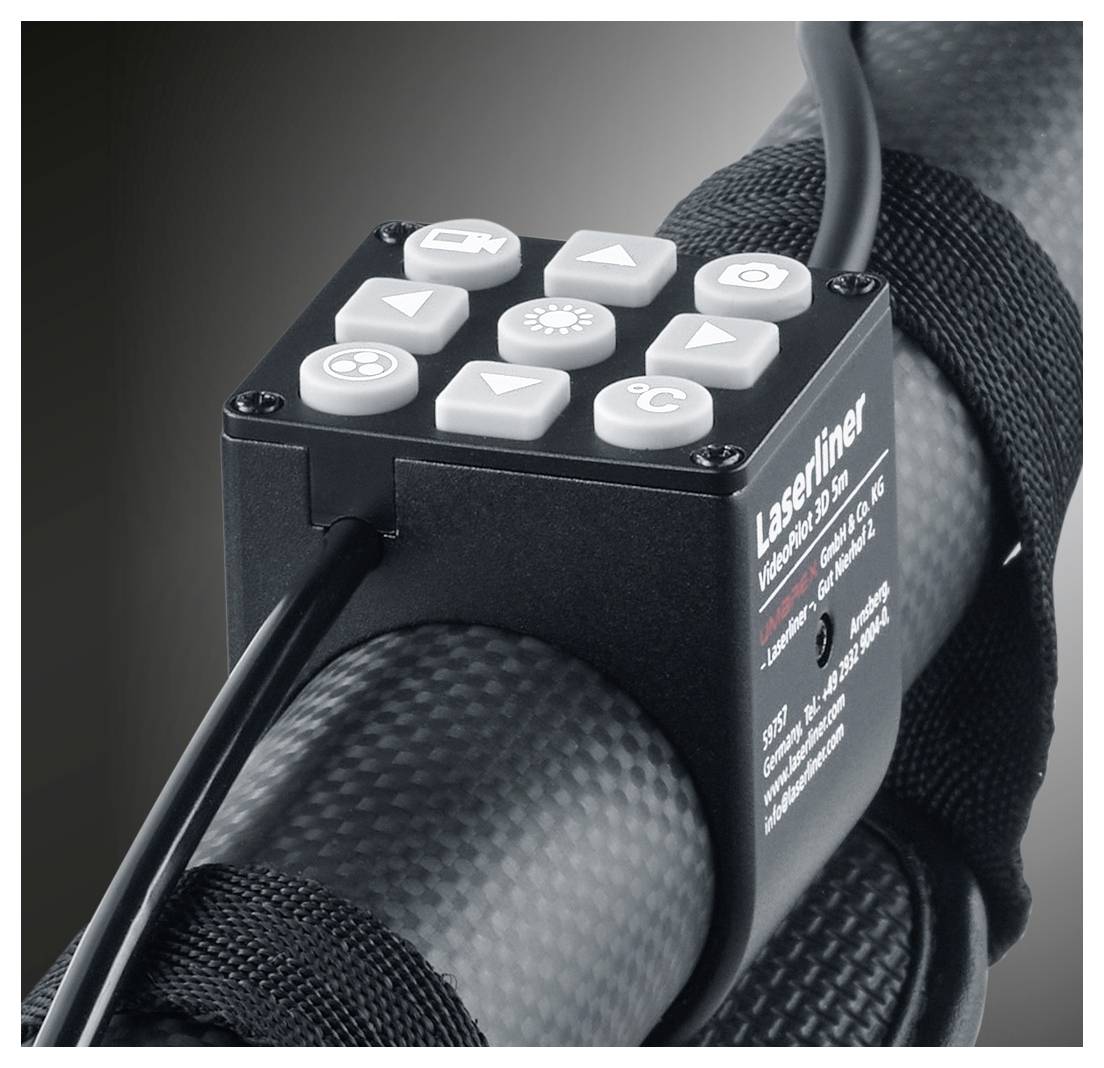

Close-up of a Laserliner Velimex 8.4v control module with white buttons mounted on a black strapped device, likely for adjusting a machine or camera rig.

A camera-mounted monitoring device on a tripod attached to a cylindrical pipe, with a foam-covered microphone-like end and control box.<br>

Headset microphone and overhead spotlight attached to a Laserliner inspection camera device, shown on a gray background.

Laserliner inspection camera kit with hard case, probe, headset, Li-ion battery, memory card, cables, coiled extension, charger, and lens attachments.

1/11

Datasheet (PDF)

Dispatches on Fri, 14 Aug

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 3,794.12 / piece)

€ 3,794.12

plus VAT.

Report legal concerns

Highlights & Details

Professional telescopic video inspection system with motorized control of the camera head, high-resolution 3D camera, 5 m extendable bar and large 7" touchscreen

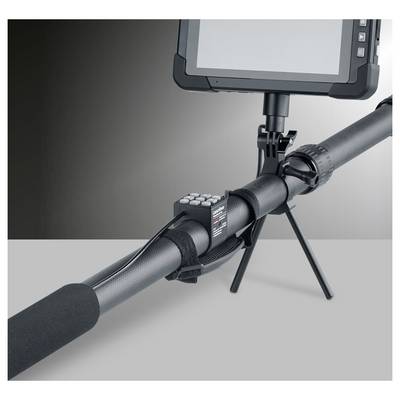

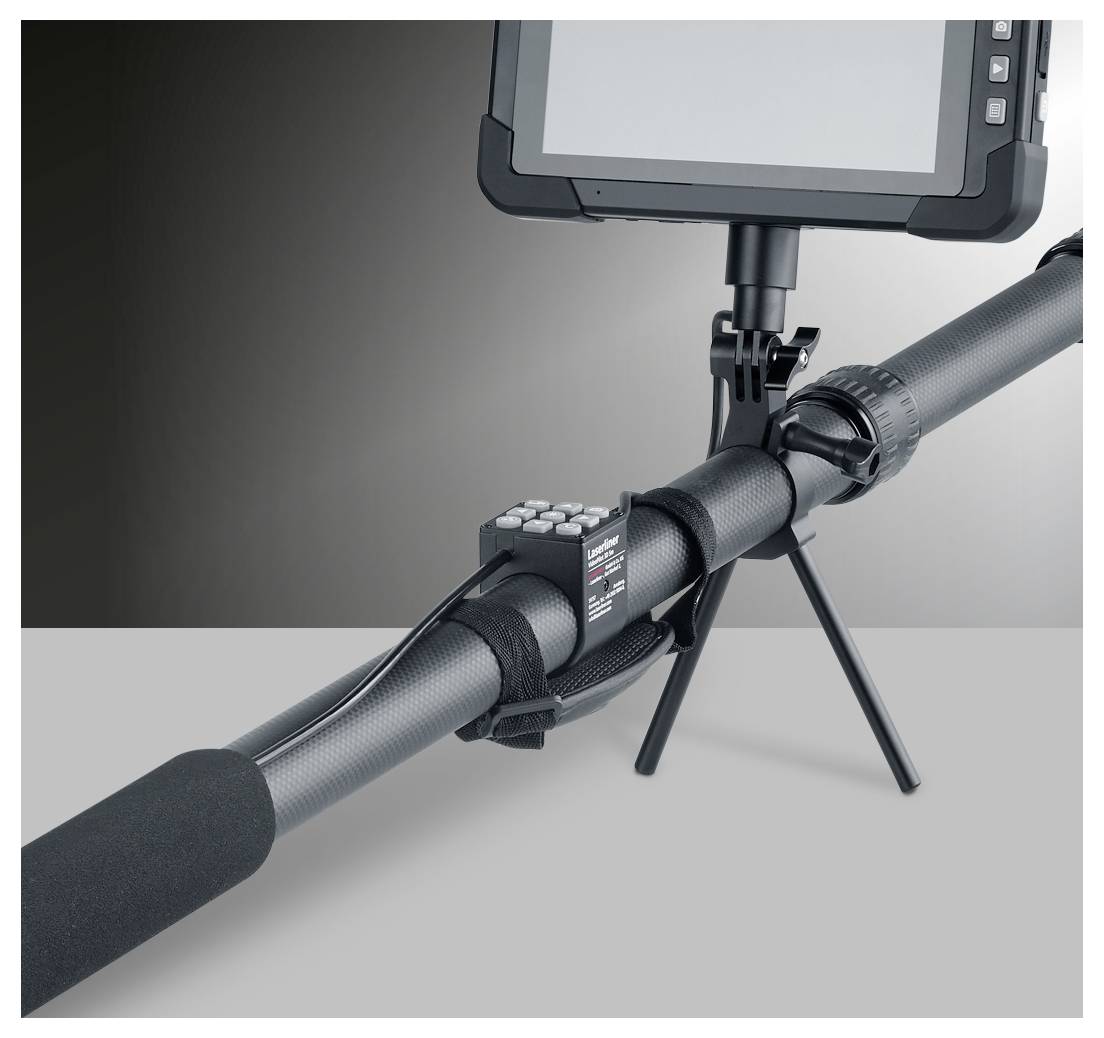

Telescope design Ideal for reaching high, deep or far away places
Suitable for a wide range of applications, including maintenance, servicing, DIY, industry and building services

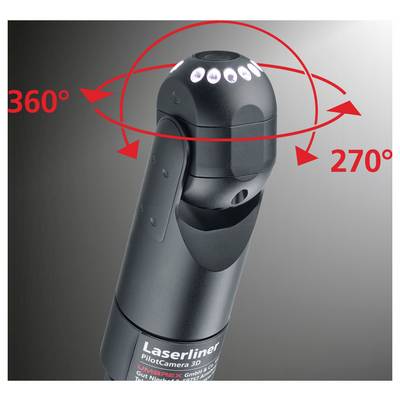

The camera head can be rotated by 360° under motor and tilted by 270° for fast, flexible adjustment of the view

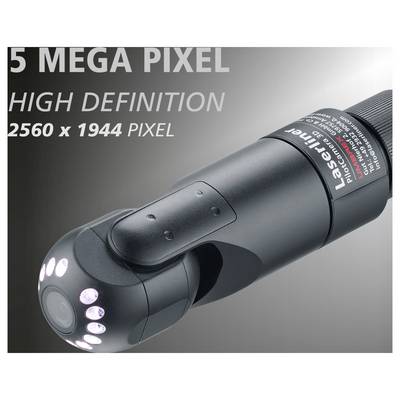

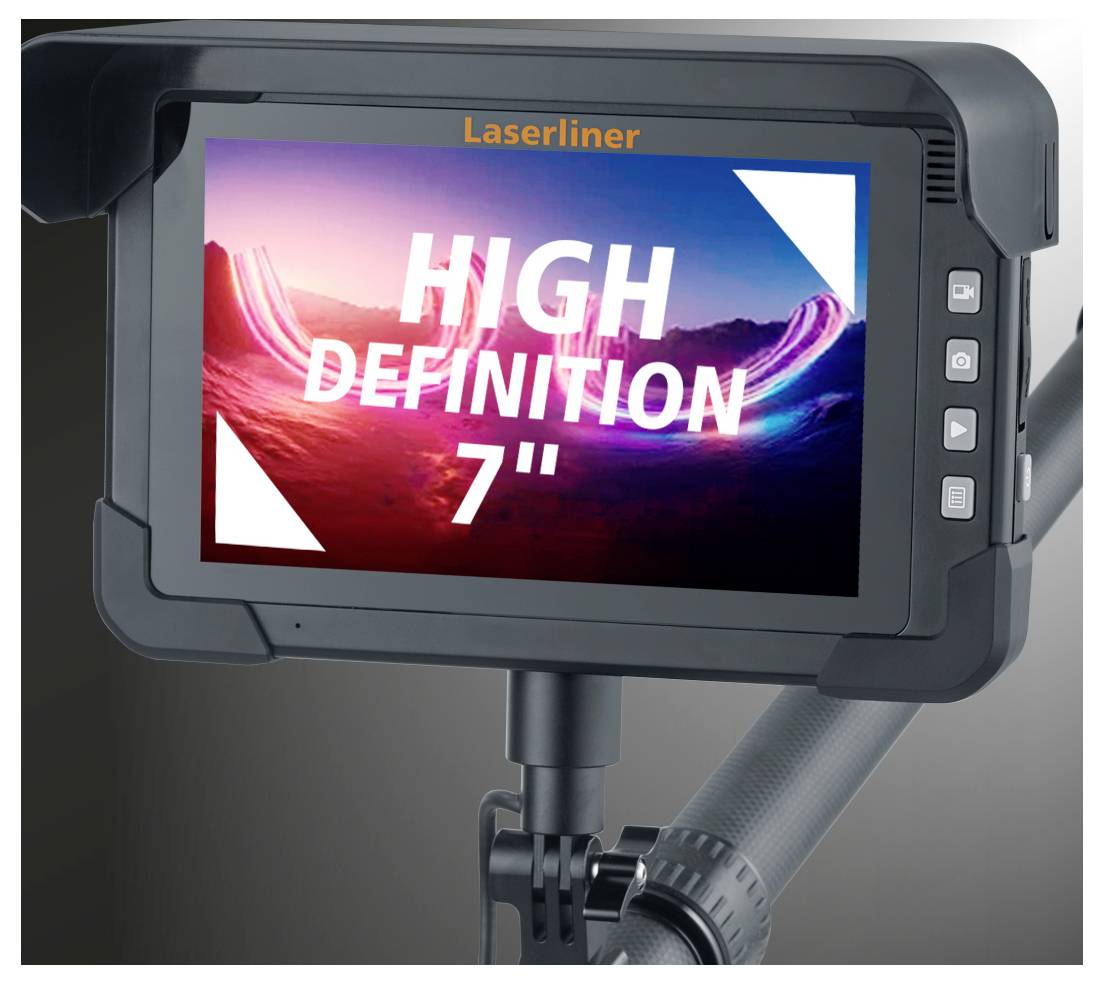

Very detailed picture and video recordings through high-resolution camera and first-class display on the 7" TFT touch-screen
Extremely clear digital Zoom through high resolution of the camera

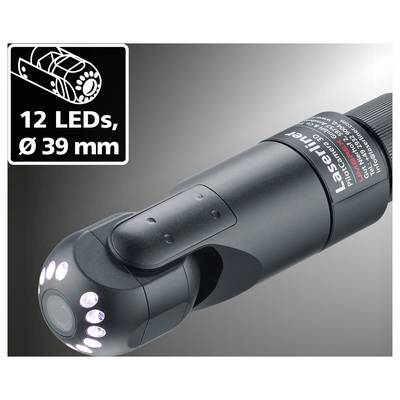

Bright object lighting at the camera through 12 high power LEDs, adjustable in 10 levels
Natural colors for realistic representation
Optimal contrast reproduction of gray shades
Image is available through rotation in 90°-steps on the monitor

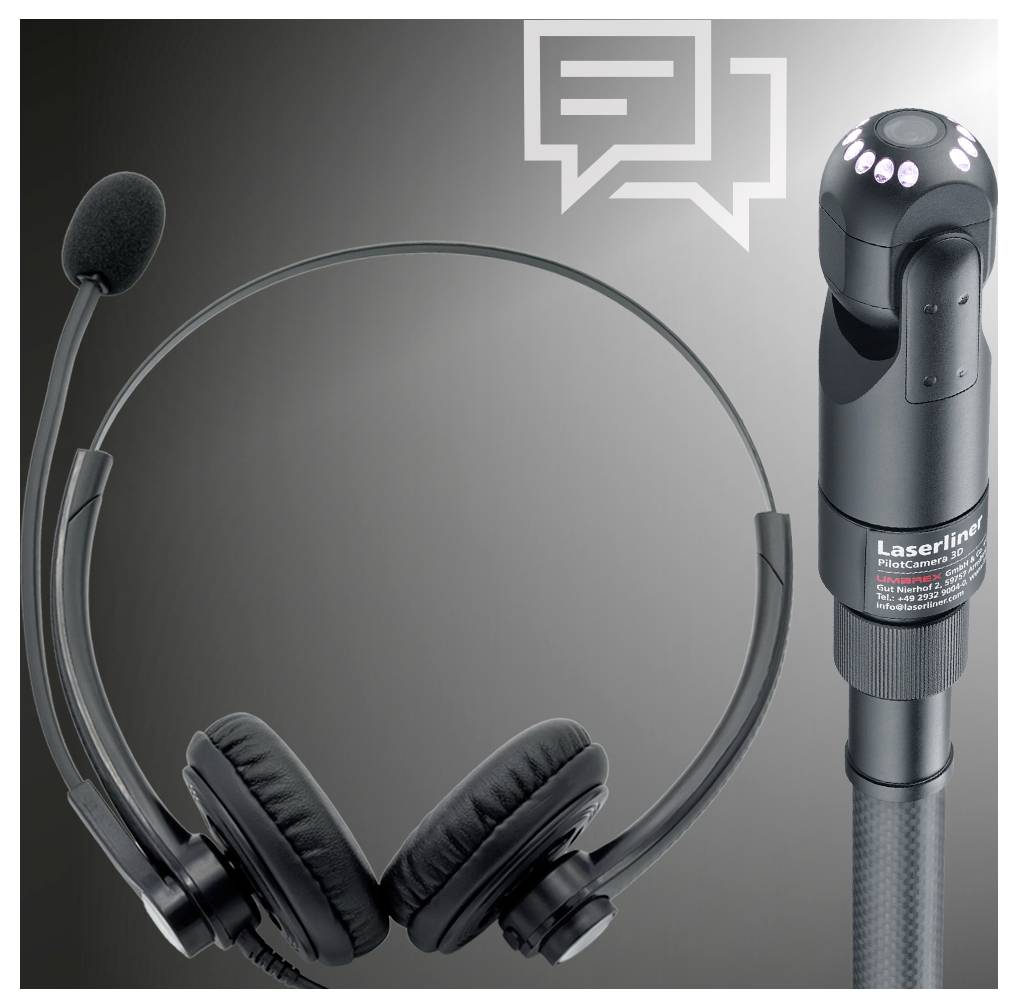

Intercom function between camera head and headset
HDMI port for transmitting the inspection to an external monitor
Powerful lithium ion battery with a long operating life
Device can be charged with multi-standard power supply
Operation during charging also possible
Evaluation and documentation via micro SD card and USB-C interface
Media Gallery with the date and time of the recordings
Time stamp: Fixed marking of each recording with date and time regardless of the output medium

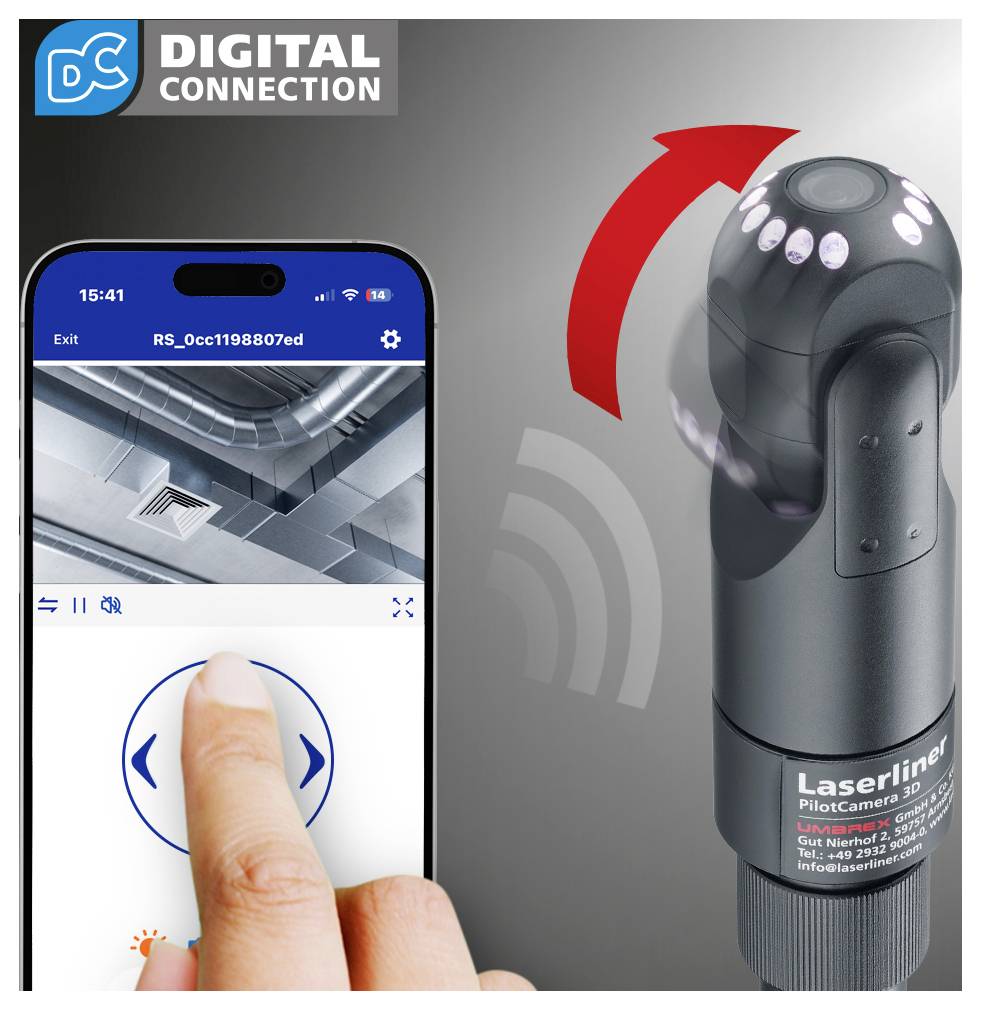

Compatible with the APP SInspection SYS: Connection via integrated Wi-Fi hotspot (SSID) for control of the camera head, live view as well as recording, downloading and management of photo and video data on mobile devices
9 languages available

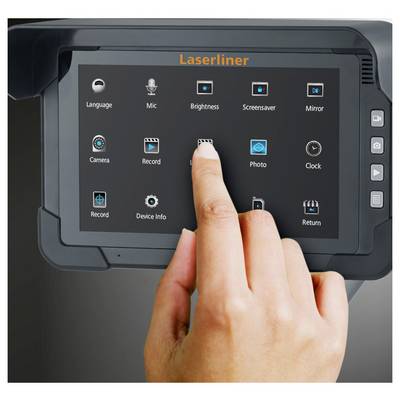

Device control comfortably via touch-screen
Sun visor on the touch screen reduces ambient light for better contrast reproduction, even in very bright ambient light
Convenient carrying case protects the device and accessories, can be transported easily

Technical specifications

Product type: Inspection camera

Probe diameter: 39 mm

Probe length: 5 m

Endoscope features: Wi-Fi
HDMI

Display resolution: 1280 x 800 Pixel

Focus: Depth of field (DOF): 20 ... 100 cm

Digital zoom: 10 x

: IP65

Power supply (details): Li-ion battery

Field of view: 135

Light source: 12 high-power LEDs

Type: VideoPilot 3D 5m

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3782660 Laserliner 084.330A Inspection camera Probe diameter: 39 mm Probe length: 5 m

User & Safety Instructions

User & Safety Instructions 3782660 Laserliner 084.330A Inspection camera Probe diameter: 39 mm Probe length: 5 m

Conformity certificate

Conformity certificate 3782660 Laserliner 084.330A Inspection camera Probe diameter: 39 mm Probe length: 5 m

Description

This professional telescopic video inspection system is Ideal for visual inspection of areas that are high, deep or far away. It is suitable for various applications in maintenance, service, handicraft, industry and building technology. The camera head can be rotated by 360° under motor and inclined by 270°, which enables a fast, flexible adjustment of the view. Very detailed image and video recordings are ensured by the high-resolution camera and first-class display on the 7" TFT touch-screen, supplemented by an extremely clear digital Zoom and optimal contrast reproduction of gray shades. 12 high-power LEDs that can be set in 10 stages provide for bright object illumination. Via the HDMI-connection the inspection can be transferred to an external monitor. Evaluation and documentation takes place via micro SD card and USB-C interface. A media gallery with the date and time of the recordings and a time stamp with fixed marking of each recording support the structured documentation.

This text is machine translated.

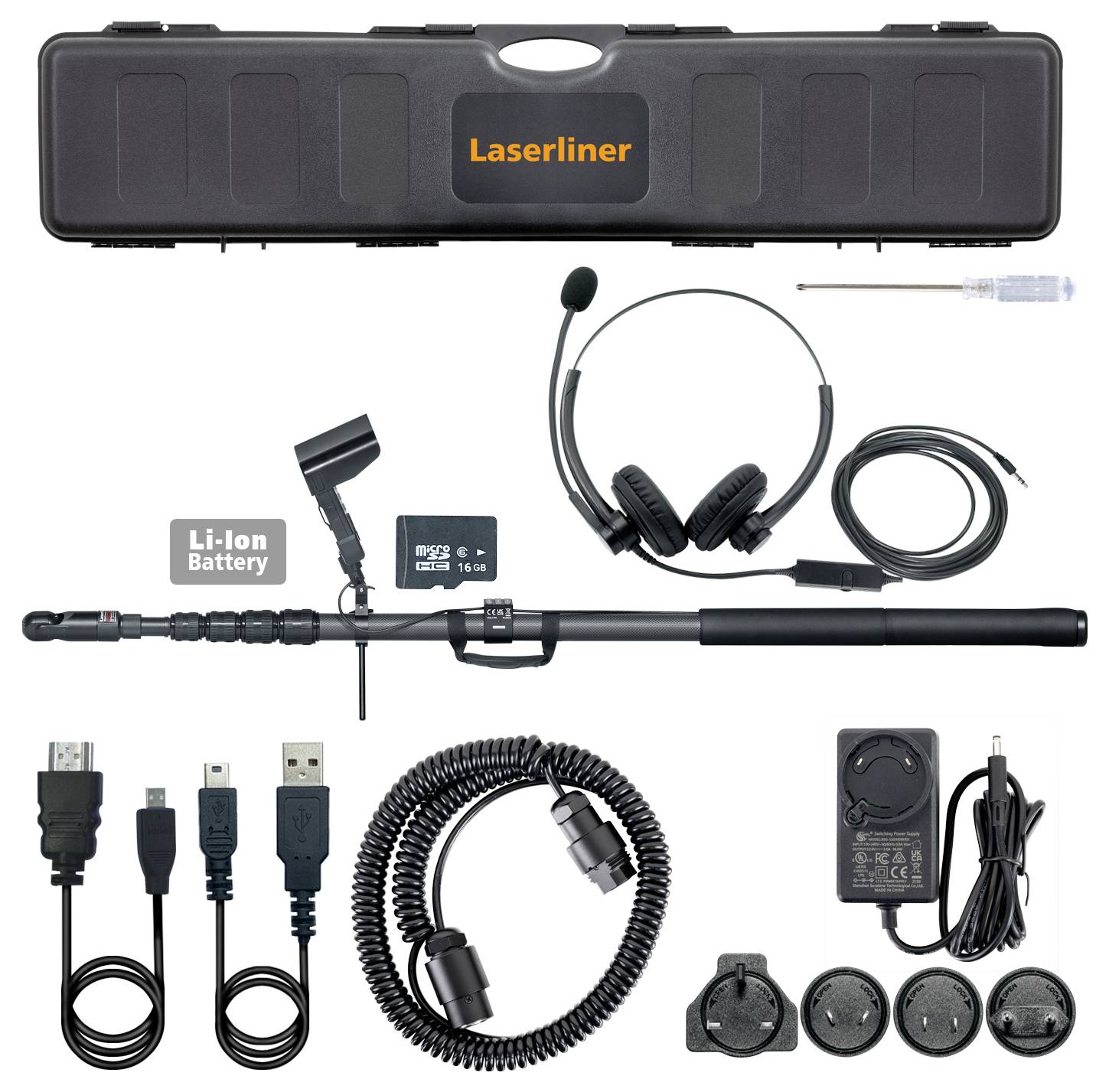

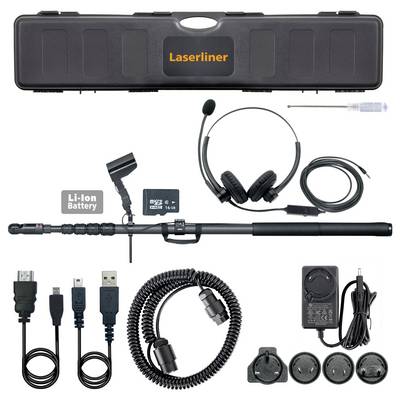

Scope of delivery

VideoPilot 3D
Pilot camera 3D
Telescopic pole
Touchscreen display
Base
Headset
Integrated Li-Ion battery pack
Mains / charger incl. international Adapter
USB-C cable
HDMI cable
Monitor extension cable
Screwdriver
Wrist strap
Carrying case
