Name: LEDmaxx IP201 Wall Occupancy sensor 360 ° White IP20
Brand: LEDmaxx
SKU: 3451730
Availability: BackOrder

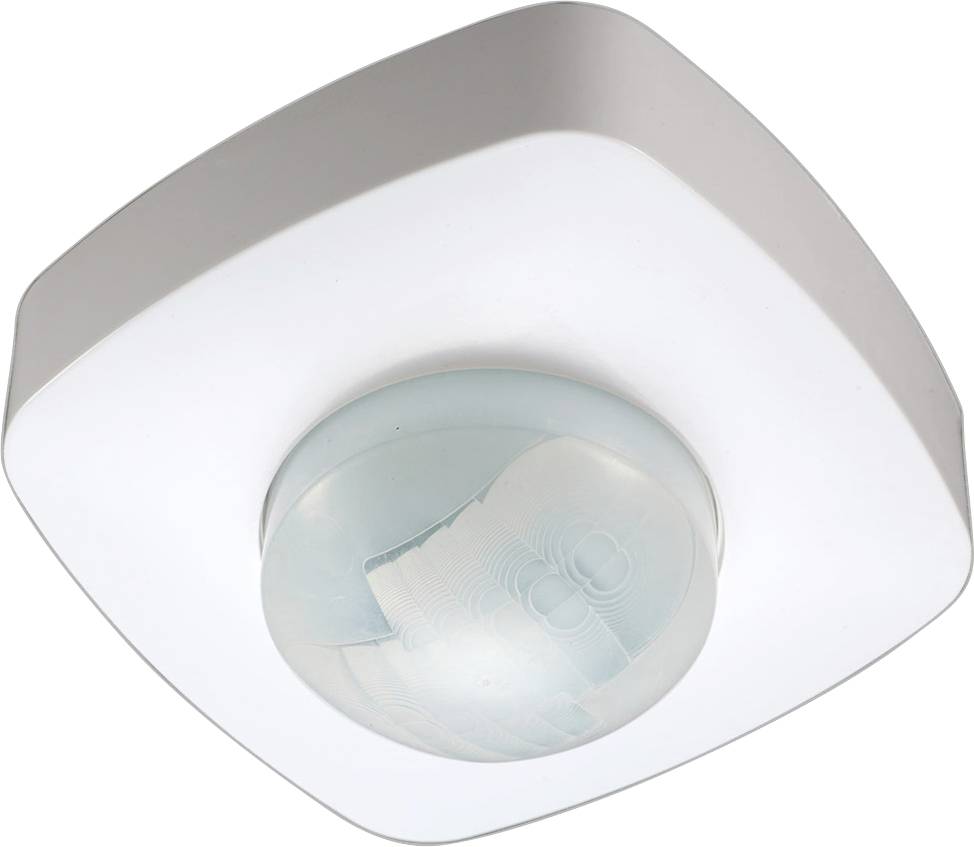

A white ceiling-mounted motion sensor with a circular lens, used for detecting movement to control lighting automatically.

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 26.99 / piece)

€ 26.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Infrared presence sensor up to 20m max. 1000W / 2000W IP20 360°

Energy saving switch with sensitive sensor and integrated circuit
Ideal for controlling the lamp status
Wide detection field by sensors
Works through the reception of infrared rays in human movement
Starts the function immediately when the detection field is entered
Automatic day- and night-identification
Adjustable ambient light <3-2000 lux
Holding time can be set from min. 10 seconds (±3 seconds) up to max. 30 minutes (±2 minutes)
Switching capacity of max. 2000W for incandescent lamps/halogen lamps and max. 1000W for fluorescent lamps/LED lamps/energy-saving bulbs
Detection range, 4 m x 20 m max. (<24°C)
Installation height of 4-10m It is recommended to install the device at a height of 10m.
IP20 Safety class
Possibility of continuous extension of the detection time with repeated induction signals.

Technical specifications

Product type: Occupancy sensor

Detection angle: 360°

: 20 m

Used at: Indoors

Mounting type: Wall

Voltage (max.): 240 V

Switching capacity (energy saving bulbs): 1000 W

Switching capacity (light bulbs): 2000 W

Switching capacity (LED): 1000 W

Switching capacity (light tubes): 1000 W

Factory colour: White

: IP20

Operating temperature: -20~+40 °C

Length: 102.5 mm

Height: 58.3 mm

Weight: 120 g

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3451730 LEDmaxx IP201 Wall Occupancy sensor 360 ° White IP20

Description

This highly developed infrared presence detector combines precision and efficiency and is Ideal for demanding applications. Equipped with a sensitive sensor and an integrated circuit, it reliably detects movements in a capturing angle of 360° and a range of up to 20 meters. The detector can be easily mounted on the wall or ceiling. The light duration and sensitivity can be precisely adjusted by means of the adjustment wheels in order to meet the specific requirements. The presence detector provides reliable operation and contributes to the optimization of energy efficiency and safety.

This text is machine translated.
