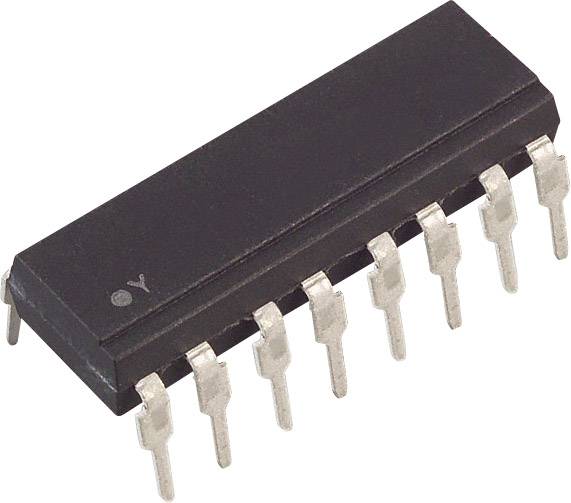

Image similar

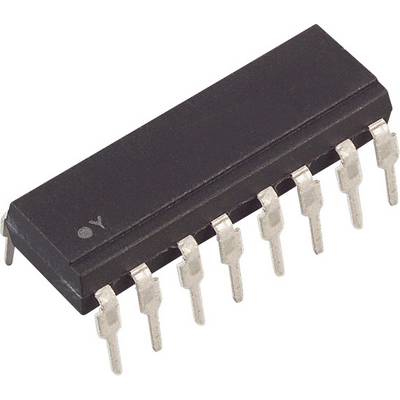

Image similar
Lite-On Opto-isolator - LED controller LTV-844 DIP 16 Transistor AC, DC
EAN:
Part number:
Item no:
Product type
Opto-isolator - LED controller
Enclosure
DIP 16
Forward current I(F)
50 mA
Mounting type
Through-hole
Type
LTV-844
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
3
-
€ 2.34
9
7% = € 0.17
€ 2.17
15
10% = € 0.24
€ 2.10
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 2.34 / piece)
€ 7.02
plus VAT.
14-day return policy included
Technical specifications
- Type
LTV-844
- Product type
Opto-isolator - LED controller
- Enclosure
DIP 16
- Manufacturer
Lite-On
- Manuf. code
LTO
- UF typ.
1.2 V
- Forward current I(F)
50 mA
- Channels
4
- Input type
AC
DC
- Output type
Transistor
- Insulation voltage
5000 V RMS
- Operating temperature (min.)
+100 °C
- Operating temperature (max.)
-30 °C
- Mounting type
Through-hole
- Forward voltage U(F) max
1.4 V
- Forward voltage U(F)
1.2 V
- Slew rate
4 µs
- Fall time
3 µs
- Power output/channel
50 mA
- Power (max) P(TOT)
200 mW
- Voltage output (max.)
35 V
- Current transfer ratio (min.)
20 %
- Current transfer ratio (min.) - current reference
1 mA
- Current transfer ratio (max.)
300 %
- Collector-emitter saturation voltage (max.)
200 mV
- Collector current
50 mA
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 1127409 Lite-On Opto-isolator - LED controller LTV-844 DIP 16 Transistor AC, DC
User & Safety Instructions
User & Safety Instructions 1127409 Lite-On Opto-isolator - LED controller LTV-844 DIP 16 Transistor AC, DC
