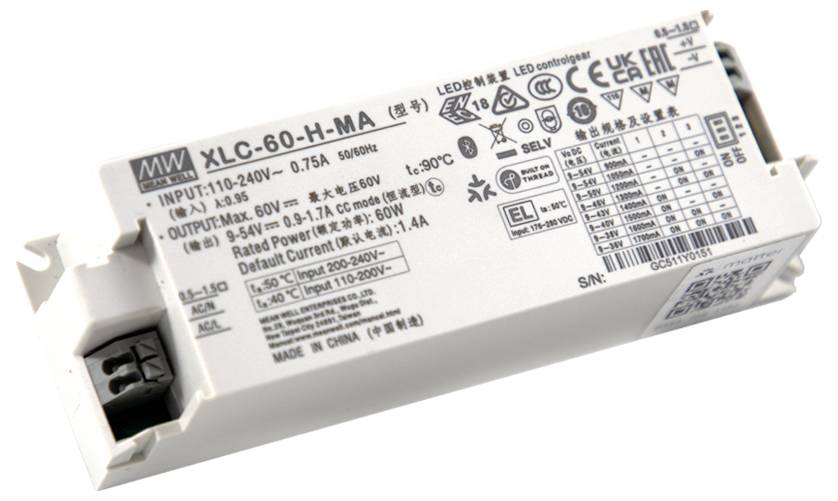

MEAN WELL LED converter 60 W 1700 mA 24 V dimmable, adjustable Max. operating voltage: 300 V
EAN:
Part number:
Item no:
Product type
LED converter
Power
60 W
Connection
Spring-loaded terminal
Output current (max.) - rounded
1.7 A
Output voltage (max.)
24 V
Datasheet (PDF)
Number
Total (€ 40.33 / piece)
€ 40.33
plus VAT.
Only 7 Piece(s) available
Highlights & Details
- Meets the requirements of emergency lighting (EL)
- Minimum dimming value 0.5% mat over thread network , Matt 1.3 specification
- Output current can be set via DIP switch
- DC compatible
- Flicker-free
- Emergency light operation device
Technical specifications
- Interfaces: Mat, push-DIMM
- Operation maintenance 50,000 h
- Min. Input voltage AC 100
- Max. Input voltage AC 305
- Product type
LED converter
- Operating voltage
230 V
- Operating voltage
100 - 300 V
60 W
- LED features
dimmable
adjustable
- Connection
Spring-loaded terminal
Protection class II
- Min. temperature
+85 °C
- Max. temperature
-25 °C
- Dim
(L x W x H) 136 x 45 x 32 mm
- Max. output current
1700 mA
- Output current (max.) - rounded
1.7 A
- Height
32 mm
- Length
136 mm
- Width
45 mm
- Output current (min.)
900 mA
- Output voltage (max.)
24 V
- Output voltage (min.)
24 V
- Min. operating voltage
100 V
- Max. operating voltage
300 V
Documents & Downloads
Datasheet
Datasheet 3431235 MEAN WELL LED converter 60 W 1700 mA 24 V dimmable, adjustable Max. operating voltage: 300 V
User & Safety Instructions
User & Safety Instructions 3431235 MEAN WELL LED converter 60 W 1700 mA 24 V dimmable, adjustable Max. operating voltage: 300 V
Description
The XLC-60-MA series is a 60 W constant power and constant output LED driver that can be operated with 100-305 VAC and has a DIP switch output current of between 900 mA and 1700 mA. Thanks to the high degree of efficiency of up to 90%, it can be operated at a casing temperature of -25°C to -90°C under free air convection. Designed to meet the latest safety requirements, the XLC-60 MA series offers greater flexibility for LED lighting applications.
